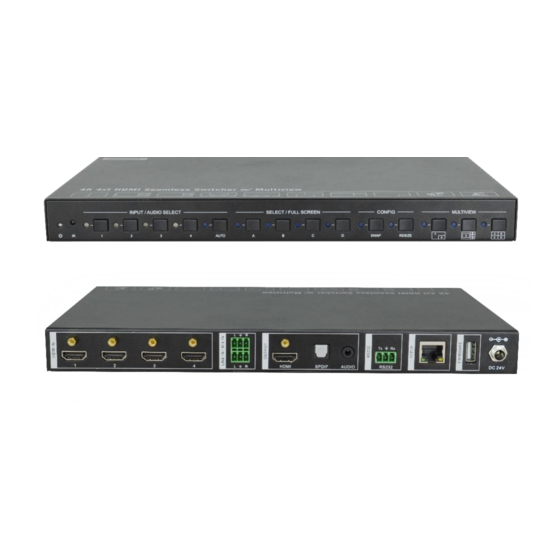

Seada SD-MV-CM41 User Manual

4k 4x1 seamless switcher with multi-view
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SD-MV-CM41
4K 4X1 Seamless Switcher with Multi-view
All Rights Reserved
Version: SD-MV-CM41_2020V1.3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SD-MV-CM41 and is the answer not in the manual?

Questions and answers

Related Manuals for Seada SD-MV-CM41

Summary of Contents for Seada SD-MV-CM41

  • Page 1 User Manual SD-MV-CM41 4K 4X1 Seamless Switcher with Multi-view All Rights Reserved Version: SD-MV-CM41_2020V1.3...

  • Page 2: Table Of Contents

    4K 4x1 Seamless Switcher with Multi-view Table of Contents 1. Product Introduction........................1 1.1 Features .......................... 1 1.2 Package List ........................1 2. Specification ..........................2 3. Panel Description ........................4 3.1 Front Panel ........................4 3.2 Rear Panel ........................5 4.

  • Page 3: Product Introduction

    1x RS232 Cable (3-pin to DB9) 1x Power Adapter (24V DC 1.25A)   1x User Manual  Note: Please contact your distributor immediately if any damage or defect in the components is found. Website: www.seada.co.uk 1 / 33 E-mail: sales@seada.co.uk...

  • Page 4: Specification

    < -70dB, 10kHz sine at 0dBFS level (or max level before clipping) Noise -90dB Audio Format PCM 2CH AUDIO OUT Audio Out (1) AUDIO Audio Out Connector (1) 3.5mm mini jack Frequency Response 20Hz ~ 20kHz, ±1dB Website: www.seada.co.uk 2 / 33 E-mail: sales@seada.co.uk...
  • Page 5 External Power Supply Input: AC 100~240V, 50/60Hz; Output: 24V DC 1.25A. Power Consumption 13w(Max) Dimension (W*H*D) 285mm x 27mm x 172.5mm Net Weight 1.24Kg Note: The resolution 1080i 60Hz and HDR are not supported. Website: www.seada.co.uk 3 / 33 E-mail: sales@seada.co.uk...

  • Page 6: Panel Description

    LED illuminates blue when it is selected. Press the RESIZE button to readjust the windows size, its LED illuminates blue when it is pressed. ⑥ THREE MULTI-VIEWS: Press the buttons to choose different available Multi-view modes, its LED illuminates blue when it is selected Website: www.seada.co.uk 4 / 33 E-mail: sales@seada.co.uk...

  • Page 7: Rear Panel

    ⑤ TCP/IP: RJ45 port to connect the control device (e.g. PC) to control the switcher by GUI. ⑥ FIREWARE: Type-A USB port for firmware upgrade. ⑦ DC 24V: DC connector for power adapter connection. Website: www.seada.co.uk 5 / 33 E-mail: sales@seada.co.uk...

  • Page 8: System Connection

    4K 4x1 Seamless Switcher with Multi-view 4. System Connection Laptop HDMI SPDIF AUDIO RS232 DC 24V Laptop Laptop Laptop Central Control System Laptop Amplifier 4K TV Layout HDMI: Audio: Audio Player RS232: Ethernet: Cascade Connection: Website: www.seada.co.uk 6 / 33 E-mail: sales@seada.co.uk...

  • Page 9: Front Panel Control

     Once detecting a new input signal, the switcher will switch to this new signal automatically.  The switcher will memorize last input source when power off  Manual switching is enabled in the auto switching mode and does not exit it. Website: www.seada.co.uk 7 / 33 E-mail: sales@seada.co.uk...

  • Page 10: Video Switching Status Inquiry

    Example: In the Multi-view mode Example: In the Full Screen mode RESIZE: Press RESIZE button to readjust the windows size. Please refer the GUI Multi-view Tab on page 12 for more details. Example: In the PIP mode Website: www.seada.co.uk 8 / 33 E-mail: sales@seada.co.uk...

  • Page 11: Ir Remote

    USER1-4 button to enter user-defined multi-views mode via GUI control. Note: There is no long pressing function on this IR remote, and its button functions are the same as the front panel buttons. Website: www.seada.co.uk 9 / 33 E-mail: sales@seada.co.uk...

  • Page 12: Gui Control

    Type 192.168.0.178 in the internet browser, it will enter the below log-in webpage: Username: admin Password: admin Type the user name and password, and then click Login to enter the section for video switching. Website: www.seada.co.uk 10 / 33 E-mail: sales@seada.co.uk...

  • Page 13: Multiview Tab

    Resize function.  Press SWAP button to select window display screen anti-clockwise direction.  Click Confirm button complete the selection. Note: Only layout2, layout5~8 and layout9~12, 9 layouts in total, can be resized. Website: www.seada.co.uk 11 / 33 E-mail: sales@seada.co.uk...
  • Page 14  Click 1, 2, 3, or 4 button to choose User Layout.  Select the corresponding input, set the size and position for each window that you want to display on the layout.  Click Save button to present the results above selected. Website: www.seada.co.uk 12 / 33 E-mail: sales@seada.co.uk...

  • Page 15: Audio Tab

     Click On button to enter Mix mode, Click Off button to exit Mix mode.  Click Unmute or Mute button to control Audio Output.  Select one audio input among input 1-4 and line audio to set as output audio. Website: www.seada.co.uk 13 / 33 E-mail: sales@seada.co.uk...

  • Page 16: Resolution Tab

     Click Confirm button when the selection is completed. 7.4 RS232 Tab  ASCII or HEX command format can be selected.  Baud Rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 or 115200. Website: www.seada.co.uk 14 / 33 E-mail: sales@seada.co.uk...

  • Page 17: Cec Tab

     Display On: Send the Display ON via RS232 command.  Display Off: Send the Display OFF via RS232 command. 7.5 CEC Tab Source ①  Click Source button to select HDMI input source, and click Function to enter the basic control. Website: www.seada.co.uk 15 / 33 E-mail: sales@seada.co.uk...
  • Page 18 4K 4x1 Seamless Switcher with Multi-view Display ②  Click Display buttons to control the third-party display devices. User-defined ③  Select corresponding input source devices and display devices to control via CEC commands. Website: www.seada.co.uk 16 / 33 E-mail: sales@seada.co.uk...

  • Page 19: Edid Tab

     User-defined EDID can be customized by the below steps: Step 1: Prepare the EDID file (.bin) on the control PC. Step 2: Select the EDID file (.bin) according the tooltip. Step 3: Click Apply to upload the user-defined EDID. Setting ② Website: www.seada.co.uk 17 / 33 E-mail: sales@seada.co.uk...

  • Page 20: Network Tab

     Click any one of built-in EDIDs for the selected input source device. 7.7 Network Tab  Static IP or Dynamic Host Configuration Protocol (DHCP).  Modify the static IP Address, Subnet Mask, and Gateway. 7.8 Tags Tab  Modify the input button labels. Website: www.seada.co.uk 18 / 33 E-mail: sales@seada.co.uk...

  • Page 21: Security Tab

    Select the desired update file and press “Apply”, it will start upgrading then. Last, check whether where is a reminder named check ok, if yes, the GUI was updated successfully, otherwise, the GUI updating is fail, and then follow the above steps to update again. Website: www.seada.co.uk 19 / 33 E-mail: sales@seada.co.uk...

  • Page 22: Rs232 Control

    1 - HDMI 1 described its usage). 2 - HDMI 2 [PARAM]=Null (Report all commands). 3 - HDMI 3 4 - HDMI 4 OUTPARAM = A ~ D Website: www.seada.co.uk 20 / 33 E-mail: sales@seada.co.uk...

  • Page 23: Signal Switching

    IN 1 2 3 4 status. @AUDIO_SRC 1 Enable/disable auto switching mode. #SET_AUTO_SWITCH 1 #SET_AUTO_SWITCH [PARAM]=0~1. [PARAM] 0 - Disable @AUTO_SWITCH 1 1 - Enable #GET_AUTO_SWITCH Get the auto switching status. @AUTO_SWITCH 1 Website: www.seada.co.uk 21 / 33 E-mail: sales@seada.co.uk...

  • Page 24: Audio Switching

    #SET_FULL_SWAUD screen mode is selected. [PARAM] [PARAM]=0~1. @FULL_SWAUD 1 0 - Disable 1 - Enable Get whether the audio follows the #GET_FULL_SWAUD video switching when full-screen mode @FULL_SWAUD 1 is selected. Website: www.seada.co.uk 22 / 33 E-mail: sales@seada.co.uk...

  • Page 25: Function Setting

    Set the HDCP mode for output port. #SET_OUTPUT_HDCP 1 [PARAM]=1 ~ 3 #SET_OUTPUT_HDCP 1 - HDCP1.4 [PARAM] 2 - HDCP2.2 @OUTPUT_HDCP 1 3 - OFF #GET_OUTPUT_HDCP Get the HDCP mode of output port. @OUTPUT_HDCP 1 Website: www.seada.co.uk 23 / 33 E-mail: sales@seada.co.uk...
  • Page 26 Get the keypad locking status #GET_KEYPAD_LOCK Enter/exit standby mode #SET_POWER 1 [PARAM]=0 ~ 1 #SET_POWER [PARAM] 0 - Standby mode. @POWER 1 1 - Power on mode. #GET_POWER Get the standby status @POWER 1 Website: www.seada.co.uk 24 / 33 E-mail: sales@seada.co.uk...
  • Page 27 @AUDIO_SRC 1 @OUTPUT_RES 7 @AUTO_SWITCH 1 @EDID_MODE 1 2 … @SWAP_SRC @VIDEO #SET_SWAP_SRC Swap input source OUT A B C D IN 1 2 3 4 @AUDIO_SRC 1 #SET_RESIZE_WIM Resize display windows. @RESIZE_WIM Website: www.seada.co.uk 25 / 33 E-mail: sales@seada.co.uk...
  • Page 28 @AUTO_POWER 1 1 - Enable #GET_AUTO_POWER Get the auto stadby function status. @AUTO_POWER 1 #SET_OFF_CNT 1 Set the number of times to send the #SET_OFF_CNT [PARAM] DISPLAY OFF command. [PARAM]=1 ~ 2 @OFF_CNT 1 Website: www.seada.co.uk 26 / 33 E-mail: sales@seada.co.uk...

  • Page 29: Cec Command

    1 - HDMI 1 [PARAM] 2 - HDMI 2 @SRC_DOWN 1 3 - HDMI 3 4 - HDMI 4 Send CEC LEFT command to source #SET_SRC_LEFT device. #SET_SRC_LEFT 1 [PARAM] [PARAM]=1 ~ 4 Website: www.seada.co.uk 27 / 33 E-mail: sales@seada.co.uk...
  • Page 30 @SRC_ON 1 4 - HDMI 4 Send CEC OFF command to source #SET_SRC_OFF 1 device. [PARAM]=1 ~ 4 #SET_SRC_OFF [PARAM] 1 - HDMI 1 2 - HDMI 2 @SRC_OFF 1 3 - HDMI 3 Website: www.seada.co.uk 28 / 33 E-mail: sales@seada.co.uk...
  • Page 31 4 - HDMI 4 Send CEC NEXT command to source device. #SET_SRC_NEXT 1 [PARAM]=1 ~ 4 #SET_SRC_NEXT 1 - HDMI 1 [PARAM] 2 - HDMI 2 @SRC_NEXT 1 3 - HDMI 3 4 - HDMI 4 Website: www.seada.co.uk 29 / 33 E-mail: sales@seada.co.uk...

  • Page 32: Special Command

    Note: The below commands don’t need ending mark. Command & Feedback Command Description Example Set the ASCII command to be sent to display device when power on the #SET_ON_[PARAM]:XXXX switcher. #SET_ON_05:1234567 [PARAM]= 01~07 01 - 115200 Website: www.seada.co.uk 30 / 33 E-mail: sales@seada.co.uk...
  • Page 33 02 - 57600 #SET_OF_[PARAM]:XXXX 03 - 38400 04 - 19200 @BAUDRATE: 9600 05 - 9600 @DISPLAY OFF TO 06 - 4800 SEND:ABCDEFG 07 - 2400 XXXX= ASCII data to be sent (Up to 48 characters). Website: www.seada.co.uk 31 / 33 E-mail: sales@seada.co.uk...
  • Page 34 @BAUDRATE: 9600 06 - 4800 @DISPLAY OFF HEX TO 07 - 2400 SEND:41 42 43 44 45 46 XX XX= HEX data to be sent (X = 0~9, A~F and up to 20 XX). Website: www.seada.co.uk 32 / 33 E-mail: sales@seada.co.uk...

  • Page 35: Firmware Upgrade

    (.bin) should be confirm again, and then follow the above steps to update again. 6) Remove the Type-A USB cable after firmware upgrade. 7) After firmware upgrade, the switcher should be restored to factory default by sending command. Website: www.seada.co.uk 33 / 33 E-mail: sales@seada.co.uk...
