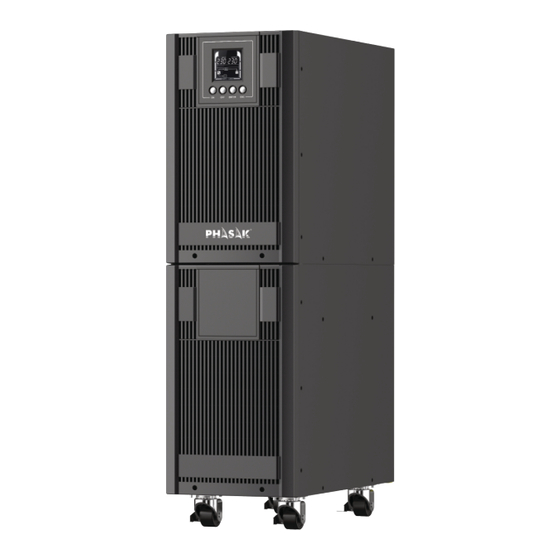

Summary of Contents for Phasak Basic Pro Series

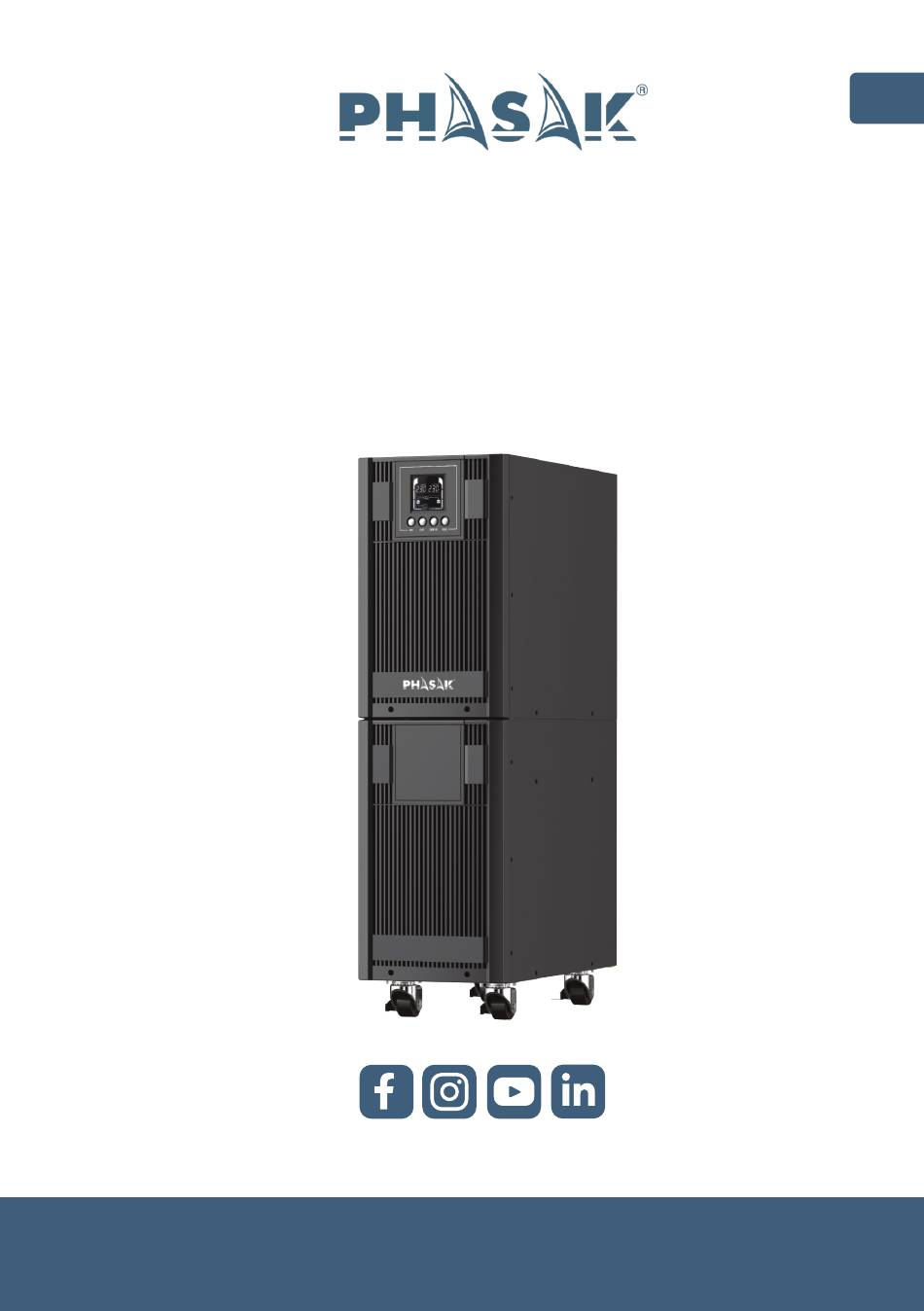

- Page 1 MANUAL Serie Basic Pro PH 8060 · 6000 VA PH 8070 · 7000 VA www.phasak.com Disponible en Español en www.phasak.com/descargas Disponível em Português em www.phasak.com/pt/downloads...
-
Page 2: Table Of Contents
7. Trouble Shooting 7.1. Trouble Shooting According to Warning Indication 25 7.2. Trouble Shooting According to Fault Indication 7.3. Trouble Shooting in Else Cases 8. Battery Maintenance 9. Communication Port 9.1. USB Interface 9.2. RS232 Interface 9.3. Intelligent slot 10.Software Installation www.phasak.com... -
Page 3: Safety
�� The equipment is powered by two sources: the mains source, the internal battery or the external battery source. �� With the installation of the equipment, the sum of the leakage current of the UPS and the connected load does not exceed 5% of rated value of input current. www.phasak.com... -
Page 4: Operation
�� When changing batteries, replace with the same quantity and the same type of batteries. �� Do not attempt to dispose of batteries by burning them. It could cause explosion. �� The UPS may be connected to external battery package. Proper disposal of www.phasak.com... -
Page 5: Transport
EFT............:IEC/EN 61000-4-4 Level 4 SURGE............:IEC/EN 61000-4-5 Level 4 Low Frequency Signals :IEC/EN 61000-2-2 Warning: This is a product for commercial and industrial application in the second environment-installation restrictions or add it ional measures may be needed to prevent disturbances. www.phasak.com... -
Page 6: Description Of Commonly Used Symbols
This manual covers the UPS listed as follows. Please confirm whether it is the model you intend to purchase by performing a visual inspection of the Model No. on the rear panel of the UPS. www.phasak.com... -
Page 7: Feature
This series UPS is a new generation of UPS, which provides the outstanding reliability, and most cost-performance ratio in the industrial. Following benefit the product has: �� True online double-conversion technology with high power density, frequency independence and generator compatibility. www.phasak.com... -
Page 8: Electrical Specifications
(45~55)/(54~66)Hz Range Rated Current Power Factor ≥0.99@full load Battery Rated Voltage 192Vdc 240Vdc 192Vdc 240Vdc Rated Current Output Power Rating 6kVA/5.4kW 10kVA/9kW Voltage* 208/220/230/240Vac Synchronized50/60×(50±10%)Hz @Line mode Frequency 50/60×(50±0.1%)Hz @Battery mode Wave Form sine Load Type PF 0.5~1, lagging www.phasak.com... -
Page 9: Operating Environment
Note: The load capacity should be derated 1% every 100m heightened on the basis of 1000m. 3.4. Dimensions and Weights Model NO. Dimensions W×H×D(mm) Net Weight (kg) 6K(192Vdc) 196*702*412 6K(240Vdc) 196*702*412 6KL(192Vdc/240Vdc) 196*342*412 10K(192Vdc) 196*702*412 63.5 10K(240Vdc) 196*702*412 75.7 10KL(192Vdc/240Vdc) 196*342*412 16.4 www.phasak.com... -
Page 10: Installation
3) Condensation to water drops may occur if the UPS is unpacked in a very low temperature environment. In this case it is necessary to wait until the UPS is fully dried inside out before proceed installation and use. Otherwise there are hazards of electric shock. www.phasak.com... - Page 11 Coil Remotes Swith Fig.4-1 Typical external isolating device installation No matter the UPS is connected to the mains power or not, the output of the UPS may be electrically live. The parts inside the unit may still have hazardous www.phasak.com...
- Page 12 Note: Make sure that the input and output wires and the input and output terminals are connected tightly. INPUT OUTPUT Output N Input L Output L Input N Input Ground Output Ground Fig.4-2 Input and output Terminal Block wiring diagram www.phasak.com...
-
Page 13: External Battery Pack Connecting Procedure
5. The procedure of installing battery pack should be complied with strictly. Otherwise it may encounter the hazardous of electric shock. 1) Ensure the UPS is not powered on and the mains input breaker is set in the "OFF" position. www.phasak.com... -
Page 14: Epo Connection
To recover to normal status, first EPO connector should be closed (Fig.4-4),and press button OFF more than 1 second to clear EPO status, then UPS would stop alarm and recover to Bypass model. And UPS needs be turned on by manual operation. www.phasak.com... -
Page 15: Operation
Press this button to scroll down in the LCD menu. Switch to bypass mode: When the main power is normal, press these two buttons simultaneously for ENTER + ESC 5 seconds, then UPS will enter to bypass mode. www.phasak.com... -
Page 16: Lcd Operation
It will also charge the battery at the same time. The unit will provide output Battery mode power from battery. When the input voltage is within voltage regulation ECO mode range, will bypass voltage to output for energy saving. www.phasak.com... - Page 17 40Hz to 70Hz, the UPS can be Converter mode constant output frequency, 50Hz or 60Hz. Utility will charge the battery Standby mode and no output voltage until switch on the UPS. The UPS is warning because of Warning mode overload. www.phasak.com...
- Page 18 The UPS goes to fault mode Fault mode because output is short. ： LCD displays 6 pages in total Left: AC INPUT(Voltage)V 1(default) Right: OUTPUT(Voltage) V Left: Backup Time(min) Right: Battery voltage(v) Left: Battery capacity percentage(%) Right: Battery voltage(v) www.phasak.com...
- Page 19 UPS and do not turn on UPS. 2、Press the “ENTER” button to select the setting you want to configure. 3、Press the “ESC” buttons to scroll through the different parameters and select the parameter you want. www.phasak.com...
- Page 20 ECO mode is activated when the input voltage is within ECO mode +/-10% of setting output voltage 15%: ECO mode enabled. When selected, ECO mode is activated when the input voltage is within +/-15% of setting output voltage www.phasak.com...
- Page 21 50Hz or 60Hz according to setting program 002.But load capacity will be derated by 40%. EPO: Enable function, selected, user can Power-Off in emergency from remote location.(default) EPO/ROO*** ROO: Enable function, selected, user power ON/OFF from remote location. www.phasak.com...
- Page 22 If selected, UPS will give site wiring fault alarm when line and neutral wiring reverse. (default) Site wiring DIS: Site wiring fault alarm disabled. fault alarm If selected, UPS will not give any alarm when line and neutral wiring reverse. www.phasak.com...
- Page 23 ENA: Short circuit restart enabled. If selected, UPS will auto restart after short circuit fault. Short circuit DIS: Short circuit restart disabled. If restart selected, UPS will not auto restart after short circuit fault. (default) www.phasak.com...
- Page 24 Set the acceptable frequency range for ECO mode. Setting range is from normal output frequency frequency and the default value is range automatic battery tests Automatic period. Setting range is from 0 to battery tests 45days and the default value is period 7days. www.phasak.com...
- Page 25 ****) 1. UPS cannot detect the numbers of external battery automatically, so manual input from user is necessary. 2. For standard models, this setting is disabled. 3.For long run models, the default number is 1. www.phasak.com...
-
Page 26: Special Function
The great virtue is the output frequency is fixed, which is required by some very sensitive loads. But the disadvantage is the load capacity of UPS should be derated to 60% in converter mode. ： Set the function The function could be enabled through the LCD setting. www.phasak.com... -
Page 27: Trouble Shooting
Check the loads and remove some non-critical loads; Over Load Over Load Check if some loads are failed. Charger fail The charge fails Consult dealer Amb NTC The ambient temperature Check the environment abnormal is too high ventilation www.phasak.com... -
Page 28: Trouble Shooting According To Fault Indication
Consult dealer DC Over Bus Over Voltage Consult dealer DC Under Bus Under Voltage Consult dealer Bus Unbalance Consult dealer Unbalance DC soft fail Bus Soft start fail Consult dealer Output soft Output Soft start fail Consult dealer fail www.phasak.com... -
Page 29: Trouble Shooting In Else Cases
Please have the following information at hand before calling the After-Sales Service Department: Model number, serial number. Date on which the problem occurred. LCD display information, Buzzer alarm status. Mains power condition, load type and capacity, environment temperature, ventilation condition. Other information for complete description of the problem. www.phasak.com... -
Page 30: Battery Maintenance
The RS232 port is available for UPS monitoring, control, and firmware updates. 9.3. Intelligent slot This series is equipped with an intelligent slot for other optional card to achieve remote management of the UPS through internet / intranet. Please contact your local distributor for further information. www.phasak.com... -
Page 31: Software Installation
Cotent About Logout Installation procedure: Download Power Master from the website: http://www.powermonitor.software/ Double-click the file and follow the installation steps. When your computer restarts, the Power Master software will appear as a blue icon located in the system tray. www.phasak.com...
