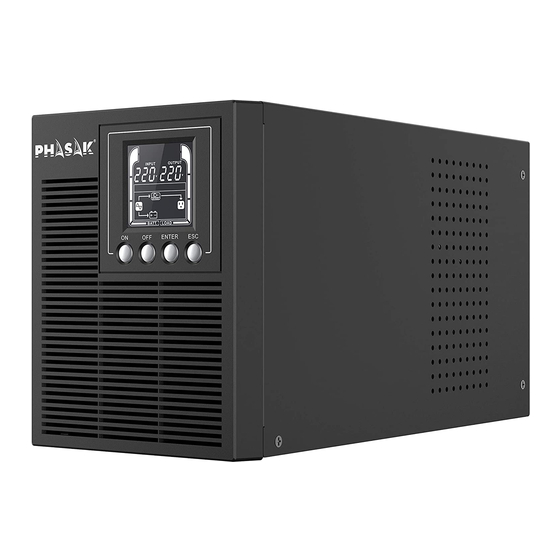

Manual de uso | Manual de utilização | User Manual
Sistema de Alimentación Ininterrumpida
Sistema de Alimentação Ininterrupta
Uninterruptible Power Supply
SAI ONLINE
UPS ONLINE
ONLINE UPS
PH 9210 | PH 9220 | PH 9230 | PH 9260
ES
PT
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PH 9210 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phasak PH 9210

  • Page 1 SAI ONLINE 2000 UPS ONLINE 3000 ONLINE UPS 6000 Manual de uso | Manual de utilização | User Manual Sistema de Alimentación Ininterrumpida Sistema de Alimentação Ininterrupta Uninterruptible Power Supply PH 9210 | PH 9220 | PH 9230 | PH 9260...
  • Page 2 Seguridad y armonía ININTERRUMPIDA ESPAÑOL PORTUGUÊS INGLÊS PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 3: Table Of Contents

    Descripción del modo operativo 3.7. Código de fallo 3.8. Indicadores de advertencia 4. Solución de problemas 5. Almacenamiento y mantenimiento 6. Especificaciones PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 4: Aviso Importante Sobre Seguridad

    NOTA: Antes de la instalación, por favor, compruebe la unidad. Asegúrese de que nada en el interior del embalaje esté dañado. Por favor, mantenga el embalaje original en un lugar seguro para un futuro uso. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 5: Instalación Y Configuración

    Al concluir las conexiones, compruebe que los cables están bien sujetos. d) Vuelva a colocar la tapita del bloque de terminales. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 6 4. Cuando reinicie su PC, verá un icono de color naranja, en el área de notificaciones, cerca del reloj de su PC (abajo a la derecha). Paso 8: Conexión de la batería externa. Para la conexión de batería externa, véase la siguiente figura. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 7: Operaciones

    ON/Mute + Select en modo bypass. Esta función no será posible cuando el voltaje de entrada está fuera un rango aceptable. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 8: Panel Lcd

    Indica un cortocircuito en la salida del SAI o en la carga conectada. Información de las salidas programables Indica que las tomas programables están funcionando PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 9: Alarma Acústica

    3.4. Indicación del display LCD Abreviaciones Indicación del Display Significado Habilitado Deshabilitado Escape Fuerte pérdida Pérdida baja Batería Convertidor Ventilador Temperatura Carga batería PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 10: Configuración Sai

    Si está en modo convertidor, puede elegir entre las siguientes frecuencias de salida: CF 50: Frecuencia de salida a 50Hz CF 60: Frecuencia de salida a 60Hz PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 11 LLS: By-pass límite de baja tensión. Modelos 208/220/230/240 VAC: 170-220: el límite de baja tensión en el parámetro 3 es de 170Vac a 220Vac. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 12 0-999: ajusta el tiempo de autonomía (durante el modo batería) de 0 a 999 minutos para las salidas programables conectadas a dispositivos no críticos. 00: Ajustes de salida PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida...
  • Page 13: Descripción Del Modo Operativo

    10 segundos, el SAI emite una alarma. Cuando el SAI se apaga, no alimenta la salida, pero también Modo Espera carga la batería. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 14: Código De Fallo

    Sobrecalentamiento Sonido cada segundo Sonido cada segundo Error de carga de batería Bypass fuera de rango Sonido cada segundo de voltaje PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 15: Solución De Problemas

    SAI. del SAI están en cortocircuito. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 16 Póngase en contacto con su servicio en el display LCD y la alarma suena alto o el cargador falla. asistencia. cada segundo PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 17: Almacenamiento Y Mantenimiento

    Frecuencia de recarga Duración de la carga -25°C - 40°C Cada 3 meses 1-2 horas 40°C - 45°C Cada 2 meses 1-2 horas PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentación Ininterrumpida ININTERRUMPIDA...
  • Page 18: Especificaciones

    * Reducir la capacidad del SAI al 60% en la explotación de un convertidor de frecuencia y el 80% cuando el voltaje de salida se ha fijado en 208VAC. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía...
  • Page 19 Descrição do modo operativo 3.7. Código de erro 3.8. Indicadores de alerta 4. Solução de problemas 5. Armazenamento e manutenção 6. Especificações PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 20: Aviso Importante De Segurança

    NOTA: Antes da instalação, por favor revise a unidade. Assegure-se de que não existe nenhum item danificado no interior da embalagem. Por favor, mantenha a embalagem original em um lugar seguro para uso futuro. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 21: Instalação E Configuração

    Recomenda-se o uso de cabos tipo AWG14 ou 2.1mm2. c) Após a conclusão das ligações, verifique se os cabos estão firmes. d) Recoloque a tampa do bloco de terminais. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 22 4. Quando reiniciar o PC, o software é apresentado como um ícone laranja no canto inferior do ecrã (no tabuleiro do sistema) perto do relógio. Passo 8: Conexão da bateria externa Para a conexão de bateria externa, veja a figura seguinte PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 23: Operações

    ON/Mute e Select por 5 segundos e a UPS mudará para Select modo bypass. Esta função não é possível quando a tensão de entrada está fora da faixa aceitável. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 24: Painel Lcd

    Indica um curto-circuito na saída da UPS ou no equipamento conectado. Informação das saídas programáveis Indica que as tomadas programáveis estão a trabalhar. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 25: Alarme Acústico

    3.4. Indicação do display LCD Abreviatura Indicação do Display Significado Activo Desactivado Escape Grande perda Perda baixa Bateria Conversor Ventilador Temperatura Carga bateria PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 26: Configuração Da Ups

    Se estiver no modo Converter, pode-se eleger entre as seguintes frequências de saída: CF 50: Frequência de saída 50Hz CF 60: Frequência de saída 60Hz PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 27 LLS: Bypass limite de baixa tensão. Modelos 208/220/230/240 VAC: 170-220: O limite de baixa tensão no parâmetro 3 é 170Vac a 220Vac. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 28 0-999: ajusta o tempo de autonomia (durante o modo bateria) de 0 a 999 minutos para as saídas programáveis conectadas aos dispositivos não críticos. 00: Ajustes de saída PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 29: Descrição Do Modo Operativo

    Quando a UPS é desligada, não tira potência, mas também Modo Espera carrega a bateria. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 30: Código De Erro

    Sobre aquecimento Soando cada segundo Soando cada segundo Erro da carga da bateria Bypass fora da gama de Soando cada segundo tensão PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 31: Solução De Problemas

    LCD e o dispositivos conectados à saída da UPS. alarme soa continuamente. UPS estão em curto-circuito. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 32 O ventilador está bloqueado ou Verifique o ventilador e informe o seu piscam no display LCD e o alarme danificado. revendedor. soa cada segundo. PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 33: Armazenamento E Manutenção

    Frequência de recarregamento Duração do carregamento -25°C - 40°C Cada 3 meses 1-2 horas 40°C - 45°C Cada 2 meses 1-2 horas PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta ININTERRUMPIDA...
  • Page 34: Especificações

    * Reduzir a capacidade da UPS a 60% em operação de um conversor de frequência e 80% quando a tensão de saída é fixado em 208VA PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Sistema de Alimentação Ininterrupta...
  • Page 35 3.5. UPS Setting 3.6. Operating Mode Description 3.7. Faults Reference Code 3.8. Warning indicator 4. Troubleshooting 5. Storage and Maintenance 6. Specifications PH 9210 | PH 9220 | PH 9230 | PH 9260 Seguridad y armonía Uninterruptible Power Supply ININTERRUMPIDA...
  • Page 36: Important Safety Warning

    NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia...
  • Page 37: Installation And Setup

    Upon completion of the wiring configuration, please check whether the wires are securely affixed. d) Put the small cover back to the rear panel. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply...
  • Page 38 4. When your computer restarts, the monitoring software will appear as an orange plug icon located in the system tray, near the clock. Step 8: External battery connection Follow below chart to make external battery connection: PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply ININTERRUPTA...
  • Page 39: Operations

    5 seconds. Then UPS will enter to bypass mode. This Button action will be ineffective when the input voltage is out of acceptable range. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply...
  • Page 40: Lcd Panel

    Indicates overload. Indicates the load or the UPS output is short circuit. Programmable outlets information Indicates that programmable management outlets are working. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply ININTERRUPTA...
  • Page 41: Audible Alarm

    Bypass Mode 3.4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery Converter Temperature Charger PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply ININTERRUPTA...
  • Page 42: Ups Setting

    If converter mode is enabled, you may choose the following output frequency: CF 50: present output frequency is 50Hz CF 60: present output frequency is 60Hz PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply...
  • Page 43 LLS: Bypass low voltage point For 208/220/230/240 VAC models: 170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply ININTERRUPTA...
  • Page 44 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to non-critical devices on battery mode. 00: Exit setting PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply...
  • Page 45: Operating Mode Description

    Alarm is sounding every 10 second. UPS is powered off and no output supply power, but still can Standby mode charge batteries. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply ININTERRUPTA...
  • Page 46: Faults Reference Code

    Fan Failure Sounding every second Over temperature Sounding every second Sounding every second Charger failure Out of bypass voltage Sounding every second range PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply ININTERRUPTA...
  • Page 47: Troubleshooting

    Check output wiring and if connected icon is lighting on LCD display UPS output. devices are in short circuit status. and alarm is continuously sounding. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply ININTERRUPTA...
  • Page 48 Fan is locked or not working flashing on LCD display and alarm is Check fans and notify dealer. sounding every second. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptable Power Supply ININTERRUPTA...
  • Page 49: Storage And Maintenance

    Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months 1-2 hours 40°C - 45°C Every 2 months 1-2 hours PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia Uninterruptible Power Supply ININTERRUPTA...
  • Page 50: Specifications

    Power management from SNMP manager and web browser * Derate capacity to 60% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 208VAC. PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia...
  • Page 51 NOTAS | NOTAS | NOTES PH 9210 | PH 9220 | PH 9230 | PH 9260 Segurança e harmonia ININTERRUPTA...
