Summary of Contents for Phasak Rack Online Series

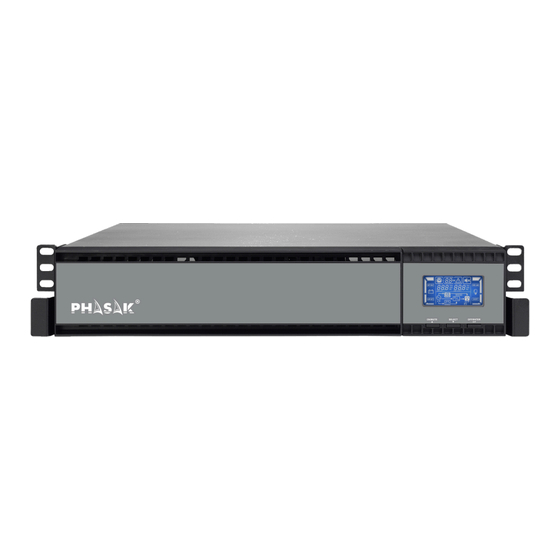

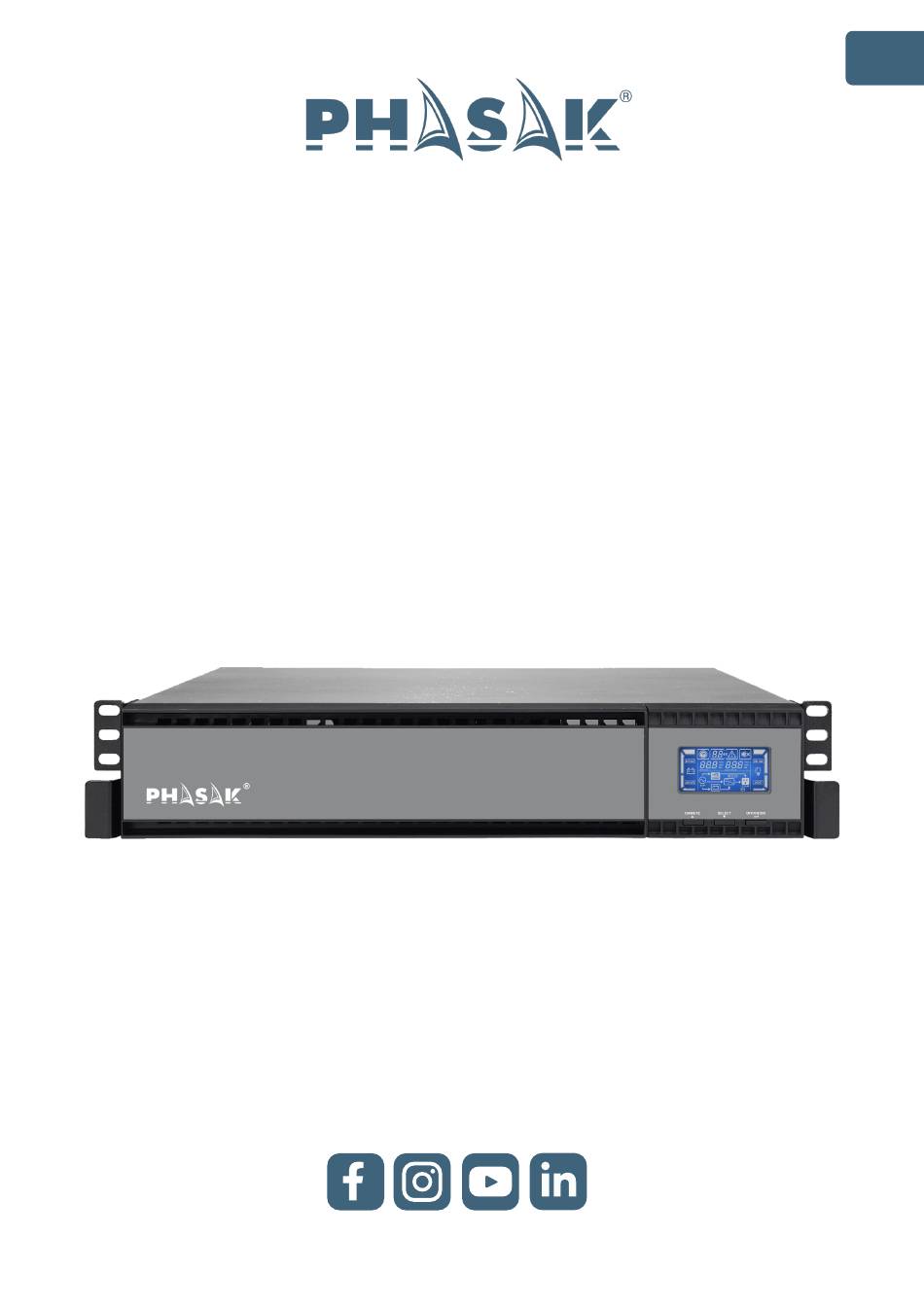

- Page 1 MANUAL Serie Rack Online PH 9310 · 1000 VA / PH 9315 · 1500 VA PH 9320 · 2000 VA / PH 9330 · 3000 VA www.phasak.com...
-
Page 2: Table Of Contents
2. 5. Battery kit assembly (option) 3. Operations 3.1. Button operation 3.2. LCD Panel 3.3. Audible Alarm 3.4. LCD display wordings index 3.5. UPS Setting 3.6. Operating Mode Description 3.7. Faults Reference Code 3.8. Warning indicator 4. Troubleshooting 5. Storage and Maintenance 6. Specifications www.phasak.com... -
Page 3: Important Safety Warning
• Please replace the fuse only with the same type and amperage in order to avoid fire hazards. • Do not dismantle the UPS system. NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. www.phasak.com 38 38... -
Page 4: Installation And Setup
Remove the small cover of the terminal block. b) Suggest using AWG14 or 2.1mm2 power cords. c) Upon completion of the wiring configuration, please check whether the wires are securely affixed. d) Put the small cover back to the rear panel. www.phasak.com... - Page 5 CD into CD-ROM to install the monitoring software. If not, please follow steps below to download and install monitoring software from the internet: 1. Go to the website http://www.phasak.com/descargas 2. Click ViewPower software icon and then choose your required OS to download the software.
-
Page 6: Battery Replacement
Remove the top cover of After replacing the batteries, Re-connect the battery wires. battery box and replace put the battery box back to the inside batteries. original location and screw it tightly. Step 7 Put the front panel back to the unit. www.phasak.com... -
Page 7: Battery Kit Assembly (Option)
Step 4 Tape Remove adhesive tapes. Connect all battery Put assembled battery packs Cover the other side of terminals by following on one side of plastic shells. plastic shell as below upper chart. chart. Then, battery kit is assembly well. www.phasak.com... -
Page 8: Operations
• Switch to bypass mode: When the main power is normal, press ON/Mute and Select ON/Mute + Select buttons simultaneously for 5 seconds. Then UPS will enter to bypass mode. This Button action will be ineffective when the input voltage is out of acceptable range. www.phasak.com... -
Page 9: Lcd Panel
Vac: output voltage, Vdc: battery voltage, Hz: frequency Load information Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates overload. Indicates the load or the UPS output is short circuit. Programmable outlets information Indicates that programmable management outlets are working. www.phasak.com 44 44... -
Page 10: Audible Alarm
Low Battery Sounding every second Overload Sounding twice every second Fault Continuously sounding Bypass Mode Sounding every 10 seconds 3.4. LCD display wordings index Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery Converter Temperature Charger www.phasak.com... -
Page 11: Ups Setting
BAT 50: present output frequency is 50Hz BAT 60: present output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: present output frequency is 50Hz CF 60: present output frequency is 60Hz www.phasak.com 46 46... - Page 12 For 208/220/230/240 VAC models: 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. LLS: Bypass low voltage point For 208/220/230/240 VAC models: 170-220: setting the low voltage point in parameter 3 from 170Vac to 220Vac www.phasak.com...
- Page 13 09: Programmable outlets setting Interface Setting Parameter 3: Set up backup time limits for programmable outlets. 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to non-critical devices on battery mode. 00: Exit setting www.phasak.com 48 48...
-
Page 14: Operating Mode Description
Bypass mode overload, UPS will enter bypass mode or bypass mode can be set by front panel. Alarm is sounding every 10 second. UPS is powered off and no output supply power, but still can Standby mode charge batteries. www.phasak.com... -
Page 15: Faults Reference Code
Sounding every second Site wiring fault Sounding every second Sounding every second EPO enable Fan Failure Sounding every second Over temperature Sounding every second Sounding every second Charger failure Out of bypass voltage Sounding every second range www.phasak.com 50 50... -
Page 16: Troubleshooting
Fault code is shown as 14 and the because short circuit occurs on the Check output wiring and if connected icon is lighting on LCD display UPS output. devices are in short circuit status. and alarm is continuously sounding. www.phasak.com... - Page 17 Contact your dealer to replace the Batteries defect battery. The icon and the warning code Fan is locked or not working flashing on LCD display and alarm is Check fans and notify dealer. sounding every second. www.phasak.com 52 52...
-
Page 18: Storage And Maintenance
Before storing, charge the UPS 5 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table: Storage Temperature Recharge Frequency Charging Duration -25°C - 40°C Every 3 months 1-2 hours 40°C - 45°C Every 2 months 1-2 hours www.phasak.com... -
Page 19: Specifications
Supports Windows® 98/2000/2003/XP/Vista/2008/ 7, Linux, Unix and MAC Power management from SNMP manager and web browser Optional SNMP * Derate capacity to 60% of capacity in Frequency converter mode and to 80% when the output voltage is adjusted to 200/208VAC. www.phasak.com 54 54...
