Summary of Contents for CASO DESIGN 2974

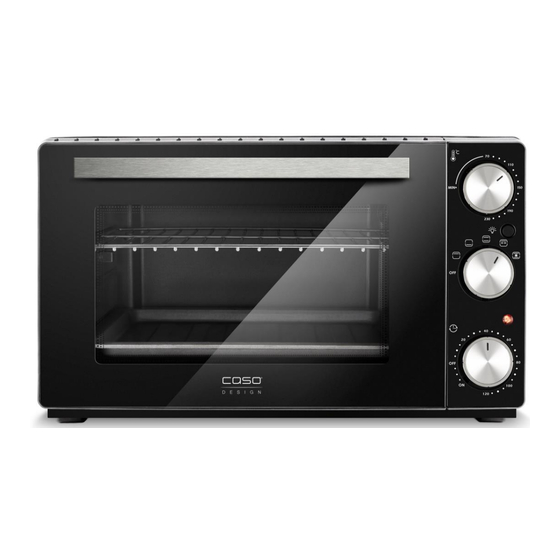

- Page 1 Original Operating Manual Freestanding oven TO 26 Classic Item No. 2974...
- Page 2 11 Operating Manual 11.1 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your TO 26 Classic will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it! 11.2 Information on this manual These Operating Instructions are a component of the TO 26 Classic (referred to hereafter as...
- Page 3 11.4 Limitation of liability All the technical information, data and notices with regard to the installation, operation and care are completely up-to-date at the time of printing and are compiled to the best of our knowledge and belief, taking our past experience and findings into consideration. No claims can be derived from the information provided, the illustrations or descriptions in this manual.
- Page 4 12.2 General Safety information Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Read all these instructions before using the device. ► Examine the device for any visible external damages prior to using it.
- Page 5 Please note ► The device is not intended to be operated by means of an external timer or separate remote-control system. ► Unplug from the outlet when not in use and before cleaning and before assembling or deassembling parts. ► Use only the accessory recommeded by the manufacturer or the device could be damaged.
- Page 6 Warning ► Let the device cool down before assembling/deassembling of parts and before cleaning. ► Pay attention while handling the device especially if it is full of hot food. ► Keep children away from the device, since the surfaces of the device become hot during use and remain hot for a some time.
- Page 7 12.3.3 Dangers due to electrical power Danger Mortal danger due to electrical power! Mortal danger exists when coming into contact with live wires or subassemblies! Observe the following safety notices to avoid dangers due to electrical power: ► Do not open the housing on the device under any circumstances.
- Page 8 13.3 Unpacking Remove the device out of the carton, remove the packaging material, shovel and measuring container. 13.4 Disposal of the packaging The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.
-
Page 9: Design And Function
13.5 Electrical connection In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection: • Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device. - Page 10 14.2 Overview 1 Rotisserie 2 Grill rack 3 Lighting: button for switching the interior lighting on and off 4 Baking tray 5 Control lamp: The control lamp is on when the device is in operation. 6 Ventilation slots 7 Heating elements (upper and lower) 8 Crumb tray...
- Page 11 14.3 Accessories 1 Baking tray: Use for grilling, roasting and baking. Cover with baking paper or aluminium foil for easier cleaning. 2 Grill rack - use for grilling, frying or roasting. 3 Removal assistance for grill rack 4 Rotisserie - For evenly grilling of meat for example poultry. 5 Removal assistance for rotisserie 6 Pizza stone 7 Crumb tray - For safe and easy remove of crumbs.
-
Page 12: Operation And Handing
14.6 Knob for function upper heat lower heat upper heat and lower heat grill function for the rotisserie. The rotisserie rotates and the upper heating elements are on. convection 14.7 Knob for timer Set the desired time clockwise, the control lamp lights up. A beep will sound when the desired time is over and the device will turn off. - Page 13 15.1 Before first use Remove all accessory from the inside of the device, clean them with soapy water and dry them after this. Wipe the bottom and the top of the interior with a damp cloth and thoroughly dry the interior after this. The heating elements have a protection layer.
-
Page 14: Cleaning And Maintenance
16 Cleaning and Maintenance This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to cleaning the device incorrectly and to ensure trouble-free operation. 16.1 Safety information Attention Please observe the following safety notices, before you commence with cleaning the device: ►... -
Page 15: Disposal Of The Old Device
17.1 Safety notices Attention ► Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment. ► Improperly performed repairs can cause considerable dangers for the user and damages to the device. 17.2 Causes and rectification of faults The following table assists in localizing and rectifying minor faults. -
Page 16: Technical Data
(always provide us with proof of purchase). 20 Technical Data Device Freestanding oven Name TO 26 Classic Item No.: 2974 Mains data 220-240V~50/60Hz Power consumption 1400-1650W External measurements (W x H x D): 48 x 30 x 40 cm Net weight...
