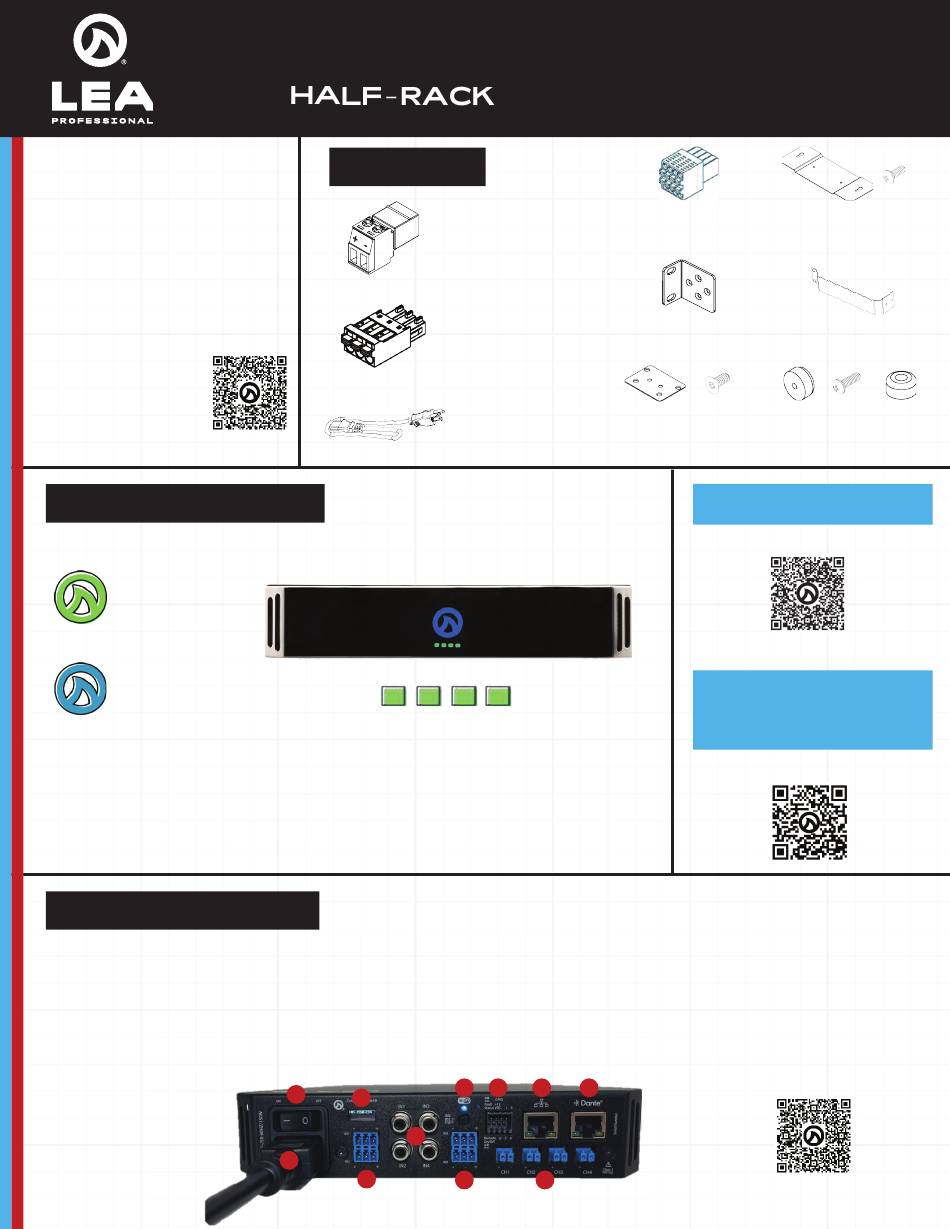

Lea Connect Series Quick Start Manual

The CONNECT SERIES Half-Rack is a 1U
mountable smart amplifier for use in
professional AV integration projects.
It is made to mount directly into a standard
AV rack, right out of the box. Additionally,
you can rotate the rack ears 90 degrees
either direction to mount the amplifier to
walls, tables, and other surfaces.
Ensure your AC power source delivers
100-240VAC +/- 15% 50/60Hz
before installing.
Downloads
For full product details and
specs, download the
manual at the URL below or
scan the QR code.
www.leaprofessional.com/downloads
Front Panel Overview
Shark Fin LED
Green Fin
AC plugged in
Unit powered off
Via Remote On/Off
GPIO pin
Blue Fin
AC plugged in
Unit powered on
Channel Status Indicators
Channel Fault - If LEDs are pulsing red (1 second on, 1 second off) channel has shut down due to protected circuits.
Channel Thermal - If LEDs are alternating between amber and red channel is at or close to over temp.
Channel Clip - A red LED indicates a clipping signal, an amber LED indicates channel is limiting.
Signal Presence - A green LED indicates -40dB of signal is present on that channel.
Channel Ready - A white LED indicates channel is ready to pass audio.
Back Panel Overview
1. IEC Type Inlet
For detachable IEC connector
100VAC-240VAC 50/60Hz
6. Analog Balanced Inputs
3-position input receptacles
switchable between mic and
line level input
CONNECTSERIES
In The Box
1
For model-specific views and back panel explanations, scan the
QR code below to view and download the user's manual.
2. Power Button 3.
ON/OFF switch
O=OFF I=ON
7. Wi-Fi Access Point 8.
Enable/Disable button
with status LED
AP=Blue Wi-fi=Green
2
10
1
6
Q u i c k
2-Position Amphenol 2-Position Amphenol
Anytek Output Connector Anytek Output Connector
Qty 1 (per output channel) Qty 1 (per output channel)
LEA Part #: CPP10008-1 LEA Part #: CPP10008-1
3-Position Amphenol
Anytek Input Connector
Qty 1 (per output channel)
LEA Part #: CSP10006-1
Standard IEC Power Cord
Qty 1
LEA Part #: MOS10013-1
2 3 4
GPIO Port 4.
With remote ON/OFF
& Fault Status
FAST 10/100MB Ethernet 9.
Cat5 or Cat6 input for
control, monitoring and POE
7 3 8 9
5
6 4
S t a r t G u i d e
8-Pin I/O Input Connector
Qty 1
LEA Part #: CSP10004-1
Detachable Rack Ears
Qty 2
LEA Part #: MFM1002-1
1/2 Rack Blank Plate
Qty 1
LEA Part #: MFM10034-1
Flat Screws [4] MSI10002-1
For more information and instructions on various
mounting options, scan the adjacent QR code.
Mounting Options
For more information on amplifier indicator
states or troubleshooting, scan the adjacent
QR Code or email our technical support team:
techsupport@leaprofessional.com
Training Videos
Channel Outputs 5.
2-position output receptacles
for up to 4 channels
Dante Input 10.
Single Dante input for 48kHz
Dante Networks
Wall/Behind TV Mount
Qty 1
LEA Part #: MFM10035-1
Pan Screws [2] MSI10009-1
19" Rack Mount Hardware
Qty 1
LEA Part #: MFM10033-1
Feet
Qty 4
LEA Part #: MOS10029-1
Pan Screws [4] MSI10011-1
RCA Unbalanced Inputs
RCA inputs are in parallel with
the Analog Balanced inputs
LCD Display
Networking information
Manual
