Akytec PR200 User Manual

Programmable relay
Hide thumbs Also See for PR200:

Advertisement

Quick Links

Download this manual
PR200

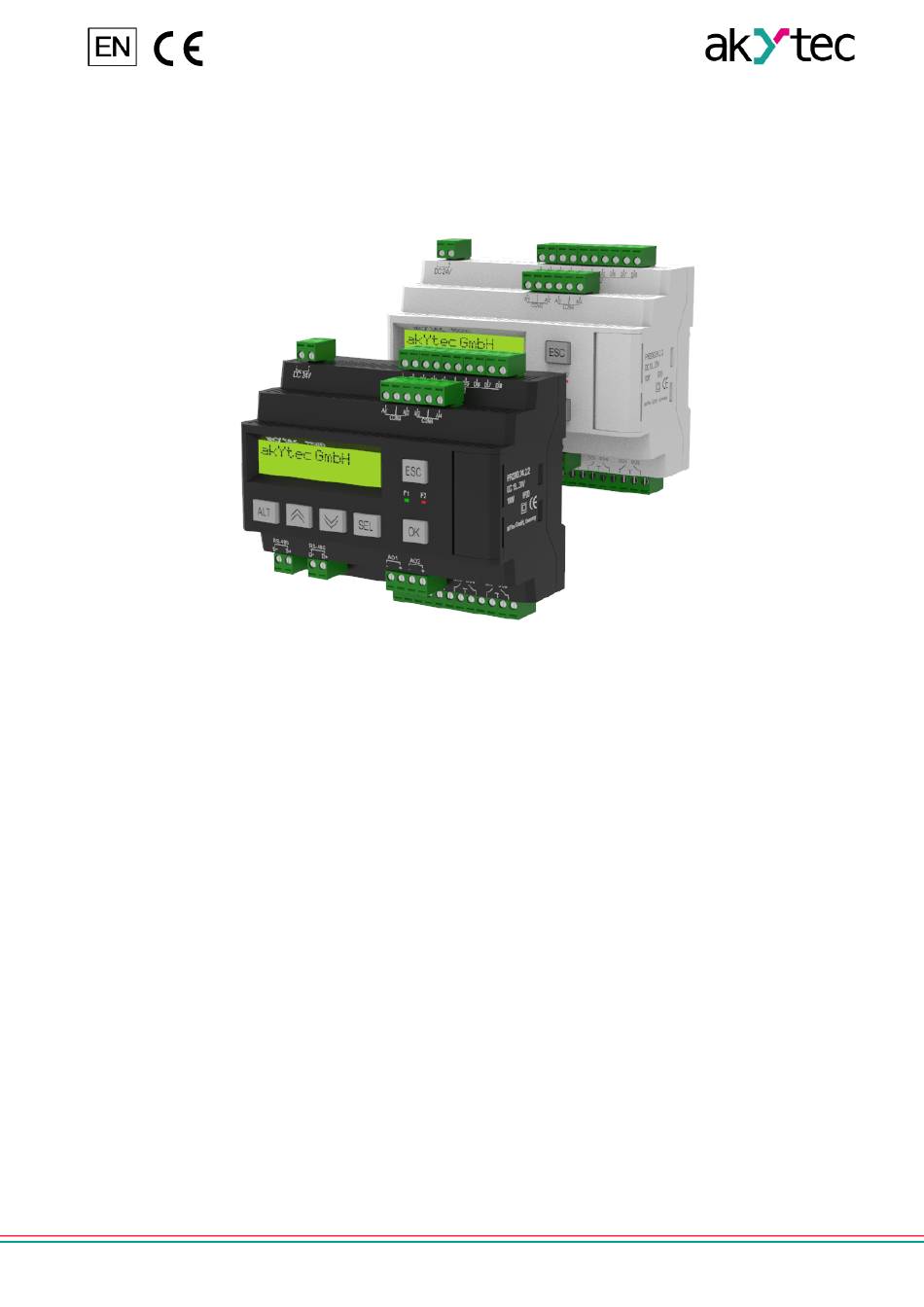

Programmable relay
User guide
PR200_3-EN-132028-1.4
© All rights reserved
Subject to technical changes and misprints
akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the PR200 and is the answer not in the manual?

Questions and answers

Related Manuals for Akytec PR200

Summary of Contents for Akytec PR200

  • Page 1 PR200 Programmable relay User guide PR200_3-EN-132028-1.4 © All rights reserved Subject to technical changes and misprints akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 2 6.4. Display programming ....................31 6.5. Service modes......................31 6.5.1. RUN-STOP mode....................31 6.5.2. DOWN mode ....................31 6.6. I/O mode ........................31 6.7. Error mode .........................32 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 3 Appendix A. Terminal layouts ....................38 Appendix B. Calibration ......................42 B.2.1. Output 4-20 mA ....................43 B.2.2. Output 0-10 V ....................44 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 4 – The device may not be used in explosive environment. – The device may not be used in atmosphere in which there are chemically active substances. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 5 Only by akYtec GmbH recommended extension modules may be connected to the relay. The relay may be operated only in properly installed condition. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 6 5 – 8 DI, 4 AI, 8 DO (relay), 4 K (transistor) Interfaces 0 – none 1 – RS485 2 – 2 × RS485 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 7 5 A, 250 V AC (resistive load) Switching capacity 3 A, 30 V DC Load current at 5 V DC, min. 10 mA akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 8 Table 3.8 Real-time clock Parameter Value Accuracy ±3 s/day (25°C) Correction -2.75…+5.5 min/month Backup, min. 8 years Backup battery CR2032 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 9 2000 m above sea level Altitude EMC immunity conforms to IEC 61000-6-2 EMC emission conforms to IEC 61000-6-4 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 10 Debouncing – time constant for contact bounce suppression filter. It can be set in the range of 0… 255 ms. The setting 0 disables the filter. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 11 Non-observance can cause damage to the device. Fig. 4.2 Property Box for analog input 4.4.1 Analog mode Configurable parameters: akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 12 Fig. 4.4 Input jumper positions 1) 0-10 V, 2) 4-20 mA, 3) digital mode, 4) 0-4000 ohm The lower and upper measuring limits must be set to scale the input signal. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 13 See ALP Help for further information about analog output configuration. 4.6 Transistor outputs Configurable parameters: – Output mode – output cntrol mode: On/Off or PWM akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 14 – Timeout – maximum time to wait for reply (0…65535 ms); – Status variable – status of slave device (BOOL variable); akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 15 Following parameters can be set for Master: – Name – device name in the configuration tree – Address – device address in the Modbus network akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 16 AI1 decimal point (DP) UINT16 0x0BC0 0x03, UINT * 0x04 3009 AI2 decimal point (DP) UINT16 0x0BC1 0x03, UINT * 0x04 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 17 0x0A00, 0x03, REAL32 0x0A01 0x04 2562, 2563 Output K2 in PWM mode RW** 0x0A02, 0x03, REAL32 0x0A03 0x04 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 18 For outputs DP = 4 (constant) ** Output status can be only written via network in I/O mode (Sect 6.6). akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 19 4. Connect the terminal blocks with existing wiring to the device. Reverse this procedure after replacing the device. Fig. 5.2 Quick replacement akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 20 5 Montage 5.1 Galvanic isolation Model Galvanic isolation PR200-230.1.Х.Х PR200-230.2.Х.Х PR200-230.3.Х.Х PR200-230.4.Х.Х PR200-230.5.Х.Х akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 21 5 Montage Model Galvanic isolation PR200-24.1.Х.Х PR200-24.2.Х.Х PR200-24.3.Х.Х PR200-24.4.Х.Х PR200-24.5.Х.Х akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 22 24 VDC integrated voltage source ** OUT 24V+ 24 VDC integrated voltage source ** OUT 24V- DO1 digital output — DO1...DO2 common contact akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 23 Table 5.3 Terminals for transistor outputs Marking Description x.5.x Output K1 Output K2 COM5 K1...K4 common contact Output K3 Output K4 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 24 Different sensors can be connected within a group. For example, AI1 can be configured as digital and AI2 as analog 4-20 mA. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 25 The transistor output wiring is shown in the figure 5.10. To prevent the transistor from failing due to high self-induction current, diodes VD1...VD4 should be installed parallel to the winding of external relays P1...P4. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 26 Fig. 5.11 Extension modules connection Maximum two PRM modules can be connected to PR200 in series. Mount the modules on the DIN rail to the right of the PR200 and connect them using the supplied 4.5 cm flat cable. PRM has two EXT connectors located under the right and left front covers. The connector under the left cover is used to connect the 1st PRM to the PR200.
  • Page 27 3. Replace the device. 4. Connect the terminal blocks with existing wiring to the device. Fig. 5.13 Quick replacement akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 28 2. input process image update 3. program execution for one cycle 4. output process image update 5. back to 1 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 29 The first editable element starts flashing. buttons to change the parameter. To move between characters, use the button combinations: akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 30 If a parameter has been changed in the edit mode, it must be transferred to the ALP project using the Read button in the corresponding dialog window. Menu structure Fig. 6.3 System menu Inputs – Digital akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 31 The item is hidden if there are no modules connected. – Password Password can be set or changed. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 32 If any PRM modules are connected to the device, polling them via RS485 is impossible. To activate the I/O mode see sect. 6.5.1. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 33 7. Press button to move to the next editable parameter or hold button for 3 seconds to exit edit mode. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 34 6. Wait for the process to complete. If problems were not resolved after a forced firmware update, contact technical support. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 35 4. Install a new battery. 5. Perform the disassemble operations in reverse order to assemble the device. Fig. 8.1 Front cover removing akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 36 8 Maintenance Fig. 8.2 Top PCB removing Fig. 8.3 Back side view of the top PCB akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 37 Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 38 10 Scope of delivery 10 Scope of delivery PR200 Short guide Terminal blocks (set) akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 39 Appendix A. Terminal layouts Appendix A. Terminal layouts Fig. A.1 PR200-230.1.2 Fig. A.2 PR200-230.2.2 Fig. A.3 PR200-230.3.2 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 40 Appendix A. Terminal layouts Fig. A.4 PR200-230.4.2 Fig. A.5 PR200-230.5.2 Fig. A.6 PR200-24.1.2 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 41 Appendix A. Terminal layouts Fig. A.7 PR200-24.2.2 Fig. A.8 PR200-24.3.2 Fig. A.9 PR200-24.4.2 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 42 Appendix A. Terminal layouts Fig. A.10 PR200-24.5.2 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 43 6. Select the device model in the open dialog window. 7. Select Analog inputs as calibration target 8. Select the type of input signal and other calibration parameters. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 44 6. Start ALP and select the menu item Device > Calibration to start the calibration tool. 7. Select the device model in the open dialog window. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
  • Page 45 7. Enter the measured output voltage in the input field. 8. Click Next to continue and follow the instructions. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
