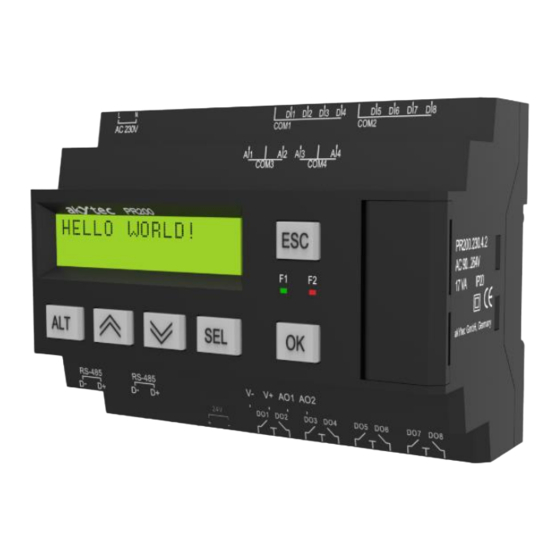

- Page 1 PR200 Programmable relay User guide PR200_2020.02_0309_EN © All rights reserved Subject to technical changes and misprints akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 2: Table Of Contents
E.4 Output 0-10 V ............................37 Appendix F. Battery replacement ........................39 Appendix G. Interface card installation ......................41 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany · Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 3: Introduction
NOTICE indicates a potentially dangerous situation that could result in damage to NOTICE property. NOTE indicates helpful tips and recommendations, as well as information for efficient and NOTE trouble-free operation. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 4: Overview
PRG: mini-USB socket for PC connection. USB A-plug to micro B-plug connection cable is in the package included. Fig. 1.1 Connection to PC (open interface cover) akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 5: Intended Use
* The models .0 and .1 can be upgraded later by installing up to two interface cards (app. G). Ordering code for the interface card: PR-IC485 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 6: Specifications
100 ms 30 ms Galvanic isolation in groups of 4 (1-4, 5-8) Test voltage between 1780 V input groups akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 7 Inductive load, max Signal conversion time 100 ms DAC resolution 10 bit Galvanic isolation 2830 V, individual 2830 V, in group akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 8: Environmental Conditions
2000 m above sea level EMC immunity conforms to IEC 61000-6-2 EMC emission conforms to IEC 61000-6-4 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 9: Installation
For terminal assignment, see Tables 3.1, 3.2 ─ For I/O electrical connections, see Fig. 3.2…3.7 ─ For terminal blocks layouts, see app. B akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 10: Inputs
Different sensors can be connected within a group. For example, AI1 can be configured as digital and AI2 as analog 4-20 mA. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 11: Outputs
24 VDC integrated voltage source ** OUT 24V- 24 VDC integrated voltage source ** DO1 digital output DO1...DO2 common contact DO2 digital output akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 12: Quick Replacement
replace the device connect the terminal blocks with existing wiring to the device Fig. 3.8 Quick replacement akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 13: Hardware Resources
For quick access select an input in the circuit program and use Property Box (see Fig. 4.2) to set the parameters. The parameter Input mode has to be set first. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 14: Analog Mode
The voltage on some components on the circuit board can be dangerous. Direct WARNING contact with the circuit board or penetration of a foreign body in the enclosure must be avoided. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 15: Digital Mode
Analog outputs AO1, AO2 The model x.2.x has two analog outputs 4-20 mA, x.4.x has two analog outputs 0-10 V. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 16: Rs485 Interface
Use the context menu of the new interface to add a master device (Fig 4.8). Define the name and the Modbus address for the master. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 17 To create a variable for polling click the icon. To delete the selected variable click the icon. Fig. 4.8 Master configuration in Slave mode akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 18: Master Mode
(sect. 4.1.1) For outputs DP = 4 (constant) 4.3.2 Master mode There can be only one master in Modbus network. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 19 The writing request is triggered by change of parameter value. Optionally it can be triggered by changing. a variable of type BOOL. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 20: Service Modes
Do not set the jumpers XP2 and XP3 at the same time, otherwise the device can be NOTICE damaged. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 21 In this mode the firmware update can be forced. See ALP Help for further details about firmware update. Set XP3 jumper to activate DOWN mode. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 22: Operation
Modbus network in Slave mode. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 23: Display Navigation
If a parameter has been changed in the edit mode, it must be transferred to the ALP project using the Read button in the corresponding dialog window. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 24: Menu Structure
I/O state – status of analog inputs as scaled measured values of REAL32 type, displayed in pairs. Use buttons to navigate between pairs. Sensor – type of the input signal akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 25: Display Programming
The display can be programmed using one or more display forms. To switch between two display forms, jump conditions have to be created. Jump condition can be an event of a akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 26 GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 27: Maintenance
The device should be cleaned with a damp cloth only. No abrasives or solvent- NOTICE containing cleaners may be used. During maintenance, observe the safety instructions in the section "Installation". akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 28: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 29: Scope Of Delivery
USB stick with software and documentation NOTE The manufacturer reserves the right to make changes to the scope of delivery. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 30: Appendix А. Dimensions
Appendix А. Dimensions Appendix А. Dimensions Fig. A.1 Dimensions without terminal blocks akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 31: Appendix B. Terminal Layouts
Appendix B. Terminal layouts Appendix B. Terminal layouts Fig. B.1 PR200-230.1.2 Fig. B.2 PR200-230.2.2 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 32 Appendix B. Terminal layouts Fig. B.3 PR200-230.4.2 Fig. B.4 PR200-24.1.2 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
- Page 33 Appendix B. Terminal layouts Fig. B.5 PR200-24.2.2 Fig. B.6 PR200-24.4.2 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 34: Appendix C. Galvanic Isolation
Fig. C.1 PR200-230.1.x galvanic isolation Fig. C.2 PR200-230.2.x galvanic isolation Fig. C.3 PR200-230.4.x galvanic isolation Fig. C.4 PR200-24.1.x galvanic isolation akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 35 Appendix C. Galvanic isolation Fig. C.5 PR200-24.2.x galvanic isolation Fig. C.6 PR200-24.4.x galvanic isolation akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 36: Appendix D. Circuit Diagrams
Fig. D.1 PR200-230.x.x digital input circuit diagram Fig. D.2 PR200-24.x.x digital input circuit diagram Fig. D.3 Analog input circuit diagram akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 37: Appendix E. Calibration
Select the input to calibrate. If you select All, all inputs will be calibrated sequentially, therefore the appropriate reference signal has to be applied to all inputs. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... -
Page 38: E.3 Output 4-20 Ma
1. Connect a reference voltage source and a measuring device of accuracy class at least 0.05 to the output (Fig. E.6). akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 39 7. Enter the measured output voltage in the input field (Fig. E.5). 8. Click Next to continue and follow the instructions. akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 40: Appendix F. Battery Replacement
5. Perform the disassemble operations in reverse order to assemble the device. Fig. F.1 Front cover removing Fig. F.2 Top PCB removing akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de... - Page 41 Appendix F. Battery replacement Fig. F.3 Back side view of the top PCB akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
-
Page 42: Appendix G. Interface Card Installation
3. Cut an opening in the front cover for the network connection and fix the card on the mounting pins (Fig. G.1b). 4. Assemble in reverse order. Fig. G.1 akYtec GmbH · Vahrenwalder Str. 269 A · 30179 Hannover · Germany Tel.: +49 (0) 511 16 59 672-0 · www.akytec.de...
