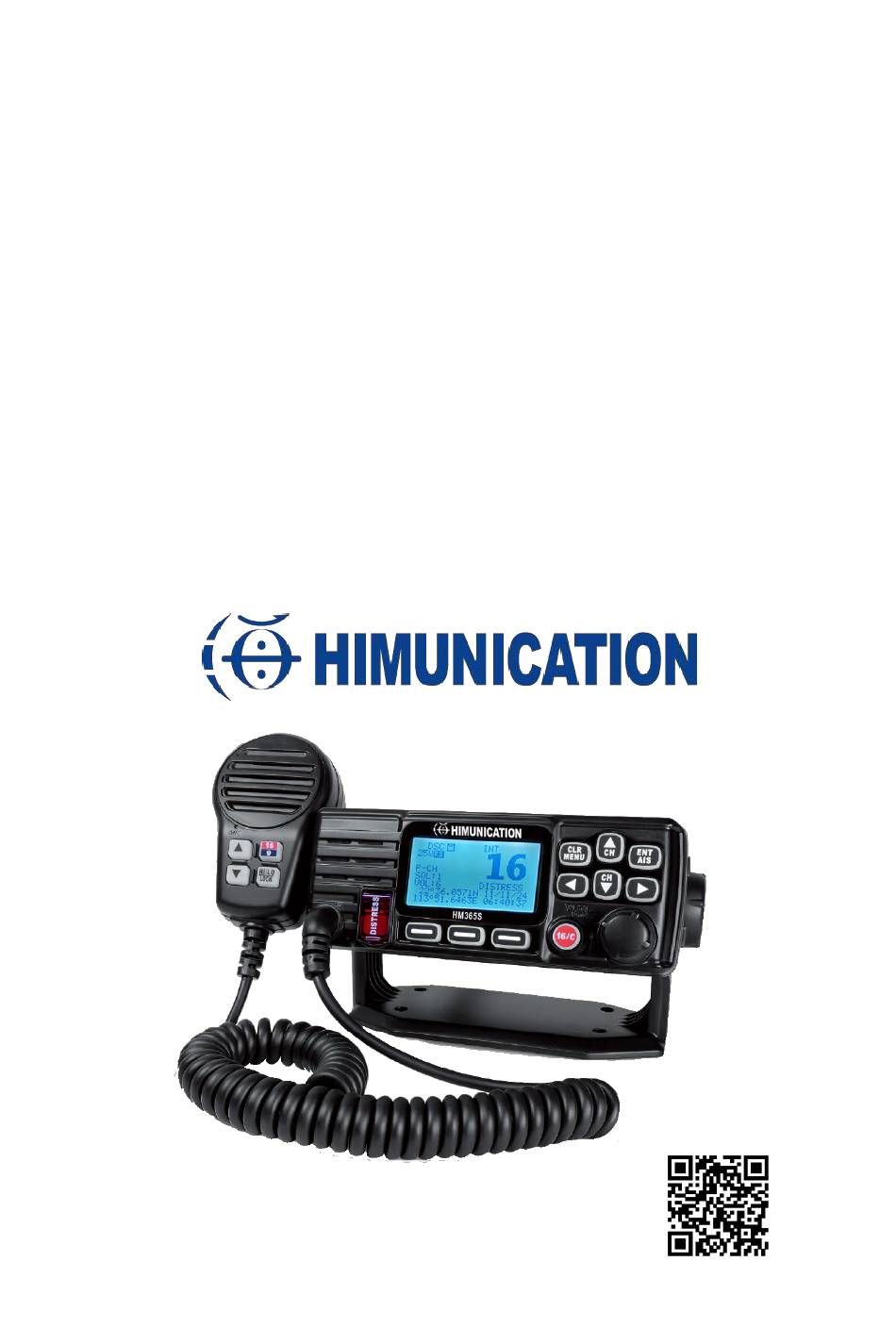

- Page 1 VHF MARINE RADIO HM365 HM365C HM365S User Manual http://www.himunication.com Please Scan the QR Code to Download...
- Page 2 HM365/HM365C/HM365S Contents 1. Installation ..............................2 2. Front Panel/Back Panel ..........................3 Front Panel Functions and Operations .......................3 Back Panel Functions and Operations ....................... 5 FIst Mic Functions and Operations ........................6 Yoke Mount Installation ............................ 6 VHF Appearance Dimension Drawing ......................7 3.
- Page 3 HM365/HM365C/HM365S User Manual 1. Installation The HM365 series is a professional marine VHF radio developed by HIMUNICATION in 2023 and launched in 2024.It is an international standard marine radio that can transmit and receive all VHF channels of international vessels, such as those specified by the International Telecommunication Union (ITU). At the same time, the VHF uses high-quality materials and is waterproof, meeting all industry standards to provide reliable communication.
- Page 4 HM365/HM365C/HM365S 2. Front Panel/Back Panel Front Panel Functions and Operations 1、 At normal mode, long press to enter the menu setup. At menu mode, short press to return previous menu level. 2、 At normal mode, short press to turn up the channel , hold on the key , quickly turn up the channel.
- Page 5 HM365/HM365C/HM365S 6、 At normal mode, short press to enter software key function. At software key mode, short press the software key to shift right. 7、Standard Handset Hold on Standard Handset PTT key ， Handset enter transmit mode ， there are also convenient function ...
- Page 6 HM365/HM365C/HM365S Back Panel Functions and Operations 1、ANTENNA CONNECTOR Connects to a marine VHF antenna cable’s PL-259 connector. CAUTION: Transmitting without an antenna may dam age the transceiver. 2、NMEA2000 (only N2K VHF) The AIS and GPS position data from the external devices is sent to the N2K VHF, through the NMEA2000 network.
- Page 7 HM365/HM365C/HM365S • The interface used for NMEA0183 is RS232 • Software upgrade：Connect the NMEA0183 cable to the upgrade cable clip( Orange NMEA +、Brown NMEA -、GND) to upgrade. Fist Mic Functions and Operations 1、Hold on PPT button to enter transmit mode 2、Speaker...
- Page 8 HM365/HM365C/HM365S VHF Appearance Dimension Drawing 1、Fixed unit dimension 2、Fixed unit dimensions on mounting bracket 3、Fixed unit dimension（Top view）...
- Page 9 HM365/HM365C/HM365S 4、Fixed unit dimension（Side view）...
- Page 10 HM365/HM365C/HM365S 5、Standard Handset unit dimension...
- Page 11 HM365/HM365C/HM365S 3. LCD Display 1、DSC is enable 2、Unread message 3、Channel band indicator. Indicates whether VHF is 'INT' or 'USA' or ‘CAN ’band 4、Current channel display 5、Channel name 6、Ship GPS Date 7、Ship GPS time 8、Ship GPS Position 9、Volume level indicator 10、Squelch level indicator 11、First priority channel...
- Page 12 HM365/HM365C/HM365S c. GPS Setup Long press the CLR/MENU key to enter “GPS Setup” item for setup as below shown. Main Menu GPS Setup GPS Source VHF Operation GPS Source ● Built-in GPS GPS Setup GPS Setting NMEA0183 AIS Setup NMEA0183 Setting...
- Page 13 HM365/HM365C/HM365S d. AIS Setup（Only AIS VHF） Long press the CLR/MENU key to enter “AIS Setup” item for setup as below shown. Main Menu AIS Setup AIS Output VHF Operation AIS Output All Off GPS Setup ● NMEA0183 AIS Display Set...
- Page 14 HM365/HM365C/HM365S 5. Main Menu Operation on Screen DSC Menu At noraml mode, short ENT/AIS key press to enter “DSC Menu” to operate. DSC Menu Individual Call Input Address Individual Call Individual Call Input Address Input 9 digits Routine Position Request...
- Page 15 HM365/HM365C/HM365S DSC Menu Group Call Input Address Input Address Individual Call Input Address Input 8 digits Input 8 digits Position Request From Phone book 0123----- 012345678 All Ship Call Group Call Test Call Receive Call Log exit 4/10 enter exit...
- Page 16 HM365/HM365C/HM365S Send Call Log Distress Call MOB Call Others Call exit enter Send Call Log Distress Call MOB Call Others Call exit enter DSC Menu Phone Book Buddy List New Entry All Ship Call Buddy List New Entry Input MMSI...
- Page 17 HM365/HM365C/HM365S DSC Menu My MMSI ID Test Call 100000000 Receive Call Log Send Call Log Phone Book DSC Setup My MMSI ID exit 10/10 enter exit AIS Menu(Only AIS VHF) Long press the ‘ENT/AIS’ key to enter AIS interface. Ship Info List indicates the information about the received ship. If the ship information be received , press enter to check the information list.
- Page 18 HM365/HM365C/HM365S Main Menu Long press the CLR/MENU key to enter “Main Menu” item as below for setup Main Menu VHF Operation Channel Band Set VHF Operation Channel Band Set GPS Setup Priority 2nd Ch ● INT AIS Setup ATIS Operation...
- Page 19 HM365/HM365C/HM365S Main Menu AIS Setup AIS Output VHF Operation AIS Output All Off GPS Setup AIS Display Set ●NMEA0183 AIS Setup AIS Alarm NMEA2000 ATIS Operation N0183+N2000 DSC Operation System config exit enter exit enter exit enter AIS Setup AIS Display Set AIS Output ●...
- Page 20 HM365/HM365C/HM365S Main Menu System Config LCD Contrast VHF Operation LCD Contrast GPS Setup Key Beep Contrast:4 AIS Setup Dimmer ATIS Operation Version Info DSC Operation Factory Reset System config Language Select exit enter exit enter exit enter System Config Key Beep...
- Page 21 HM365/HM365C/HM365S Distress Menu Undesignated Fire, Explosion Flooding Collision Grounding Capsizing exit 1/11 At normal mode,press （◀ , ▶,KEYL,KEYC,or KEYR）,Various often-used functions are assigned to the Software Keys 6. Software Key and Knob Functions for easy access. The functions’ icons are displayed above the Software Keys, as shown below.
- Page 22 HM365/HM365C/HM365S Enter private channel. If there is no private channel, a warning interface will appear. TRIW Monitor CH16, current channel and one programmed channels in cycle. Enter the MOB launch interface. Enter display GPS. Other features and solution TX Time Out The transmission will be automatically turn off after PTT key pressed over 5 consecutive minutes.
- Page 23 HM365/HM365C/HM365S N2K or AIS VHF NMEA2000 COMMUNICATION PGN 59392 ISO acknowledgement 60928 ISO Address Claim 126208 Nmea request/command/acknowledge Group function 126464 PGN List 126720 fast data packet, multi_frame, proprietary PGN 126996 Product information 129799 Radio frequency/Mode/power 129025 Position,rapid update 129026 COG/SOG Rapid update 129033 time &...
- Page 24 HM365/HM365C/HM365S International Marine VHF Channels & Frequencies TX Freq RX Freq Simple Freq Use 156.050 160.650 Public Correspondence, Port Operations and Ship Movement 156.100 160.700 Public Correspondence, Port Operations and Ship Movement 156.150 160.750 Public Correspondence, Port Operations and Ship Movement 156.200 160.800...
- Page 25 HM365/HM365C/HM365S 156.675 156.675 Inter-ship [2] 156.725 156.725 Port operations and Ship movement 156.775 156.775 See Note [5] 156.825 156.825 See Note [5] 156.875 156.875 Inter-ship 156.925 161.525 Public correspondence, Port Operations and Ship Movement 1078 156.925 156.925 Public correspondence, Port Operations and Ship Movement 2078 RX Only 161.525...
- Page 26 HM365/HM365C/HM365S U.S. Marine VHF Channels and Frequencies Simplex Freq Use TX Freq RX Freq Port Operations and Commercial, VTS. Available only in New Orleans / 1001 156.050 156.050 Lower Mississippi area. 1003 156.150 156.150 U.S. Government only 1005 156.250 156.250 Port Operations or VTS in the Houston, New Orleans and Seattle areas.
- Page 27 HM365/HM365C/HM365S 156.875 156.875 Port Operations (Inter-ship only) 1078 156.925 156.925 Non-Commercial 1079 156.975 156.975 Commercial. Non-Commercial in Great Lakes only. 1080 157.025 157.025 Commercial. Non-Commercial in Great Lakes only 1081 157.075 157.075 U.S. Government only – Environmental protection operations. 1082 157.125...
- Page 28 HM365/HM365C/HM365S Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Simple Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 1004 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 1005 156.250...
- Page 29 HM365/HM365C/HM365S All areas Inter-ship, Ship/Shore, Commercial and Non-commercial: For 1022 157.100 157.100 communications between Canadian Coast Guard and non-Canadian Coast Guard stations only. PC Ship/Shore and Public Correspondence: Also in the inland waters of 157.150 161.750 British Columbia and the Yukon.
- Page 30 HM365/HM365C/HM365S 1079 156.975 156.975 EC, PC Inter-ship, Ship/Shore and Commercial 1080 157.025 157.025 EC, PC Inter-ship, Ship/Shore and Commercial Inter-ship and Ship/Shore: Canadian Coast Guard use only in the St. 1081 157.075 157.075 Lawrence River/ Great Lakes areas. Inter-ship and Ship/Shore: Canadian Coast Guard use only in the St.
- Page 31 HM365/HM365C/HM365S European private channels and frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which...
- Page 32 HM365/HM365C/HM365S 7. Specifications ---VHF Radio General TX Frequency………………………………………………………………………….………………………….….……156.025--157.425MHz RX Frequency……………………………………………………………………………………………………..……….156.300--162.000MHz Digital Selectivity Calling (DSC)……………………………………………………………..….Class-D with dual receiver (individual CH70) CH70…………………………………………………………………………………………………………………………………..156.525MHz Channel spacing………………………………………………………………………………………………………………………………25kHz Channel banks……………………………………………………All INT/USA/Canadian 10 WX (only available for USA and Canada) Modulation mode………………………………………………………………………………….…FM (16K0G3E), DSC/ATIS (16K0G2B) Frequency stability …………………………………………………………………………………………………………………… ±5 ppm Ambient operating temperatures….……………………………………………………………………………………….………-20˚C to +60˚C...
