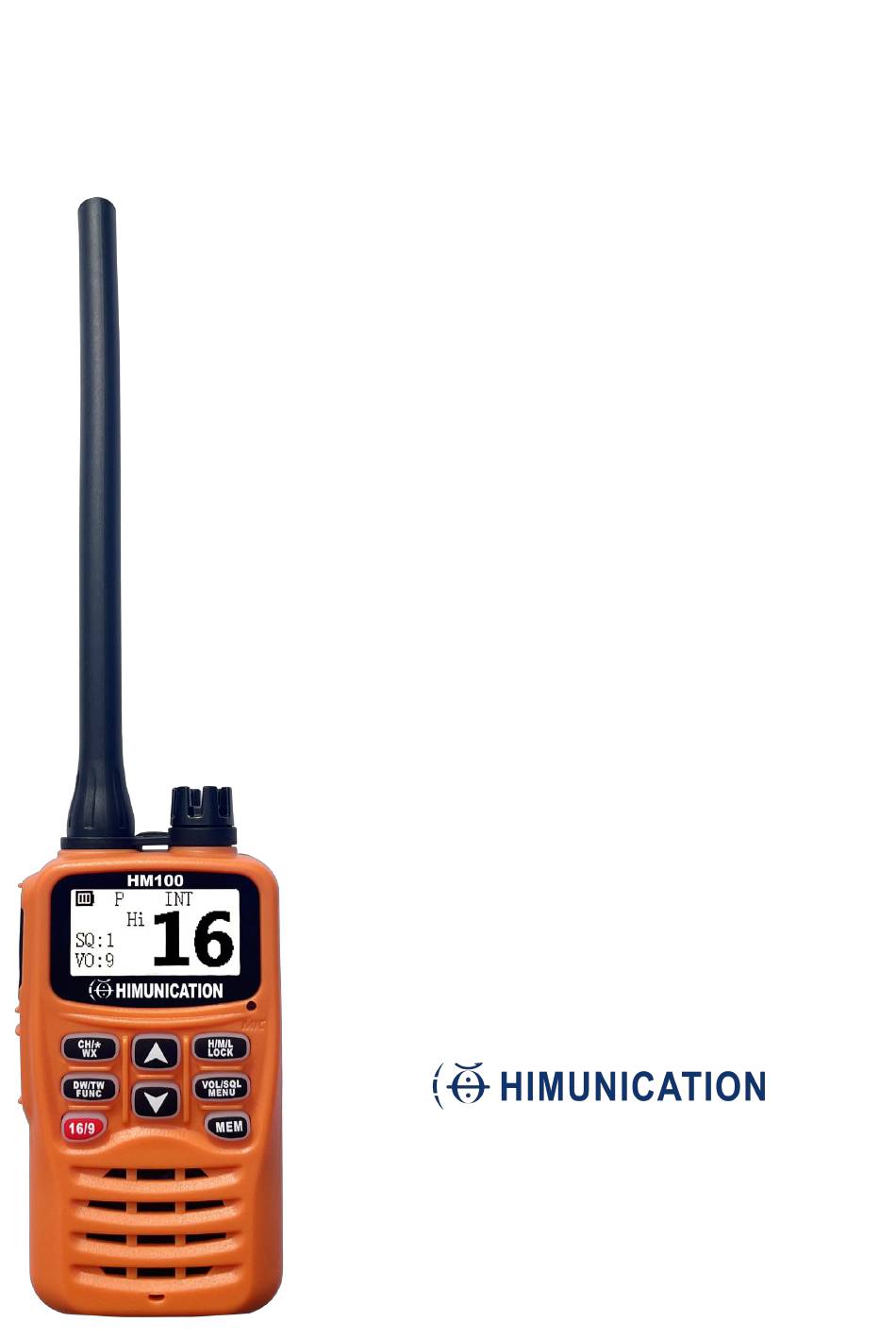

  • Page 1 VHF MARINE RADIO HM100 User Manual www.himunication.com...

  • Page 2: Table Of Contents

    HM100 Contents HM100 Instruction Manual ................................2 EU Regulatory Conformance ..............................2 Waterproof design Warning ..............................2 Handset ....................................... 3 Key function ....................................4 POWER ....................................... 4 PTT .......................................4 JACK ......................................4 .....................................4 DOWN ..................................... 4 CH/* WX ...................................... 4 DW/TW FUNC ....................................4 16/9 ......................................

  • Page 3: Hm100 Instruction Manual

    Adresse ： Address:7th Floor, building 13, Run Dong Sheng Industrial Park, National Road 107, Longzhu community, Xixiang, baoan district, Shenzhen,China Hereby, HIMUNICATION declares that this Maritime Radio is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU.

  • Page 4: Handset

    HM100 Handset...

  • Page 5: Key Function

    HM100 Key function POWER Power key. Long press to turn on/off. Press PTT to transmit, release PTT to end transmission. JACK for charging, upgrading and connecting ear-piece mic. UP key. Press UP key to adjust the channel upward. DOWN DOWN key. Press DOWN key to adjust the channel downwards.

  • Page 6: Mem

    HM100 5. Select Radio, press H/M/L LOCK key to display radio frequency and volume. When a radio signal is received, the speaker plays the sound and the screen displays BUSY. Press UP/DOWN key to adjust radio frequency.Short press VOL/SQL MENU key to adjust radio volume, short press VOL/SQL MENU key again to exit.
  • Page 7 HM100 “VO” VOL Indicator This indicator shows the receive audio volume level. “SQ” SQL Indicator This indicator shows the squelch setting level. MEM Indicator This indicator shows it is in memory mode. Battery Indicator Battery display Lock Icon Short press H/M/L LOCK key to change the transmit power, long press to lock the key.

  • Page 8: Basic Operation

    HM100 This indicator shows the channel is memoried in the transceiver. RX Indicator This indicator appears when a signal is being received or the radio is unsquelched. “ RX” Indicator HI TRANSMIT POWER Indicator “HI”: 6 W (5W)* “Mi”: 3 W “Lo”: 1 W...

  • Page 9: Function

    HM100 104.300 Frequency Volume VOL:2 Short press to change the receiving frequency. If a signal is received, the speaker will output sound. Short press VOL/SQL MENU to adjust the volume of the radio. Short press CH/* WX to return main menu.

  • Page 10: Key Beep

    HM100 5. Key beep Short press to select Key beep. Key beep Short press to change key beep. Short press CH/* WX to return main menu. 6. Language * English Français Press to choose English or French, press CH/*WX to return...

  • Page 11: Appendix A - Near Lightning Strike Test

    Appendix A – Near Lightning Strike Test This appendix describes the general procedure for evaluating the immunity to near lightning strikes (NLS) of the HM100 VHF Radio. The test simulates a slow, high-energy pulse produced by an NLS event. List of Abbreviations...
  • Page 12 HM100 2020 RX Only 161.600 Public Correspondence, Port Operations and Ship Movement 157.050 161.650 Public Correspondence, Port Operations and Ship Movement 157.100 161.700 Public Correspondence, Port Operations and Ship Movement 157.150 161.750 Public Correspondence, Port Operations and Ship Movement 1027 157.350 157.350 Public Correspondence 1028 157.400 157.400...
  • Page 13 HM100 communications between aircraft stations, ice breakers and assisted ships during ice seasons. Within the European Maritime Area and in Canada, channels 10, 67 and 73 may also be used by the individual administrations concerned for communication between ship stations, aircraft stations and participating land stations engaged in coordinated search and rescue and anti-pollution operations in local areas.
  • Page 14 HM100 U.S. Marine VHF Channels and Frequencies Simplex Freq Use TX Freq RX Freq Port Operations and Commercial, VTS. Available only in New Orleans / 1001 156.050 156.050 Lower Mississippi area. 1003 156.150 156.150 U.S. Government only 1005 156.250 156.250 Port Operations or VTS in the Houston, New Orleans and Seattle areas.
  • Page 15 HM100 1080 157.025 157.025 Commercial. Non-Commercial in Great Lakes only 1081 157.075 157.075 U.S. Government only – Environmental protection operations. 1082 157.125 157.125 U.S. Government only 1083 157.175 157.175 U.S. Coast Guard only 157.375 157.375 Public Correspondence Marine Operator) 157.425 157.425...
  • Page 16 HM100 Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Simple Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 1004 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 1005 156.250...
  • Page 17 HM100 PC Ship/Shore and Public Correspondence: Also in the inland waters of 157.150 161.750 British Columbia and the Yukon. 2023 RX Only 161.750 Continuous Marine Broadcast Service 1027 157.350 157.350 PC Ship/Shore and Public Correspondence 1028 157.400 157.400 PC Ship/Shore and Public Correspondence 156.025...
  • Page 18 HM100 Inter-ship and Ship/Shore: Canadian Coast Guard use only in the St. 1081 157.075 157.075 Lawrence River/ Great Lakes areas. Inter-ship and Ship/Shore: Canadian Coast Guard use only in the St. 1082 157.125 157.125 Lawrence River/ Great Lakes areas. 157.175 161.775...

  • Page 19: European Private Channels And Frequencies

    HM100 European Private Channels and Frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which...

  • Page 20: Specifications

    HM100 SPECIFICATIONS DESCRIPTION Unit LIMIT Frequency Range:Transmit 156.025 To 162.425 Frequency Range:Receive 156.050 To 163.275 56 INT Channels 52 USA Channels Number Of Channels VHF 59 Canada Channels 10 Weather Channels(only for USL) Memory Channel 99 Memory Channels Oscillate Mode...
  • Page 21 HM100 3.Rated audio output at 10% Thd Speaker ≥700 4.Max.S/N ratio at 1mV ≥40 5.Audio frequency resp. 1KHz/0dB ref. @300Hz +7.5~+11.5 @2KHz -9~-5 @3KHz -12.5~-8.5 6.Adjacent ch.Rejection ≥70 7.Image rejection ≥70 8.Intermod rejection ≥68 9.Spurious response rejection ≥70 10.Scan time. Per channel ≤200...
