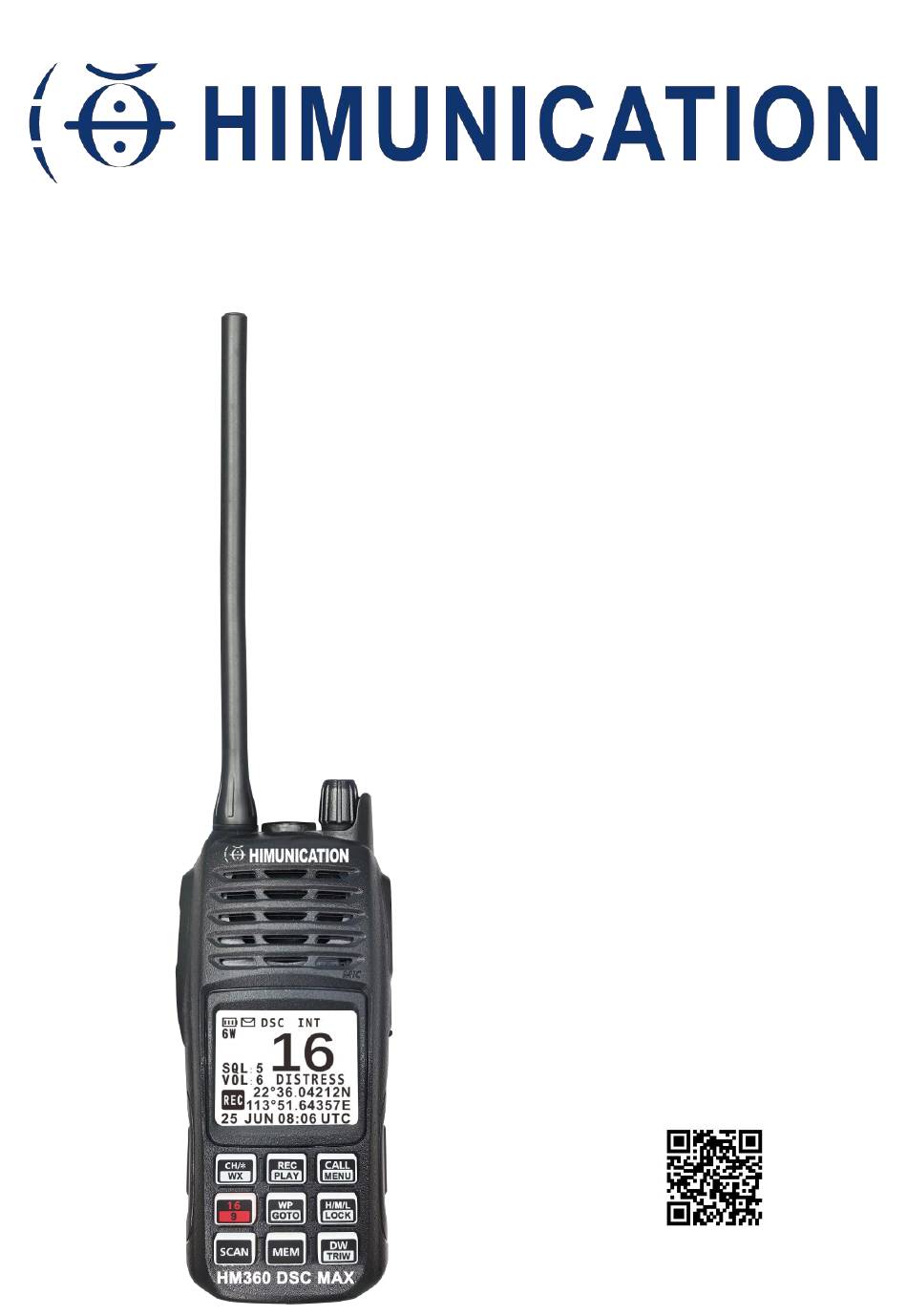

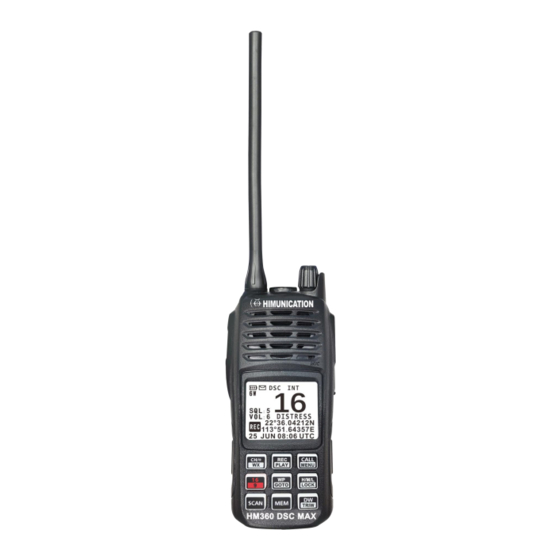

VHF MARINE RADIO
HM360 DSC MAX
User Manual
http://www.himunication.com
Please Scan the QR Code to Download
EN/FR/ES/ITA Multi-language User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM360 DSC MAX and is the answer not in the manual?

Questions and answers

Related Manuals for Himunication HM360 DSC MAX

Summary of Contents for Himunication HM360 DSC MAX

  • Page 1 VHF MARINE RADIO HM360 DSC MAX User Manual http://www.himunication.com Please Scan the QR Code to Download EN/FR/ES/ITA Multi-language User Manual...

  • Page 2: Table Of Contents

    HM360 DSC MAX CONTENTS HM360 DSC MAX CONTROLS.......................4 HM360 DSC MAX KEY FUNCTION....................5 HM360 DSC MAX LCD DISPLAY....................5 MENU SCREEN OPERATION......................6 THE DESCRIPTION ON OF THE MENU FEATURES..............6 DSC MENU............................6 FOR MY MMSI ID SETUP....................... 7 FOR INDIVIDUAL CALL, POSITION REQUEST.................
  • Page 3 HM360 DSC MAX User Manual Introduction Your transmitter-receiver HM360 DSC MAX by HIMUNICATION was developed by using high technologies. Designed for an international use, it allows you to emit and to receive on all the international channels of the marine band VHF such as specified by the international union (ITU)
  • Page 4 Adresse: Address:7th Floor, building 13, Run Dong Sheng Industrial Park, National Road 107, Longzhu community, Xixiang, baoan district, Shenzhen,China Hereby, HIMUNICATION declares that this Maritime Radio is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. Caution 1.

  • Page 5: Hm360 Dsc Max Controls

    HM360 DSC MAX HM360 DSC MAX Controls MULTI - FUNCTION KNOB VHF ANTENNA POWER ON / OFF/ VOL / SQL / CH / MENU SELECT PUSH TO TALK TORCH DISPLAY DISTRESS KEY MARINE TORCH KEY HEADSET JACK RECORD / PLAY VOICE...

  • Page 6: Hm360 Dsc Max Key Function

    HM360 DSC MAX HM360 DSC MAX Key Function Keys Short press less than 3 seconds Long press more than 3 seconds Power Knob(Push) Power ON/Menu Select Power Off Power Knob Adjust the Volume Level Power Knob(Push 1) Adjust the Squelch Level...

  • Page 7: Menu Screen Operation

    HM360 DSC MAX Menu Screen Operation The description on of the menu features: DSC Menu Main Menu Input Address Channel Band Set Individual Call VHF Operation From Phonebook Priority 2nd Ch Input Address GPS Type Position Request From Phonebook GPS Setup...

  • Page 8: For My Mmsi Id Setup

    HM360 DSC MAX For My MMSI ID setup Then select the type of individual call such as the safety Firstly, set up the MMSI ID, to click the My MMSI ID and Individual Call Enter, then you are able to set up your related MMSI ID as...

  • Page 9: Receive Call Log

    HM360 DSC MAX Then select the type of All Ship Call such as the Urgency All Ship Call Safety Receive Call Log Urgency Distress Call Others Call Exit Enter Exit Enter Then select the channels such as the 07 Commercial then...

  • Page 10: Main Menu

    HM360 DSC MAX For VHF Operation, you are able to choose the wanted Distress Menu channel band from those three options USA, INT and CAN Undesignated Fire,Explosion Channel Band Set Flooding Collision √ INT Grounding Capsizing Sinking Exit Exit Enter You also able to choose to resend pause or Exit after the message be sent.

  • Page 11: For System Config

    70 channels. The CONTROLS OPERATION DSC function for HM360 DSC MAX model is operated by Power ON/OFF(Knob) individual way.Even you are using the HM360 DSC MAX Push the coding knob until a click sound heard the unit will to make the transmit or receive, when the DSC message is power on.

  • Page 12: Select The Second Priority Channel

    Weather Channels will not be available for The “M” icon at the right side of current channel number HM360 DSC MAX (European). will shows up to indicate the current CH has been saved in Short press CH/*/WX key will enter Wx mode. Turn the the memory.

  • Page 13: Dw/Triw Key (Dual Watch/Tri Watch)

    Press the SCAN to run it ’will display. Press SCAN to the Torch/R/W key will switch the torch on or off, If activate WDT and hold the HM360 DSC MAX face down. quickly short press the Torch/R/W key, the torch will...

  • Page 14: The Local Time And Date On Screen

    UTC TIME LOCAL TIME When the HM360 DSC MAX cannot receive the GPS signal to display the current position, the screen will automatic display the UTC local time and date. The user can press the menu to switching your local time While the charger is connected the display will based on the UTC time.

  • Page 15: Appendix A - Near Lightning Strike Test

    HM360 DSC MAX Appendix A – Near Lightning Strike Test This appendix describes the general procedure for evaluating the immunity to near lightning strikes (NLS) of the HM360 DSC MAX VHF Radio. The test simulates a slow, high-energy pulse produced by an NLS event.

  • Page 16: Appendix B - Channel List

    HM360 DSC MAX Appendix B – Channel List International Marine VHF Channels & Frequencies TX Freq RX Freq Simplex Freq Use 156.050 160.650 Public Correspondence, Port Operations and Ship Movement 156.100 160.700 Public Correspondence, Port Operations and Ship Movement 156.150 160.750...
  • Page 17 HM360 DSC MAX 156.325 156.325 Non-Commercial 156.375 156.375 Inter-ship, Port Operations and Ship Movement [2] 156.425 156.425 Port Operations and Ship Movement 156.475 156.475 Inter-ship, Port Operations and Ship Movement 156.575 156.575 Port Operations and Ship Movement 156.625 156.625 Inter-ship 156.675...
  • Page 18 HM360 DSC MAX U.S. Marine VHF Channels and Frequencies TX Freq RX Freq Simplex Freq Use Port Operations and Commercial, VTS. Available only in New Orleans / 156.050 156.050 Lower Mississippi area. U.S. Government only 156.150 156.150 Port Operations or VTS in the Houston, New Orleans and Seattle areas.
  • Page 19 HM360 DSC MAX Commercial. Used for Bridge-to-bridge communications in lower 156.375 156.375 Mississippi River. Inter-ship only. Non-Commercial 156.425 156.425 156.475 156.475 Non-Commercial 156.525 156.525 Non-Commercial 156.575 156.575 Non-Commercial 156.625 156.625 Non-Commercial (Inter-ship only) 156.675 156.675 Port Operations 156.725 156.725 Port Operations 156.875...
  • Page 20 Canadian Marine VHF Channels and Frequencies TX Freq RX Freq Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 156.200 156.200 PC Inter-ship, Ship/Shore and Safety: Canadian Coast Guard S&R 156.250 156.250 Ship Movement...
  • Page 21 All areas Inter-ship, Ship/Shore, Commercial and Non-commercial: For 157.100 157.100 communications between Canadian Coast Guard and non-Canadian Coast Guard stations only. PC Ship/Shore and Public Correspondence: Also in the inland waters of British 157.150 161.750 Columbia and the Yukon. – 161.750 Continuous Marine Broadcast Service 157.200...
  • Page 22 All areas except EC Inter-ship, Ship/Shore, Commercial, Non-commercial, Safety:May 156.675 156.675 also be used for communications with aircraft engaged in coordinated search and rescue and antipollution operations. 156.725 156.725 EC, PC Inter-ship, Ship/Shore, Commercial, Non-commercial and Ship Movement. Simplex port operation, Ship movement and navigation related communication only. 1 156.775 156.775 watt maximum...

  • Page 23: European Private Channels And Frequencies

    European Private Channels and Frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which the radio is to be operated and whether you possess the appropriate licensing Country TX Freq...

  • Page 24: Specifications

    SPECIFICATIONS DESCRIPTION Unit LIMIT Frequency Range:Transmit 156.025 To 162.425 Frequency Range:Receive 156.050 To 163.275 56 INT Channels 52 USA Channels Number Of Channels VHF 59 Canada Channels 10 Weather Channels(only for USL) Memory Channel 99 Memory Channels Oscillate Mode Modulation FM(16K0G3E) DSC(16K0G2B) Channel Spacing Frequency Stability...
  • Page 25 7.Mic sens.For 3KHz 13±3 8.Conducted spurious emission ≤-36 9.Current drain Transmit(High) ≤3.2 Transmit(Middle) ≤2 Transmit(Low) ≤1.2 RECEIVER 1.Sensitivity For 12dB Sinad dBμV ≤-6(EMF) 2.Squelch a) squelch threshold dBμV <-6.0(EMF) b) squelch tight dBμV 0dBuV ~ +6dBuV c) hysteresis 3.Rated audio output at 10% Thd Speaker ≥700 4.Max.S/N ratio at 1mV ≥40...
