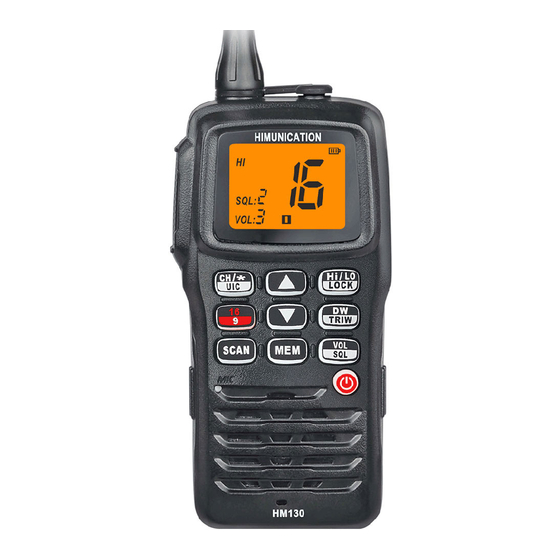

Himunication HM130 Instruction Manual

Utility model hand-held marine radio with china exclusive patent technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

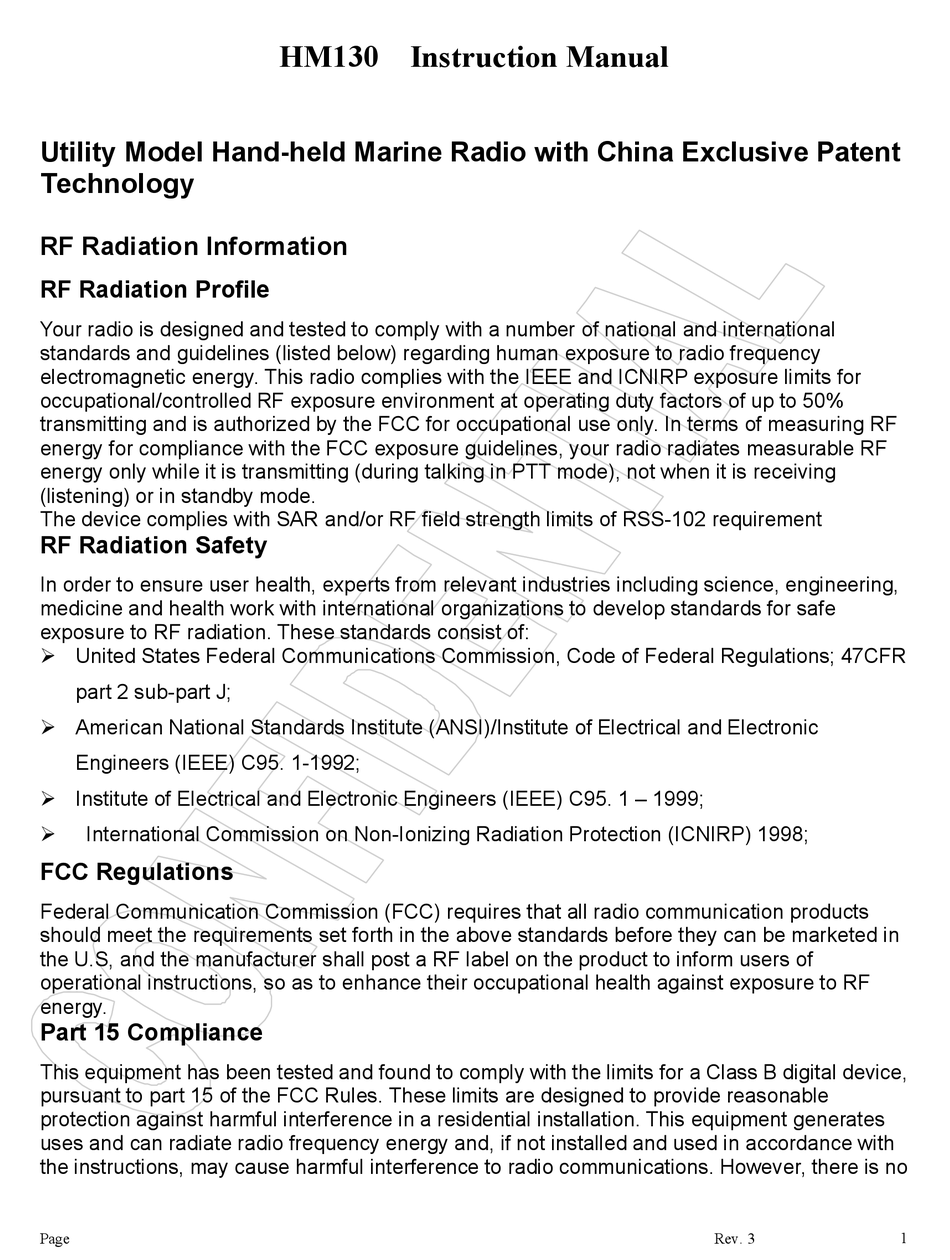

Utility Model Hand-held Marine Radio with China Exclusive Patent
Technology

RF Radiation Information

RF Radiation Profile
Your radio is designed and tested to comply with a number of national and international
standards and guidelines (listed below) regarding human exposure to radio frequency
electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for
occupational/controlled RF exposure environment at operating duty factors of up to 50%
transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF
energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF
energy only while it is transmitting (during talking in PTT mode), not when it is receiving
(listening) or in standby mode.
The device complies with SAR and/or RF field strength limits of RSS-102 requirement
RF Radiation Safety
In order to ensure user health, experts from relevant industries including science, engineering,
medicine and health work with international organizations to develop standards for safe
exposure to RF radiation. These standards consist of:
 United States Federal Communications Commission, Code of Federal Regulations; 47CFR
part 2 sub-part J;
 American National Standards Institute (ANSI)/Institute of Electrical and Electronic
Engineers (IEEE) C95. 1-1992;
 Institute of Electrical and Electronic Engineers (IEEE) C95. 1 – 1999;
International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998;

FCC Regulations

Federal Communication Commission (FCC) requires that all radio communication products
should meet the requirements set forth in the above standards before they can be marketed in
the U.S, and the manufacturer shall post a RF label on the product to inform users of
operational instructions, so as to enhance their occupational health against exposure to RF
energy.
Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
Page
HM130 Instruction Manual
Rev. 3
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HM130 and is the answer not in the manual?

Questions and answers

Related Manuals for Himunication HM130

Summary of Contents for Himunication HM130

  • Page 1: Rf Radiation Information

    HM130 Instruction Manual Utility Model Hand-held Marine Radio with China Exclusive Patent Technology RF Radiation Information RF Radiation Profile Your radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy.
  • Page 2 guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●...

  • Page 3: Table Of Contents

    TABLE OF CONTENT HM130 KEYS LOCATION DESCRIPTION....................4 A.KEY FUNCTION............................5 A.1 Key Arrangement..........................5 A.2 LCD............................... 5 B. DIRECT KEY OPERATION........................6 B.1 Power ON/OFF (Hardware).........................6 B.2 VOL/SQL KEY.............................6 B.3 UP/DOWN............................6 B.4 16/9 Channel............................6 B.5 Hi/Lo/LOCK Key..........................7 B.6 Private Channel.............................7 B.7 WX Channel(Only available for USA,Canada).................

  • Page 4: Hm130 Keys Location Description

    HM130 KEYS LOCATION DESCRIPTION Earphone DUALW/TRIW Squelch Level Battery capacity Mem icon Lock icon Volume Level Current Channel CH/* /UIC HI/LOW/LOCK DOWN 16/9 DW/TRIW SCAN VOL/SQL Power Switch Page Rev. 3...

  • Page 5: A.key Function

    A.KEY FUNCTION Short Press ( < 3 sec ) Long Press ( > 3 sec ) HI/Lo /Lock TX Power Hi/Low Key Lock 16/9 CH 16 CH09 DW/TRIW Dual Watch mode Tri Watch mode Power Switch SCAN All Scan/all memory Scan Priority all/memory Scan MEMORY Mode Save/Delete Memory Channel...

  • Page 6: Direct Key Operation

    B. DIRECT KEY OPERATION B.1 Power ON/OFF (Hardware) Long press power switch to start normal operation mode, long press again will power down. B.2 VOL/SQL KEY Short press VOL/SQL key to adjust volume level,press UP/DOWN key to select volume level accordingly.Long press VOL/SQL key will flash squelch level,press UP/DOWN key to select squelch level accordingly.

  • Page 7: Hi/Lo/Lock Key

    ‘’16/9’’ key and the screen display ‘’P’’ icon to indicate that the secondary priority channel has been changed. 5.The user can reprogram the secondary priority channel on the HM130 B.5 Hi/Lo/LOCK Key Short press Hi/Lo/LOCK key will toggle the TX power from Hi to Lo ,corresponding HI/LO icon will display on the LCD.

  • Page 8: Mem

    the receiver will stop at that channel and continue to search when that transmission ceased. There are 4 Scan modes available – All SCAN, Memory Scan,Priority Scan & memory Scan, Default is All Scan 1、At the normal mode,short press the SCAN key to activate SCAN function. 2、When the radio in the normal mode, All Scan will be initiated.

  • Page 9: Watch

    Deleting CH from the memory: 1.During the normal mode, use the UP/DOWN key to select the channel to be deleted. .Long press the MEM key to delete the channel from the memory.’M’ icon will disappear B.11 Watch Dual Watch Short press DW/TRIW key to activate the DUAL WATCH mode. Monitor the current channel and Ch 16 in cycle.

  • Page 10: Tx Indicator

    C.3 TX Indicator When the radio is transmitting, the “TX” icon will be lit up. D. EUROPEAN KEY OPERATION Most of the functions in the radio are the same as the US model. These are the functions that work differently. D.1 Programming ATIS ID ATIS function only exists in European Model.

  • Page 11: Special Function Keys

    ETC… ETC…. 7. Turn off radio,permanently save ATIS ID to the EEPROM of the radio. 8. After the ATIS ID being programmed into the radio, from OFF position holding HI/LO/Lock and turning the radio ON will make the radio flash its ATIS ID. After this stage, only with the cloning software the ATIS ID be modified or erased.

  • Page 12: Appendix A - Near Lightning Strike Test

    Appendix A – Near Lightning Strike Test This appendix describes the general procedure for evaluating the immunity to near lightning strikes (NLS) of the HM130 VHF Radio. The test simulates a slow, high-energy pulse produced by an NLS event.Relative external document as below ...

  • Page 13: Appendix B - Channel List

    EUT Configuration All operating configurations should be tested with appropriate performance criteria defined for each test. Performance Criteria From BS EN 61000-4-5 : 2006 Performance criteria C: Temporary loss of function or degradation of performance, the correction of which requires operator intervention. Appendix B –...

  • Page 14: Marine Vhf Channels And Frequencies

    156.775 156.775 See Note 5 156.825 156.825 See Note 5 156.875 156.875 Intership 156.925 161.525 Public correspondence, Port Operations and Ship Movement 156.975 161.575 Public correspondence, Port Operations and Ship Movement 157.025 161.625 Public correspondence, Port Operations and Ship Movement 157.075 161.675 Public correspondence, Port Operations and Ship Movement...

  • Page 15: Notes

    watch on this channel. 4 156.850 156.850 State Control 5 18A 156.900 156.900 Commercial 19A 156.950 156.950 Commercial 157.000 161.600 Port Operations (duplex) 20A 157.000 157.000 Port Operations 21A 157.050 157.050 U.S. Coast Guard only 22A 157.100 157.100 Coast Guard Liaison and Maritime Safety Information Broadcasts. Broadcasts announced on channel 16.

  • Page 16: Canadian Marine Vhf Channels And Frequencies

    Canadian Marine VHF Channels and Frequencies CH No. XMIT Freq RCV Freq Area of Operation Use 156.050 160.650 PC Public Correspondence 156.100 160.700 PC Public Correspondence 156.150 160.750 PC Public Correspondence 04A 156.200 156.200 PC Intership, Ship/Shore and Safety: Canadian Coast Guard S&R 05A 156.250 156.250 Ship Movement...
  • Page 17 Pacific Coast. Port operations only in the St. Lawrence River areas with 1W maximum power. Pleasure craft in the inland waters of Alberta, Saskatchewan and Manitoba (excluding Lake Winnipeg and the Red River). 66A 156.325 156.325 Intership, Ship/Shore, Commercial, Non-commercial, Safety and Ship Movement: Port operations only in the St.Lawrence River/Great Lakes Areas with 1-watt maximum power.

  • Page 18: European Private Channels And Frequencies

    European Private Channels and Frequencies In addition to the channels listed above in the International Marine VHF Channels & Frequencies table, your radio may also include some of the following private channels. Which channels are included depend upon the country in which the radio is to be operated and whether you possess the appropriate licensing.
