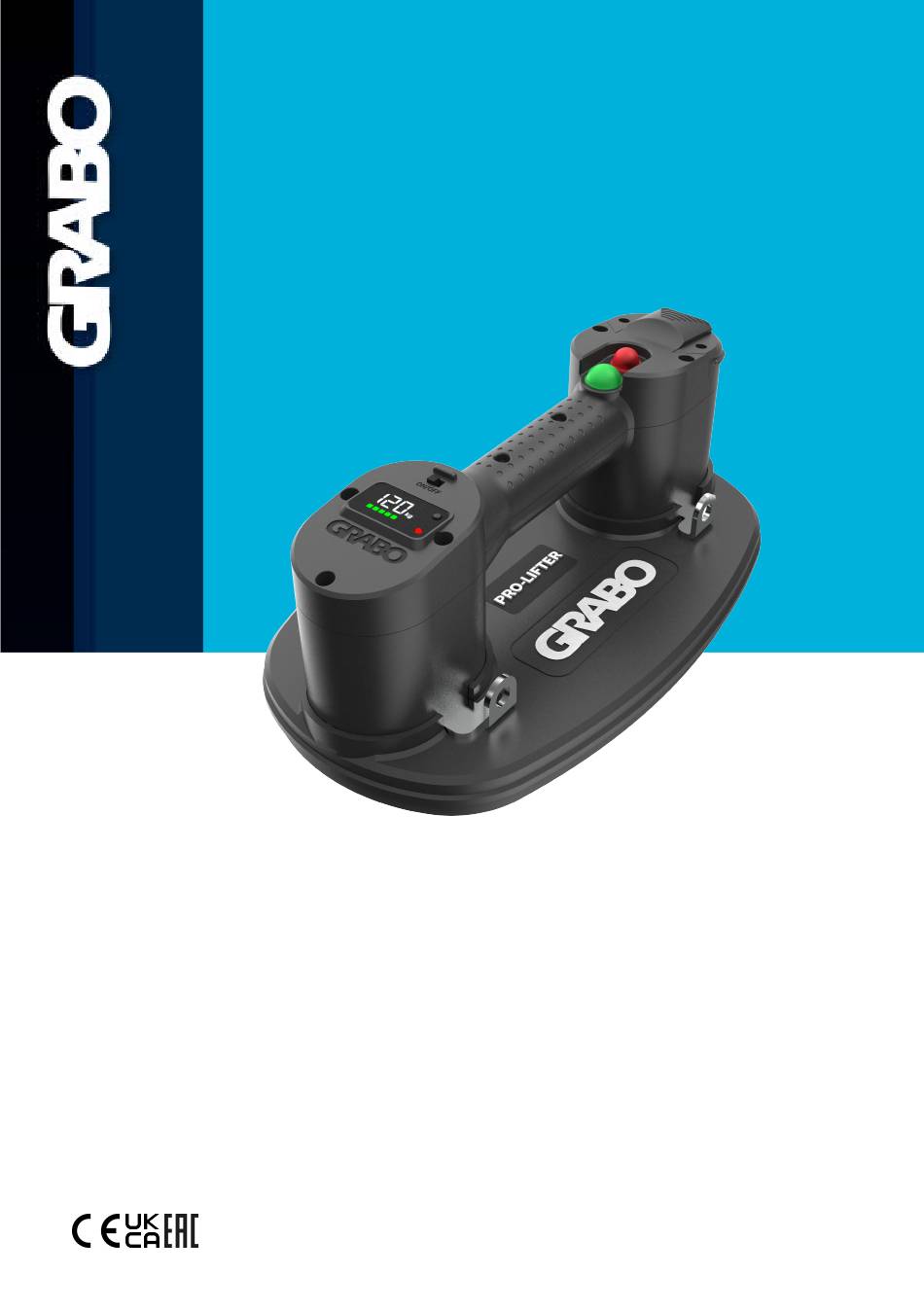

GRABO® PRO-LIFTER 20
PORTABLE ELECTRIC VACUUM LIFTING
DEVICE
OPERATOR'S MANUAL
PORTABLE ELECTRIC VACUUM LIFTING DEVICE
E
November 2021 | version 1
By Nemo Power Tools - www.GRABO.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the PRO-LIFTER 20 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Grabo PRO-LIFTER 20

  • Page 1 GRABO® PRO-LIFTER 20 PORTABLE ELECTRIC VACUUM LIFTING DEVICE OPERATOR'S MANUAL PORTABLE ELECTRIC VACUUM LIFTING DEVICE November 2021 | version 1 By Nemo Power Tools - www.GRABO.com...
  • Page 2 GRABO® Headquarters & locations GRABO® tools are invented, developed, manufactured, and serviced by Nemo Power Tools and distributed by various partners. Our wholly owned subsidiary companies are located in Las Vegas, Hong Kong, Huizhou, Shenzhen, and Israel. USA - service & headquarters:...
  • Page 3 GRABO® PRO-LIFTER 20 | Operator’s manual GRABO® Official Importers/Distributors GRABO® products are distributed globally by our professional partners. Among many other great distribution partners, we’re proud to partner with the following global distributors: Topspin Powertools B.V Address: Stelmaker 12A 9502 KA Stadskanaal, Netherlands...
  • Page 5 GRABO® PRO-LIFTER 20 | Operator’s manual...
  • Page 7 GRABO® PRO-LIFTER 20 | Operator’s manual...
  • Page 9 GRABO® PRO-LIFTER 20 INTRODUCTION The GRABO® Pro-Lifter 20 is a portable electric vacuum lifting device intended to lift, move, and place objects such as tiles, stone pavers, drywall, glass and furniture. The GRABO® Pro-Lifter 20 has a built-in pressure sensor with an automatic start/stop function. The GRABO® Pro-Lifter 20 is designed to work with dry, rough and slightly porous material.
  • Page 10 170 kg (375 lbs). In no case should the GRABO® Pro-Lifter 20 be used to lift more than 170 kg (375 lbs). Use the chart below to estimate safe lifting values: WLL: 120 kg (265 lbs) on non-porous surfaces IMPORTANT: ...
  • Page 11 Drywall 75 kg/165 lbs 65 kg/143 lbs NOTICE: When the vacuum level drops below -0.65 Bar (-65 kPa), the GRABO® Pro-Lifter 20 will automatically restart the pump (when the pump is switched on), thereby achieving the pressure required for use. General specifications...
  • Page 12 GRABO® PRO-LIFTER 20 | Operator’s manual TOOL ELEMENTS ❶ ⓭ Battery Air filter pad Red vacuum release button Air filter lock ring Green motor power button Pressure in bar Power ON/OFF switch Pressure in psi Digital display Weight in kg...
  • Page 13 SAFETY entangled cords increase the risk of electric shock. GENERAL POWER TOOL SAFETY e. When operating a power tool outdoors, use WARNINGS an extension cord suitable for outdoor use. WARNING: Read all safety warnings, Use of a cord suitable for outdoor use instructions, illustrations and specifications reduces the risk of electric shock.
  • Page 14 GRABO® PRO-LIFTER 20 | Operator’s manual g. If devices are provided for the connection of working conditions and the work to be dust extraction and collection facilities, performed. Use of the power tool for ensure these are connected and properly operations different from those intended used.
  • Page 15 NOTICE: Due to the high pressure that is objects. Do not swing or shake the load created with the GRABO® Pro-Lifter 20 we while lifting, moving and placing objects. Do strongly recommend that you do not not use the tool when the seal is worn out.
  • Page 16 GRABO® PRO-LIFTER 20 | Operator’s manual RUBBER FOAM SEAL USAGE AND getting sucked into air ducts and inside the SAFETY body. ! The rubber foam seal is made of two parts: ! Do not dip or use the seal in the presence of black rubber foam and red silicon seal.
  • Page 17 ASSEMBLY CONNECTING A STRAP TO THE GRABO® PRO-LIFTER 20 ❺ As an option, you can attach a strap to the GRABO® Pro-Lifter 20 to carry the device safely. 1. Locate the four attachment rings Ⓗ . 2. Connect a strap to any two of these attachment rings.
  • Page 18 The batteries are partially charged and must be charged to full capacity before using the GRABO® Pro-Lifter 20 for the first time. When the batteries are fully charged, which takes approximately two hours from the discharged state, the GRABO® Pro-Lifter 20 motor can run for up to 1.5 hours. See CHARGING THE BATTERY.
  • Page 19 3. Position the GRABO® Pro-Lifter 20 firmly against the surface of the object you want to lift. 4. Press the green motor power button Ⓒ . The run status indicator Ⓖ flashes red. A seal is created within seconds.
  • Page 20 WARNING: Changes to the tool and technical modifications are not permitted. This can lead to injury. If the tool fails despite the care taken in manufacturing and testing procedures, repair shall be carried out by an after-sales service centre for the GRABO® Pro-Lifter 20. REPLACING THE RUBBER FOAM SEAL ❽...
  • Page 21 Clean the filter when dirty. The filter needs to be replaced when the filter is badly worn or ripped (at customer’s discretion). This is determined by how the GRABO® Pro-Lifter 20 is being used. When lifting clean material, the filter will last longer than when being used on dirty/dusty materials.
  • Page 22 GRABO® Pro-Lifter 20 learning mode/recalibration mode: 1. Place the GRABO® Pro-Lifter 20 on a non-porous surface such as a polished tile. 2. Slide the power ON/OFF switch Ⓓ into the ON position. 3. Press the measurement unit selector Ⓕ for 10 seconds. When the red light turns green, release the measurement unit selector Ⓕ...
  • Page 23 NOTICE:  The GRABO® Pro-Lifter 20 will display incorrect values on the digital display if the device is not calibrated on a non-porous surface such as tile or glass. In this case the calibration process must be repeated on a non-porous material. DO NOT perform this process on glass that is thinner than 6 mm.
  • Page 24 GRABO® PRO-LIFTER 20 November 2021 | version 1 By Nemo Power Tools - www.GRABO.com...
