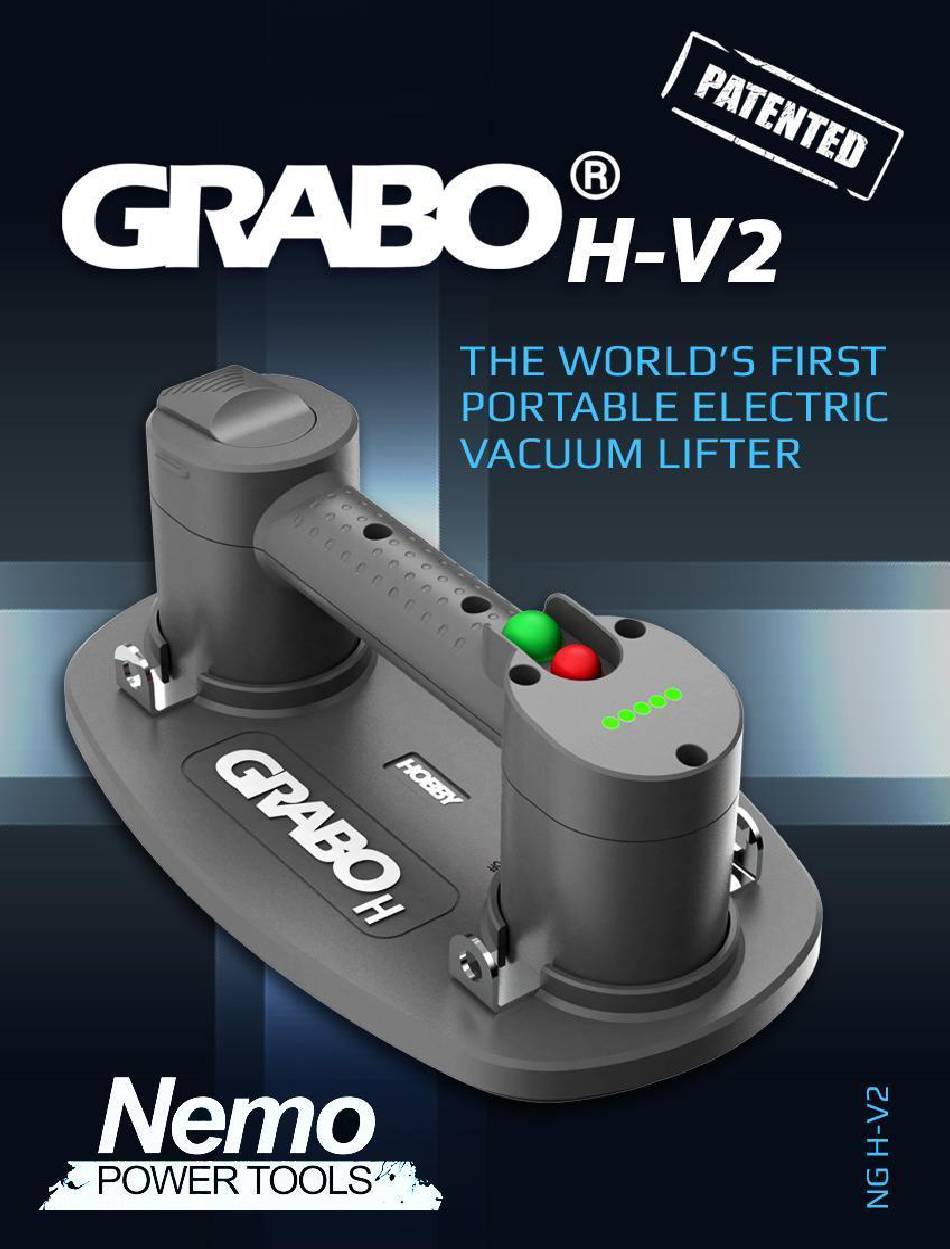

Grabo NGH-V2 Manual

Portable electric vacuum lifter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGH-V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Grabo NGH-V2

Summary of Contents for Grabo NGH-V2

  • Page 2 GRABO® Headquarters & locations GRABO® tools are invented, developed, manufactured and serviced by Nemo Power Tools and distributed by various partners. Our wholly owned subsidiary companies are located in Las Vegas, Hong Kong, Huizhou, Shenzhen, & Israel. USA - Service & Headquarters:...
  • Page 3 Hong Kong Email: Info@nemopowertools.com Website : www.NemoPowerTools.com Phone: (+852) 300 15741 Huizhou - The GRABO® factory Nemo Power Tools (HuiZhou) Ltd Fourth Industrial Area, Luokeng Village, Xiaotie District, Xiaojinkou Town, Huicheng District, Huizhou City, Guangdong Province, China Email: HZ@GRABO.com Website : www.NemoGRABO.cn...
  • Page 4 Phone: (+86) 0752-2369680 Israel - R&D & Innovation center: NPT (Israel) LTD Almog 118, Shar Efraim, Israel 4283500 Email: Gizmo@GRABO.com Website: www.GRABO.com Phone: (+972) 054 4745412...
  • Page 5 ①...
  • Page 6 AA battery compartment (6 batteries) 18650 battery compartment (2 batteries)
  • Page 7 ② Ⓖ...
  • Page 8 ③...
  • Page 9 ④ AA batteries 18650 batteries...
  • Page 10 ⑤ ⑥ ⑦...
  • Page 11 INTRODUCTION The GRABO® H V2 is a portable electric vacuum lifting device intended to lift, move, and place objects such as tiles, stone pavers, drywall, glass, wood, flooring, furniture and much more. GRABO® H V2 has a built-in pressure sensor with an automatic start/stop function.

  • Page 12: Technical Specifications

    ! Read this instruction manual carefully before use and save it for future reference The GRABO® H V2 features up to 75 kg (165 lbs) of grabbing force, and can secure to almost any surface, enabling you to handle unwieldy loads quicker and more safely than ever before, all while minimizing the risk of damage to expensive materials.
  • Page 13 Additional features Automatic start/stop function NOTICE: When the vacuum level drops below -0.6 Bar (- 6kPa) the GRABO® H V2 will automatically restart the pump (when the pump is switched to auto mode), thereby achieving the pressure required for use.
  • Page 14 GRABO® H V2 can be powered by either 6 AA alkaline batteries or 2 18650 batteries. (Batteries not included) The GRABO® H V2 features a thermal protection system to prolong its lifespan. When the temperature of the motor/PCBA is operating between 65-75℃, the red light blinks rapidly and the product runs normally;...

  • Page 15: Scope Of Delivery

    If your delivery contains any additional items, these will be listed separately. See Spare Parts for more information on ordering spare parts. BASIC GRABO® H V2 SCOPE OF DELIVERY: • GRABO® H V2 (tool only) • Operator’s manual...

  • Page 16: General Power Tool Safety Warnings

    ①⑦ TOOL ELEMENTS Ⓐ Green motor power button Ⓑ Red vacuum release button Ⓒ Power ON/AUTO/OFF switch Ⓓ Battery bar indicator Ⓔ Battery compartment Ⓕ Attachment rings (4x) Ⓖ Foam seal Ⓗ Air filter lock ring Ⓘ Air filter pad SAFETY GENERAL POWER TOOL SAFETY WARNINGS WARNING: Read all safety warnings, instructions,...

  • Page 17: Work Area Safety

    1) WORK AREA SAFETY a) Keep your work area clean and well lit. Cluttered benches and dark areas invite accidents. b) Do not operate power tools in an explosive atmosphere, such as in the presence of flammable liquids, gases, or dust. Power tools create sparks which may ignite dust or fumes.

  • Page 18: Personal Safety

    e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.
  • Page 19 d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times.
  • Page 20 b) Do not use the power tool if the switch does not turn on and off easily. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
  • Page 21 power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
  • Page 22 e) Do not use a battery or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. f) Do not expose a battery or tool to fire or excessive temperature.
  • Page 23 Internal components are not waterproof. If water is sucked into the air ducts it can cause permanent damage to the tool. The GRABO® H V2 is not waterproof and therefore extreme caution should be taken when using in the rain or...
  • Page 24 WARNING! Weight may drop without warning if the safety precautions are not met! The GRABO® H V2 creates a strong vacuum. In case the seal is broken or the allowed weight is exceeded or any other factor that causes the negative...
  • Page 25 FOAM SEAL USAGE AND SAFETY ! The foam seal, made of black rubber foam uses patented technology and is one of the main components of the tool. It should be handled with caution as it directly impacts the overall performance and safety. a) The seal can withstand an estimated 900 compression cycles, depending on force and duration of compression, without any damage.

  • Page 26: Explanation Of Symbols

    slightly soaking the seal with water will not damage its performance. If it is soaked in water, it can be squeezed by hand like a sponge to dry without damage. It is advisable to use a dry seal to avoid water getting sucked into air ducts and inside the body.
  • Page 27 TRANSPORTING The GRABO® H V2 doesn’t come with batteries in order to reduce the risk of hazardous product transportation. OPERATION LIFTING TECHNIQUES • Plan ahead. Know what you are lifting and how you will lift it. Be aware of the weight of the object. Determine whether or not it is safe to lift on your own.
  • Page 28 5. Put the hand (same side of your body as the forward foot) on the side of the object farthest from you. 6. When lifting the load holding the GRABO® H V2 with one hand, secure the load with your other hand.

  • Page 29: Changing The Batteries

    When the vacuum level reaches -0.6 Bar (- 6kPa) the pump will automatically stop. When the vacuum level drops below -0.6 Bar (- 6kPa) , the GRABO® H V2 will automatically restart the pump (when the pump is switched Ⓓ...
  • Page 30 5. Lift and move the object. ! When lifting materials with dusty, dirty, or moist surfaces, remove the dust and dirt as much as possible. The GRABO® H V2 will automatically turn the pump on and off (when in AUTO mode) to maintain the pressure necessary for safe lifting.

  • Page 31: Installing / Changing The Batteries

    ④ INSTALLING / CHANGING THE BATTERIES 1. Slide the battery latch to unlock the battery compartment Ⓔ Ⓔ. 2. Remove the battery compartment 3. Insert batters (6 x AA or 2 x 18650 not included) into the battery compartment. 4. Put the battery compartment back into place. 5.

  • Page 32: Maintenance

    GRABO® H V2. ! CAUTION: Under no circumstances should the GRBAO H V2 be opened for repairs or any other purpose by anyone other than an after-sales service technician authorized by Nemo Power Tools Ltd.
  • Page 33 When lifting clean material, the filter will last longer than when being used on dirty/dusty materials. 1. Turn the GRABO® H V2 upside down. 2. Use the tip of a screwdriver to remove the air filter lock Ⓗ...

  • Page 34: Troubleshooting

    Check that the air duct is free from any obstruction or foreign objects during filter replacement. TROUBLESHOOTING www.GRABO.com DISPOSAL Do not dispose of electric equipment, batteries, accessories, and packaging in domestic waste. Electrical equipment that...
  • Page 35 Nemo Power Tools Ltd www.GRABO.com...
