Installing Scale Control meter
• When you have a tank that is from before 2018, please continue first with the
1
3
installation manual of the flow meter. If you didn't receive the flow meter yet,
please contact Quooker at 0207 9233355.
2
4

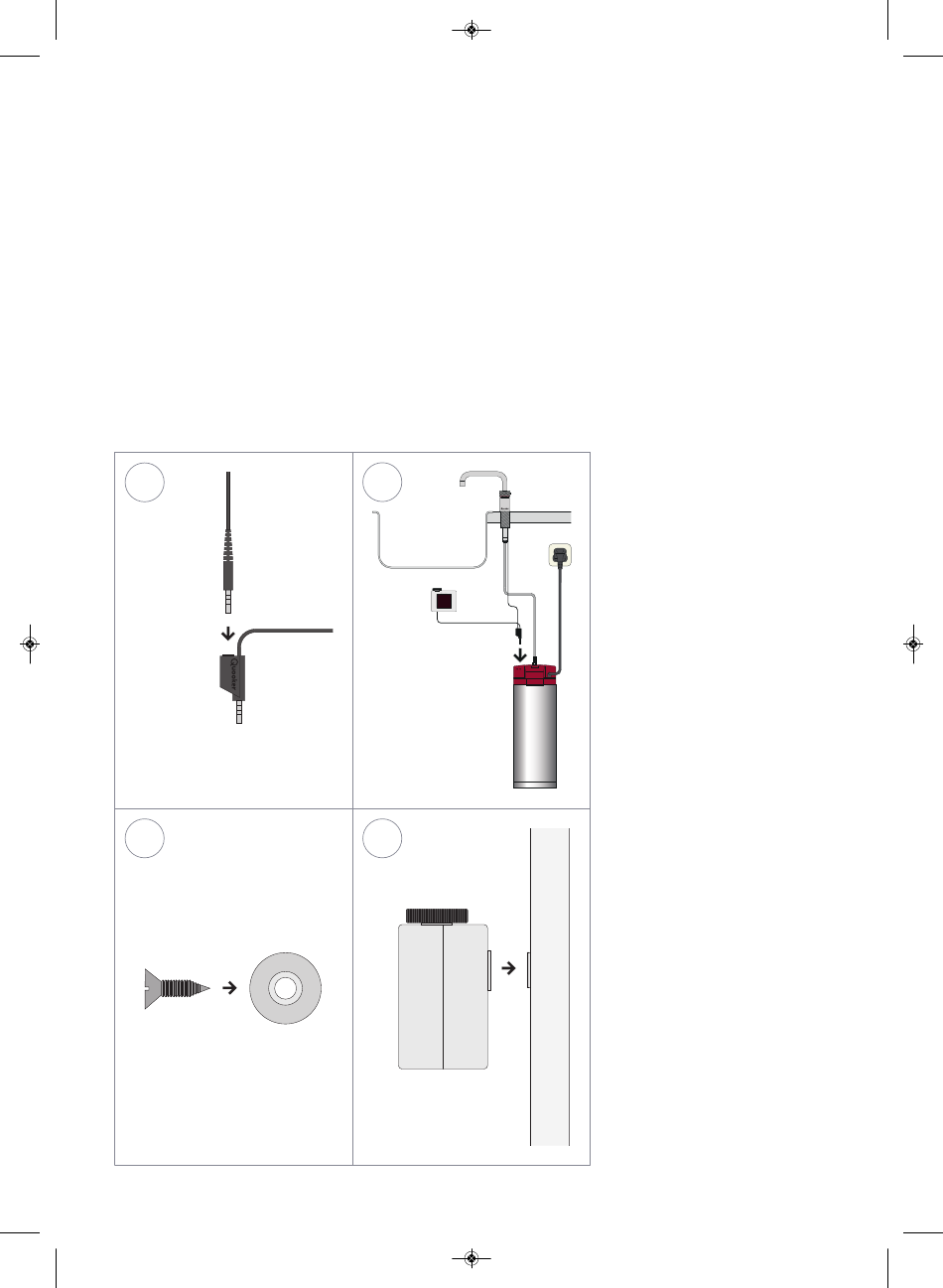

1 Connecting tap
Take the jack plug of the tap out of
the tank and insert it into the Scale
Control meter's jack plug.
2 Connecting
Scale Control
meter
Insert the jack plug of the Scale
Control meter into either one of the
sockets provided at the top of the
back of the tank.
3 Mounting metal
washer
Mount the included washer inside your
kitchen's cupboard, using the supplied
screw.
4 Mounting Scale
Control meter
Using the integrated magnet, attach
Scale Control meter onto the mounted
metal washer. Fix the provided sticker
to the inside of the cupboard next to
the Scale Control meter.
