Item No.: 405112/405113/405114
N231031111 -V1

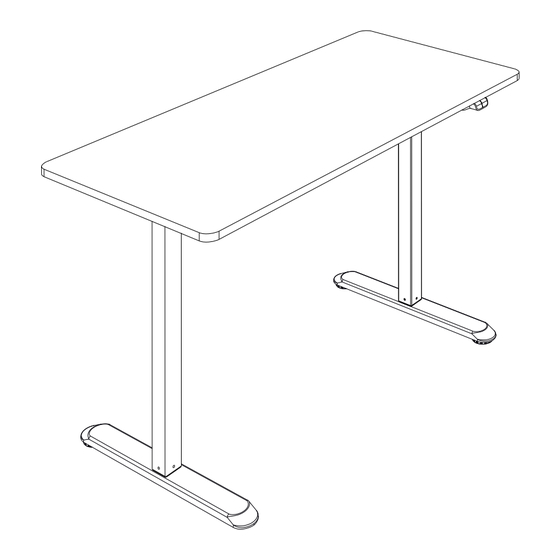

< The pictures below are for reference only, please refer to the actual product. >
Please read this product manual carefully before use, and keep it properly.
Technical Data
Column Stage
2
Max. Load Capacity
50KG
Max. Speed
15mm/s
Lowest Height
730mm
Highest Height
1180mm
Tabletop Size
1200x600mm
Product List
Accessory List
Note: The line drawings below are for reference only and may differ slightly from the physical product in some
cases. Please refer to the actual product for accuracy. If any tools are missing or there are problems with
installation, please contact customer service.
Ax4
Bx10
Cx8
Dx1/1/1
Ex4
Fx4
Gx3
Preparation before installation
Install on carpet to prevent scratches.
Bring your own pistol drill.
Need two or more people to cooperate together.
Part List
No.
Part
No.
①
⑧
Tabletop x1
②
⑨
Supporting plates x2
③
⑩
Beam x1
④
Left lifting
column x1
⑤
Right lifting
column x1
⑥
Feet x2
⑦
Transmission rod x1
Installation Instruction
Hx1
Installation Steps
Part
STEP1
Baffle x1
Install the feet
+
Handset x1
Adaptor x1
Adaptor holder x1
Power plug x1
Switch cord x1
Hook x1
STEP2
Connect the right lifting column to the beam
C
x8
D
x1
4x4
F
x1
D
x1
5x5
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TecTake 405112
Summary of Contents for TecTake 405112

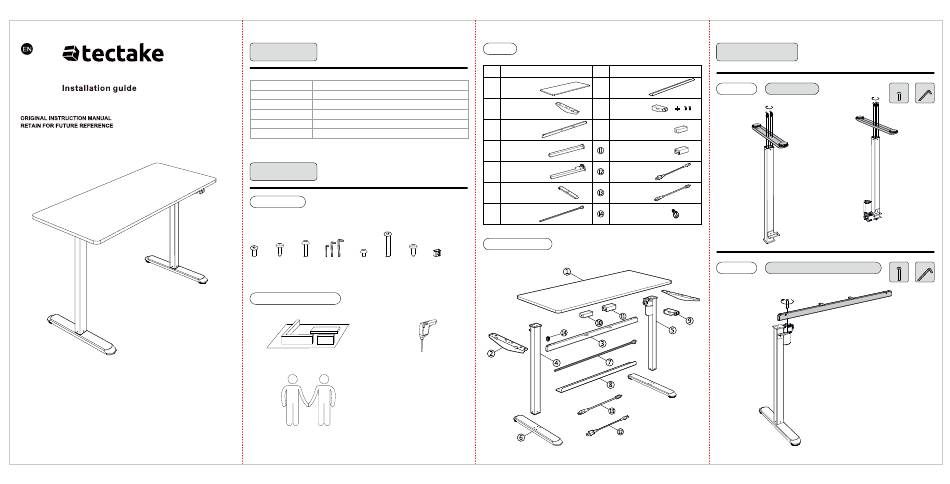

- Page 1 Part List Technical Data Installation Steps Part Part Item No.: 405112/405113/405114 ① ⑧ Column Stage Tabletop x1 STEP1 Baffle x1 Install the feet Max. Load Capacity 50KG N231031111 -V1 Max. Speed 15mm/s ② ⑨ Supporting plates x2 Handset x1 Lowest Height...
- Page 2 STEP3 STEP4 STEP6 STEP8 Install the transmission rod Connect the left lifting column to the beam Install the tabletop Install the handset Self-prepared Self-prepared The order of the tightening screws is Insert STEP5 Install the supporting plates STEP9 STEP7 2.5x2.5 Install the adaptor Install the cable management tray Please make sure to keep the height...
- Page 3 The desk moving downwards Check if overloaded, without any operation max loading: 50kg; Hergestellt für: TecTake GmbH Automatic Self-Reset Tauberweg 41, Please make sure that there are no obstructions during the ascending and descending Attention D - 97999 lgersheim, Germany process of the desk, and all cables are long enough for the desk to go up and down.
- Page 4 Teileliste Technische Daten Installationsschritte Teil Teil 405112/405113/405114 Stufen der Hubsäulen Tischplatte x1 Schritt 1 Blende x1 Montieren Sie den Fuß Max.Ladekapazitat 50KG N231031111 -V1 Geschwindigkeit 15mm/s Auflageplatten x2 Bedienteil x1 Niedrigste Position 730mm Hochste Position 1180mm Holm x1 Adapter x1...
- Page 5 Schritt 3 Schritt 4 Schritt 6 Schritt 8 Montage der Übertragungsstange Befestigen Sie die linke Tischplatte montieren Montieren Handschalter Hubsäule am Holm Selbst zur Selbst zur Verfügung Verfügung stellen stellen Die Reihenfolge der anzuziehenden Schrauben ist Einsetzen Schritt 5 Montage der Auflageplatten Schritt 9 Schritt 7 2.5x2.5...
- Page 6 Der Schreibtisch senkt sich Überprüfen Sie, ob der Schreibtisch ohne Bedienung ab überladen ist, maximal 50kg Hergestellt für: TecTake GmbH Automatischer Reset Tauberweg 41, Vergewissern Sie sich, dass es beim Auf- und Abwärtsfahren der Tischplatte keine Achtung D - 97999 lgersheim, Germany Hindernisse gibt und alle Kabel lang genug sind, um den Schreibtisch hoch- und Fährt herunter, aber nicht hoch,...
- Page 7 Liste des pièces Données techniques Étapes de l'installation Pièce Pièce 405112/405113/405114 Montage colonne Plateau de Étape 1 Cache x1 Montez les patins reqlables table x1 N231031111 -V1 Charge maximale 50KG Vitesse 15mm/s Plaques de Panneau de support x2 commande x1...
- Page 8 Étape 3 Étape 4 Étape 6 Étape 8 Montage de la tige de transmission Fixez la colonne de levage Montage du plateau de table Installez latélécommande gauche sur le montant. Fourni par Fourni par vous-même vous-même L'ordre des vis à serrer est Insérer Étape 5 Montage des plaques de...
- Page 9 Hergestellt für: plateau et que tous les câbles soient suffisamment longs pour pouvoir monter ou Descend mais ne remonte pas, descendre le bureau. TecTake GmbH ou monte mais ne redescend pas Tauberweg 41, D - 97999 lgersheim, Germany La hauteur la plus haute et la...
- Page 10 Listado de piezas Datos técnicos Pasos de instalación Núm Pieza Núm Pieza 405112/405113/405114 Número de columnas Tablero x1 Paso 1 Separador x1 Monte los pies N231031111 -V1 Capacidad máxima de carga 50KG Velocidad 15mm/s Panel de Placas de soporte x2 control x1 Posicionamiento más bajo...
- Page 11 Paso 3 Paso 4 Paso 6 Paso 8 Monte la varilla de transmisión Conecte la columna elevadora Instale tablero Instale panel de control izquierda a la barra Auto-preparado Auto-preparado El orden de apriete de los tornillos es Insertar Paso 5 Instale la placa de soporte Paso 9 Paso 7...
- Page 12 El escritorio baja sin que se haya Check if overloaded,max hecho ninguna operación loading:50 kg; Hergestellt für: TecTake GmbH Reseteamiento automático Tauberweg 41, Asegúrese de que no haya obstáculos durante el proceso de subida y bajada del jAtención! D - 97999 lgersheim, Germany...
- Page 13 Lista dei pezzi Dati tecnici Fasi di installazione Pezzo Pezzo Numero articolo: 405112/405113/405114 Piano del Guida per installazione Colonna piano Fase 1 Pannello x1 Installare i piedi tavolo x1 N231031111 -V1 Capacità massima di carico 50KG Velocità massima 15mm/s Piastre di...
- Page 14 Fase 3 Fase 4 Fase 6 Fase 8 Montaggio dell'asta di trasmissione Fissare il montante di Montare il piano del tavolo Installare il ricevitore sollevamento sinistro alla traversa Preparate Preparate La sequenza delle viti da serrare è Inserire Fase 5 Installare la piastra supporto Fase 9...
- Page 15 La scrivania si abbassa senza Verificate se la scrivania è bisogno di operazioni sovraccarica, max.50 kg Hergestellt für: TecTake GmbH Ripristino automatico Tauberweg 41, Assicuratevi che non ci siano ostacoli quando muovete il piano della scrivania Attenzione D - 97999 lgersheim, Germany...
