- Page 1 Portable Air Conditioner Owner’s Manual A016A series（Cooling only） (With R290 refrigerant) READ AND SAVE THESE INSTRUCTIONS...
- Page 2 CONTENTS 1. BEFORE YOU BEGIN 2. FOR YOUR SAFETY 3. PRODUCT OVERVIEW 4. INSTALLATION 5. OPERATION 6. CLEANING AND CARE 7. TROUBLESHOOTING 8. DECOMMISSIONING...
- Page 3 1. BEFORE YOU BEGIN 1.1 PRODUCT DESCRIPTION Our powerful portable air conditioners are great cooling solutions for single rooms, creating a comfortable atmosphere in your space. It also has ventilation and dehumidifying function for circulating air and removal of moisture. They're self-contained systems that do not require any permanent installation allowing you to move to the space in which it is most needed.
- Page 4 Further information is available in the USER MANUAL, SERVICE MANUAL, and the like. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operation.
- Page 5 THE FOLLOWING SHOULD ALWAYS BE OBSERVED FOR SAFETY ● This appliance is intended to be used by expert or trained users in shops, in light industry and on farms, or for commercial use by lay persons. ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
- Page 6 ● Component parts are designed for propane and non-incentive and non-sparking. Component parts shall only be replaced with identical repair parts. FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY AND PROPERTY DAMAGE.
- Page 7 2. FOR YOUR SAFETY Your safety is the most important thing we concerned! Please read this manual carefully and fully understand before operating your appliance. WARNING OPERATIONAL PRECAUTIONS WARNING- to reduce the risk of fire, electric shock or injury to persons or property: ■...
- Page 8 unit. ■ Do not unplug while the unit is operating. ■ Do not unplug by pulling on the power cord. ■ Do not use an extension cord or an adapter plug. ■ Do not put objects on the unit. ■ Do not climb or sit on the unit. ■...
- Page 9 ■ Compliance with national gas regulations shall be observed. ■ Keep any required ventilation openings clear of obstruction. ■ The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited...
- Page 10 SAFETY PRECAUTIONS ON SERVICING Please follow these warnings when to undertake the following when servicing an appliance with R290. 2.2.1 Checks to the area Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized.
- Page 11 No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the...
- Page 12 refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded. 2.2.9 Checks to electrical devices Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with.

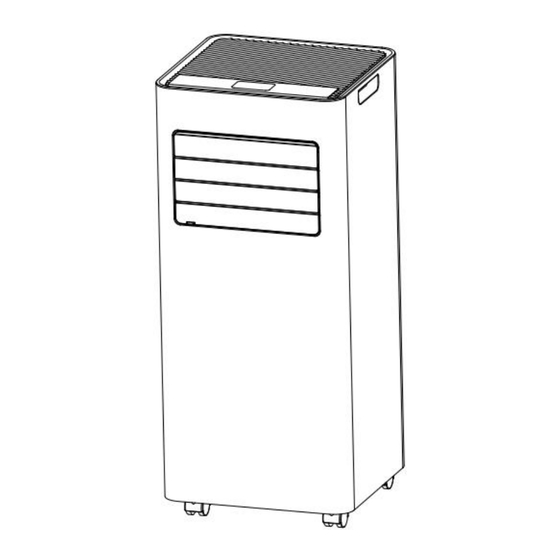

- Page 13 3. PRODUCT OVERVIEW 3.1 PRODUCT DIAGRAM Air inlet with Control panel Drainage Hole air filter Air outlet with adjustable Caster Air Exhaust louver Handle Note: The appearance is only for reference. Please see the real product for detailed information.
- Page 14 FEATURES High Capacity in a compact size with fan, cooling and √ dehumidifying function. Temperature setting and display √ LED Digital display √ Electronic control with built-in timer, sleep mode √ Self-evaporating system for better efficient √ Auto shut off when tank full √...
- Page 15 4. INSTALLATION UNPACKING ● Unpack the carton and take the appliance and accessories out. ● Check the device after unpacking for any damage or scratches on it. ● Accessories: ■ 1. Exhaust hose ■ 2. Hose connector ■ 3. Window kit adapter ■...
- Page 16 Choose your location ● If tipped more than 45°, allow the unit to set upright for at least 24 hours before start up. ● Place the unit on a firm, level surface in an area with at least 50cm of free space around it to allow for proper air circulation.
- Page 17 ATTACH THE EXHAUST HOSE The air conditioner requires being vented outside so that the exhaust air can escape the room which coming from the appliance contains waste heat and moisture. Do not replace or extend exhaust hose which will result in decreased efficiency, even worse shut down the unit due to low backpressure.
- Page 18 Step 4: Close your window to secure the kit in place. It needs to hold the windows kit firmly in place, secure the window kit with duct tape if required. is recommended that t he gap between the adapter and the sides of the window should be sealed off for maximum efficiency.
- Page 19 Step 7: Adjust the louver at the air outlet, and then switch on the unit.
- Page 20 OPERATION CONTROL PANEL AND DISPLAY POWER Press to switch the machine on or off. Mode button Press to switch the operation MODE mode between fan, cooling, and dehumidifier. Press to switch the fan speed between HIGH SPEED and LOW Decreasing the desired temperature or timer DOWN setting.
- Page 21 1.High Fan Speed 2.Low Fan Speed 3.Timer 4.Dehumidifier Mode 5.Cooling Mode 6.Fan Mode 7.Sleep 8.Lock 9.Display Window...
- Page 22 REMOTE CONTROL...
- Page 23 5.3 SETTINGS 5.3.1 Start-up and Shutdown Press POWER to turn the unit on. Press MODE button to select the desired operation mode. Press POWER again to turn off the power. 5.3.2 Operation mode The unit has four operation modes: Cool, dry, fan and sleep. A.
- Page 24 B. Drying your room Press MODE button on the control panel or remote control, the dry indicator lights up. The fan speed is unable to select. User should connect the hose to the drain outlet at the bottom of the unit. Note: In this mode, the fan speed switches over to low speed and cannot be selected.
- Page 25 5.3.3 TIMER SETTING （1hour-24hours）: The timer has two ways of operation: Press Up /Down Press Timer key to To turn off turn on the timer repeatedly to set the (When power on) function. delay OFF time. To turn on Press Up /Down Press Timer key to repeatedly to set the turn on the timer...
- Page 26 5.4 DRAINAGE Manual drainage: 1）When the machine stops after the water is full, please unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the unit. 2）Place the water container below the side water outlet behind the unit.
- Page 27 Continuous drainage The self-evaporating system uses the collected water to cool the condenser coils for better efficient performance. It is no need to empty the drainage tank in cooling operation except in drying operation and high humidity conditions. The condensate water evaporates at the condenser and evacuated through the exhaust hose.
- Page 28 Switch off the unit before ● operating. Remove the plug of the water ● outlet opening, and keep it in safe area. Securely and properly connect ● the drain hose and make sure it is not kinked and clear of obstruction.
- Page 29 cord. Remove the filter mesh from the unit. Use a vacuum cleaner to suck dust from the filter. Turn the filter over and rinse the air filter under running water. Let the water run through the filter in the opposite direction of air flow. Set aside and allow the filter to air dry completely before reinstalling.
- Page 30 6.2. CLEANING UP OF REFRIGERANT General Measures: 1. Gas/vapor heavier than air. May accumulate in confined spaces, particularly at or below ground level. 2. Eliminate every possible source of ignition. 3. Use appropriate personal protection equipment (PPE). 4. Evacuate unnecessary personnel, isolate, and ventilate area. 5.
- Page 31 7. TROUBLESHOOTING Symptom Inspection Solution √ Check the power ➢ Insert the power cord connection in securely. securely into the wallOutlet. The unit is √ Check if the water level ➢ Empty the drain pan by indicator lights up? remove the rubber plug. operating.
- Page 32 8. DECOMMISSIONING 8.1. STORAGE Long-Term Storage - If you will not be using the unit for an extended period of time (more than a few weeks) it is best to clean the unit and dry it out completely. Please store the unit per the following steps: Unplug the unit and emove exhaust hose and window kit store with the...
