Rehateam Permobil Yoga User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Yoga
|
User manual
British English

Advertisement

loading
Need help?

Need help?

Do you have a question about the Permobil Yoga and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rehateam Permobil Yoga

Summary of Contents for Rehateam Permobil Yoga

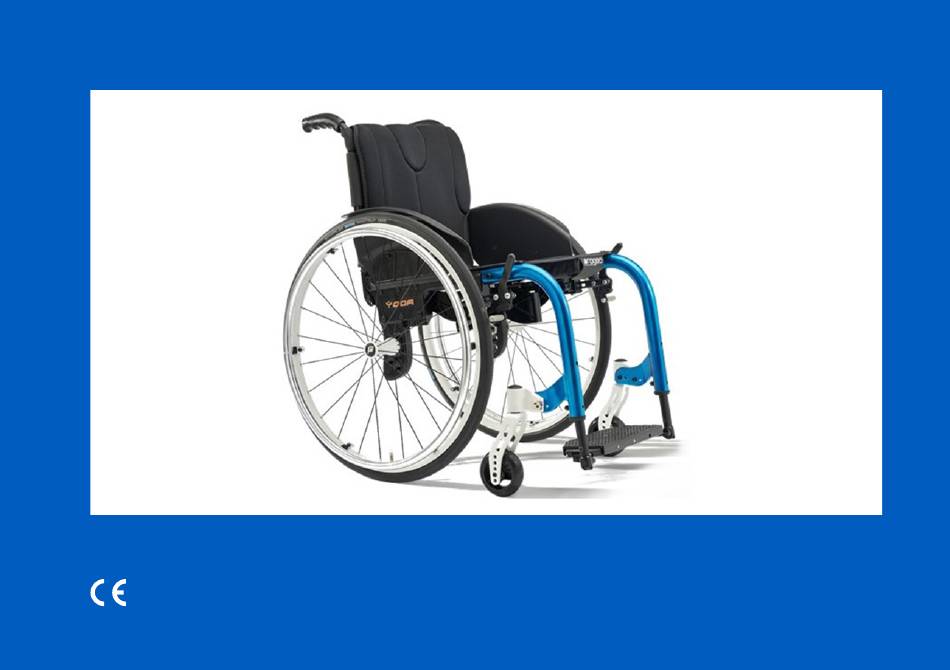

  • Page 1 Yoga User manual British English...
  • Page 2 However, all instructions are applicable, regardless of the product differences. Total or partial reproduction of this manual is forbidden without written authorisation from Rehateam s.r.l. Produced and published by Permobil Edition: 0.1 Date: 2024-12-17...
  • Page 3 INTRODUCTION 5.7.5 Single flip-up aluminium footrest 5.7.6 Single flip-up carbon fibre footrest FLAME-RETARDANT PROPERTIES, 5.7.7 Single plastic footrest with automatic folding SYMBOLS 5.7.8 Single aluminium platform with automatic FLAMMABILITY folding SYMBOLS USED CALF STRAP ADJUSTABLE BACKREST UPHOLSTERY PRODUCT LABELS 5.10 ARMRESTS 5.10.1 General information...
  • Page 4 TRASPORT OF THE WHEELCHAIR 10.16 SPOKE GUARDS 10.17 FRONT CASTORS TRASPORT OF THE OCCUPIED 10.18 VANITY FLAP (seat/backrest bonding WHEELCHAIR canvas) TRANSPORT WITH A CARER 10.19 REMOVABLE UTILITY BAG LOADING THE WHEELCHAIR WITHOUT 10.20 FRAME PROTECTION PAD ASSISTANCE MAINTENANCE DESCRIPTION OF PARTS 11.1 REPLACEMENT OF WORN PARTS ADJUSTMENT...
  • Page 5 If some or all of these abilities are limited or impaired, the the cornerstone of our business. presence of an assistant person with appropriate abilities is Rehateam s.r.l. is a serious, reliable company that is remain always required. genuinely focused on providing total customer satisfaction.
  • Page 6 FLAME-RETARDANT PROPERTIES, IMPORTANT! SYMBOLS This symbol indicates important instructions or special FLAMMABILITY information. This product has been tested in accordance with the standard EN12183. This standard also includes a flammability test. The fire reaction of upholstered parts complies with classes: M2 and M3.
  • Page 7 3 PRODUCT LABELS “UDI” code Progeo brand logo (Unique Device Identification) Year/month of production “MD” mark (Medical Device) "CE" mark Serial number XXXXXXXX Ambient usage temperature Product name Crash test approved Suitable for transporting the Maximum load occupied wheelchair in a vehicle Not suitable for transporting Maximum slope in use...
  • Page 8 4 INTENDED PURPOSES AND WARNING! CONDITIONS OF USE During daily use of the wheelchair, the occupant may come This model is a self-propelled wheelchair which means that it across situations such as rough or irregular terrains (gravel, can be moved manually by driving the hand rims on the rear cobblestones, holes on the ground, etc.) or slippery terrain (wet, wheels or by a carer using the push handles.
  • Page 9 IMPORTANT! In certain configurations, the wheelchair may exceed 700 mm in width. In such cases, under certain circumstances, it may not be possible to use some or all of the available escape routes from a building. If the wheelchair configuration causes the wheelchair width to exceed 700 mm, it may be difficult or impossible to travel on public transport.
  • Page 10 5 PUTTING THE WHEELCHAIR INTO SERVICE AND REGULAR USE GENERAL INFORMATION WARNING! It is important that all the wheelchair’s functional parts are CHECKED ONLY BY QUALIFIED AND AUTHORISED PERSONNEL, both to assess its suitability and to provide the correct instructions for use to occupant and carer where applicable.
  • Page 11 CAUTION! The installation and use of electrification, mechanical and/or electrical drive devices (lifts, stairlift) or any other accessory not provided by Rehateam s.r.l. at the time of delivery may result in stresses that were not foreseen during product testing and therefore the integrity and complete safety of the product is not guaranteed.
  • Page 12 CAUTION! Do not exceed the pressure indicated on the tyre because you may damage the tyre and the inner tube. Always respect what indicated on the tyre. IMPORTANT! The front castors may also be of the "pneumatic" type; in this case, follow the same instructions.
  • Page 13 The parking brake is a safety device, and you must not use it while the wheelchair is moving as this could cause the wheelchair to tip over with possible injury to the occupant. IMPORTANT! To check the effectiveness of the brakes, apply them as described below depending on the type of brake, and, with the person sitting in the wheelchair, try to gently push the wheelchair.
  • Page 14 TYPE OF BRAKES 5.4.1 Curved lever push to lock brake To engage the brake, push the lever forward until it locks. To release the brake, pull the lever backward. The brake automatically returns to its resting position. 5.4.2 Straight lever push to lock brake To engage the brake, push the lever forward until it locks.
  • Page 15 5.4.3 Straight lever pull to lock brake To engage the brake, pull the lever backward until it locks. To release the brake, push the lever frontward. The brake automatically returns to its resting position. 5.4.4 Extended lever push to lock or pull to lock brake Push to lock brake: To engage the brake, push the lever forward until it locks.
  • Page 16 QUICK RELEASE REAR WHEELS The rear quick release wheels enable you to reduce the wheelchair’s bulk and save space, thus facilitating storage in the car or, if the wheelchair is equipped with the "narrow passage wheels" accessory, to reduce its width and length in order to access narrow spaces.
  • Page 17 Grasp the wheel by the spokes around the hub, press the release pin button with your thumb and, without releasing, extract the wheel fully. To fit the wheel, first release the brake. Slightly lift the wheelchair form the ground on one side by the backrest knob. With your hand, take hold of the rear wheel’s hub and, with your thumb, press the button of the quick release pin, keep it pressed and push the pin fully into its seat.
  • Page 18 5.6.1 Unfolding (1) Grasp the backrest handle grip with one hand and the front frame with the other hand. Turn the backrest backward until the wheelchair is completely open: you should hear a click. Pull the other backrest post backward until you hear the click also on this side.
  • Page 19 If you neglect this procedure, you may cause damage to the frame and/or other parts of the wheelchair. Rehateam s. r. l. shall not be liable for any damage caused by failure to properly execute this procedure.
  • Page 20 FOOTREST 5.7.1 General information WARNING! When transferring to and from the wheelchair, never keep your feet on the footrest; excessive weight on the footrest may result in it breaking with harm to the occupant. After each operation, check that the footrest is always in the correct operating position.
  • Page 21 Depending on the occupant’s needs, the wheelchair can be provided with either of the above footrest versions. In the order form, according to the type of footrest, you can choose its position (internal, external or intermediate). Single footrests are more rigid than the dual versions and they are recommended for occupants subject to frequent spasms or who apply a lot of force to the footrest.
  • Page 22 Without it, in fact, the front frame can separate so much as to alter the wheelchair’s geometry, even under normal movement. Rehateam s.r.l. is not responsible for malfunction or damage to the wheelchair or the user if the wheelchair is used without the stretched calf band.
  • Page 23 5.7.5 Single flip-up aluminium footrest Make sure that the locking pin (1) is properly inserted in the slot of support (2). 5.7.6 Single flip-up carbon fibre footrest Make sure that the locking pin (1) is properly inserted in the slot of support (2).
  • Page 24 5.7.8 Single aluminium platform with automatic folding This check is not necessary because the footrest opens automatically together with the seat. CALF STRAP In some cases, depending on the diameter of the front wheel and the width of the wheelchair, the front wheel may come into contact with the heel of the occupant's foot when turning.
  • Page 25 ADJUSTABLE BACKREST UPHOLSTERY The backrest can be adjusted to the occupant requirements by tensioning or slackening the two special Velcro straps fitted inside the backrest itself. To carry out the adjustment, lift or remove the upholstery, tighten, or slacken the Velcro straps as required and replace the upholstery. CAUTION! The combination of the inclination of the seat with the inclination of the backrest posts and the inclination of a postural backrest with respect to the...
  • Page 26 CAUTION! Do not use the armrest as a hand hold to raise the wheelchair; this may cause the armrests to come off from their supports, damaging the wheelchair and harming the occupant. Do not use the armrest for support when transferring to or from the wheelchair.
  • Page 27 5.10.2 Tubular armrests with steel support You can swing this type of armrest away on the side and remove it to make transfer easier. Clothing guards are with this type of armrest. POSITION OF USE To check that the armrest is in the correct operating position shown as (1), take hold of the armrest with one hand (2)and try to move it left and right.
  • Page 28 WARNING! Always check that the armrests are secured when they are in their operating position (1) (facing forwards and parallel with the sides of the wheelchair). In all other positions (except whenlocked in their rear-facing position), they are free to turn and for this reason, you should always ensure that they are correctly positionedbefore using the wheelchair.
  • Page 29 5.11 CLOTHING SIDE GUARD The clothing guards can be in plastic or, much more resistant, in carbon fibre. They can be the “mudguard” type (1) or “straight” (2). Should the lateral clothing guard be of the type “mudguard”, these are originally fixed with its edge at approximately 5 mm above the tyre (3) to prevent the occupant from inserting his/her fingers between tyre and mudguard.
  • Page 30 Failure to observe this warning could result in damage to the occupant, third parties or the vehicle, for which Rehateam s.r.l. shall not be liable. 5.12.2 Wheelchair lifetime Progeo wheelchairs are used on a daily basis and they are consequently subject to continuous stress that causes inevitable wear and tear of the parts.
  • Page 31 WARNING! Rehateam s.r.l. will not be liable for failure to comply with the instructions or recommendations set out in this manual and any such activity will result in the immediate cancellation of the manufacturer's warranty.
  • Page 32 PREVENT ACCIDENTS 6.1.1 Movements Avoid sudden, jerky movements when using the wheelchair as this could cause it to overbalance. If your path is obstructed by obstacles, avoid sudden movements (such as abrupt braking). There is increased risk of skidding on irregular or damp ground.
  • Page 33 WARNING! When using the brakes, great care should be taken to avoid injury to the hands or fingers. MOVEMENTS: GETTING IN AND OUT OF THE WHEELCHAIR Wheelchair transfers must always be performed with extreme care and caution, even by experienced occupants, and only after receiving instruction from fully trained specialists.
  • Page 34 (1) Lean on the wheelchair and, where possible, on a stable object nearby. Use the force of your arms to raise and move your body. (2) If the occupant is not able to perform this movement alone, or if the movement is to be performed on an uneven surface, a carer should lend help.
  • Page 35 STARTING TO DRIVE YOUR WHEELCHAIR FINDING THE CENTRE OF GRAVITY Your ability to control and safely tip the wheelchair mainly depends on your seating position and the location of the centre of gravity with respect to the rear wheels. The correct position of the rear wheels depends on different factors such as the occupant’s weight, type of disability and the occupant’s driving skills.
  • Page 36 WARNING! If you hang a backpack, a bag or any other object on the push handlebars or any rear area of the wheelchair, the resulting uneven weight distribution can significantly affect the risk of overbalancing. TO PREVENT THE WHEELCHAIR FROM OVERBALANCING DURING NORMAL USE, WE RECOMMEND FITTING AN ANTI-TIPPING SYSTEM.
  • Page 37 6.4.1 Going up and down a step by yourself GOING DOWN Take the wheelchair right up to the obstacle so that the front wheels are as close as possible to it. Raise the front castors by tilting the wheelchair while maintaining balance. Slide the rear wheels very carefully over the edge.
  • Page 38 6.4.2 Negotiating a step with a carer GOING DOWN Take the wheelchair right up to the obstacle so that the front wheels are as close as possible to it. Grip the rear handles tightly and push down to raise the front of the wheelchair.
  • Page 39 GOING UP AND DOWN A SERIES OF STEPS DANGER! In the case of stairs with more than one step, two assistants are always required. The first assistant stands behind the wheelchair and holds the push handles. The second assistant grasps a fixed part of the front frame, guiding the wheelchair manoeuvre from the front.
  • Page 40 GOING UPHILL Driving up any kind of slope should be done with extreme care. The occupant must move at speed by generating force on the rear wheel while at the same time maintaining control over the wheelchair. Lean forwards and keep your weight forward in the chair to prevent the wheelchair from tipping over backwards.
  • Page 41 To achieve maximum occupant control of the wheelchair, we illustrate some situations which may emerge during normal daily use of the wheelchair. Please pay particular attention to the following to maintain balance and stability at all times. WARNING! Do not lean too far forward; you may fall out of the wheelchair. Do not move forward by sliding your pelvis across the seat cushion to reach objects that are too far away: you could fall off the wheelchair.
  • Page 42 LEANING BACKWARDS Ensure that the front castors are pointing forwards. To do this, move the wheelchair forwards and then backwards. Do not apply the parking brakes. Lean backwards without changing your sitting position. LYING SIDEWAYS Do not move your upper body beyond the rear wheel as the wheelchair could overbalance.
  • Page 43 TRASPORT OF THE WHEELCHAIR There is no single best way to load the wheelchair into a vehicle. Factors include the type and degree of the occupant’s disability (his/her ability to control his/her upper body, arm, and hand movements), physical strength (the operation may be too difficult for an older person or a child) and the type of vehicle that will be used.
  • Page 44 TRASPORT OF THE OCCUPIED WHEELCHAIR Always make sure the wheelchair is suitable to transporting the user in a vehicle. The symbols on the product label indicate if the wheelchair is or not crash tested and, accordingly, if it can be used for the transport of the user on a motor vehicle.
  • Page 45 In larger means of transport, you can load the wheelchair without reducing its encumbrance. LOADING THE WHEELCHAIR WITHOUT ASSISTANCE The following actions are intended for people with good control of their upper body, arms, and hands as well as sufficient strength to perform the movements in complete safety.
  • Page 46 8 DESCRIPTION OF PARTS Backrest post with handle 2. Backrest upholstery + Velcro straps for adjustment 3. Tyre 4. Hand rim 5. Parking brake 6. Side plate 7. Backrest support 8. Quick release pin 9. Rear wheel 10. Rear wheel plate 11.
  • Page 47 Rehateam s.r.l. manufactures, tests and delivers the wheelchair and relieve Rehateam s. r. l. from any liability concerning any to the dealer with the measurements and characteristics malfunction and/or damage due to such adjustments/ required in the order data sheet.
  • Page 48 POSSIBLE ADJUSTMENTS • Rear height • Front height • Trim (centre of gravity) • Fork angle • Backrest height • Backrest inclination • Footrest distance • Footrest position • Footrest inclination • Brakes • Convergence 48 - ADJUSTMENT...
  • Page 49 10 ACCESSORIES 10.1 GENERAL INFORMATION Each model can be equipped with various accessories that should be evaluated according to the needs of the occupant and assistant. Some of the images in this manual may show a wheelchair model different from the reference one. However, all instructions are applicable, regardless of the model differences.
  • Page 50 WARNING! For a correct assembly of the transit wheel, remember that when inserting it into the support, the pin (1) should always face toward the inside of the wheelchair. Remember that while using the transit wheels (with the rear wheels removed), the parking brakes will not work at all.
  • Page 51 To return the anti-tipping device to its position of use, repeat the same steps as described above. REMOVAL/INSERTION To remove the anti-tip wheel, push the pin (6) that you find in the upper side of the support (6) push the post down. To put the anti-tip wheel on, insert the part (7) of the support in the hole of the part (4) and turn the post until the two parts locks together.
  • Page 52 Before pushing the wheelchair, make sure the two posts are safely locked. Rehateam s.r.l. is not liable for any damage or injury caused by failure to heed this warning.
  • Page 53 10.5 TIPPING AID This accessory has been designed to enable the assistant to tip back the wheelchair without a great effort to facilitate negotiating small steps. With one foot, press down on the plastic support (1) while, at the same time, applying downward force onto the push handles on the backrest (2).
  • Page 54 10.7 FOLDING PUSH-HANDLES When folded down, these push handles reduce the wheelchair’s overall volume and reduce possible interference with the occupant’s arms when self- propelling the wheelchair. When in the operating position (1), they act just like normal handles. To fold the handle down, press pin (2), just beneath the handle and swing the handle down (3).
  • Page 55 CAUTION! Ensure that the fork is firmly seated by trying to remove it by pulling it downwards. The fork must not come off. There may be a just little play. 10.9 TETRACLIP This is a special quick release axle with a ring lever. It simplifies wheel removal for occupants with particular problems affecting their hands and fingers.
  • Page 56 10.10 PELVIC BELT AND HARNESS Both the pelvic belt and the harness are accessories to this model and must therefore be ordered separately. Both these belt systems are designed to assure the occupant greater safety and stability while seated in the chair. IMPORTANT! Both the pelvic belt and harness system are of particular use for occupants with little control of their upper body and who require extra support to be held...
  • Page 57 The harness (3) holds the occupant's torso to the wheelchair through two attachment points located at the waist level and two more at the shoulder level. The occupant’s entire upper body is secured to the seat. It is intended for use by occupants with particularly limited upper body mobility.
  • Page 58 10.11 LUMBAR SUPPORT This is a pad that offers extra support to the lumbar area. To position the lumbar support, raise the backrest upholstery on its front side. Using the Velcro fastener, attach the lumbar support either to the backrest upholstery or to the backrest bands at the required height.
  • Page 59 10.13 REAR WHEELS 10.13.1 General information Depending on your functional and/or appearance needs, you can choose one of the different rear wheels available for this model and fit different types of hand rim and covers. WARNING! For each type of quick release wheel, always check that the quick release axle is inserted correctly.
  • Page 60 10.13.4 Wheels Fat-wheel These wheels enable the wheelchair to be used on more difficult terrain. They are also recommended if the wheelchair is equipped with a front propulsion device. They are only supplied with their matching tyre and an aluminium hand rim. You can choose this type of wheel as an additional kit (and are interchangeable) to the main rear wheels you choose for your wheelchair.
  • Page 61 WARNING! When assembling these hand rims, there is a risk of pinching or crushing the fingers between the hand rim itself and the wheel rim. Always perform this operation with great care. 10.15 TYRES Different types of tyres, listed below, are available. Compatibility with the rear wheel depends on the size of the wheel itself.
  • Page 62 10.16 SPOKE GUARDS Their function is mainly cosmetic but they also prevent occupants from accidentally inserting their fingers into the rear wheel spokes. Colour 2. Dragon 3. Black 4. Transparent 10.17 FRONT CASTORS Various types and sizes of castors are available for this model, depending on the occupant’s functional needs and/or aesthetic preferences.
  • Page 63 WARNING! Before using the wheelchair, always check that the pivoting of the front castors does not interfere with other wheelchair components. Periodically check that the front castors are properly secured. 10.18 VANITY FLAP (seat/backrest bonding canvas) With this accessory you can affix the backrest upholstery to the seat canvas; it is useful for avoiding a possible backward sliding of a cushion that is not properly fixed to the seat.
  • Page 64 10.19 REMOVABLE UTILITY BAG This accessory is very useful for stowing items to carry with you, both when using the wheelchair and in other situations. In fact, the bag is easily removable thanks to the support fixed to the wheelchair. Depending on the space available, the bag may face backwards (1) or forwards (2) and is normally fixed in the front part of the wheelchair.
  • Page 65 11 MAINTENANCE CAUTION! The expected lifetime of the wheelchair, conservatively When cleaning the wheelchair, do not use abrasive cleaning estimated, is five years. agents or degreasing substances which could cause damage. Periodic inspection of the wheelchair is essential to guarantee maximum performance and a long life.
  • Page 66 Progeo wheelchair, the experienced technical staff at hands and bicycle tyre wrenches, insert the inner tube into the Rehateam s.r.l. are at the complete disposal of all our clients tyre and work the edge of the tyre over the wheel rim ensuring You can contact us directly at the address below: Rehateam s.r.
  • Page 67 • Check the quick release axles. WARNING! • Check the folding system (seat and/or backrest). • Check the footplate. The first thing you should know is that cleaning is not the same • Check the parking brakes. as disinfecting. • General check of all screws. By cleaning we remove germs and dirt from surfaces, but we do •...
  • Page 68 At the time of re-use, it is necessary to carry out a general Packaging: plastic bags made of soft polyethylene, cardboard check of the wheelchair following the same points of paragraph Alternatively, you can return the backrest to your dealer for 11.2 CHECK OF PARTS.
  • Page 69 With constant and prolonged use of the wheelchair, or after the adjustment of certain parts, some “defects” may emerge which can easily be eliminated by qualified personnel, or, where indicated by the ▆ symbol, also by the occupant or carer. In any case, we suggest you should consult a Rehateam s.r.l. authorised dealer. Problem...
  • Page 70 13 TECHNICAL SPECIFICATIONS • SEAT WIDTH 360; 390; 420; 450 mm • SEAT DEPTH 350; 375; 400, 425, 450, 475 mm • FOOTREST DISTANCE from 350 to 540 mm (adjustable) • BACKREST HEIGHT from 245 to 470 mm (adjustable) • BACKREST ANGLE 4 positions: 3>90°;1<90° (adjustable) •...
  • Page 71 14 WARRANTY The warranty on defects on contact parts is at the complete discretion of Rehateam s.r.l. either for the repair of the defect or The warranty agreement exists only between Rehateam s.r.l. for the replacement of the part itself. The authorised distributor and its authorised dealers.
  • Page 72 All claims for compensation are excluded from the warranty except for those specifically mentioned in the preceding paragraphs of this chapter. Rehateam s.r.l. accepts no responsibility for failure to respect or execute the indications established in the individual contracts, if the following events have prevented and/or made it...
  • Page 73 15 WARRANTY CERTIFICATE MEDICAL DEVICE CLASS I REHATEAM s.r.l. Vicolo Negrelli 5 — 31038 Castagnole di Paese (TV) — Italy 0039 0422 484657 0039 0422 484661 info_it@permobil.com www.rehateamprogeo.com DEALER / RETAILER Stamp product label Date of delivery to user: ............
