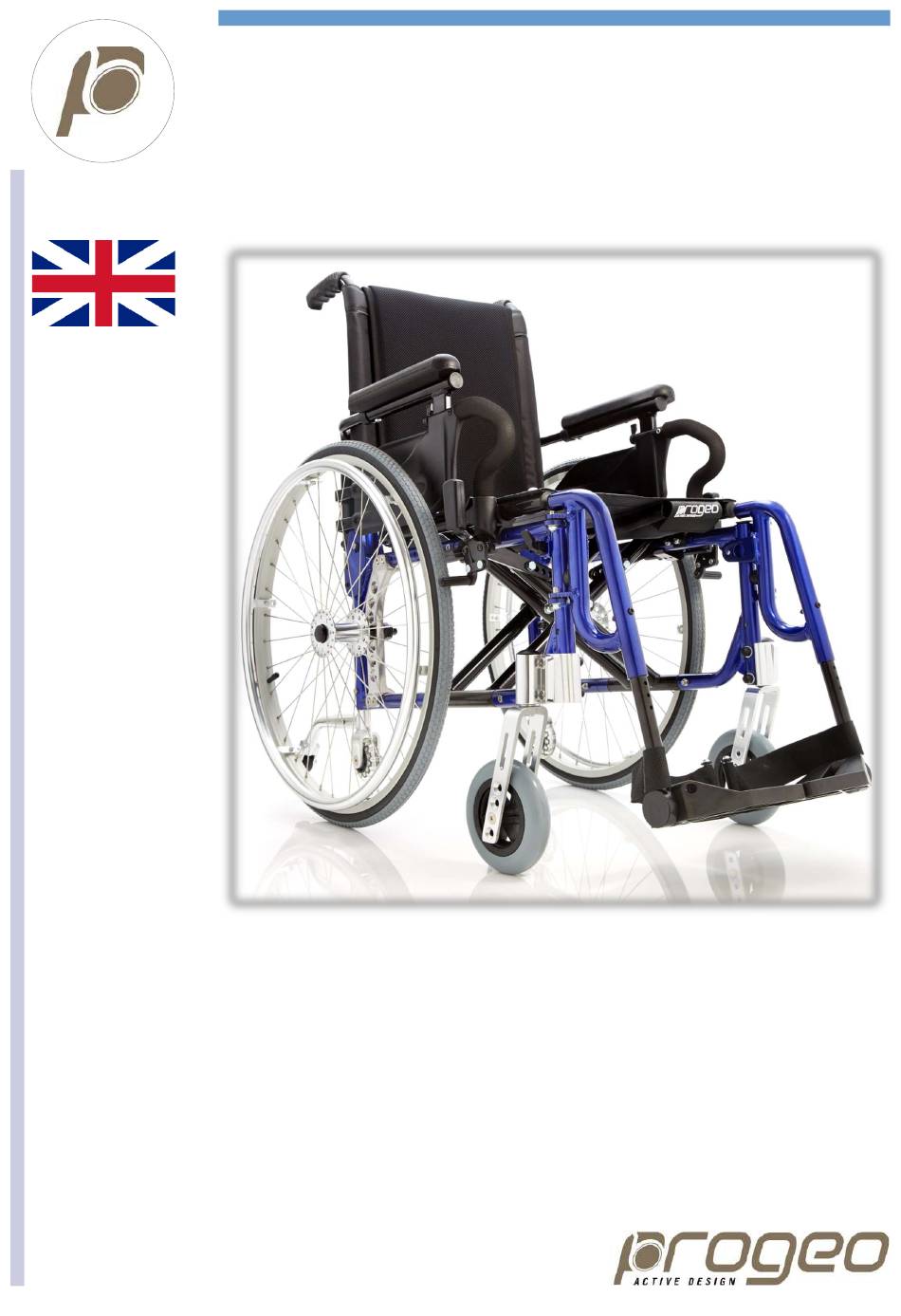

- Page 1 S E R V I C E M A N U A L BASIC LIGHT SERVICE MANUAL Rev. 0 - 06/05/2020 ENGLISH Service Manual BASIC LIGHT 1 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 2 After any adjustment, always test the wheelchair before giving the product to user and/or his/her attendant RehaTEAM® disclaims any responsibility for damage to the product or the peo- ple due to any modification that is not properly performed or that, in any case, does not guarantee safety to the user.
- Page 3 ONE PIECE FLIP-UP PLASTIC FOOTPLATE ONE PIECE FLIP-UP ALUMINUM FOOTPLATE BACKREST HEIGHT AND ANGLE SEAT DEPTH FLIP-UP ARMRESTS (until march 2020) QUICK RELEASE AXLE (rear wheel) Service Manual BASIC LIGHT 3 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 4 Mount the two nuts D with their corresponding washers and screw them temporarily. Repeat the same operation for the other side and then adjust the fork angle. Service Manual BASIC LIGHT 4 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 5 (perpendicular). In such case, adjust it the best you can. Test the wheelchair and check if it goes straight. See also DIRECTIONALITY Minimum and maximum inclination Service Manual BASIC LIGHT 5 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 6 Whenever you change the rear height, you change the seat inclination, too. Therefore, it is necessary to adjust the fork angl e, see sheet “fork angle adjustment”. You also need to check/adjust the brakes, see sheet “brake adjustment”. Service Manual BASIC LIGHT 6 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 7 T. Check and, if necessary, adjust the fork angle. See sheet “fork angle adjustment”. Adjust the brakes. See sheet “brake adjustment”. Service Manual BASIC LIGHT 7 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 8 If the wheelchair TURN LEFTT, the cause is one or more of the following: The LEFT fork is tilted inwardly and/or backward The RIGHT fork is tilted outwardly and/or frontward Follows next page Service Manual BASIC LIGHT 8 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 9 To incline the fork internally 1 , position the strapping on the upper side of the fork support. To incline the fork externally 2 , position the strapping on the lower side of the fork support. Plastic strapping Service Manual BASIC LIGHT 9 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 10 Make sure that the clamp’s teeth grab the brake rod’s teethed or knurled surface. In order to tighten the clamp correctly, screw the bolts alternatively every quarter of a turn. Knorled or toothed side of the rod Service Manual BASIC LIGHT 10 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 11 Service Manual BASIC LIGHT 11 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 12 Loosen the two bolts A you find on the lower side of the plate. Lower the plate. Adjust the inclination. Raise the plate and tighten the two bolts A. Service Manual BASIC LIGHT 12 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 13: Angle Adjustment
(or vice versa) or from 2/3 internal to 2/3 external (or vice versa). When reversing the footplate in either these two methods, you change the lock side, too. Follows next page Service Manual BASIC LIGHT 13 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 14 To adjust the friction of the footplate rotation movement, tighten or loosen the bolt E. It may be necessary to hold the nut F with a wrench. Usually, when the footplate is lifted up the adjustment holds its position. Service Manual BASIC LIGHT 14 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 15 Remove the 4 bolts B and fix the plate using the other set of holes. The plate can be orientated with its curved side facing either back or front. Footplate tubular Follows next page Service Manual BASIC LIGHT 15 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 16 In fact, the movement of the footplate can lead that bolt to unscrew itself. Usually, when the footplate is lifted up the adjustment holds it in place. Service Manual BASIC LIGHT 16 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
- Page 17 Swing the backrest tube until aligning the holes according to the new angle. Insert and fix the bolt and nut C. Finally, tighten B. Repeat the same operation for both sides. Service Manual BASIC LIGHT 17 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 18: Seat Depth
Fix the frame to the inner connecting tube using the pre-drilled holes. seat depth. With 5 cm spacer, the seat depth becomes 45 cm (the spacer are always provided with the wheelchair). Follows next page Service Manual BASIC LIGHT 18 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 19 4. To per- form the seat depth adjustment, remove the mudguard. When you re- mounted, the fixing points will be the same. Service Manual BASIC LIGHT 19 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 20: Flip-Up Armrest
Just remove that bolt and fix it using the next hole. Frame fixing bolt Now you can fix the support. The stability of the frame is not altered. Follows next page Service Manual BASIC LIGHT 20 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com... - Page 21 Note: you can remove the armrest pad if you also screw off the bolt that is accessible from the rectangular tube and only with a long screwdriver. Service Manual BASIC LIGHT 21 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
-
Page 22: Quick Release Axle
Do not unscrew the button too much: the pin will come off and, consequently, the balls will fall to the ground. Service Manual BASIC LIGHT 22 REHATEAM s.r.l.—vicolo Negrelli 5—31040 Castagnole di Paese TV - www.rehateamprogeo.com...
