Rehateam Permobil Tekna Tilt 2.0 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

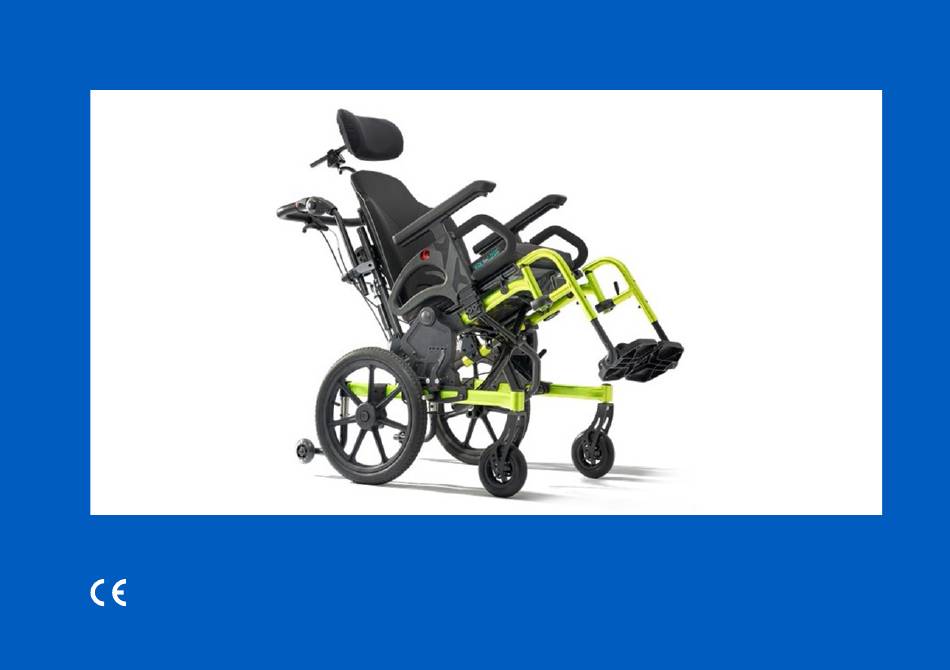

Tekna Tilt 2.0
|
User manual
British English

Advertisement

loading
Need help?

Need help?

Do you have a question about the Permobil Tekna Tilt 2.0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Rehateam Permobil Tekna Tilt 2.0

Summary of Contents for Rehateam Permobil Tekna Tilt 2.0

  • Page 1 Tekna Tilt 2.0 User manual British English...
  • Page 2 However, all instructions are applicable, regardless of the product differences. Total or partial reproduction of this manual is forbidden without written authorisation from Rehateam s.r.l. Produced and published by Permobil Edition: 0.1 Date: 2024-12-17...
  • Page 3 INTRODUCTION ROTATIONAL AND EXTRACTABLE FOOTREST FRAME FLAME-RETARDANT PROPERTIES, 5.8.1 General information 5.8.2 Front frame with removable footrest SYMBOLS HEIGHT-ADJUSTABLE FOOTRESTS FLAMMABILITY 5.10 TILT-IN-SPACE SYMBOLS USED 5.11 RECLINING BACKREST 5.12 CALF STRAP PRODUCT LABELS 5.13 ADJUSTABLE BACKREST UPHOLSTERY INTENDED PURPOSES AND 5.14 ARMRESTS 5.14.1...
  • Page 4 TRASPORT OF THE WHEELCHAIR 11.11.2 Wheels Spinergy Flexrim 11.11.3 Wheels Off-road TRASPORT OF THE OCCUPIED 11.11.4 Wheels Fat-wheel WHEELCHAIR 11.11.5 22” and 24” wheels equipped with drum TRANSPORT WITH A CARER brakes 11.11.6 12" (300mm) wheels TRANSPORT OF OCCUPIED 11.11.7 16"...
  • Page 5 If some or all of these abilities are limited or impaired, the the cornerstone of our business. presence of an assistant person with appropriate abilities is Rehateam s.r.l. is a serious, reliable company that is remain always required. genuinely focused on providing total customer satisfaction.
  • Page 6 FLAME-RETARDANT PROPERTIES, IMPORTANT! SYMBOLS This symbol indicates important instructions or special FLAMMABILITY information. This product has been tested in accordance with the standard EN12183. This standard also includes a flammability test. The fire reaction of upholstered parts complies with classes: M2 and M3.
  • Page 7 3 PRODUCT LABELS “UDI” code Progeo brand logo (Unique Device Identification) Year/month of production “MD” mark (Medical Device) "CE" mark Serial number XXXXXXXX Ambient usage temperature Product name Crash test approved Suitable for transporting the Maximum load occupied wheelchair in a vehicle Not suitable for transporting Maximum slope in use...
  • Page 8 4 INTENDED PURPOSES AND WARNING! CONDITIONS OF USE During daily use of the wheelchair, the occupant may come This model is a self-propelled wheelchair which means that it across situations such as rough or irregular terrains (gravel, can be moved manually by driving the hand rims on the rear cobblestones, holes on the ground, etc.) or slippery terrain (wet, wheels or by a carer using the push handles.
  • Page 9 IMPORTANT! In certain configurations, the wheelchair may exceed 700 mm in width. In such cases, under certain circumstances, it may not be possible to use some or all of the available escape routes from a building. If the wheelchair configuration causes the wheelchair width to exceed 700 mm, it may be difficult or impossible to travel on public transport.
  • Page 10 5 PUTTING THE WHEELCHAIR INTO SERVICE AND REGULAR USE GENERAL INFORMATION WARNING! It is important that all the wheelchair’s functional parts are CHECKED ONLY BY QUALIFIED AND AUTHORISED PERSONNEL, both to assess its suitability and to provide the correct instructions for use to occupant and carer where applicable.
  • Page 11 CAUTION! The installation and use of electrification, mechanical and/or electrical drive devices (lifts, stairlift) or any other accessory not provided by Rehateam s.r.l. at the time of delivery may result in stresses that were not foreseen during product testing and therefore the integrity and complete safety of the product is not guaranteed.
  • Page 12 CAUTION! Do not exceed the pressure indicated on the tyre because you may damage the tyre and the inner tube. Always respect what indicated on the tyre. IMPORTANT! The front castors may also be of the "pneumatic" type; in this case, follow the same instructions.
  • Page 13 The parking brake is a safety device, and you must not use it while the wheelchair is moving as this could cause the wheelchair to tip over with possible injury to the occupant. IMPORTANT! To check the effectiveness of the brakes, apply them as described below depending on the type of brake, and, with the person sitting in the wheelchair, try to gently push the wheelchair.
  • Page 14 TYPE OF BRAKES 5.4.1 Curved lever push to lock brake To engage the brake, push the lever forward until it locks. To release the brake, pull the lever backward. The brake automatically returns to its resting position. 5.4.2 Straight lever push to lock brake To engage the brake, push the lever forward until it locks.
  • Page 15 5.4.3 Straight lever pull to lock brake To engage the brake, pull the lever backward until it locks. To release the brake, push the lever frontward. The brake automatically returns to its resting position. 5.4.4 Extended lever push to lock or pull to lock brake Push to lock brake: To engage the brake, push the lever forward until it locks.
  • Page 16 QUICK RELEASE REAR WHEELS The rear quick release wheels enable you to reduce the wheelchair’s bulk and save space, thus facilitating storage in the car or, if the wheelchair is equipped with the "narrow passage wheels" accessory, to reduce its width and length in order to access narrow spaces.
  • Page 17 Grasp the wheel by the spokes around the hub, press the release pin button with your thumb and, without releasing, extract the wheel fully. To fit the wheel, first release the brake. Slightly lift the wheelchair form the ground on one side by the backrest knob. With your hand, take hold of the rear wheel’s hub and, with your thumb, press the button of the quick release pin, keep it pressed and push the pin fully into its seat.
  • Page 18 CAUTION! Before using the wheelchair, always make sure that the seat, the two backrest posts and the push handlebar are opened correctly. When opening and closing, make sure your fingers do not get between the seat post and the supports, or between the seat post and the frame post, or between the back post and the armrest.
  • Page 19 Before pushing the wheelchair, make sure the two posts are safely locked. Rehateam s.r.l. is not liable for any damage or injury caused by failure to heed this warning.
  • Page 20 Handlebar removal/refitting To remove the handlebar from the pivot joint, press the button (1) locked through the hole (3) of the joint and pull the post out. Now, you can also swing the handlebar away. Similarly, you can also detach the handlebar from the other joint. To refit the handlebar, align it to the joint, press the pin (1), insert the post until the red pin locks in the hole (3) of the joint.
  • Page 21 5.6.2 Unfolding the wheelchair To open the seat, place the palm of your hand over the seat posts (1) (2) and push down. Check that the seat posts are well inserted on the four supports (3). Now insert and adjust the push handlebar as described above. CAUTION! While opening the wheelchair, be careful not to squeeze your fingers between the seat post and the supports or between the seat post and the frame post.
  • Page 22 If the push handlebar is only detached on one side only, the push handlebar must be moved away from the seat to open the seat itself. To do this, press button (1), turn the push handlebar upwards and then towards the rear of the wheelchair. After having opened the seat, insert and adjust the push handlebar as described above.
  • Page 23 Version with folding backrest If the backrest posts are folded, you should first bring them to the upright position. The armrests must be removed. Grasp the backrest post and raise it to the operating position, which will be indicated by a click. Do the same for both posts.
  • Page 24 5.6.3 Folding the wheelchair You can fold the seat only if the push handlebar is detached. Detach the handlebar following the instructions outlines in the previous paragraph. Remove the cushion or any other soft or rigid supports from the seat and the backrest.
  • Page 25 Version with folding backrest With the seat open, you can fold the backrest also without detaching the push handlebar. Remove the armrests, the cushion or any other soft or rigid supports from the seat. With one finger, lift the pin (1) of the backrest post hooking system, push and hold the handle forward so that it does not lock again.
  • Page 26 With seat folded, detach the push handlebar from both pivot joints (see also 5.6.1 Push handlebar) and lean it over the seat canvas. With one finger, pull the pin and fold the backrest down, grasping it by the pivot joint. The two posts are independent;...
  • Page 27 FOOTREST 5.7.1 General information WARNING! When transferring to and from the wheelchair, never keep your feet on the footrest; excessive weight on the footrest may result in it breaking with harm to the occupant. After each operation, check that the footrest is always in the correct operating position.
  • Page 28 Depending on the occupant’s needs, the wheelchair can be provided with either of the above footrest versions. In the order form, according to the type of footrest, you can choose its position (internal, external or intermediate). Single footrests are more rigid than the dual versions and they are recommended for occupants subject to frequent spasms or who apply a lot of force to the footrest.
  • Page 29 5.7.2 Dual footrest Make sure both footrests are fully lowered before using the wheelchair. 5.7.3 Single flip-up aluminium footrest Make sure that the locking pin (1) is properly inserted in the slot of support (2). ROTATIONAL AND EXTRACTABLE FOOTREST FRAME 5.8.1 General information One of the features of this model is the particular footrest that you can rotate...
  • Page 30 5.8.2 Front frame with removable footrest POSITION OF USE Check that the footrest frame is securely locked to its support. With one hand (1), take hold of the footrest frame and try to move it clock and anticlockwise. If it is securely locked, the footrest frame will not rotate, but you should notice just a little play.
  • Page 31 IMPORTANT! If the wheelchair is equipped with a single footrest, it must always be raised before swinging the footrest away. If the wheelchair is equipped with a dual footrest, it must be raised only if the footrest is swung inwards. HEIGHT-ADJUSTABLE FOOTRESTS This type of frame allows to change the angle of the footplate’s frame and thus of the posture of the lower limbs.
  • Page 32 ROTATION To swing the footrest away (inwards or outwards), turn the lock lever (3) and then turn the footrest. To lock it back, turn it to the operating position until a click indicates it is locked (the lever (3) moves automatically to the locking position). REMOVAL/INSERTION To remove the footrest, turn the lock lever (3), then turn the footrest externally by 90°...
  • Page 33 FOOTREST DISTANCE You can easily adjust the footrest distance without using any tool. Pull the lever (6) to the side and slide the support (7). Once the new position has been set, pull the lever (6) to lock it. CALF SUPPORT You can easily adjust the height of the calf support without using any tools.
  • Page 34 5.10 TILT-IN-SPACE The tilt-in-space action within the central chassis is assured by means of a 7- position-toothed-mechanism. The lever (1) controls the toothed mechanism. The system includes two gas “free” springs (these are not controlled) that push the seat as it returns towards its minimum inclination position, whereas they dampen the tilting movement in the opposite direction to counteract the acceleration induced by the occupant’s weight.
  • Page 35 WARNING! When the seat is tilted backward, also the wheelchair’s centre of balance moves in the same direction. Hence, it is vital that the two anti-tipping wheels (2) are always positioned facing backwards as a safety mechanism preventing the wheelchair from tipping backwards.
  • Page 36 5.11 RECLINING BACKREST With the reclining backrest (optional – not included in the standard configuration) you can adjust the backrest inclination from 90° to 125° with respect to the seat, without any tools. The lever (1), in fact, controls the mechanism consisting of two gas springs that push the backrest back to the vertical position (90°), whereas they dampen the tilting movement in the opposite direction to counteract the acceleration induced by the user’s weight.
  • Page 37 Failure to comply with this warning could harm the occupant. Rehateam s.r.l is not liable for failure to heed this warning. PUTTING THE WHEELCHAIR INTO SERVICE AND REGULAR USE - 37...
  • Page 38 WARNING! When tilting the backrest backward, also the centre of balance of the wheelchair moves in the same direction. Hence, it is vital that the two anti-tipping castors are always positioned facing backwards as a safety mechanism preventing the wheelchair from tipping backwards.
  • Page 39 5.13 ADJUSTABLE BACKREST UPHOLSTERY The backrest can be adjusted to the occupant requirements by tensioning or slackening the two special Velcro straps fitted inside the backrest itself. To carry out the adjustment, lift or remove the upholstery, tighten, or slacken the Velcro straps as required and replace the upholstery.
  • Page 40 CAUTION! Do not use the armrest as a hand hold to raise the wheelchair; this may cause the armrests to come off from their supports, damaging the wheelchair and harming the occupant. Do not use the armrest for support when transferring to or from the wheelchair.
  • Page 41 5.14.2 Armrest Desk Progeo This type of armrest is very practical and can be removed completely, making it much easier to move the wheelchair and transport it. Furthermore, the armrests also comprise a straight clothing guard. POSITION OF USE To check that the armrest is coupled correctly, take hold of the pad (1) with one hand and pull it up.
  • Page 42 WARNING! Always check the armrests are securely locked in their using position. If this instruction is ignored, the armrest may disengage and the occupant may fall from the wheelchair. Be careful not to pinch or crush your fingers when fully lowering the armrest pad.
  • Page 43 Failure to observe this warning could result in damage to the occupant, third parties or the vehicle, for which Rehateam s.r.l. shall not be liable. 5.15.2 Wheelchair lifetime Progeo wheelchairs are used on a daily basis and they are consequently subject to continuous stress that causes inevitable wear and tear of the parts.
  • Page 44 WARNING! Rehateam s.r.l. will not be liable for failure to comply with the instructions or recommendations set out in this manual and any such activity will result in the immediate cancellation of the manufacturer's warranty.
  • Page 45 PREVENT ACCIDENTS 6.1.1 Movements Avoid sudden, jerky movements when using the wheelchair as this could cause it to overbalance. If your path is obstructed by obstacles, avoid sudden movements (such as abrupt braking). There is increased risk of skidding on irregular or damp ground.
  • Page 46 WARNING! When using the brakes, great care should be taken to avoid injury to the hands or fingers. MOVEMENTS: GETTING IN AND OUT OF THE WHEELCHAIR Wheelchair transfers must always be performed with extreme care and caution, even by experienced occupants, and only after receiving instruction from fully trained specialists.
  • Page 47 (1) Lean on the wheelchair and, where possible, on a stable object nearby. Use the force of your arms to raise and move your body. (2) If the occupant is not able to perform this movement alone, or if the movement is to be performed on an uneven surface, a carer should lend help.
  • Page 48 STARTING TO DRIVE YOUR WHEELCHAIR FINDING THE CENTRE OF GRAVITY Your ability to control and safely tip the wheelchair mainly depends on your seating position and the location of the centre of gravity with respect to the rear wheels. The correct position of the rear wheels depends on different factors such as the occupant’s weight, type of disability and the occupant’s driving skills.
  • Page 49 WARNING! If you hang a backpack, a bag or any other object on the push handlebars or any rear area of the wheelchair, the resulting uneven weight distribution can significantly affect the risk of overbalancing. TO PREVENT THE WHEELCHAIR FROM OVERBALANCING DURING NORMAL USE, WE RECOMMEND FITTING AN ANTI-TIPPING SYSTEM.
  • Page 50 6.4.1 Going up and down a step by yourself GOING DOWN Take the wheelchair right up to the obstacle so that the front wheels are as close as possible to it. Raise the front castors by tilting the wheelchair while maintaining balance. Slide the rear wheels very carefully over the edge.
  • Page 51 6.4.2 Negotiating a step with a carer GOING DOWN Take the wheelchair right up to the obstacle so that the front wheels are as close as possible to it. Grip the rear handles tightly and push down to raise the front of the wheelchair.
  • Page 52 GOING UP AND DOWN A SERIES OF STEPS DANGER! In the case of stairs with more than one step, two assistants are always required. The first assistant stands behind the wheelchair and holds the push handles. The second assistant grasps a fixed part of the front frame, guiding the wheelchair manoeuvre from the front.
  • Page 53 GOING UPHILL Driving up any kind of slope should be done with extreme care. The occupant must move at speed by generating force on the rear wheel while at the same time maintaining control over the wheelchair. Lean forwards and keep your weight forward in the chair to prevent the wheelchair from tipping over backwards.
  • Page 54 To achieve maximum occupant control of the wheelchair, we illustrate some situations which may emerge during normal daily use of the wheelchair. Please pay particular attention to the following to maintain balance and stability at all times. WARNING! Do not lean too far forward; you may fall out of the wheelchair. Do not move forward by sliding your pelvis across the seat cushion to reach objects that are too far away: you could fall off the wheelchair.
  • Page 55 LEANING BACKWARDS Ensure that the front castors are pointing forwards. To do this, move the wheelchair forwards and then backwards. Do not apply the parking brakes. Lean backwards without changing your sitting position. LYING SIDEWAYS Do not move your upper body beyond the rear wheel as the wheelchair could overbalance.
  • Page 56 TRASPORT OF THE WHEELCHAIR There is no single best way to load the wheelchair into a vehicle. Factors include the type and degree of the occupant’s disability (his/her ability to control his/her upper body, arm, and hand movements), physical strength (the operation may be too difficult for an older person or a child) and the type of vehicle that will be used.
  • Page 57 TRASPORT OF THE OCCUPIED WHEELCHAIR Always make sure the wheelchair is suitable to transporting the user in a vehicle. The symbols on the product label indicate if the wheelchair is or not crash tested and, accordingly, if it can be used for the transport of the user on a motor vehicle.
  • Page 58 In larger means of transport, you can load the wheelchair without reducing its encumbrance. 58 - TRASPORT OF THE WHEELCHAIR...
  • Page 59 In case of any involvement in any kind of vehicle collision, the wheelchair MUST be inspected by personnel authorised by Rehateam s.r.l.BEFORE re-use. A wheelchair secured in a vehicle will not provide the equivalent of protection and safety of a vehicle seating system.
  • Page 60 9. To secure the wheelchair occupant and to reduce the risk of possible head and chest injury from impact with vehicle components and potential consequential injuries for the wheelchair occupant and other vehicle occupants, pelvic (2) and upper torso (1) belts must be used (figure “B”). The upper torso belt must be fixed to the pillar of the vehicle.
  • Page 61 13. In order to reduce the potential of injury to vehicle A greater angle within the referred zone is desirable i.e. occupants, wheelchair-mounted trays not specifically closer to, but never exceeding 75°. (figure “C” – correct designed to pass the crash test should be removed and position).
  • Page 62 Attachment points on the wheelchair The restraint belt symbol (figure “F”) on the wheelchair frame shows the position of the wheelchair restraint belt. Once the front belts have been fitted, the belts are tightened to secure the wheelchair. 2. The fixing points of the restraint belts are, for each side of the wheelchair, the lower frame near the tilt-in-space unit support (figure “G”) and the rear wheel plate (figure “H”...
  • Page 63 OCCUPANT WEIGHT LESS THAN 22 kg If the wheelchair occupant is a child whose weight is 22 kg or less and the vehicle carries less than eight (8) passengers, we recommend use a child restraint system (SRB) compliant with UNECE rule no. 44. This type of restraint system allows for a more efficient anchorage with respect to the 3-point conventional one;...
  • Page 64 9 DESCRIPTION OF PARTS Headrest 2. Backrest upholstery + Velcro straps for adjustment 3. Backrest post 4. Armrest 5. Push handlebar 6. Push handlebar post 7. Backrest support 8. Tilt-in-space chassis 9. Rear wheel 10. Parking brake 11. Quick release pin 12.
  • Page 65 26. Handle height adjustment support 27. Tyre 28. Hand rim 29. Rear wheel plate DESCRIPTION OF PARTS - 65...
  • Page 66 Rehateam s.r.l. manufactures, tests and delivers the wheelchair and relieve Rehateam s. r. l. from any liability concerning any to the dealer with the measurements and characteristics malfunction and/or damage due to such adjustments/ required in the order data sheet.
  • Page 67 10.2 POSSIBLE ADJUSTMENTS • Rear height • Front height • Trim (centre of gravity) • Backrest height • Backrest inclination • Footrest distance • Footrest position • Footrest inclination • Brakes • Seat depth ADJUSTMENT - 67...
  • Page 68 11 ACCESSORIES 11.1 GENERAL INFORMATION Each model can be equipped with various accessories that should be evaluated according to the needs of the occupant and assistant. Some of the images in this manual may show a wheelchair model different from the reference one. However, all instructions are applicable, regardless of the model differences.
  • Page 69 WARNING! For a correct assembly of the transit wheel, remember that when inserting it into the support, the pin (1) should always face toward the inside of the wheelchair. Remember that while using the transit wheels (with the rear wheels removed), the parking brakes will not work at all.
  • Page 70 To return the anti-tipping device to its position of use, repeat the same steps as described above. REMOVAL/INSERTION To remove the anti-tip wheel, push the pin (6) that you find in the upper side of the support (6) push the post down. To put the anti-tip wheel on, insert the part (7) of the support in the hole of the part (4) and turn the post until the two parts locks together.
  • Page 71 11.4 TIPPING AID This accessory has been designed to enable the assistant to tip back the wheelchair without a great effort to facilitate negotiating small steps. With one foot, press down on the plastic support (1) while, at the same time, applying downward force onto the push handles on the backrest (2).
  • Page 72 11.6 TRAY This accessory can be assembled only if the wheelchair is equipped with armrests. To install the tray, loosen bolt (1) of the support (2) on each side of the wheelchair until the hole is free to let the post go through. Insert the posts (3) parallel into the supports and slide the tray in to the desired depth.
  • Page 73 11.7 PELVIC BELT AND HARNESS Both the pelvic belt and the harness are accessories to this model and must therefore be ordered separately. Both these belt systems are designed to assure the occupant greater safety and stability while seated in the chair. IMPORTANT! Both the pelvic belt and harness system are of particular use for occupants with little control of their upper body and who require extra support to be held...
  • Page 74 The harness (3) holds the occupant's torso to the wheelchair through two attachment points located at the waist level and two more at the shoulder level. The occupant’s entire upper body is secured to the seat. It is intended for use by occupants with particularly limited upper body mobility.
  • Page 75 11.8 LUMBAR SUPPORT This is a pad that offers extra support to the lumbar area. To position the lumbar support, raise the backrest upholstery on its front side. Using the Velcro fastener, attach the lumbar support either to the backrest upholstery or to the backrest bands at the required height.
  • Page 76 11.9 HEADREST A A3 2 This accessory is designed to support to head. It is suitable for folding wheelchairs; in fact, this type of headrest has a folding structure. When you unfold the wheelchair, the headrest unfolds, too. To put the headrest in its operating position (1), pull it up until the two posts (2) are tilted downward, starting from the central block (3).
  • Page 77 11.10 LATERAL SUPPORT This accessory is designed support the occupant’s torso. This lateral support is of the “swing-away” type so it can be swung it back. Turn the lever (1) by 90° and swing the lateral support to the opposite position where it will automatically lock.
  • Page 78 11.11.2 Wheels Spinergy Flexrim This type of wheel has an aluminium and flexible rubber hand rim that significantly increases hand grip. Different types of covers can be fitted 11.11.3 Wheels Off-road These wheels provide superior smoothness and comfort on rough or unpaved terrain.
  • Page 79 11.11.5 22” and 24” wheels equipped with drum brakes This accessory enables the carer to brake the wheelchair also when it is in motion. It is very useful on slopes along which may be difficult for the wheelchair to negotiate. To brake the wheelchair, just pull up the lever (1) that is fixed on each push handle.
  • Page 80 11.11.6 12" (300mm) wheels With these wheels, the wheelchair becomes shorter and narrower, but they are not as smooth as the 22” or 24” wheels. The tyres can be full (1) or air-filled (2). With these wheels, occupants cannot push themselves. The parking brake is fixed in the rear side of the wheelchair and it is designed to be used by the assistant.
  • Page 81 11.11.7 16" (400mm) wheels With these wheels, the wheelchair becomes shorter and narrower, but they are not as smooth as the 22” or 24” wheels. The tyres (1) are full. With these wheels, occupants cannot push themselves. The parking brake is fixed in the rear side of the wheelchair and it is designed to be used by the assistant.
  • Page 82 11.12 HAND RIM Special hand rims are available for this Progeo wheelchair model. Their special features ensure improved grip and therefore a more efficient pushing motion, especially for occupants with limited strength or mobility of the hands and fingers. Polished aluminium 2.
  • Page 83 11.13 TYRES Different types of tyres, listed below, are available. Compatibility with the rear wheel depends on the size of the wheel itself. High pressure tyre Light and reliable, suitable for most environments. 2. High pressure profile tyre Light and reliable, more suitable for rough surfaces. 3.
  • Page 84 11.15 FRONT CASTORS Various types and sizes of castors are available for this model, depending on the occupant’s functional needs and/or aesthetic preferences. In general, the larger the diameter and width of the wheel, the easier it will be to negotiate rough terrain and small obstacles such as stones, small height differences of the order of 1 cm.
  • Page 85 11.16 VANITY FLAP (seat/backrest bonding canvas) With this accessory you can affix the backrest upholstery to the seat canvas; it is useful for avoiding a possible backward sliding of a cushion that is not properly fixed to the seat. The application of this vanity flap is quite simple; by means of the male Velcro straps present, simply attach it to the inside of the backrest upholstery and to the female Velcro seat canvas straps.
  • Page 86 11.18 FRAME PROTECTION PAD This accessory is very useful for protecting the frame from possible impact. The application of this padding is quite simple, in fact it is sufficient to wrap it around the frame and fasten it with the Velcro strips. 86 - ACCESSORIES...
  • Page 87 12 MAINTENANCE CAUTION! The expected lifetime of the wheelchair, conservatively When cleaning the wheelchair, do not use abrasive cleaning estimated, is five years. agents or degreasing substances which could cause damage. Periodic inspection of the wheelchair is essential to guarantee maximum performance and a long life.
  • Page 88 Progeo wheelchair, the experienced technical staff at hands and bicycle tyre wrenches, insert the inner tube into the Rehateam s.r.l. are at the complete disposal of all our clients tyre and work the edge of the tyre over the wheel rim ensuring You can contact us directly at the address below: Rehateam s.r.
  • Page 89 • Check the quick release axles. WARNING! • Check the folding system (seat and/or backrest). • Check the footplate. The first thing you should know is that cleaning is not the same • Check the parking brakes. as disinfecting. • General check of all screws. By cleaning we remove germs and dirt from surfaces, but we do •...
  • Page 90 At the time of re-use, it is necessary to carry out a general Packaging: plastic bags made of soft polyethylene, cardboard check of the wheelchair following the same points of paragraph Alternatively, you can return the backrest to your dealer for 12.2 CHECK OF PARTS.
  • Page 91 With constant and prolonged use of the wheelchair, or after the adjustment of certain parts, some “defects” may emerge which can easily be eliminated by qualified personnel, or, where indicated by the ▆ symbol, also by the occupant or carer. In any case, we suggest you should consult a Rehateam s.r.l. authorised dealer. Problem...
  • Page 92 14 TECHNICAL SPECIFICATIONS • SEAT WIDTH ADULT: 330; 360; 390; 420; 450; 480 mm; JUNIOR 270; 300; 330; 360; 390 mm • SEAT DEPTH 350; 375; 400, 425, 450, 475; 500 mm (adjustable) • FOOTREST DISTANCE from 270 to 460 mm (adjustable) •...
  • Page 93 15 WARRANTY The warranty on defects on contact parts is at the complete discretion of Rehateam s.r.l. either for the repair of the defect or The warranty agreement exists only between Rehateam s.r.l. for the replacement of the part itself. The authorised distributor and its authorised dealers.
  • Page 94 All claims for compensation are excluded from the warranty except for those specifically mentioned in the preceding paragraphs of this chapter. Rehateam s.r.l. accepts no responsibility for failure to respect or execute the indications established in the individual contracts, if the following events have prevented and/or made it...
  • Page 95 16 WARRANTY CERTIFICATE MEDICAL DEVICE CLASS I REHATEAM s.r.l. Vicolo Negrelli 5 — 31038 Castagnole di Paese (TV) — Italy 0039 0422 484657 0039 0422 484661 info@rehateamprogeo.com www.rehateamprogeo.com DEALER / RETAILER Stamp product label Date of delivery to user: ............
  • Page 100 eng-UK www.permobil.com...
