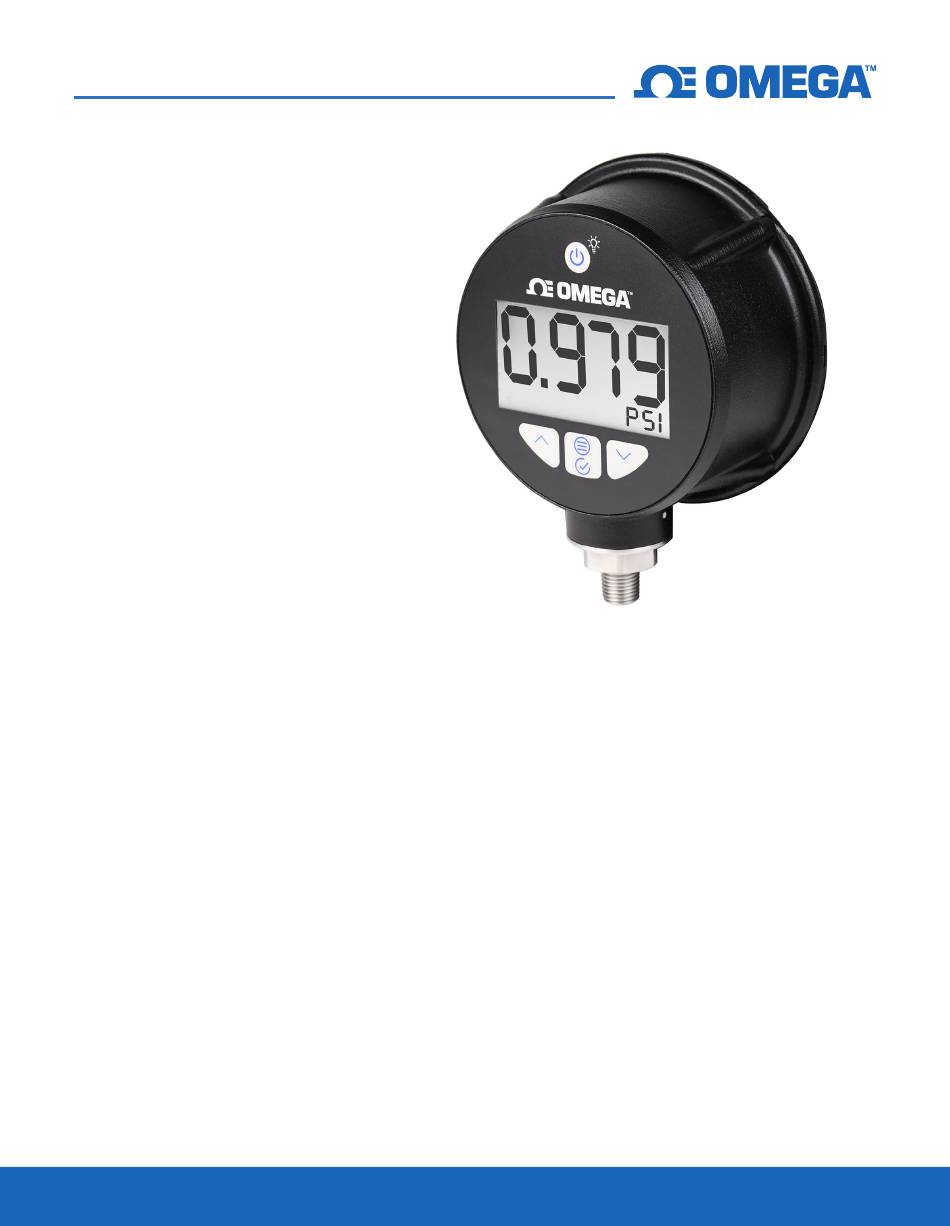

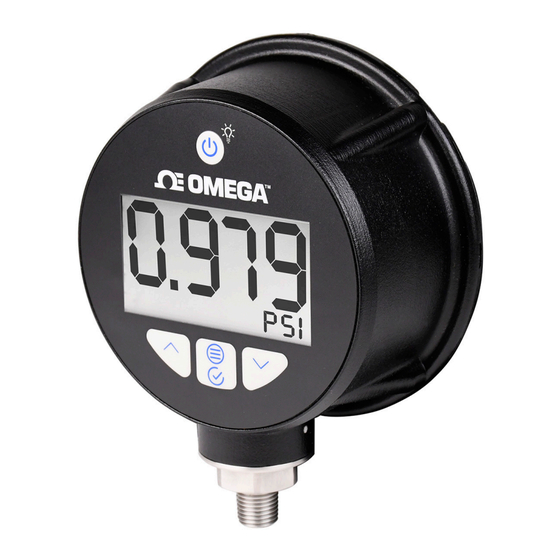

DPG509
Advanced Digital Pressure Gauge
• Configurable - 40,000+ Possibilities
• Large 1" digits for high visibility
• User friendly, 4-button interface
• Differential pressure available
• High accuracy (0.08%) options
• Data logging with SD card optional
Overview
We've created a new, user-friendly interface with four
clearly labeled buttons and a large 4-digit, backlit display.
Full-scale accuracy as high as 0.08% is perfect for
applications where accuracy is critical, and 0.25% accuracy
is also available for those times when a reliable, easy-to-use
gauge is most important. Configure a basic gauge with long-
lasting battery power or choose an externally powered
option to support a robust unit with voltage and/or current
outputs.
Another powerful feature is the data logging option. Log
your important data as fast as four readings per second so
that you don't miss a thing. Data analysis is straightforward
with an included SD card that is easily accessible for data
retrieval.
All options are built with an engineered thermoplastic
housing with an IP65 rating for durability in harsh
environments. A protective rubber boot is also an option for
additional protection.
Configurable Menu Features
Users have four different operation modes to select from. Normal
mode displays the last pressure reading. Tare mode zeros the
unit at an applied pressure. Minimum and maximum modes
display the lowest and highest recorded pressure readings
respectively. There are also additional settings that can be
adjusted to best suit your process including the shut-off timer,
sampling rate, range plotting, pressure units, and zero-point
adjustment.
With the advanced menu, additional features include custom
units, dampening mode, password protection, and backlight
adjustment. If the 15 engineering unit options don't cover what
you need, up to five custom pressure units can be programmed.
Dampening mode filters the raw data into a smoother output.
Password protection allows only authorized users to change DPG
settings to help avoid accidental button presses and setting
changes. Backlight adjustment provides five options to adjust
how long the backlight remains on, from 10 seconds to always on
to balance both visibility and battery life.
