Table 3. Truss head screws

Truss head screw from kit

Steps

1. For Dell EMC racks, use the orange shelf latch handles to push the shelf completely into the cabinet. Align the two

semi-captive M5 shoulder screws on each side with the mounting holes on the cabinet. Thread the shoulder screws into the

mounting holes and finger-tighten the shoulder screws.

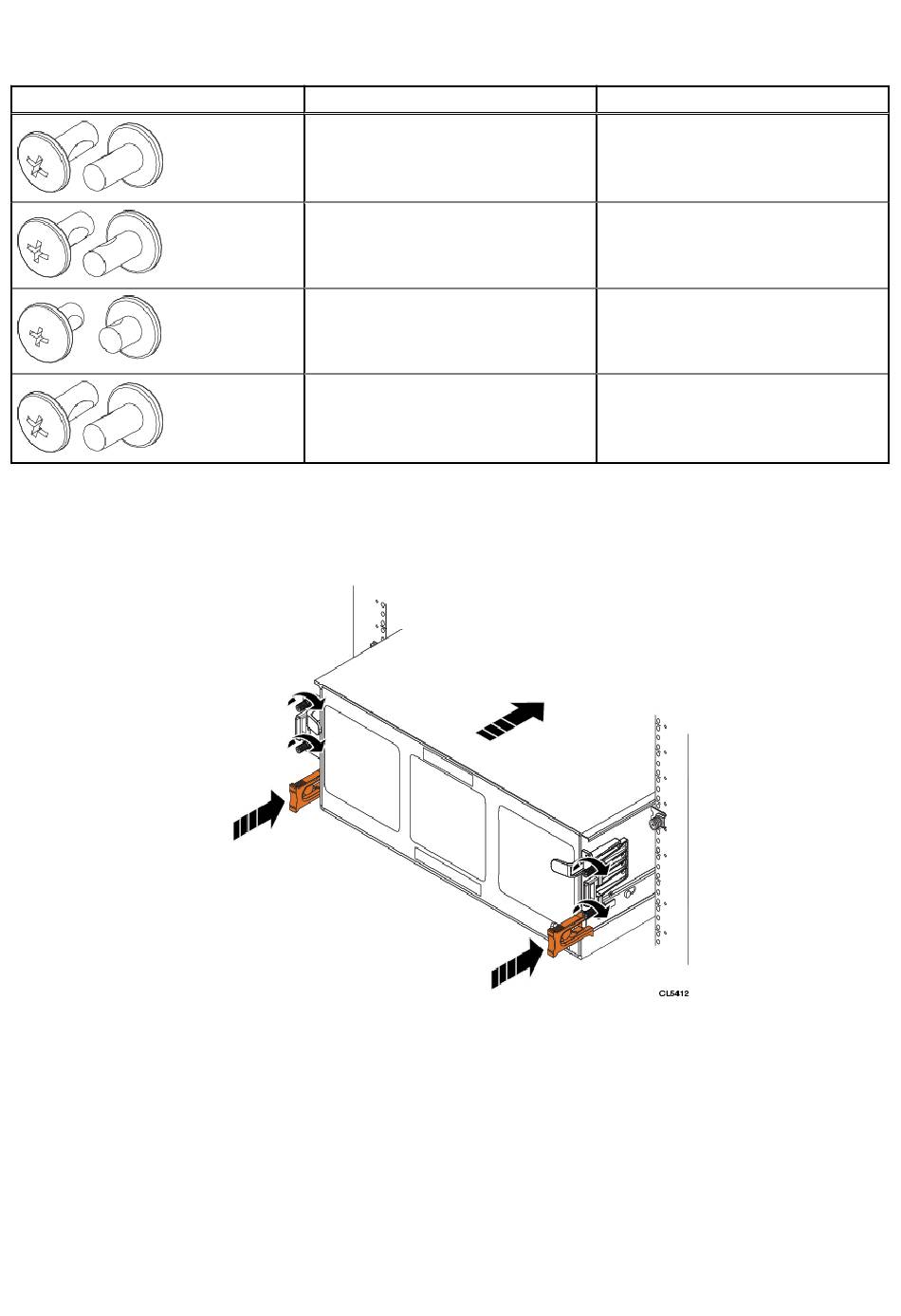

Figure 23. Inserting and securing the shelf to the cabinet (shoulder screw configuration)

● To install the shelf into a third-party rack that is not compatible with the M5 shoulder screws, do the following:

a. Remove the semi-captive M5 screws by sliding them from the ears.

Part number and description

036-032-010

Screw, M5-0.8x12, Truss Head Phillips

with patch

036-032-011

Screw, M6-1.0x12, Truss Head Phillips

with patch

036-032-009

Screw, 10-32x.5, Truss Head Phillips

with patch

036-032-012

Screw, 12-24x.5, Truss Head Phillips

with patch

Suggested use

Can be used in Dell EMC racks and

third-party non-threaded hole racks.

Can be used in non-Dell EMC racks.

Install the Disk Shelves in the Rack
