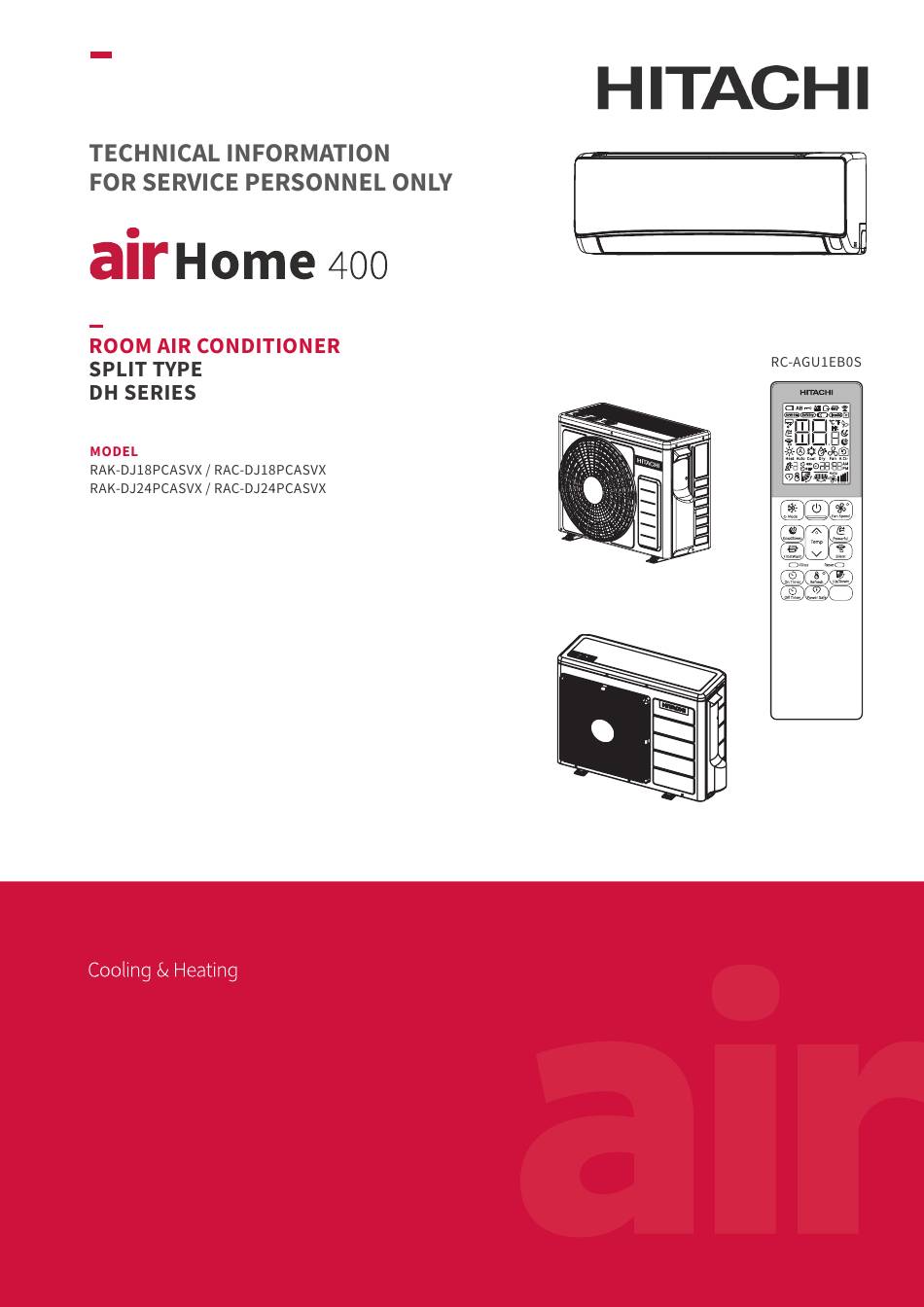

SERVICE MANUAL
CONTENTS
SPECIFICATIONS
HOW TO USE
CONSTRUCTION AND DIMENSIONAL DIAGRAM
MAIN PARTS COMPONENT
WIRING DIAGRAM
CIRCUIT DIAGRAM
PRINTED WIRING BOARD LOCATION DIAGRAM
BLOCK DIAGRAM
BASIC MODE
REFRIGERATING CYCLE DIAGRAM
AUTO SWING FUNCTION
DESCRIPTION OF MAIN CIRCUIT OPERATION
SERVICE CALL Q & A
DISASSEMBLE & ASSEMBLY PROCEDURE
TROUBLE SHOOTING
PARTS LIST AND DIAGRAM
Instruction manual
To obtain the best performance, please read this instruction manual completely.
คู ่ ม ื อ การใช ้ ง าน
เพื อได ้รั บ การทํ า งานที ดี ท ี สุ ด โปรดอ่ า นคู ่ ม ื อ อย่ า งละเอี ย ด
<PM NO:0802E>
INDOOR UNIT
RAK-DJ18PCASVX
RAK-DJ24PCASVX

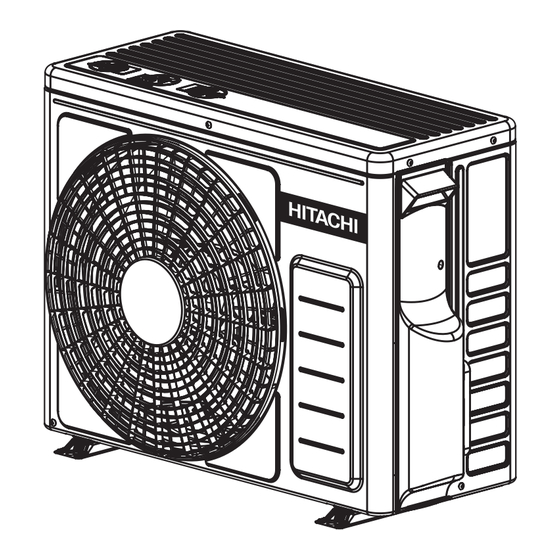

OUTDOOR UNIT
Page 9
RAC-DJ18PCASVX
Page 12
Page 38
Page 41
Page 43
Page 47
Page 55
Page 60
Page 61
Page 67
Page 68
Page 69
Page 86
Page 87
RAC-DJ24PCASVX
Page 91
Page 127
Page 1~26
หน ้า 27~54
