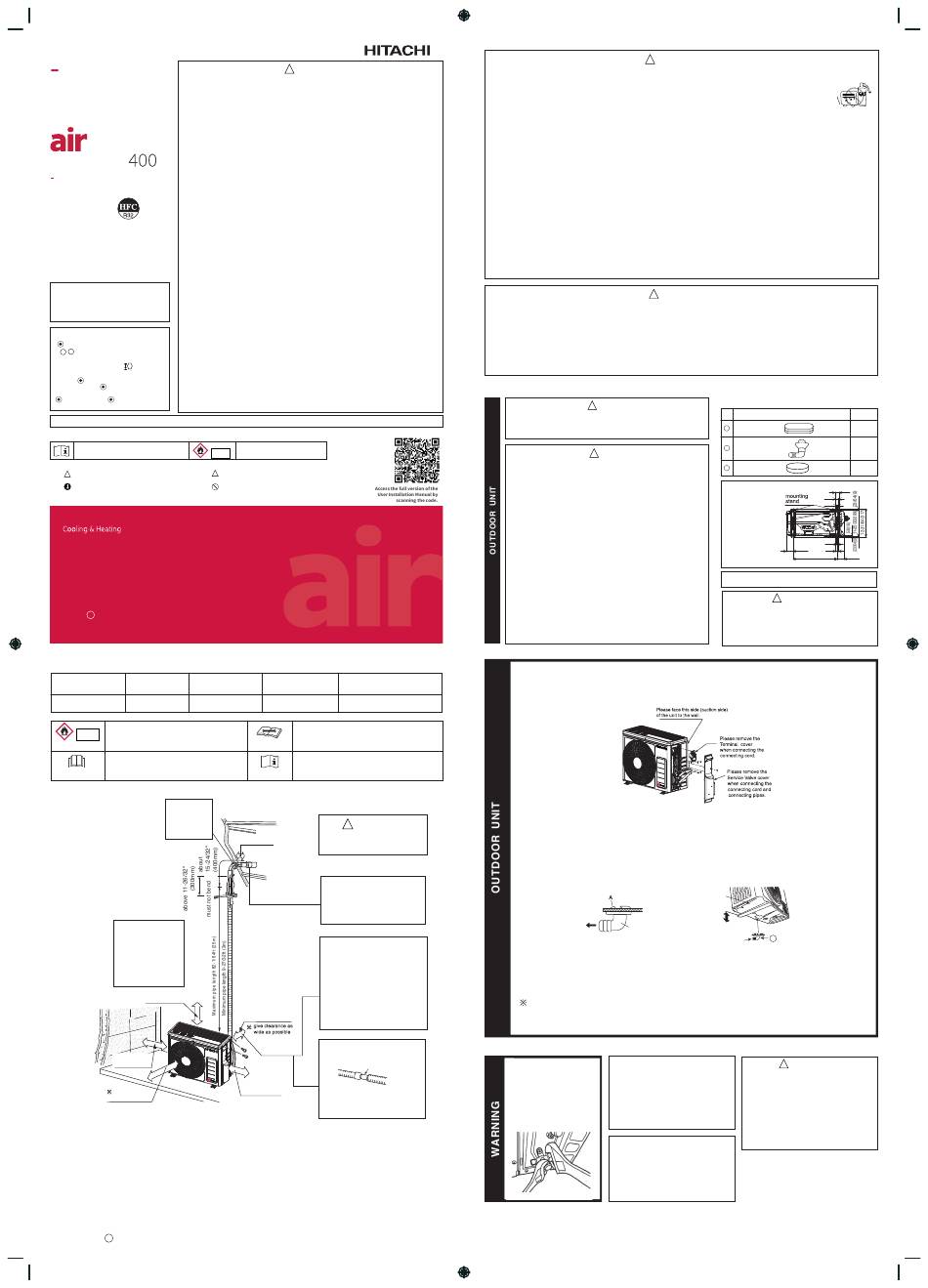

Hitachi airHome 400 RAC-DJ09WHAA Installation Manual

● Flare nut must use a torque wrench without fail. Tighten with the specifi ed tightening torque. If the fl are
INSTALLATION
nut is tightened too much, after a long period of time, the fl are nut breaks, Gas leakage, stagnation,
touching fi re, rarely cause ignition.
● Sharp bending of the pipe use the polyethylene rod, bend not crushed the pipe. Gas leakage from the
MANUAL
crushed part, stagnation, touching fi re, rarely cause ignition.
● Please request your sales agent or qualifi ed technician to install your unit. Water leakage, short circuit
or fi re may occur if you do the installation work yourself.
● Please observe the instructions stated in the installation manual during the process of installation. Improper
installation may cause water leakage, electric shock and fi re.
● Make sure that the units are mounted at locations which are able to provide full support to the weight
Home
of the units. If not, the units may collapse and impose danger.
● Observe the rules and regulations of the electrical installation and the methods described in the installation
manual when dealing with the electrical work. Use cables which are offi cially approved in your country.
Be sure to use the specifi ed circuit. A short circuit and fi re may occur due to the use of low quality wire
or improper work.
● Be sure to use the specifi ed cables for connecting the indoor and outdoor units. Please ensure that
the connections are tight after the conductors of the wire are inserted into the terminals to prevent the
external force is being applied to the connection section of the terminal base. Improper insertion and
SPLIT TYPE AIR CONDITIONER loose contact may cause over-heating and fi re.
●
Please use the specifi ed components for installation work. Otherwise, the units may collapse or water
leakage, electric shock, fi re or stronger vibration may occur.

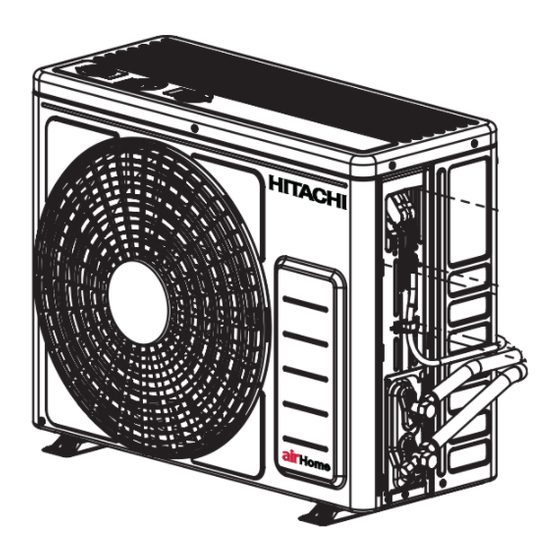

OUTDOOR UNIT
●
Be sure to use the specifi ed piping set for R32. Otherwise, this may result in broken copper pipes or
RAC-DJ09WHAA
faults.
●
When installing or transferring an air conditioner to another location, make sure that air other than the
specifi ed refrigerant(R32) does not enter the refrigeration cycle. If other air should enter, the pressure
EN INSTRUCTION MANUAL
level of the refrigeration cycle may increase abnormally which could result in a rupture and injury.
●
Be sure to ventilate fully if a refrigerant gas leak while at work. If the refrigerant gas comes into contact
with fi re, a poisonous gas may occur.
FOR SERVICE ●
After completion of installation work, check to make sure that there is no refrigeration gas leakage. If the
refrigerant gas leaks into the room, coming into contact with fi re in the fan-driven heater, space heater,
PERSONNEL ONLY
etc., a poisonous gas may occur.
●
Unauthorized modifi cations to the air conditioner may be dangerous. If a breakdown occurs please call
a qualifi ed air conditioner technician or electrician. Improper repairs may result in water leakage, electric
shock and fi re, etc.
●
Be sure to connect the earth line from the power supply wire to the outdoor unit and between the outdoor
and indoor unit. Do not connect the earth line to the gas tube, water pipe, lighting rod or the earth line
● Carefully read through the procedures of of the telephone unit. Improper earthing may cause electric shocks.
●
proper installation before starting installation When fi nishing the refrigerant collection (pumping down), stop the compressor and then remove the
work. coolant pipe. If you remove the refrigerant pipe while the compressor is operating and the service valve
● is released, air is sucked and a pressure in the freezing cycle system will build up steeply, causing an
The sales agent should inform customers
explosion or injury.
regarding the correct operation of installation.
●
When installing the unit, be sure to install the refrigerant pipe before starting the compressor. If the
refrigerant pipe is not installed and the compressor is operated with the service valve released, air is
sucked and the pressure level of the refrigeration cycle may increase abnormally which could result in
Tools Needed For Installation Work a rupture and injury.
● The electric cables should neither be reworked nor added. Make sure to use an exclusive circuit breaker.
( mark is tool exclusive use for R32)
Otherwise fi re or electric shock might occur by connection failure, isolation failure or over current.
+ – Screwdriver
● ● Measuring Tape
● Make sure to connect cables to terminal properly and terminal cover should close fi rmly. Otherwise, over
● Knife ● Saw ● Pipe Cutter
heating at terminal contact, fi re or electric shock might occur.
● Hexagonal Wrench Key ( 5/32"(4mm)) ● Make sure that there is no dust on any connected points of electric cables and fi x fi rmly. Otherwise, fi re
or electric shock might occur.
●
Power Drill (ø 2-18/32" (65mm) ~ ø 3-5/32"
● This appliance is not intended for use by persons (including children) with reduced physical, sensory or
(80mm)) Vacuum Pump ● Pliers or Wrench
mental capabilities or lack of experience and knowledge, unless they have been given supervision or
● Torque Wrench Vacuum Pump Adaptor
instruction concerning use of the appliance by a person responsible for their safety.
● Flare Tool ● Gas Leakage Detector
Children should be supervised to ensure that they do not play with the appliance.
Manifold Valve Charge Hose
● Appliance shall be installed in accordance with national wiring regulations and is not intended for use at
● Reamer ● File
altitudes exceeding 2000m (6561-22/32ft).
Refrigerant pipe size (outer diameter): Narrow pipe, Liquid (ø8/32"(6.35mm); Wide pipe, Gas (ø16/32"(12.70mm)/ø20/32"(15.88mm))
SAFETY PRECAUTION
Read the safety precautions carefully before
Refrigerant
operating the unit.
Safety Group
A2L
● The contents of this section are vital to ensure safety. Please pay special attention to the following sign.
WARNING ........ Incorrect methods of installation ! CAUTION ......... Improper installation may result in
!
may cause death or serious injury.
Make sure to connect earth line. This sign in the fi gures indicates prohibition.
Be sure that the unit operates in proper condition after installation. Explain to customer the proper operation and maintenance of
the unit as described in the user's guide. Ask a customer to keep this installation manual together with the instruction manual.
< IA2683: B >
Table 1: Minimum Floor area of the room A (m 2 )
min
Max. Pipe
Model Chargeless up to
ft(m) ft(m)
RAC-DJ09WHAA
82-1/32ft (25m)
49-7/32ft (15m))
Refrigerant
Safety Group This appliance is fi lled with R32.
A2L
WARNING
This symbol shows that the Operation
Instructions should be read carefully.
CAUTION
Be sure to
completely
seal any gap
with putty.
Refrigerant piping
must be protected
from physical
damage. Install a
plastic cover or
equivalent.
above 7-7/8"(200mm)
above 3-15/16"
(100mm)
above 27-37/64"
)
(700mm
Figure 1
>
< IA2683: B
WARNING
!
This appliance is fi lled with R32.
serious consequence.
Additional R32 The maximum refrigerant
oz/ft(g/m)
charge (mmax)
0.11oz/ft (10g/m) 28.22oz (800g)
This symbol shows that a service personnel
should be handling this equipment with reference
to the Installation Manual.
CAUTION
This symbol shows that there is information
included in the Operation Manual and/or
Installation Manual
CAUTION
WARNING
!
Flare connection only at outside
above 3-15/16" (100mm)
of building
The indoor piping should be
insulated with the enclosed
insulation pipe. (If the insulator
is insuffi cient, please use
commercial products).
The difference in height
●
between the indoor and
outdoor unit should be kept
max 49-7/32ft (15m).
The connecting pipe, no
●
matter big or small, should all
be insulated with insulation
pipe and then wrapped with
vinyl tape. (The insulator
will deteriorate if it is not
above (100mm)
3-15/16"
wrapped with tape).
The connection of insulated drain
hose.
inner diameter ø5/8"(16mm)
above 7-7/8"
(200mm)
Please use insulated drain hose
for the indoor piping (commercial
product).
CAUTION
!
A circuit breaker or fuse must be installed. Without a circuit breaker or fuse the danger of electric shock exists.
●
The external switch shall be incorporated to completely disconnect from power supply. It should disconnect all poles, and a contact
separation of at least 4/32" (3mm) must be present.
Do not install the unit near a location where there is fl ammable gas. The outdoor unit may catch fi re if fl ammable
●
gas leaks around it.
Do not install the indoor unit in a machine shop, kitchen and laundry rooms when vapor from oil or its mist fl ows to
●
the indoor unit. The oil will deposit on the heat exchanger, thereby reducing the indoor unit performance and may
deform and in the worst case, break the plastic parts of the indoor unit.
Please ensure smooth fl ow of water when installing the drain hose.
●
Piping shall be suitable supported with a maximum spacing of 3-9/32ft (1m) between the supports.
●
Selecting the installation location: Suitable location that will reduce the impact from rain and direct sun that may affect the unit
●
performance. Besides that, ventillation must be good and clear of obstruction.
The air blown out of the unit should not point directly to animals or plants.
●
The clearances of the unit from top, left, right and front are specifi ed in fi gure below. At least three of the above sides must be
●
open air.
Be sure that the hot air blown out of the unit and noise do not disturb the neighbourhood.
●
Do not install at a location where there is fl ammable gas, steam, oil and smoke.
●
The location must be convenient for water drainage.
●
Place the outdoor unit and its connection wire at least 3-9/32ft (1m) away from the antenna or signal line of television, radio or
●
telephone. This is to avoid noise interference.
Do not install outdoor unit facing strong wind direction. It may damage the fan motor.
●
Do not install the outdoor unit in a place where small animals may build their nests. If small animal goes inside the unit and touches
●
the electrical parts, failure of the unit, smoke or fi re may be caused. Request your customer to keep the surrounding of the unit is
clean.
Safely dispose all packing and transportation materials in accordance with federal/state/local laws orordinances. Packing materials
●
such as nails and other metal or wood parts, including plastic packing materials used for transportation may cause injuries or death
by suffocation.
The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations. Storage package
●
protection should be constructed in such a way that mechanical damage to the equipment inside the package will not cause a leak
of the REFRIGERANT CHARGE.
!
Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. Any unfi t
●
method or using incompatible material may cause product damage, burst and serious injury.
The appliance/pipe-work shall be stored in a well ventilated room with indoor fl oor area larger than A
●
any continuously operating ignition source. Keep away from open fl ames, any operating gas appliances or any operating electric
heater. Else, it may explode and cause injury or death.
The appliance/pipe-work shall be installed, and/or operated in a room with fl oor area larger than A
●
away from ignition sources, such as heat/spark/open fl ame or hazardous areas such as gas appliances, gas cooking, reticulated
gas supply systems or electric cooking appliances, etc.
Do not pierce or burn as the appliance/pipe-work is pressurized. Do not expose the appliance/pipe-work to heat, fl ame, sparks, or
●
other sources of ignition. Else, it may explode and cause injury or death.
The Choice of Mounting Site
(Please note the following matters and obtain permission from customer before installation).
WARNING
!
● The Outdoor unit must be mounted at a location which can
support heavy weight. Otherwise, noise and vibration will
increase.
! CAUTION
● Do not expose the unit under direct sunshine or rain. Besides,
ventilation must be good and clear of obstruction.
● The air blown out of the unit should not point directly to
animals or plants.
● The clearances of the unit from top, left, right and front are
specifi ed in Figure 1. At least 3 of the above sides must be
open air.
● Be sure that the hot air blown out of the unit and noise do
not disturb the neighbourhood.
● Do not install at a location where there is fl ammable gas,
steam, oil and smoke.
● The location must be convenient for water drainage.
● Place the Outdoor unit and its connecting cord at least
3.28ft(1m) away from the antenna or signal line of television,
radio or telephone. This is to avoid noise interference.
● Do not install outdoor unit facing strong wind direction. It may
damage the fan motor.
● Do not install the outdoor unit in a place where small animals
may build their nests. If small animal goes inside the unit
and touches the electrical parts, failure of the unit, smoke
or fi re may be caused. Request your customer to keep the
surrounding of the unit is clean.
Please mount the outdoor unit on stable ground to prevent vibration and increase of noise level.
●
Decide the location for piping after sorting out the different types of pipe available.
●
Open the side plate by unscrewing the screws as shown beside.
●
CONDENSED WATER DISPOSAL OF OUTDOOR UNIT
There are holes on the base of Outdoor unit for condensed water to exhaust.
●
In order to fl ow condensed water to the drain, the unit is installed on a stand or a block so that the unit is 3-15/16"
●
(100mm) above the ground as shown fi gure. Join the drain pipe to one hole.
At fi rst insert one portion of the hook to the base (Portion A), then pull the drain pipe in the direction shown by the arrow
●
while inserting the hook into the base. After installation, check whether the drain pipe cling to the base fi rmly.
BASE
DRAIN PIPE
When Using and Installing In Cold Areas
When the air conditioner is used in low temperature and in snowy conditions, water from the heat exchanger may freeze on
the base surface to cause poor drainage. When using the air conditioner in such areas, do not install the bushings. Keep a
minimum of 9-27/32" (250mm) between the drain hole and the ground. When using the drain pipe, consult your sales agent.
For more details, refer to the installation Manual for Cold Areas.
PURGING OF REFRIGERANT IS
Use the two spanners on
●
PROHIBITED
the service valve nuts to
Purging of refrigerant will cause the unit
tighten and loosen so that
to be lacked of refrigerant which may
the service valve will not
deform. Gas leak from the affect the capacity performance and
crushed part, stagnation,
lead to severe dew formation causing
touching fi re, rarely cause
problem such as dew water drop or
ignition.
splashing from the unit.
When connecting pipes. If you tighten
the flare nut by excess torque, the
service valve on the small pipe side
may be broken.
The fl are nut on the small pipe side
should be torqued to 122 - 165lbf.in
(140 - 190kgf.cm).
WARNING
[refer to Table 1] and without
min
[refer to Table 1] and keep
min
Names of Outdoor Components
No. Item
Bush
1
Drain Pipe
2
Bush
3
Dimension of 1-31/32(50)
Mounting Stand
1-11/32(34)
35/64(14)
of the Outdoor
unit
(unit : in (mm))
3-3/64
(77.5) 1-11/32(34)
19-45/64(500)
Figure showing the Installation of Outdoor Unit.
! CAUTION
This unit is chargeless up 49-7/32ft (15m) pipe
●
length.
● Installation of pipe length less than minimum
pipe length requirement 9-27/32ft (3m) may
generate an abnormal sound.
BASE
above
2-49/64"(70mm)
1 DRAIN PIPE
Outer diameter:
5/8"(16mm) or more
WARNING
!
BURST HAZARD
Do not allow air, etc. to get into refrigerant
cycle (piping)
RISK OF EXPLOSION
Compressor must be stopped before
removing refrigerant pipes.
All service valve must be fully closed after
pumping down operation.
Qty
3
1
1
3-11/64(80.5)
