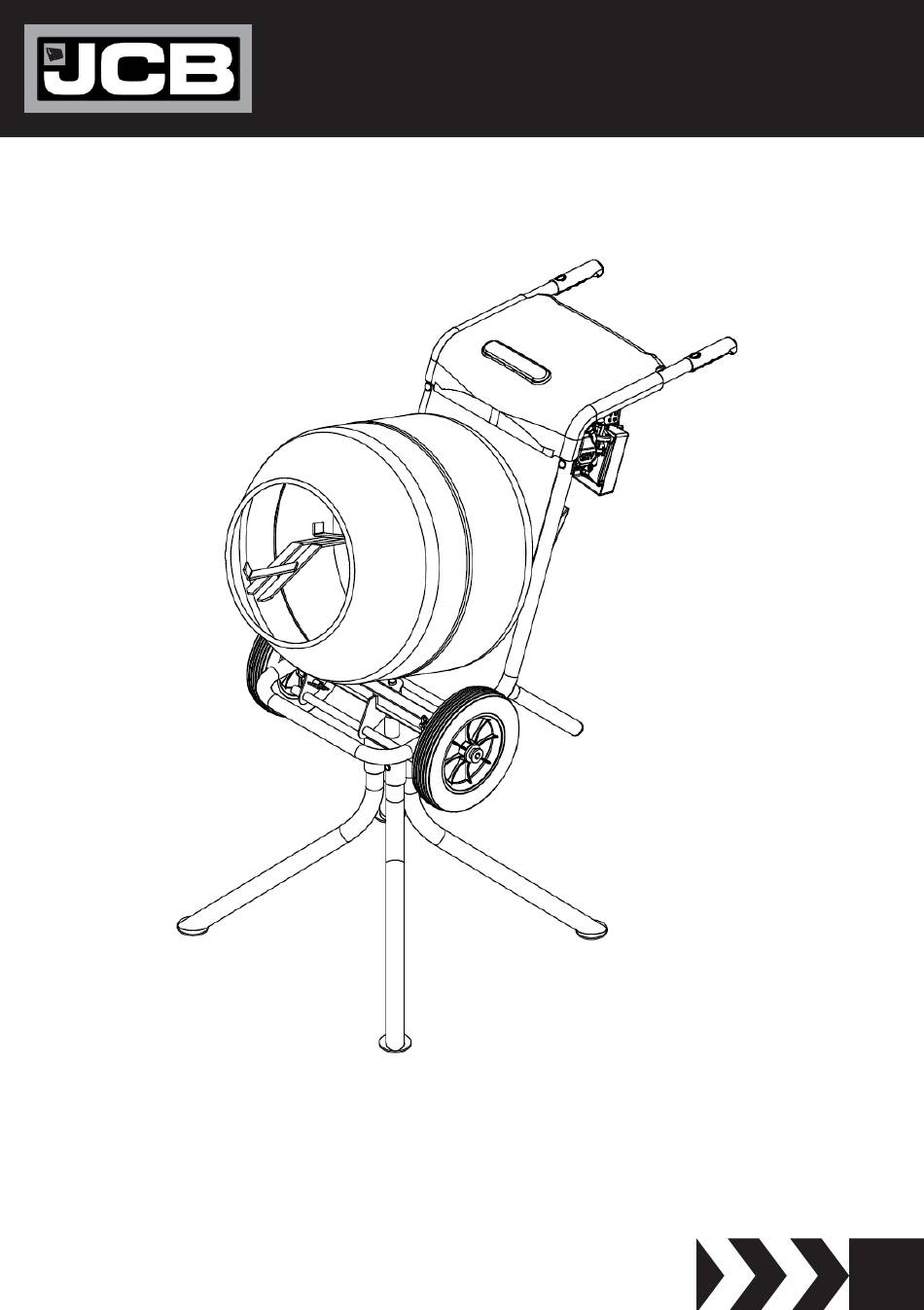

- Page 1 JCB-PRO PETROL CEMENT/CONCRETE MIXER INSTRUCTION & USER MANUAL JCB-CM150P Original Instructions IM-CM150P-EN...
- Page 2 Oil Servicing Spark Plug Maintenance Sediment Filter Maintenance Storage Troubleshooting Specifications Cleaning & Transportation Parts Diagram Parts List Warranty Manual Updates Returning Your Product Leaving a Review Ordering Spare Parts Contact Us CE Declaration of Conformity JCB-CM150P Instruction & User Manual...
- Page 3 Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by JCB Tools, and should be kept with the product. Please read and understand these instructions before you use your product.
- Page 4 Smoking and Drugs Warning: NEVER smoke whilst operating the machine due to close proximity of flammable liquids. Also NEVER operate the machine under the influences of drugs including smoking and alcohol. JCB-CM150P Instruction & User Manual...
- Page 5 ALL MAINTENANCE other than that listed in this manual, should be carried out by professionally trained and • certified personnel. When using this machine for the first time and before actual work, you MUST learn how to handle the machine • from an experienced or skilled person. JCB-CM150P Instruction & User Manual...
- Page 6 The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes or rough, slippery and unstable ground. JCB-CM150P Instruction & User Manual...
- Page 7 Keep the machine in good operating condition. Operating the machine in poor or questionable condition could • result in serious injury. Be sure all safety devices are in working order and warning labels are in place. These items are installed for your • safety. JCB-CM150P Instruction & User Manual...
- Page 8 NEVER use inside a confined space such as but not limited to a house, garage, large vehicle, boat or tent. • Never operate the machines near other machines which use flammable liquids as a fuel source. • Only use the machine outside far away from open windows, doors and vents. • JCB-CM150P Instruction & User Manual...
- Page 9 When fuel is spilled on yourself or your clothes, wash your skin and change clothes immediately. • ALWAYS clean up spills promptly using absorbent granules and a lidded bin. • JCB-CM150P Instruction & User Manual...
- Page 10 (such as a water heater, furnace, or clothes dryer). Allow the engine to cool before storing in any enclosure. Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the • fuel cap securely in place. JCB-CM150P Instruction & User Manual...
- Page 11 MACHINE SPECIFIC SAFETY WARNINGS WARNING! Your JCB Concrete Mixer has been designed with safety in mind. However, as with any type of WARNING! When using electric tools machinery, some basic DO's and DONT'S apply: basic safety precautions should always be Do’s :...
- Page 12 • Crosshead Screwdriver • Spanners – 1x10mm, 1x13mm, 1x17mm, 1x19mm • General Purpose Grease • Hammer or Mallet Box Contents R Clip Φ3.4 Bolt M8x45 Flat Washer M8 Nut M8 Hex.head bolt M10x25 Wheel bung Pinned plate JCB-CM150P Instruction & User Manual...
- Page 13 Handle Assembly Insert the handle (32) into chassis (2) using Umbrella Bolt M8x45 (35), Flat washer M8 (34) and Nut M8 (33), Tighten securely. Umbrella Bolt M8x45 x2 Flat Washer M8 x2 Nut M8 x2 JCB-CM150P Instruction & User Manual...
- Page 14 Wheel Assembly Slide the wheels (13) onto the axles and secure by banging in the wheel bungs (14) with a hammer or mallet. Wheel Bungs JCB-CM150P Instruction & User Manual...
- Page 15 Stand Assembly Insert the four feet (11) into the stand connector (9) and secure with two Pinned plates (12) and R-clips (10) provided. R-clips x2 Pinned Plates x2 JCB-CM150P Instruction & User Manual...
- Page 16 You might require the help of a second person. Reverse the above actions to lower the mixer to the floor and remover the stand. Hex-Head bolt M10x25 JCB-CM150P Instruction & User Manual...
- Page 17 Check the rated output of your power source. It must match/comply with the information on the ratings label of the specific mixer you intend to use. JCB-CM150P is only suitable to be used for mixing cement, water and aggregates up to the maximum mixing capacity specified. This product must not be used for any purposes other than those described.
- Page 18 Neutral – This position can be used for dry mixing. As the angle is neutral it can reduce the amount of airborne dust Discharging Neutral Loading JCB-CM150P Instruction & User Manual...
- Page 19 Then lock the rear lever and tip the mixer forward until you hear an audible *click*. The mixer will now rest on the rear lever allowing for dry mixing or refuelling. JCB-CM150P Instruction & User Manual...
- Page 20 WARNING! Operating the engine without an air filter, or with a damaged air filter, will allow dirt to enter the engine, causing rapid engine wear. This type of damage is not covered by the Distributor’s Limited Warranty. JCB-CM150P Instruction & User Manual...
- Page 21 Petrol/Gasoline is highly flammable, volatile and corrosive. You can be burned or seriously injured when handling fuel. NEVER fill above the Maximum Fuel Level. Standard E10 and E5 are both suitable for use with this machine Maximum Fuel Level JCB-CM150P Instruction & User Manual...
- Page 22 OPEN position. > Move the throttle lever away from the SLOW position about 1/3 of the way toward the FAST position. Fuel Valve Lever Choke Lever Throttle Lever JCB-CM150P Instruction & User Manual...
- Page 23 Chipper output is controlled by adjusting engine speed. Moving the throttle lever in the FAST direction will increase chipper output, and moving the throttle lever in the SLOW direction will decrease chipper output. Ignition Switch Recoil Starter Grip Throttle Lever Choke Lever Slow Fast Open JCB-CM150P Instruction & User Manual...
- Page 24 > Move the throttle lever to the SLOW position. > Turn the ignition switch to the OFF position. > Turn the fuel valve lever to the OFF position. Throttle Lever Slow Ignition Switch Fuel Lever JCB-CM150P Instruction & User Manual...
- Page 25 Carbon monoxide poisoning from engine exhaust.Be sure there is adequate ventilation whenever you operate the engine. －Burns from hot parts. Let the engine and exhaust system cool before touching. －Injury from moving parts. JCB-CM150P Instruction & User Manual...
- Page 26 Every 3 Every 25 Every 100 interval. Each Use Hours Hours Hours Check Engine Oil Level Check General Machine Condition Check Belts Clean Engine Change Engine Oil First 5 hours Replace Air Filter Replace Spark Plug JCB-CM150P Instruction & User Manual...
- Page 27 SJ, SL, or equivalent. SAE 15W-40 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range. JCB-CM150P Instruction & User Manual...
- Page 28 After properly seated, fully tighten using spark plug wrench. > When the washer has started to compress tighten to the following instruction: 1. New Sparkplug – a 1/2 Turn tight 2. Re-used Spark Plug – a 1/8 to 1/4 Turn tight JCB-CM150P Instruction & User Manual...
- Page 29 Place the O-ring in the fuel valve, and install the sediment cup. Tighten the sediment cup securely. > Move the fuel valve to the ON position, and check for leaks. Replace the O-ring if there is any leakage. Fuel Valve Lever O-Ring Washer/Gasket Drain Bolt Sediment Cup JCB-CM150P Instruction & User Manual...
- Page 30 Pull the starter grip several times to distribute the oil around the cylinder walls. > Reinstall the Sparkplug. Pull the starter cord until resistance is felt. This ensures the valves are closed preventing moisture build up. > Return the recoil grip gently. JCB-CM150P Instruction & User Manual...
- Page 31 3. Take engine to an Fuel filter clogged, carburettor Replace or repair faulty authorized servicing dealer, or malfunction, ignition components as necessary. Refer to shop manual. malfunction, valves stuck, etc. JCB-CM150P Instruction & User Manual...
- Page 32 Specifications Model JCB-CM150P Max Drum Capacity (L) Max Mixing Capacity (L) Drum Diameter (cm) Discharge Outlet Height (cm) 30.0 x 8.0 Wheels (cm) 143 x 130 x 73.5 Operating Dimensions (cm) 96 x 65.5 x 91.5 Storage Dimensions (cm) Weight (kg)
- Page 33 Always carry the machine by its handles. > Protect the machine from any heavy impact or strong vibrations which may > occur during transportation in vehicles. Secure the machine to prevent it from slipping or falling over. > JCB-CM150P Instruction & User Manual...
- Page 34 Parts Diagram JCB-CM150P Instruction & User Manual...
- Page 35 Hex head bolt M6x16 Spring Washer M8 Spring Washer M6 Flat Washer M8 Circlip Head.head bolt M8x25 Belt Head.head bolt Gearbox assembly Small Pulley Belt Cover-U Circlip Big Pulley Shaft sleeve Key 4.8x14 Key 4.8x18 Engine Wrench JCB-CM150P Instruction & User Manual...
- Page 36 We reserve the right to make any modifications without prior notice whenever necessary. Our latest manuals are also placed online. All our manuals can be downloaded at: www.jcb-tools.co.uk Returning Your Product If you are returning your product, please contact the dealer for their returns policy.
- Page 37 Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@genpower.co.uk Post JCB Tools, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Support Website Go to www.jcb-tools.co.uk JCB-CM150P Instruction & User Manual...
- Page 38 The person authorized to compile this technical file: Date: 01/02/2024 Signature Name/ title: Roland.J.Llewellin / Managing Director JCB Tools are a Licensee of J.C.Bamford Excavators ltd, operated via Genpower ltd. Address: JCB Tools, Isaac Way, Pembroke Dock, SA72 4RW JCB-CM150P Instruction & User Manual...
