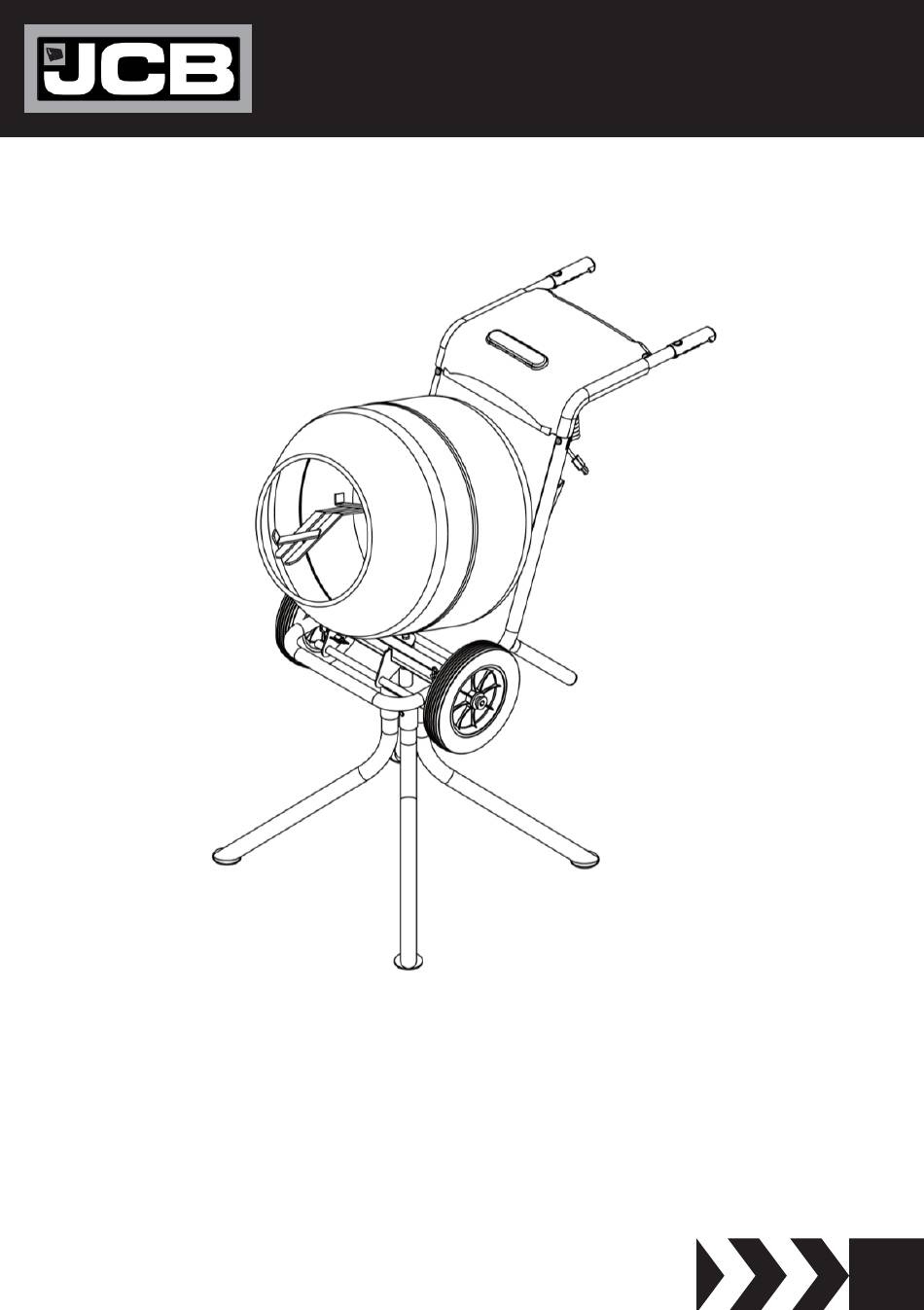

- Page 1 JCB-PRO CEMENT/CONCRETE MIXER 230V/110V INSTRUCTION & USER MANUAL JCB-CM150E JCB-CM150E-110 Original Instructions IM-CM150E/110-EN...
-
Page 2: Table Of Contents
General Cleaning General Inspection UK Plug Cleaning the Drum Storage Transportation Part Diagram Parts List Troubleshooting Specifications Warranty Manual Updates Returning Your Product Leaving a Review Ordering Spare Parts Contact Us CE Declaration of Conformity JCB-CM150E/110V Instruction & User Manual... -
Page 3: Introduction
Keep for future reference and pass it on if the machine is loaned or sold to another user. This manual has been produced by JCB Tools, and should be kept with the product. Please read and understand these instructions before you use your product. -
Page 4: General Warning & Disposal
The month and year of manufacture can be found within the product serial number e.g. MMYYPPPAXXXXX. Where production month (MM) and production year (YY) are included. JCB-CM150E/110V Instruction & User Manual... -
Page 5: General Tool Safety Warnings
Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. JCB-CM150E/110V Instruction & User Manual... - Page 6 Such preventive safety measures reduce the risk of starting the power tool accidentally. JCB-CM150E/110V Instruction & User Manual...
-
Page 7: Machine Specific Warnings
MACHINE SPECIFIC SAFETY WARNINGS WARNING! Your JCB Concrete Mixer has been designed with safety in mind. However, as with any type of WARNING! When using electric tools machinery, some basic DO's and DONT'S apply: basic safety precautions should always be Do’s :... -
Page 8: Unpack, Tools Required For Assembly & Box Contents
• Crosshead Screwdriver • Spanners – 1x10mm, 1x13mm, 1x17mm, 1x19mm • General Purpose Grease • Hammer or Mallet Box Contents R Clip Φ3.4 Bolt M8x45 Flat Washer M8 Nut M8 Hex.head bolt M10x25 Wheel bung Pinned plate JCB-CM150E/110V Instruction & User Manual... -
Page 9: Assembly
Handle Assembly Insert the handle (38) into chassis (2) using Umbrella Bolt M8x45 (41), Flat washer M8 (40) and Nut M8 (39), Tighten securely. Umbrella Bolt M8x45 x2 Flat Washer M8 x2 Nut M8 x2 JCB-CM150E/110V Instruction & User Manual... -
Page 10: Wheel Assembly
Wheel Assembly Slide the wheels (13) onto the axles and secure by banging in the wheel bungs (14) with a hammer or mallet. Wheel Bungs JCB-CM150E/110V Instruction & User Manual... -
Page 11: Stand Assembly
Stand Assembly Insert the four feet (11) into the stand connector(9) and secure with two Pinned plates (12) and R-clips (10) provided. R-clips x2 Pinned Plates x2 JCB-CM150E/110V Instruction & User Manual... - Page 12 You might require the help of a second person. Reverse the above actions to lower the mixer to the floor and remover the stand. Hex-Head bolt M10x25 JCB-CM150E/110V Instruction & User Manual...
-
Page 13: Operation
JCB-CM150E & JCB-CM150E-110V are designated with a rated input of 110 & 230V at 50Hz, powering a 550W motor. It's only suitable to be used for mixing cement, water and aggregates up to the maximum mixing capacity specified. -
Page 14: Working Positions
Neutral – This position can be used for dry mixing. As the angle is neutral it can reduce the amount of airborne dust Discharging Neutral Loading JCB-CM150E/110V Instruction & User Manual... -
Page 15: Tilt Lock Levers
Then lock the rear lever and tip the mixer forward until you hear an audible *click*. The mixer will now rest on the rear lever allowing for dry mixing or refuelling. JCB-CM150E/110V Instruction & User Manual... -
Page 16: Starting & Stopping
> Start the mixer completely empty > Add water, this will prevent contents sticking to the drum > Add cement > Add your sand/aggregate etc. Allow the mix to fully combine before adding any more water or cement. JCB-CM150E/110V Instruction & User Manual... -
Page 17: Maintenance & Care
3AMP fuse approved to approved to BS 1362 Connect Blue Connect Blue BS 1362 to N(Neutral) to N (Neutral) Brown L (Live) Brown L(Live) Outer Sleeve Cable grip Outer sleeve Cable grip firmly clamped firmly clamped JCB-CM150E/110V Instruction & User Manual... -
Page 18: Cleaning The Drum
Always carry the machine by its handles. > Protect the machine from any heavy impact or strong vibrations which may > occur during transportation in vehicles. Secure the machine to prevent it from slipping or falling over. > JCB-CM150E/110V Instruction & User Manual... -
Page 19: Parts Diagram
Parts Diagram 25 26 15 16 17 18 13 14 JCB-CM150E/110V Instruction & User Manual... -
Page 20: Parts List
Wheel bung Tapping screw ST4.8x25 Hex.head bolt M6x16 Block Spring Washer M6 Motor cover Circlip Handle Belt Hex.head bolt M8 Belt cover-U Flat Washer M8 Gearbox assembly Umbrella nut M8x45 Big Pulley Flat Washer M10 JCB-CM150E/110V Instruction & User Manual... -
Page 21: Troubleshooting
15 minutes. Empty the mixer. After allowing the machine to cool down, plug the machine back in and turn it on. If the drum is turning as expected, continue use. JCB-CM150E/110V Instruction & User Manual... -
Page 22: Specifications
Specifications Model JCB-CM150E & JCB-CM150E-110 Max Drum Capacity (L) Max Mixing Capacity (L) Drum Diameter (cm) Discharge Outlet Height (cm) 30.0 x 8.0 Wheels (cm) 143 x 130 x 73.5 Operating Dimensions (cm) 94 x 65.5 x 87.5 Storage Dimensions (cm) -
Page 23: Warranty
We reserve the right to make any modifications without prior notice whenever necessary. Our latest manuals are also placed online. All our manuals can be downloaded at: www.jcb-tools.co.uk Returning Your Product If you are returning your product, please contact the dealer for their returns policy. -
Page 24: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@genpower.co.uk Post JCB Tools, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Support Website Go to www.jcb-tools.co.uk JCB-CM150E/110V Instruction & User Manual... -
Page 25: Ce Declaration Of Conformity
The person authorized to compile this technical file: Date: 01/02/2024 Signature Name/ title: Roland.J.Llewellin / Managing Director JCB Tools are a Licensee of J.C.Bamford Excavators ltd, operated via Genpower ltd. Address: JCB Tools, Isaac Way, Pembroke Dock, SA72 4RW JCB-CM150E/110V Instruction & User Manual...
