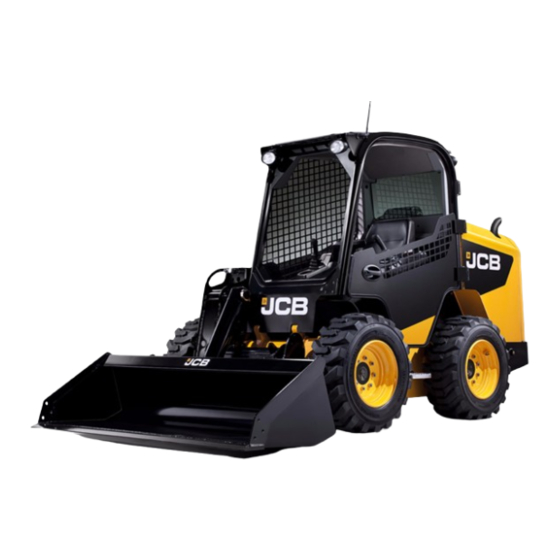

jcb 225 Service Manual

Skid steer large platform
Hide thumbs Also See for 225:
Table of Contents

Advertisement

Quick Links

Service Manual
Skid Steer Large Platform
Service Manual - Skid Steer Large Platform
Section 1 - General Information
Section 2 - Care and Safety
Section 3 - Maintenance
Section A - Attachments
Section B - Body and Framework
Section C - Electrics
Section E - Hydraulics
Section F - Transmission
Section J - Tracks
Section K - Engine
Publication No.
9803/9950-2
World Class
Customer Support
Copyright © 2004 JCB SERVICE. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any other means,
electronic, mechanical, photocopying or otherwise, without prior permission from JCB SERVICE.
Issued by JCB Technical Publications, JCB Aftermarket Training, Woodseat, Rocester, Staffordshire, ST14 5BW, England. Tel +44 1889 591300 Fax +44 1889 591400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 225 and is the answer not in the manual?

Questions and answers

Related Manuals for jcb 225

Summary of Contents for jcb 225

  • Page 1 Customer Support Copyright © 2004 JCB SERVICE. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any other means, electronic, mechanical, photocopying or otherwise, without prior permission from JCB SERVICE.
