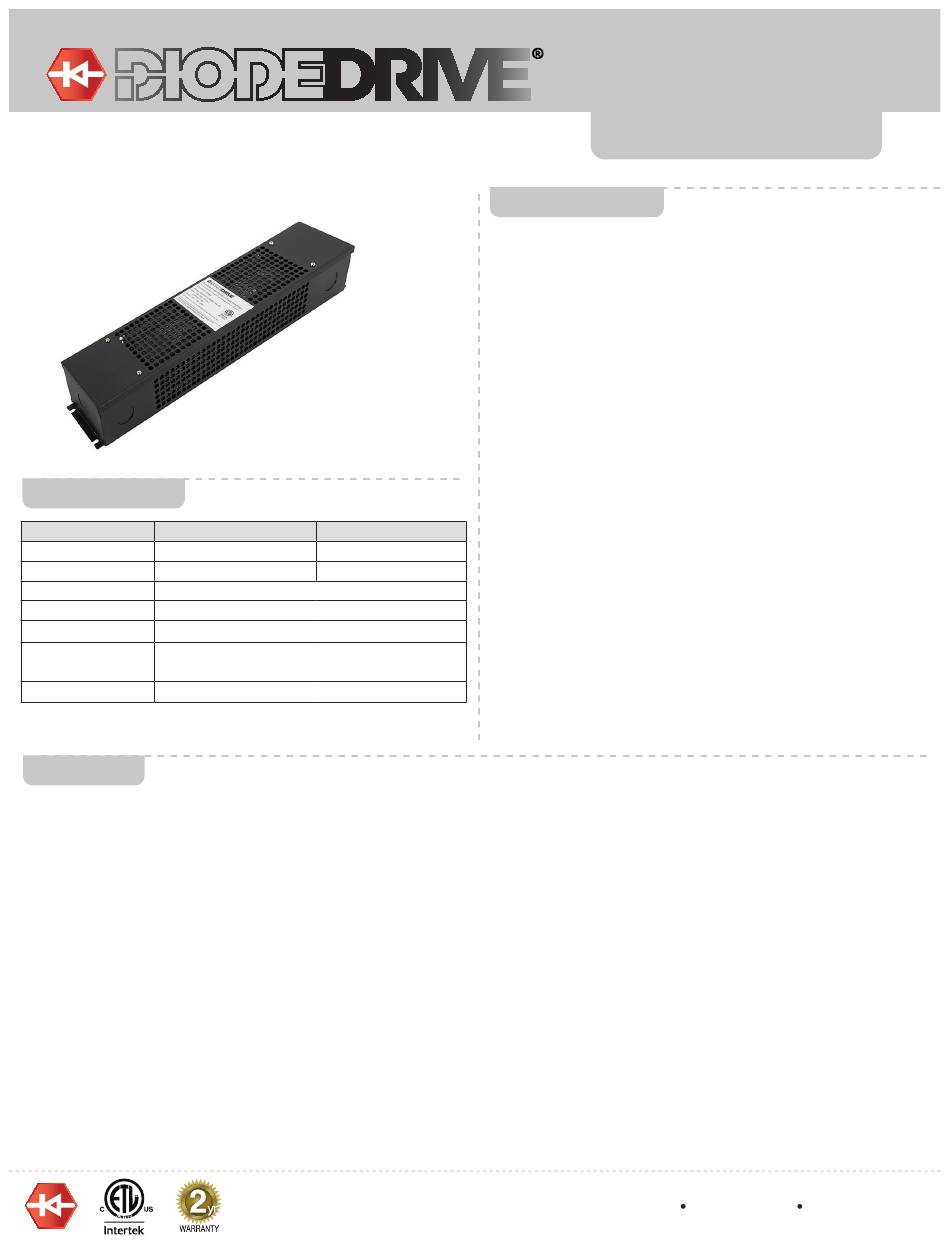

DiodeDrive CVPSD User Manual

Important: Read all instructions prior to installation.
Dimmable LED Power Supply
Specifications
Model CVPSD-120WM-24V-JB
Output Wattage (max)
Output Current
Output Voltage
Input Voltage
Environmental Rating IP66, Suitable for Wet Locations, Waterproof
Ambient Operating
Temperature
Dimmable Yes, compatible with most ELV and MLV dimmers
Installation
1. Before starting installation, ensure power is completely disconnected at the source and cannot be inadvertently reconnected.
2. Select an appropriate and structurally sound mounting location. Secure the driver to the surface using suitable screws.
3. Make all connections with suitable wire connectors. For damp or wet installation locations, verify that all connections and housings are
tight to prevent water intrusion into the system.
4. Briefly apply power to test for proper function. Once proper operation is confirmed, disconnect the power and complete the installation.
5. If any event occurs, such as tripping a breaker or irregular operation, disconnect the input power and output connections.
A qualified technician should examine all faults. Please do not attempt to remove the power supply case yourself. For additional support,
please see our contact information below.
ETL CLASSIFIED
CVPSD-200WM-24V-JB
120W 200W
5.0A 8.3A
24 VDC
120 VAC
-40–60° C (-40–140° F)
Safety and Notes
• Product should be installed and serviced by a certified
electrician in accordance with applicable national, state, and
local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
• Ensure all mounts are securely attached and will support the
weight of the power supply. Failure to properly support may
result in damage or injury, for which the manufacturer does not
assume responsibility.
• Installation of overvoltage and surge protection devices in the
power supply circuit of lamps is recommended to ensure safety
during use.
• Mount to a metal surface in a well-ventilated place to ensure
that the environment temperature is appropriate for operation.
• Do not stack any objects on the power supply. Please do not
touch the aluminum housing, as it may become hot during use.
• Suitable for wet locations. Do not expose to corrosive gas or
liquids.
• Ensure the installation of the power supply complies with
all driver specifications.
Rev Date: V2 01/20/2025
4400 Earth City Expy, St. Louis, MO 63045
User Manual
CVPSD
866.201.2238 diodedrive.com
