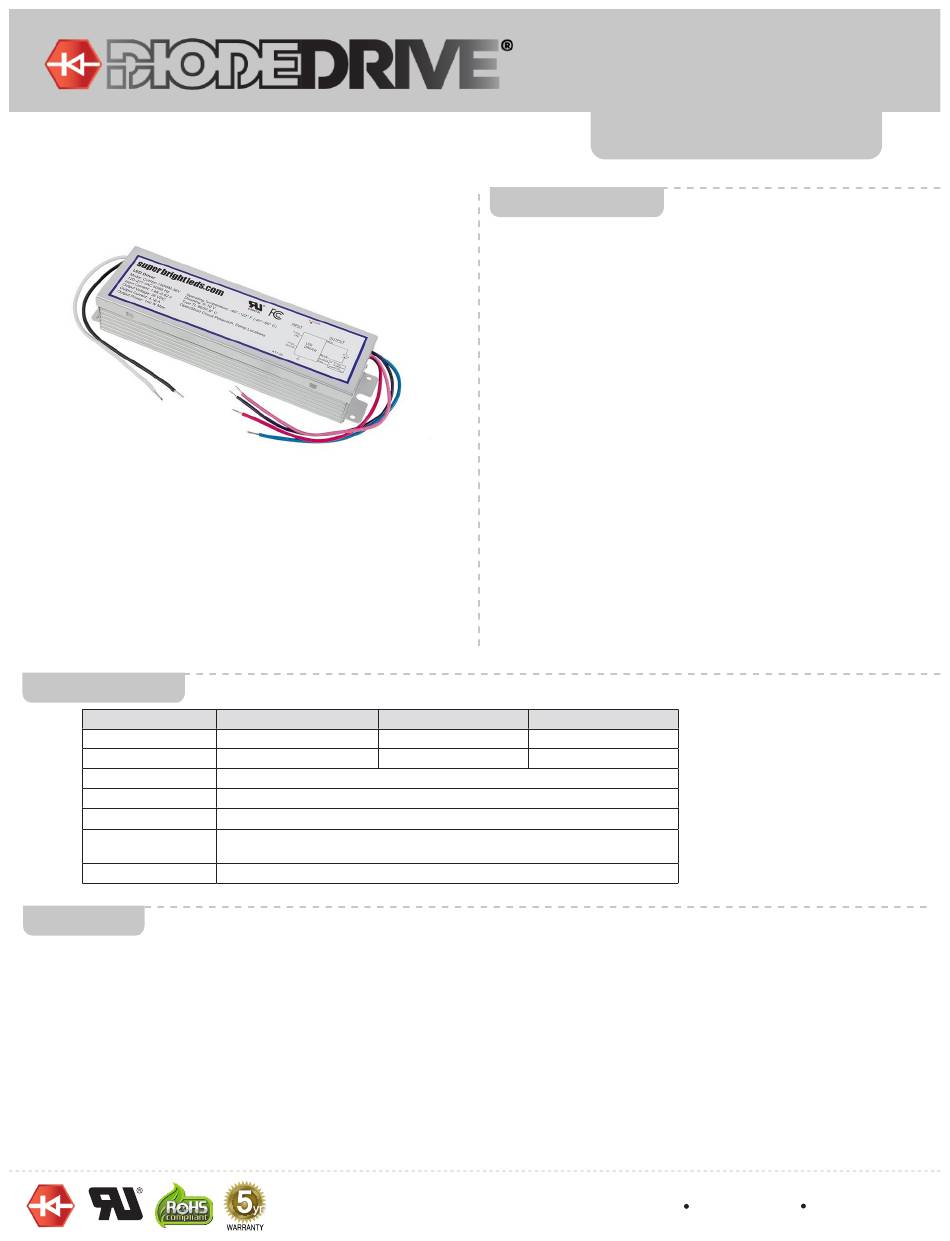

DiodeDrive CVPSD-WM-36V Series User Manual

Important: Read all instructions prior to installation.
LED Power Supply
Specifications
Model
Output Wattage (max)
Output Current
Output Voltage
Input Voltage
Environmental Rating
Ambient Operating
Temperature
Dimmable
Installation
1. Before starting installation, ensure power is completely disconnected at the source and cannot be inadvertently reconnected.
2. Select an appropriate and structurally sound mounting location. Secure the driver to the surface using suitable screws.
3. Make all connections with suitable wire connectors. For damp installation locations, verify that all connections and housings are tight to
prevent water intrusion into the system.
4. Briefly apply power to test for proper function. Once proper operation is confirmed, disconnect the power and complete the installation.
5. If any event occurs, such as tripping a breaker or irregular operation, disconnect the input power and output connections.
A qualified technician should examine all faults. Please do not attempt to remove the power supply case yourself. For additional support,
please see our contact information below.
CVPSD-60WM-36V CVPSD-100WM-36V
60W
0.16–1.66A
120–277 VAC
IP65, Suitable for Damp Locations, Waterproof
-40–50 °C (-40–122 °F)
Rev Date: V1 03/10/2025
4400 Earth City Expy, St. Louis, MO 63045
Safety and Notes
• Product should be installed and serviced by a certified
electrician in accordance with applicable national, state, and
local building and electrical codes.
• To reduce the risk of electric shock, ensure that the main power
source and circuit breakers are switched off before performing
any installation or wiring procedures.
• Ensure all mounts are securely attached and will support the
weight of the power supply. Failure to properly support may
result in damage or injury, for which the manufacturer does not
assume responsibility.
• Installation of overvoltage and surge protection devices in the
power supply circuit of lamps is recommended to ensure safety
during use.
• Mount to a metal surface in a well-ventilated place to ensure
that the environment temperature is appropriate for operation.
• Do not stack any objects on the power supply.
• Suitable for damp locations. Do not expose to corrosive gas or
liquids.
• Do not install in completely sealed enclosures. Enclosures must
be ventilated with holes to allow air passage.
• Ensure the installation of the power supply complies with
all driver specifications.
CVPSD-150WM-36V
100W 150W
0.27–2.7A 0.416–4.16A
36 VDC
Yes
User Manual
CVPSD-xWM-36V
866-201-2238 diodedrive.com
