DiodeDrive DVP Series User Manual

Important: Read all instructions prior to installation.
Constant Voltage LED Power Supply
Specifications
Environmental Specifications
Live
Operating Temperature -4°–113° F (-20–45°C)
(Black or Brown)
IP Rating
Neutral
(White or Blue)
Check product label for specific electrical
Ground
specifications related to installation.
Improper installation will void warranty.
Installation
1. Install the driver firmly onto the mounting surface with suitable screws.
2. Make all wiring connections and briefly apply power to test for proper function.
Once proper operation is confirmed, remove power again and complete installation.
3. If any event occurs, such as tripping or irregular operation, disconnect the power main and the connection to the luminaire before
investigating the problem. If the driver is found to be defective, please get in touch with customer support for resolution.

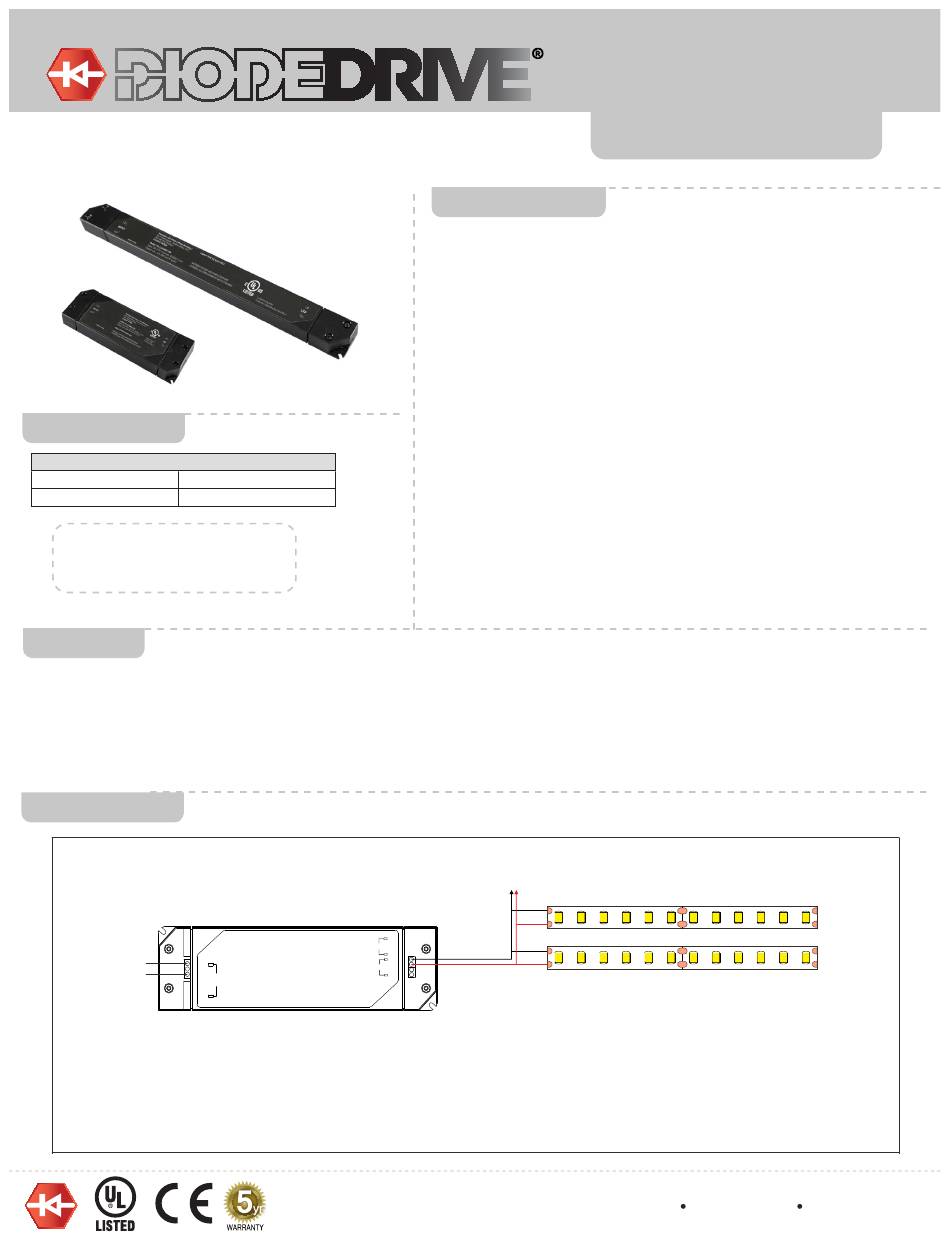

Wiring Diagram
Non-dimmable Constant Voltage Power Supply
L
N
1. Connect the output positive (+) terminal of the driver to the V+ terminal of the LED strip.
2. Connect the output negative (-) terminal of the driver to the V- terminal of the LED strip.
TRIAC Dimmable Constant Voltage Power Supply
Triac Dimmer
CB
IP20
LED
OUTPUT
L
DIM
INPUT
N
Safety and Notes
• Product should be installed and serviced by a certified electrician
in accordance with applicable national, state, and local building and
electrical codes.
• To reduce the risk of electric shock, ensure that the main power source
and circuit breakers are switched off before performing any installation
or wiring procedures.
• Ensure all mounts are securely attached and will support the weight of
the power supply. Failure to properly support may result in damage or
injury, for which the manufacturer does not assume responsibility.
• Installation of over-voltage protection and surge protection devices in
the power supply circuit of lamps is recommended to ensure safety
during use.
• For TRIAC dimmable models, ensure the power rating of the power
supply is less than the maximum rating of the TRIAC dimmer.
• Do not install in completely sealed enclosures. Enclosures must be
ventilated with holes to allow air passage.
• Suitable for damp locations. Do not expose to corrosive gas or liquids.
• Ensure the installation of the power supply complies with all
driver specifications.
V-
V+
-
V-
+
-
V+
+
Rev Date: V1 07/12/2024
4400 Earth City Expy, St. Louis, MO 63045
V-
User Manual
DVP and DVPL Series
AC/L
AC/N
Power Suppl y
FG
AC/L
AC/N
Power Suppl y
FG
866.201.2238 Diodedrive.com
