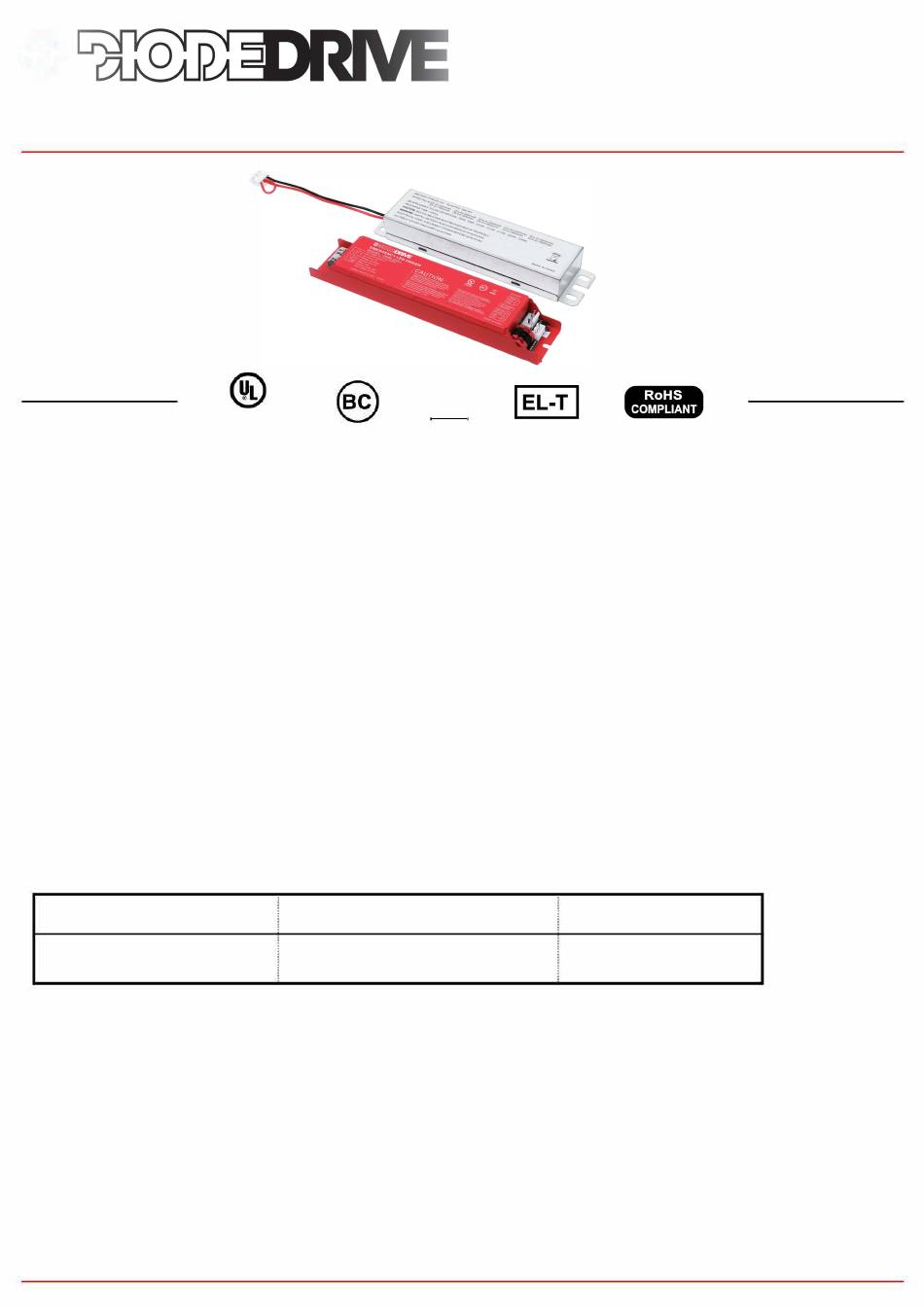

Emergency LED Driver
FEATURES
• UL Listed for US
• Listed to UL924 and tested to CSA C22.2
NO.141 Field or factory installation
• Low energy consumption CEC
Title20 compliance
• High output voltage
• Constant output power
• Self-testing
• Battery:Over Charge Protection
Over Discharge Protection
• Malfunction indicate function
• For wiring to the led driver's DC output
SPECIFICATION CHART
Models
DEME-20W-L
SELF-TESTING
The integrated Self- Diagnostic circuitry will automatically conduct monthly 30-second and annual 90-minute tests to verify proper
emergency capability per Life Safety Code requirements. NFPA 101, Life Safety Code Outlines the following schedule:
• Monthly- During AC mode, the system conducts a (30)seconds self-discharge test of the emergency led driver every 30 days.
And automatically restore to normal charging after (30)seconds dis-charged.
• Annually- During AC mode, the system conducts a (90)minutes self-discharge test of the emergency led driver every 365 days.
And automatically restore to normal charging after fully dis-charged.
LISTED
E540459
Emergency Power
20 Watts (Constant)
®
DEME-20W-L SERIES
li
SPECIFICATIONS
• Input Voltage:100~277Vac,50/60Hz
• Input Current:100mA max.
• Recharge Power:7W max.
• Output Voltage:25V~50Vdc
• Emergency Power:20W
• Recharge Time:24Hrs
• Discharge Time: 1.5H
• Warranty:5 Years
• Battery:Li-ion
• Ambient Temp:32~122
• Weight:1.54 lbs(0.7kg) max.
• Surge Protection:Live-Neutral 3KV
14.4V/2600mAh(4S1 P)
°
°
F(0~S0
C)
Battery
