Medisana MP 815 Manual

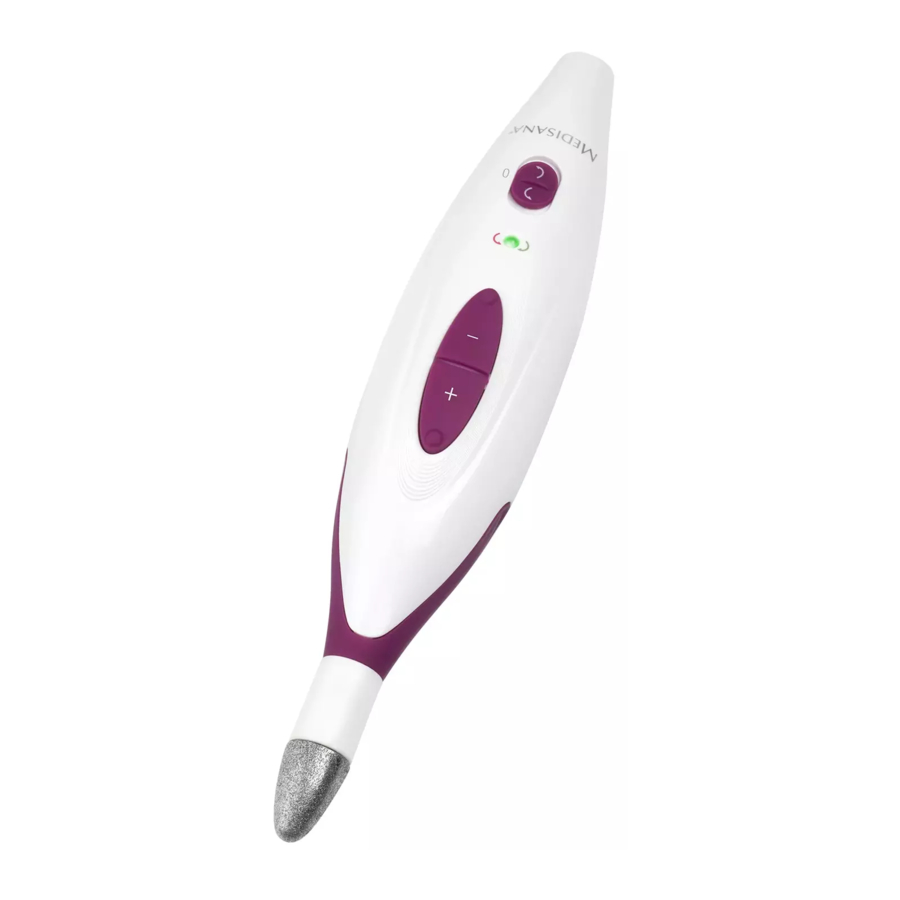

Device and controls

1. ON/OFF switch (clockwise / counter-clockwise rotation)
2. Function indicator
3. "-" button for rotation speed
4. "+" button for rotation speed
5. Holder for attachments

6...12. Attachments (in sequence of the illustration: sapphire cone, felt w cone, sapphire disc (rough) sapphire disc (fine), cylindrical burr, flame burr, callus remover)

Useful Information

Important recommendations concerning your health:

• Consult your doctor first before using this unit if you have diabetes or other related illnesses.
• Pregnant women should note the important precautionary measures and the amount of stress they can take, consult your doctor first if necessary.
• Do not treat any parts of the body that have swellings, burns, inflammation, peeling skin, wounds or other sensitive points.
• The treatment should be pleasant. Stop at once and consult your doctor if you feel pain or the treatment seems unpleasant.

Thank you very much
Thank you for your confidence in us and congratulations!
You have acquired a quality product with your purchase of the MP 815 manicure/pedicure unit from MEDISANA.
To ensure that your MEDISANA MP 815 provides successful results for a long time, we recommend that you read carefully through the following notes on its use and care.

Scope of delivery and packaging

Please check first of all that the device is complete and is not damaged in any way. In case of doubt, do not use the appliance and contact your supplier or your service centre.
The following parts are included:

• 1 MEDISANA manicure/pedicure unit MP 815
• 7 accessory heads (see chapter "Pedicure and Manicure")
• 1 mains adapter
• 1 storage bag
• 1 instruction manual

Please ensure that the polythene packing is kept away from the reach of children! Risk of suffocation!

Special points concerning the device

• The MEDISANA MP 815 manicure/pedicure unit is easy to use and perfect for caring for your hands, feet and nails. It is particularly suitable for treating ingrown, thickened and very tough nails and also for treating calluses, rough skin and corns. It is also suitable for the cosmetic care of hands, nails and synthetic nails.
• The sapphire heads have an extremely long life and virtually never wear out.
• Do not soften the skin on hands and feet prior to treatment.

FAQ

Why are there so many attachments

Each head is designed to solve a particular problem for the hands and feet and therefore especially effective and safe in use.

Can several people use one device?

Yes. But in any case it is best that each person has its own set of the accessory heads to prevent the transmission of skin diseases.

Operating

Functions

Risk of injury! Excessively long or intensive treatment can injure deeper layers of skin.

ON/OFF switch
To turn on the device, move the switch in one of the two possible directions. Turn the switch downwards (clockwise rotation, function indicator lights up in green) or turn the switch upwards (counter-clockwise rotation, function indicator lights up in red) with clockwise rotation. To turn off the device, move the switch in middle position (O).

+ / - buttons
The MP 815 features two different rotation speed levels (level 1 and level 2). After switching on the device, the rotation starts with lower speed (level 1). Press on button to increase the rotation speed. Press to decrease the rotation speed (level 1) - Start each application with low rotation speed and increase the rotating speed to suit your individual requirements.

Changing the attachments
The device is equipped with a hexagonal holder for the attachments. Switch the unit off. To change the attachments, first pull off the part that is not required. Place the new attachment in the holder and turn slightly until it clicks into position.

Pedicure and Manicure

The purpose of application for the attachments (in sequence of the illustration):
Sapphire cone : To remove dry hard skin.
Felt cone : To smooth the edges of the nail and to polish the nail surface.
Sapphire disk, rough , fine : For shortening nails by filing in the growth direction. Hold the unit firmly, run the nail along the disk. Only file in one direction!
Cylindrical burr : To remove hardened nail surfaces.
Flame burr : To carefully remove in-growing nails.
Callus remover : For large-scale and rapid removal of thick hardened skin or calluses on the sole or heel of your foot.

Creaming afterwards and regular care with the MEDISANA MP 815 contributes to well-cared for hands and feet with soft skin and firm nails with a stable structure.

Miscellaneous

Cleaning and maintenance

• Always pull the mains adapter out of the socket in the case of an electrical unit.
• Never use strong cleaning agents or stiff brushes.
• Clean the unit with a soft cloth which has been lightly moistened with a mild soap. Never dip the unit into water for cleaning and ensure that no water gets into the unit at any time. Only use the unit again, when it is fully dry.
• For hygiene reasons, all attachments may be cleaned with a brush (e.g. old toothbrush). It is also advisable to disinfect the grinding surfaces with commercially available spray disinfectant or 90% alcohol to prevent the transmission of infections. The pins of the attachments should be kept free from grease. First allow the heads to dry off completely before you use them again on the unit.
• Store the device in a dry, cool place.
• Fold up the power cable carefully to avoid cable breaks.

Technical specifications

Name and model:	MEDISANA manicure and pedicure device MP 815
Power supply:	Operation with mains adapter Type: ZD8H300025EU Input: 100- 240 V~ 50/60 Hz 0.3A Output: 30,0 V 2.5A
Power consumption:	max. 12 W
Rotation speed:	approx. 3,800 rpm (level 1); approx. 4,600 rpm (level 2);
Dimensions (Hand-held unit):	approx. 15 x 3,8 x 3,7 cm
Weight (Hand-held unit):	approx. 942 g
Article No.:	85153
EAN number:	40 15588 85153 7

Safety Information

RETAIN FOR FUTURE USE!
Read the instruction manual carefully before using this device, especially the safety instructions, and keep the instruction manual for future use. Should you give this device to another person, it is vital that you also pass on these instructions for use.

Explanation of symbols
	WARNING These warning notes must be observed to prevent any injury to the user.
	CAUTION These notes must be observed to prevent any damage to the device.
	NOTE These notes give you useful additional information on the installation and operation.
	Protection category II		Protection category III
LOT	LOT number		Only use the unit in enclosed spaces!
	Manufacturer

• Before connecting the device to your power supply, please ensure that the supply voltage stated on the rating plate is compatible with your mains supply.
• Only use this unit according to the intended purpose and as directed in the instruction manual.
• The device is not intended for commercial use.
• Do not use any auxiliary parts that have not been recommended by the manufacturer.
• Avoid contact with pointed or sharp objects. The warranty is null and void if it is not used for the intended purpose.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children must be supervised to ensure that they do not play with the device.
•
  Do not attempt to repair the unit yourself in the event of any defects. Not only does this render the warranty null and void but you can also run the risk of serious hazards (fire, electric shock, injury). Only have repairs carried out by authorised service points.
• Cleaning and user maintenance must not be performed by children unless supervised.
• Only connect the mains adapter when the unit is switched off.
• Do not reach for the unit if it has fallen into water. Disconnect the mains adapter from the mains socket immediately.
• Keep the mains cable away from hot surfaces and naked flames.
• Never use the unit in rooms in which aerosols (sprays) are being used or where pure oxygen is being administered.
• Never use the unit if the power cable has been damaged, the mains adapter is defective, if the unit does not work perfectly, if it has fallen into water or has been damaged.
• Never carry, pull or rotate the unit by the mains cable and never pinch the cable between other objects.
• Do not allow the unit to become overheated due to excessively long use.
• Uninterrupted treatment should not last longer than 15 minutes. Then switch off the unit for at least half an hour and allow it to cool down.
• Only pull the plug out of the socket when you have dry hands, when the unit has been switched off and is not being used any longer, and also do this when you have to replace or clean the heads.
• Do not use any electrical equipment while in the bath or shower. Do not store or keep any electrical equipment in places where it could fall into the bathtub or washbasin.

• The mains cable of the device need to be laid in a way, that the risk of stumbling or strangulation is completely excluded.

Warranty

MEDISANA AG
Jagenbergstraße 19
41468 NEUSS
Germany
E-Mail: info@medisana.de
Internet: www.medisana.de

The service centre address is shown on the attached leaflet.
