Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Left Side Facing (LSF) Backrest
Middle Backrest
C
Right Side Facing (RSF) Backrest
D
Left Side Facing (LSF) Wing
E
F
Right Side Facing (RSF) Wing
G
Power Cable 29V
H
Small Round End Power Cable 9V
ASSEMBLY INSTRUCTIONS

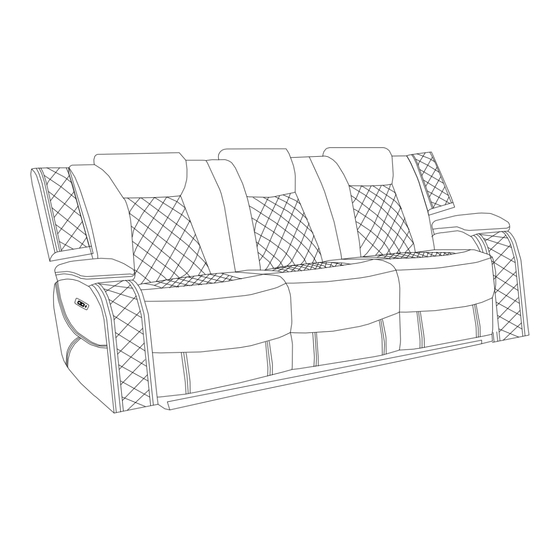

ORION II COLLECTION
ITEM# : U1769V-30P2
DESCRIPTION : ORION II SOFA W/ PWR FR & HR
PARTS LIST
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Page 1 of 4
SKETCH
QTY
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
49901872
Advertisement
Related Manuals for New Classic Furniture ORION II U1769V-30P2
Summary of Contents for New Classic Furniture ORION II U1769V-30P2
- Page 1 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30P2 DESCRIPTION : ORION II SOFA W/ PWR FR & HR Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30P2 DESCRIPTION : ORION II SOFA W/ PWR FR & HR Step 1: Insert the backrest (B/C/D) to the seat (A) and make sure the backrests are secured in position. Step 2: Insert the LSF wing(E) to the LSF backrest(B) and insert the RSF wing(F) to the RSF backrest(D).
- Page 3 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30P2 DESCRIPTION : ORION II SOFA W/ PWR FR & HR Step 3 Connect the cable on the backrests (B & D) to the cables on the seat (A). Step 4: Locate the two round electric cables which is fasted to the metal frame near the back center of the seat (A).
- Page 4 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30P2 DESCRIPTION : ORION II SOFA W/ PWR FR & HR Step 5 Locate the power socket on the back to the side of the seat(A). Connect the Power Cable 29V (G) into the power socket. Step 6: Connect the power and open/close the footrest and headrest by pressing the buttons.
