Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Left Side Facing (LSF) Backrest
Mid backrest
C
Right Side Facing (RSF) Backrest
D
Left Side Facing (LSF) Wing
E
F
Right Side Facing (RSF) Wing
G
Power Cable 12V
H
Small Round End Power Cable 9V
ASSEMBLY INSTRUCTIONS
ORION II COLLECTION
ITEM# : U1769V-30

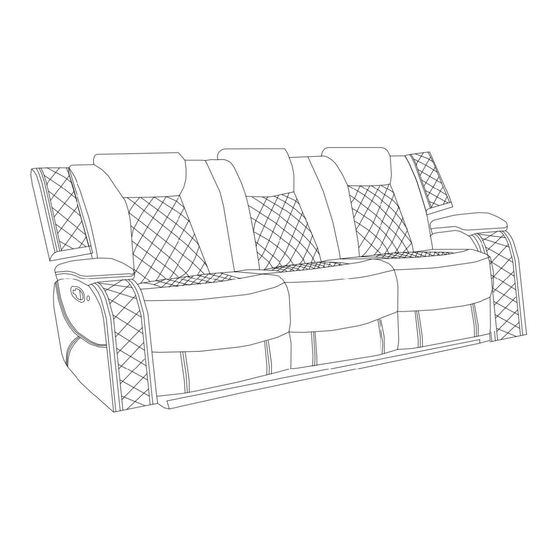

DESCRIPTION : ORION II SOFA W/DUAL RECLINER
PARTS LIST
DESCRIPTION
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.
Page 1 of 4
SKETCH
QTY
1PC
1PC
1PC
1PC
1PC
1PC
1PC
1PC
49901876
Advertisement
Related Manuals for New Classic Furniture ORION II U1769V-30
Summary of Contents for New Classic Furniture ORION II U1769V-30
- Page 1 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30 DESCRIPTION : ORION II SOFA W/DUAL RECLINER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30 DESCRIPTION : ORION II SOFA W/DUAL RECLINER Step 1: Insert the backrest (B/C/D) to the seat (A) and make sure the backrests are secured in position. Step 2: Insert the LSF wing(E) to the LSF backrest(B) and insert the RSF wing(F) to the RSF backrest(D).
- Page 3 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30 DESCRIPTION : ORION II SOFA W/DUAL RECLINER Step 3 Locate the two round electric cables which is fasted to the metal frame near the back center of the seat (A). Connect the larger round electric motor cables then connect Small Round End Power Cable 9V (H) to the other electric cable with the smaller round end on seat (A).
- Page 4 ASSEMBLY INSTRUCTIONS ORION II COLLECTION ITEM# : U1769V-30 DESCRIPTION : ORION II SOFA W/DUAL RECLINER Step 5: Open the footrest by pulling the handle. All images shown are for illustration purpose only. Actual product may vary due to product enhancement. 49901876 Page 4 of 4...
