Sony WM-GX612 Service Manual
Sony WM-GX612 Service Manual

Sony WM-GX612 Service Manual

Radio cassette coder

Advertisement

Quick Links

WM-GX612/GX614
SERVICE MANUAL
Ver 1.1 2002. 01
Sony Corporation
9-960-414-12
2002A1600-1
Personal Audio Company
© 2002.1
Published by Sony Engineering Corporation
Photo : WM-GX614
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
SPECIFICATIONS
RADIO CASSETTE CODER
— 1 —
AEP Model
UK Model
E Model
Australian Model
NEW
MF-WMGX614-112

Advertisement

loading
Need help?

Need help?

Do you have a question about the WM-GX612 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sony WM-GX612

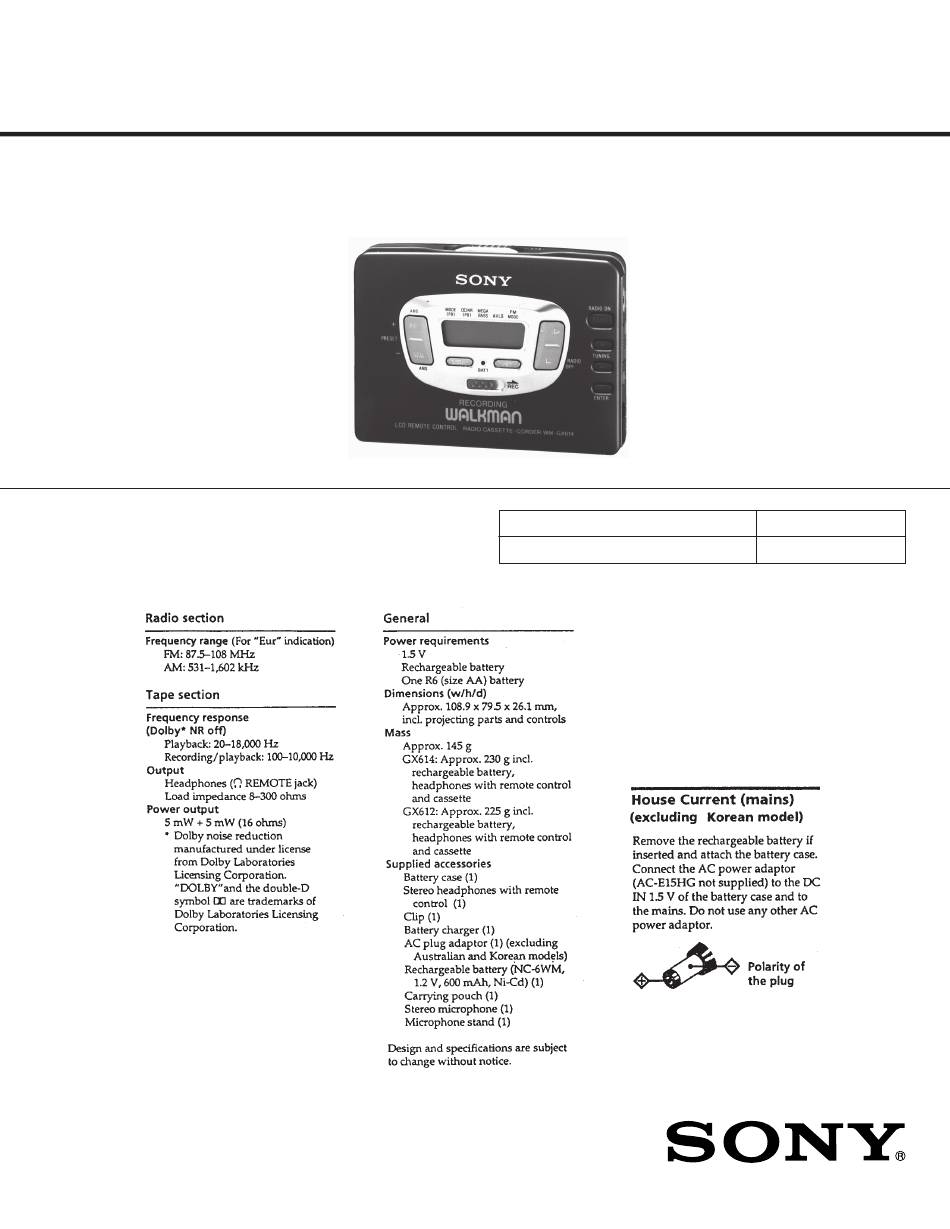

  • Page 1 Ver 1.1 2002. 01 E Model Australian Model Photo : WM-GX614 Model Name Using Similar Mechanism Tape Transport Mechanism Type MF-WMGX614-112 SPECIFICATIONS RADIO CASSETTE CODER Sony Corporation 9-960-414-12 2002A1600-1 Personal Audio Company © 2002.1 Published by Sony Engineering Corporation — 1 —...
