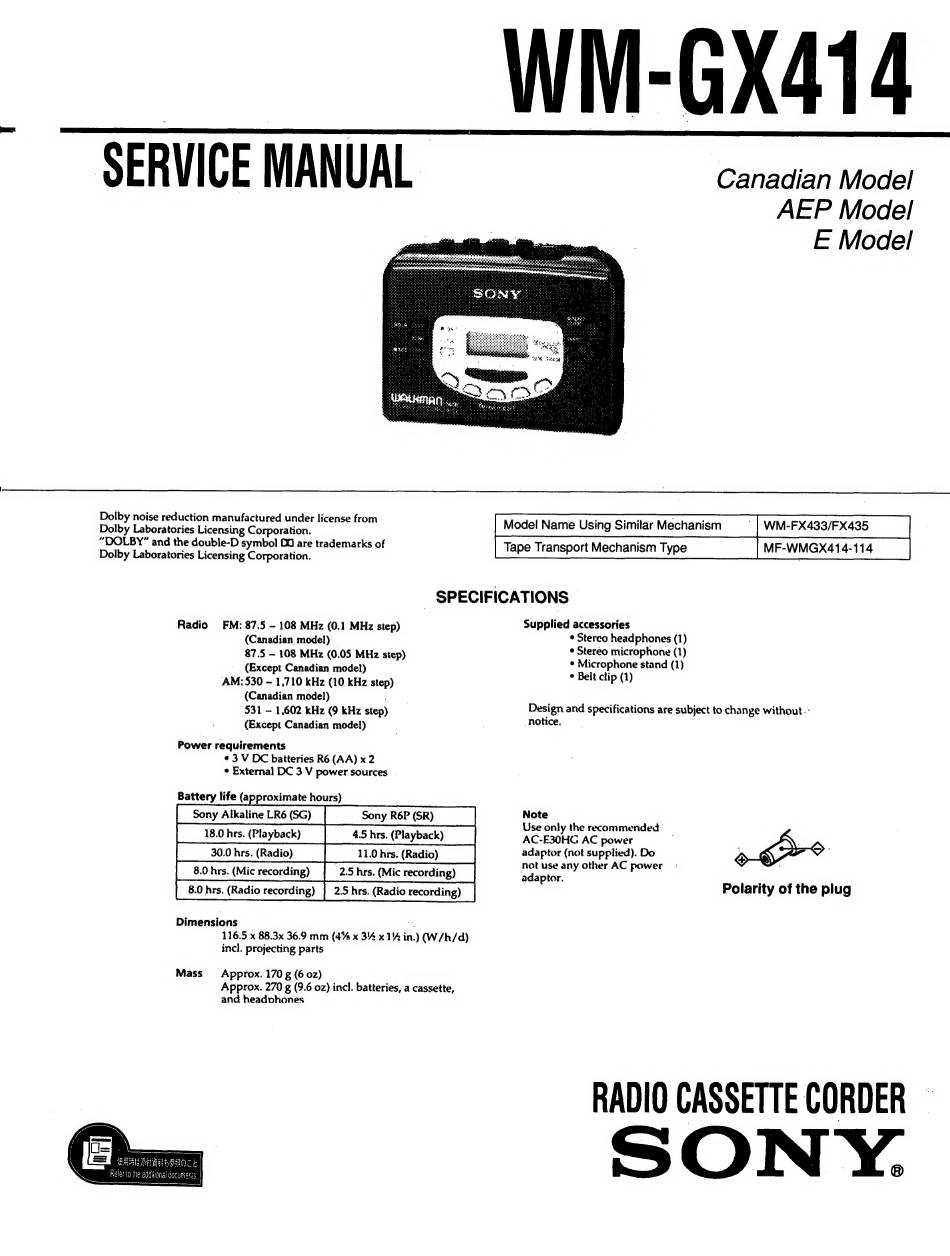

Sony WM-GX414 Service Manual

WM-GX414
SERVICE MANUAL Canadian Model
AEP Model
E Model
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY" and the double-D symbol 00 are trademarks of
Dolby Laboratories Licensing Corporation.
Model Name Using Similar Mechanism | WM-FX433/FX435
Tape Transport Mechanism Type MF-WMGX414-114
SPECIFICATIONS
Radio FM: 87.5 ~ 108 MHz (0.1 MHz step) Supplied accessories
(Canadian model) — ° Sterco headphones (1)
87.5 — 108 MHz (0.05 MHz step) * Stereo microphone (1)
(Except Canadian model) id ord abr stand (1)
AM: 530 ~ 1,710 kHz (10 kHz step) t clip (1)
(Canadian model) :
531 — 1,602 kHz (9 kHz step)
Design and specifications are subject to change without --
notice.
(Except Canadian model)
Power requirements
«3 V DC batteries R6 (AA) x 2
* External DC 3 V power sources .
Battery life (approximate hours)
Polarity of the plug
8.0 hrs. (Radio recording) | 2.5 hrs. (Radio recording)
Dimensions os
116.5 x 88.3x 36.9 mm (4% x 3% x14 in.) (W/h/d)
incl. projecting parts
Mass Approx. 170 g (6 oz)
Approx. 270 g (9.6 oz) incl. batteries, a cassette,
and headvhones
RADIO CASSETTE CORDER ©
SONY.
