Summary of Contents for SANJIANG ECP1000
- Page 2 Version:V1.3 CONTENTS 1. About This Manual ........................... 1 2. Introduction ............................. 1 2.1. Overview ............................1 2.2. Technical Specifications ......................1 2.3. Standards ............................2 3. Installation and Connections ......................3 3.1. Panel’s interior ........................3 3.2. Internal wiring ........................... 5 3.3. Mounting the chassis to the wall ..................6 3.4.
- Page 3 Version:V1.3 4.14. Modify the control mode .......................19 4.15. DISABLE ............................19 4.15.1. ZONE1/2 DISABLE ......................19 4.15.2. S.C.OUT DISABLE ......................20 4.15.3. FAULT_OUT DISABLE .......................20 4.15.4. Extinguishant DISABLE .....................20 4.15.5. Manual Release DISABLE .....................20 4.15.6. Stage_1 DISABLE ......................20 4.15.7. Stage_2 DISABLE ......................20 5.

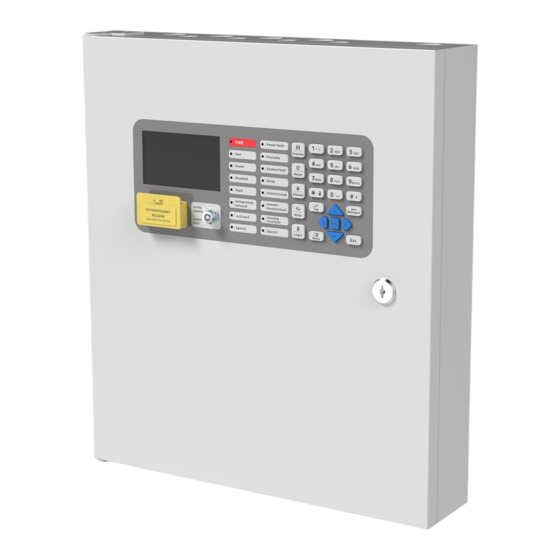

- Page 4 2.1. Overview The ECP1000 control panel is designed in accordance with European standards EN54-2 and EN54-4 Fire Detection and Fire Alarm systems - Control and Indicating Equipment and EN12094-1 Fixed firefighting systems - Components for gas extinguishing systems - Part 1: Requirements and test methods for electrical automatic control and delay devices.
- Page 5 Temperature range: -10°C~ 55°C, Class A; Max relative humidity: 95% (40°C ± 2° C, no condensation) 2.3. Standards ECP1000 Gas Extinguishing Control Panel and power supply equipment conform to the essential requirements of the Construction Products Directive 305/2011/EU: Page 2 of 25...
- Page 6 ECP1000 Gas Extinguishing Control Panel 0370-CPR-6895 EN54-2:1997 +A1:2006 Control and indicating equipment for fire detection and fire alarm systems for buildings Provided options: - Outputs to Fire Alarm Devices - Delays to outputs - Fault signals from points - Disablement of each address point...
- Page 7 ⑪ Temperature sensor ⑫ ECP1000_HL/ECP1000_HL_EPC（Loop Card） ⑬ SEC1000_COM board（Communication Board） In general, the ECP1000 consists of 2 sections: 1. The left internal section contains the ECP1000_A Board 、 ECP1000_B Board and ECP1000_KEY Board，which integrated main processor, Buttons and LEDs，the I/O communication interface of B-Board.
- Page 8 ECP1000 Gas Extinguishing Control Panel It generally contains terminals or interfaces for connecting the P.S.E, the loop devices, The diagram below shows the connection terminal blocks for field devices on the DZ-Board. ZONE 1 1ST STAGE FAULT_OUT 1 NO COM NC...
- Page 9 ECP1000 Gas Extinguishing Control Panel 3.3. Mounting the chassis to the wall The panel can be surface or semi-flush mounted through the three mounting holes provided. See the diagram below about the mounting dimensions and recommended screw size. (Unit: mm)
- Page 10 ECP1000 Gas Extinguishing Control Panel Spring washer Φ Wall mounting hole Flat washer Φ diameter: Wall Tighten the screw Expansion screws: 8×60mm Φ M5×50mm 3.4. Mains connection To connect the panel to the main power source, use a three-core cable with good quality cable glands fitted, and connect it to the P.S.E as the Fig.
- Page 11 ECP1000 Gas Extinguishing Control Panel 3.6. Connection to Detection zone ZONE1/2: The detection zone interface outputs a 24 V DC power supply to power a conventional detector or a manual alarm button. A 4.7K termination resistor (supplied) needs to be connected at the end of the circuit to monitor its line for open or short faults.
- Page 12 ECP1000 Gas Extinguishing Control Panel Abbreviation for acousto-optic output, which outputs a 24V DC power supply to drive conventional acousto-optic equipment in the event of a fire. A 10K termination resistor (supplied) needs to be connected at the end of the circuit to monitor its line for open or short faults.
- Page 13 ECP1000 Gas Extinguishing Control Panel 3.10. Wiring to monitored inputs The monitoring inputs (HOLD, PROG. IN, Pressure Feedback, FAULT_IN) require a 10 K termination resistor (supplied) to be connected at the end of the circuit to monitor its wiring for open or short faults. A trigger resistor with a typical value of 10 K is also required.
- Page 14 ECP1000 Gas Extinguishing Control Panel from the "24VK" on the ECP1000_DZ board to supply power to the remote status unit, and the second is to use an external power supply. Page 11 of 25...
- Page 15 If you have purchased the SEC1000_COM networking board, you can use it for CAN networking with other ECP1000 panel. When networking multiple ECP1000 panels, please pay attention to the setting of the 120 ohm jumper cap (J2) on the SEC1000_COM board, and we recommend that the first and the last device on the CAN bus be selected to set the 120 ohm to "ON".
- Page 16 ECP1000 Gas Extinguishing Control Panel Port name Functional description Characteristic 1) Volt free changeover contact; 1ST STAGE The first stage alarm output 2) Contact Rating：1A@30VDC； The second stage alarm 1) Volt free changeover contact; 2ND STAGE output 2) Contact Rating：1A@30VDC；...
- Page 17 ECP1000 Gas Extinguishing Control Panel However, the 1ST STAGE relay will only retain the initial output state. 4.4. Compound fire alarm bleed After receiving a fire alarm reported by any detector, if the equipment type of the fire alarm reported by the detector meets two of the automatic extinguishing activation conditions (which can be conFig.d in Activated conditon in the gas extinguishing...
- Page 18 ECP1000 Gas Extinguishing Control Panel Extinguishant Released button are operated, The panel will respond in this order. What is different from the above response is the pre-charge delay time, which needs to be modified at level 3 by the Manual Delay in the gas extinguishment configuration.
- Page 19 ECP1000 Gas Extinguishing Control Panel (ZONE1/2), the output of relay related to fire alarm (F. A. OUT1/2, S. C. OUT), fire alarm lamp, etc. Are reset. There will be no prompt box on the screen interface. 4.9. FAULT If the system detects a fault event, the corresponding fault message will be displayed at...
- Page 20 ECP1000 Gas Extinguishing Control Panel 5.8, the System Fault light on the front panel will also be on, the buzzer will output continuously, and the terminal board will enter the safety mode. If the system fault is not caused by the main control board, the UI interface will display the system fault event which is different from the normal fault event.
- Page 21 ECP1000 Gas Extinguishing Control Panel is pressed. 4.10.2. 24V buzzer The sound of the 24V buzzer is used to indicate the alarm. The sound frequencies of the 24V buzzer on the panel and the buzzer on the remote status panel are mainly divided into the following types: ...
- Page 22 ECP1000 Gas Extinguishing Control Panel 4.13. PROG.IN (Programmable input) The custom types of PROG.IN terminals are as follows: Mode selection: connected to the remote manual automatic switch, it is AUTO MANUAL state when there is no input, and MANUAL ONLY mode when there is input. This manual and automatic switch state is one of the factors affecting the manual and automatic state results of the gas extinguishment zone.
- Page 23 ECP1000 Gas Extinguishing Control Panel Note: If the existing fire alarm is shielded, the fire alarm message on the interface will not be eliminated and will take effect only after reset; if the shielding is cancelled, the status of ZONE1/2 will be detected again and reported. (The same applies to faults) 4.15.2.
- Page 24 ECP1000 Gas Extinguishing Control Panel To determine the capacity of batteries required in a system, the following formula is used: Battery capacity (Ah) = 1.25 x ( T x ( I ) + T x ( I Rout In which, The multiplier 1.25 is present to account for loss of capacity over the life of the battery.
- Page 25 ECP1000 Gas Extinguishing Control Panel CB-Board and the MB-Board; Check if the POWER indicator on the front panel is on, otherwise something is wrong with the P.S.E that the manufacturer should be informed. Problem：both mains fault and battery fault are reported.
- Page 26 ECP1000 Gas Extinguishing Control Panel Page 23 of 25...
- Page 27 ECP1000 Gas Extinguishing Control Panel Page 24 of 25...
- Page 28 ECP1000 Gas Extinguishing Control Panel Annex - Device type list Device Abbr. Ionization Detector IonDet Optical Detector OptDet Heat Detector HeatDet Infrared Beam Detector IRDet Combination detector (smoke and heat detector) CombDet Combustible Gas Detector GasDet Manual Control Button Manual Call Point...
