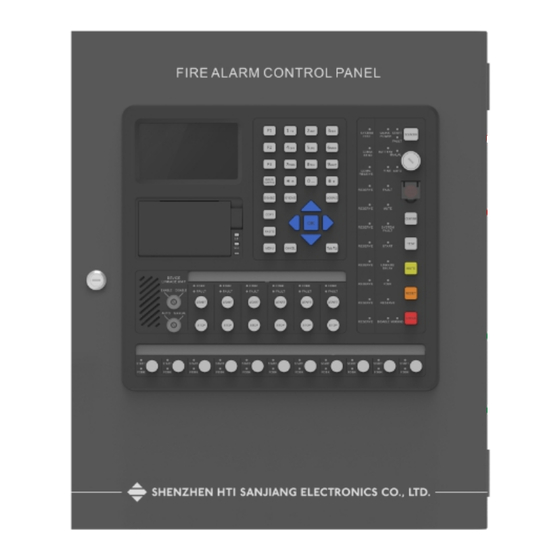

- Page 2 2 Product size 3 Product introduction JB-QBL-A104E type fire alarm control linkage panel is a new generation of fire alarm controller launched by Shenzhen HTI Sanjiang Electronics Co., Ltd. This product is widely used in high-end office buildings, residential areas, department stores, stadiums, exhibition rooms, libraries, factories, supermarkets, hotels and other small and medium-sized fire projects.
- Page 3 Version：V1.0 5 Wiring contact introduction Terminal name Function description 24V power output 24VK Controllable power supply DC24V output terminal Fire OUT: COM, COM-NC normally closed output terminal ， COM-NO normal open output NO，NC terminal Fault OUT: The fault output terminal is short circuit between COM-NO when the fault COM , NO is reported 485 A/B...
