Plug the DC power cable into the system.
3
Figure 1-2 and Table 1-1 indicate the DC input power cable connector's pin
orientation and descriptions.
See your Rack Installation Guide for information on routing cables.

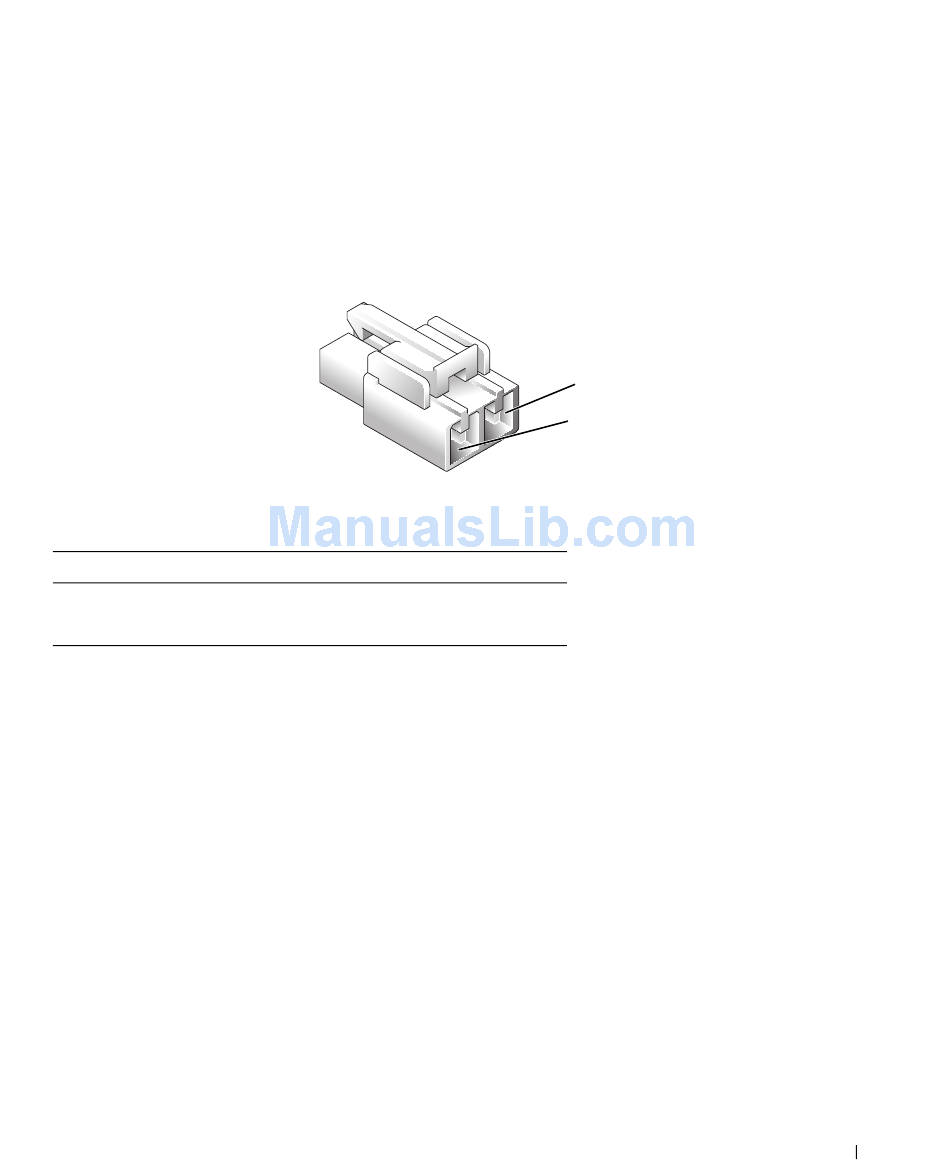

F i g u r e 1 - 2 .
D C I n p u t P o w e r C a b l e C o n n e c t o r ' s P i n O r i e n t a t i o n
Ta b l e 1 - 1 .
C o n n e c t o r H o u s i n g P i n A s s i g n m e n t s
Pin
Description
1
–48 VDC
2
–48 VDC return
Wire Color and Size
Black 14 AWG
Red 14 AWG
Cabling Instr u ctions for the –48 VDC
2
1
1-3
