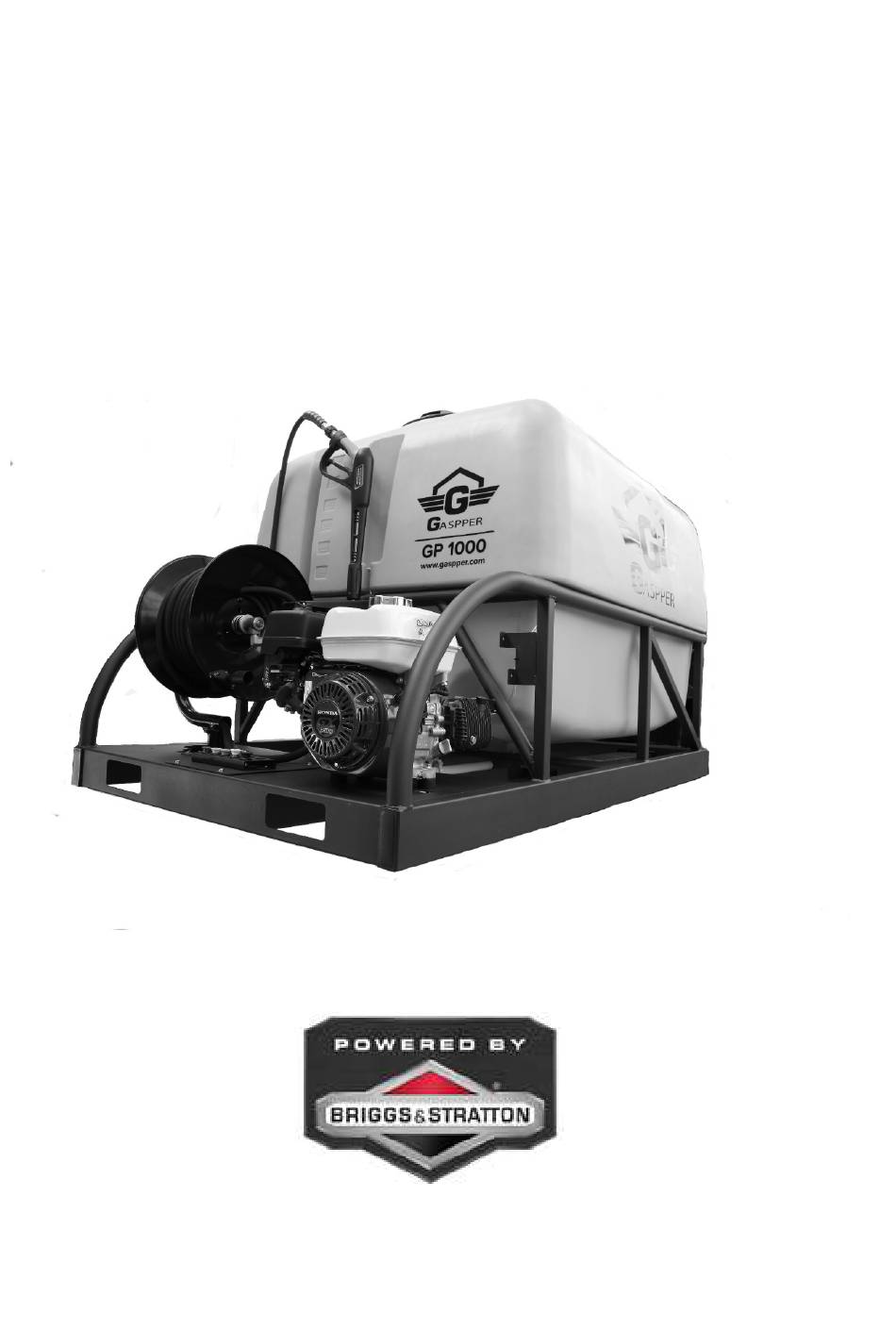

- Page 1 Operation manual GF1000 GE1013BD Motor-driven Original Manual of Use *The picture of the device is illustrative and it doesn`t have to comply with the actual view of the device...
- Page 2 CONTENTS Product use in compliance with its determination pg. 1 Environment protection ... . ……………..pg. 1 Safety ......…………….. pg. 1 Scope of the supply .
- Page 3 Levels of danger DANGER - Warning before imminent danger, which may cause serious injuries or death. WARNING - Warning before a possible dangerous situation, which could result in minor injuries. WARNING - Warning before a possible dangerous situation, which could result in material injuries. Safety elements WARNING - Safety elements serve for the user protection against injuries and they mustn`t be altered or withdrawn from their operation...
- Page 4 Entry into service Supply with water WARNING Do not start up the pump without water in the tank. The minimal amount is around 50L. The pump switches off in case of lower water level. The water in the tank has to be clean, without solid particles or mud. Polluted water damages internal components of the high-pressure pump and clogs the water filter prematurely and sucking of water from the tank becomes more difficult.
- Page 5 Turn the engine switch ON (I). fuel to the position Move the gear control lever the position Move the choke control lever CHOKE. to the position Hold the pump handle firmly by one hand and jump start leads handle by another hand. Pull jump start leads until you feel the engine resistance.
- Page 6 During operation, in certain cases, the protective covers made of tin can be released because of vibrations. These components need to be tightened because an action of long-term vibrations on the released cover causes the damage of fixing holes. In case the protective cover of the exhaust, air filter or cooling fan is damaged, these parts have to be replaced by the original spare parts because only in this case the maximum operation safety can be ensured.
- Page 7 Pour the right amount and type of the engine oil into the engine. The oil specification is laid down below. - The accurate amount of the filler is written in the Technical specification. - Place the pump on the horizontal surface. Pour around ¾...
- Page 8 Safety elements There is a water filter in the water entry to the pump. This filter needs to be checked and cleaned regularly. Deposited impurities cause decreased flow and increased vacuum during suction of the pump. It causes deactivation of the engine safety system and the engine switches off. Change the damaged filter or its rivet for a new one immediately.
- Page 9 Pump preparation for the operation The pump is filled up with the industrial oil. Because of the oil temperature change and thermal expansion during the operation, there is an AIR VALVE (pic. D). The operation of the pump with the low oil level or without oil causes the permanent damage on the pump and ceases the guarantee.
- Page 10 Usage of self-priming function of detergent The pump has self-priming function by use of vacuum from the pot. The black nozzle, determined for the purpose of detergent usage, is needed to start this function. The pump starts to suck the detergent itself through the opening marked by the arrow (pic. F).
- Page 11 Take away the hose of the pipe directed downwards ( pic. J) and decline the hose to enable outflow of all water from the pump. Leave the hose disconnected until the outflow process of water is finished. Disconnect the high-pressure hose in the outlet (pic. K). Then hold the jump 10 times start leads handle and pull the lead for like when starting the...
- Page 12 The engine switches off if: There is not enough oil in the engine - there is not enough water in tank - water sucking gets more difficult because of the choked water filter - the temperature of water or valve pump head more than 45°C.
- Page 13 Pump does not take the 1. Wrong nozzle is used 1.Change the high-pressure nozzle for the detergent 2.Insufficient amount of the detergent in the low-pressure (black) one storage tank 2.Check the amount of the detergent 3. Clean The tube or sieve is choked the hose with the stream of water, change the suction tube The engine runs well without...
- Page 14 Technical data Device type GE1013BD GF1000 Engine type Briggs and Stratton ---- XR2100 420cm3/ 10kw Maximal speed 3600 rpm ---- Engine type Four-stroke OHV ---- Torque 28,6 Nm/ 2600 rpm ---- L15YC Sparking plug ---- Brisk: 0,7-0,8mm Champion: N7YC NGK: BP6ES...
- Page 15 Guaranteed measured noise level GE1013BD xx0001001-xx9999999 5568/3/2019-04 xx0001001-xx9999999 GF1000 1802/3/2019-01 Protokol o skúške zo dňa TECHNICKÁ INŠPEKCIA a.s., pracovisko KOŠICE, as an accredited inspection body in Certificate issued by: accordance with EN ISO / IEC 17020 Applicable EU Directives: 2006/42/ES (+2009/127/ES)
- Page 16 Warranty Certificate Stamp and signature: Product type: Serial number: Date of purchase: In pursuit of service enhancement and simplification of communication with customers, the company Waspper s.r.o. recommends its customers, who purchase this product, to register their product via the manufacturer's website: www.waspper.com. This registration will provide inevitable data for faster processing of your complaints or consulting relevant to purchasing of spare parts and accessories.
