HOMEOWNERS OPERATING MANUAL
The actual appearance should be subject to the purchase model
261046
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

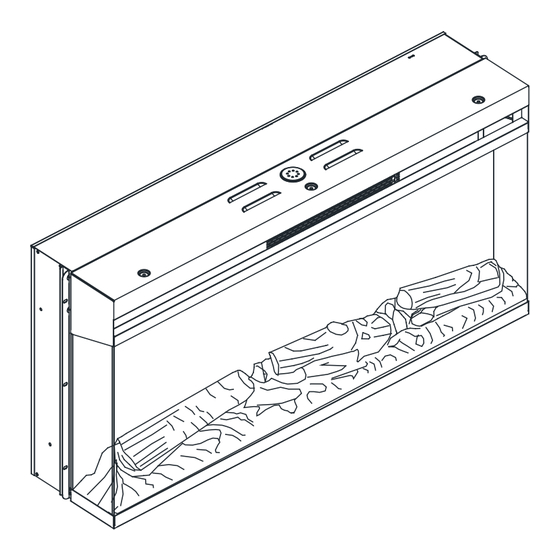

ELECTRIC FIREPLACE
MODELS: 2322-L-D7
2622-L-D7
3622-L-D7
4222-L-D7
IMPORTANT
01
SAFETY INFORMATION.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 2322-L-D7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atra 2322-L-D7

  • Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL The actual appearance should be subject to the purchase model MODELS: 2322-L-D7 2622-L-D7 3622-L-D7 261046 4222-L-D7 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
  • Page 2 IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If pro- vided, use handles when moving this heater.
  • Page 3 PACKAGE CONTENTS Fireplace Remote Control Manual INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Using a Phillips head screwdriver, remove the screws and the metal mounting center opening. Next unpack the electric fireplace appliance carefully.
  • Page 4 GROUNDING INSTRUCTIONS: Figure 2 This heater is for use on 120 volts. The cord has a plug as shown at (A) in figure 2. An adapter as shown at (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending Grounding Pin from the adapter must be connected to a per- Cover of Grounded Outlet Box...
  • Page 5 COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place.
  • Page 6 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
  • Page 7 OPERATING INSTRUCTION Digital Display The control panel is located on the top right corner of the fireplace. To control the fireplace, touch any button to wake up the control panel. The power button will flash, and other buttons will light up. The control panel will turn off...
  • Page 8 TIMER The TIMER has adjustable setting at range from 1 hour to 9 hours and OFF. As shown the following: 1h-2h-3h-4h-5h-6h-7h-8h-9h-OFF. If the digital display turns on and nothing happens within 10 seconds, the digital display will auto shut off. Once you have set the timer, and the timer is up, close all the functions and enter standby mode.
  • Page 9 BATTERIES REPLACEMENT NOTE: ·Do not mix old and new batteries. ·Do not mix alkaine, standard (carbon zinc), or rechargable (nicad, nimh, etc.) batteries. ·Do not ingest batteries. CAUTION: ·Always purchase the correct size and grade of battery most suitable for the intended use. ·Replace all batteries of a set at the same time.
  • Page 10 1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
