HOMEOWNERS OPERATING MANUAL
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

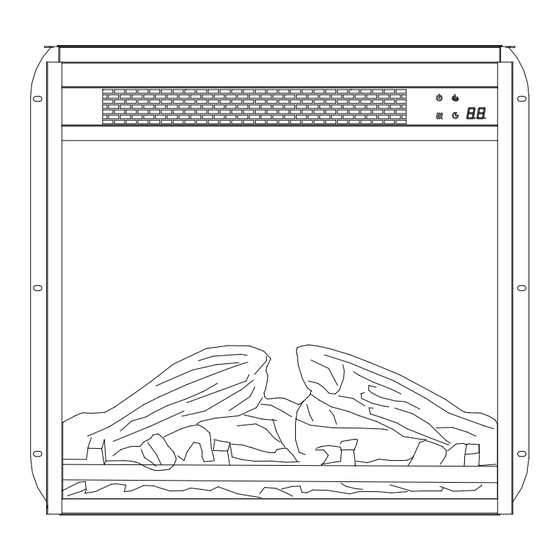

ELECTRIC FIREPLACE
261046
MODEL:
IMPORTANT
01
RV18V80L-MT2
SAFETY INFORMATION.
Advertisement
Related Manuals for Atra RV18V80L-MT2
Summary of Contents for Atra RV18V80L-MT2

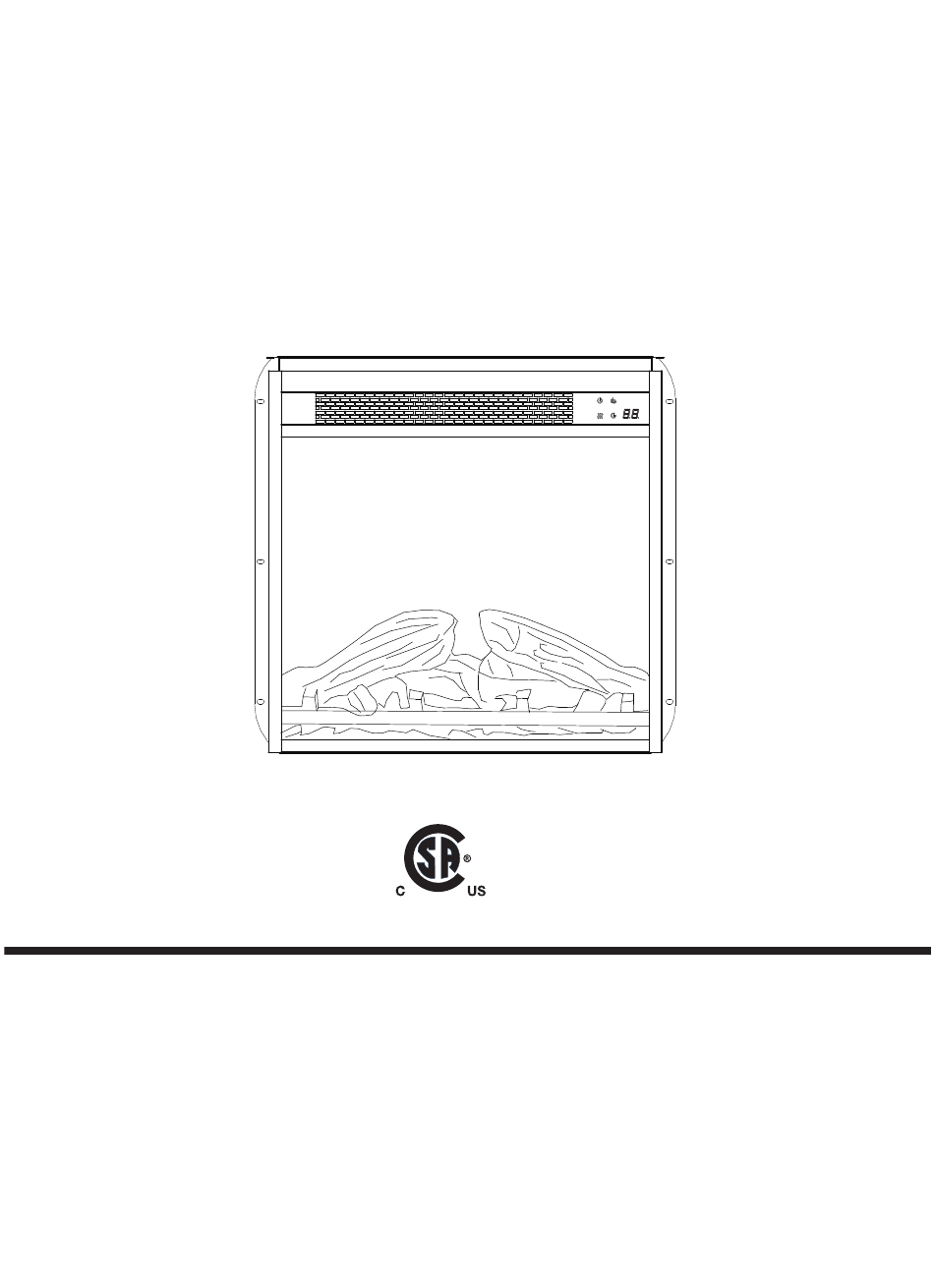

- Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL MODEL: RV18V80L-MT2 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
- Page 2 IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc.
- Page 3 PACKAGE CONTENTS Fireplace Remote Control Manual INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Unpack the electric fireplace appliance carefully. Position the appliance behind the fireplace with front facing the wood mantel.
- Page 4 GROUNDING INSTRUCTIONS: Figure 2 This heater is for use on 120 volts. The cord has a plug as shown at (A) in figure 2. An adapter as shown at (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending Grounding Pin from the adapter must be connected to a per- Cover of Grounded Outlet Box...
- Page 5 COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place.
- Page 6 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
- Page 7 OPERATING INSTRUCTION On the top-right of the electric firebox is the mechanical control panel. This panel contains the buttons to properly operate the electric fireplace. The functions of buttons on the remote control are the same as the control panel. The remote control has an effective range of up to 19 ft.. Digital Display POWER The POWER button turns the appliance on or off.
- Page 8 TIMER The TIMER has adjustable setting at range from 1 hour to 9 hours and OFF. As shown the following: 1h-2h-3h-4h-5h-6h-7h-8h-9h-OFF. If the digital display turns on and nothing hap- pens within 10 seconds, the digital display will auto shut off. Once you have set the timer, and the timer is up, close all the functions and enter standby mode.
- Page 9 BATTERIES REPLACEMENT NOTE: ·Do not mix old and new batteries. ·Do not mix alkaine, standard (carbon zinc), or rechargable (nicad, nimh, etc.) batteries. ·Do not ingest batteries. CAUTION: ·Always purchase the correct size and grade of battery most suitable for the intended use. ·Replace all batteries of a set at the same time.
- Page 10 1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
