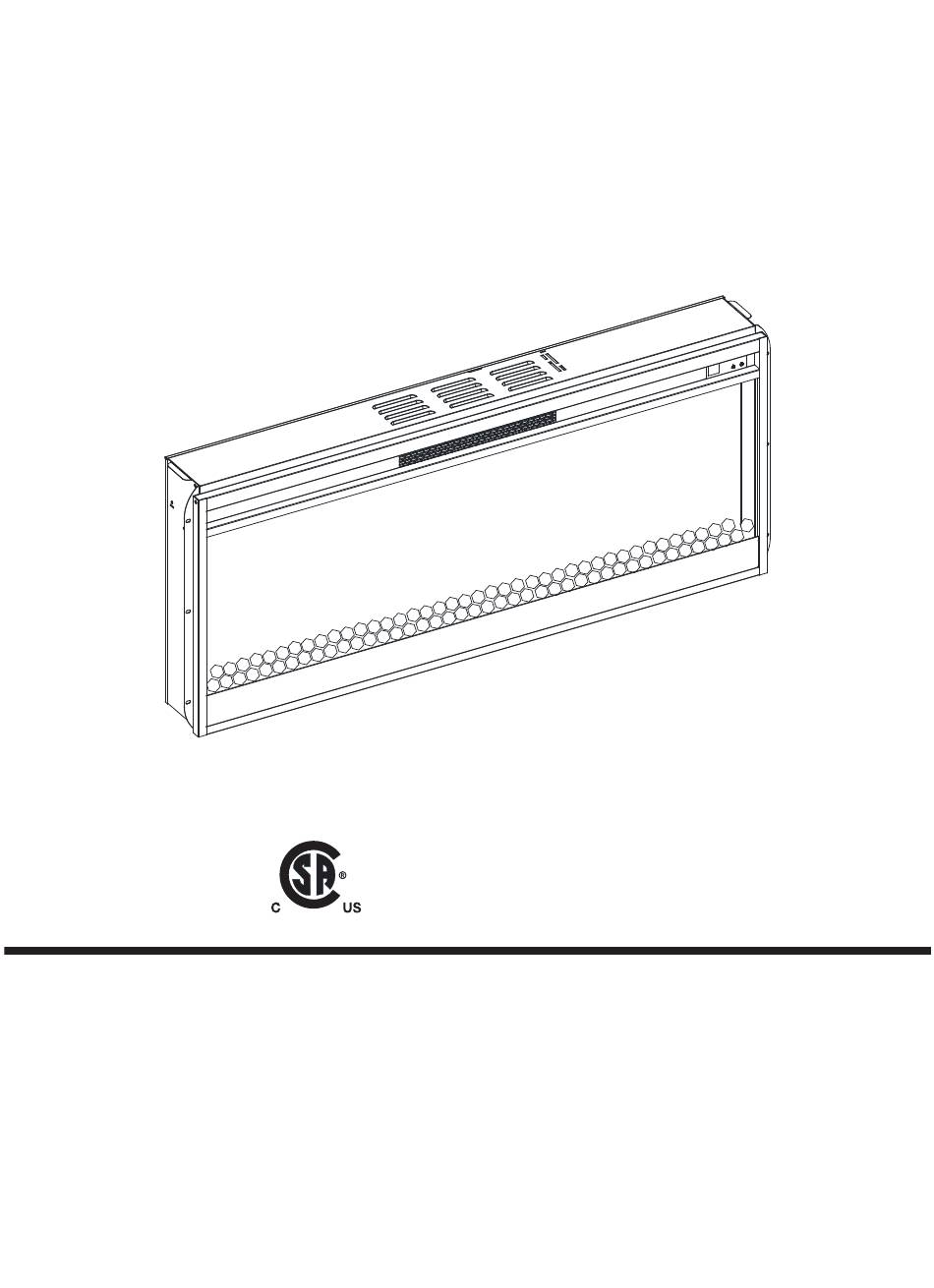

HOMEOWNERS OPERATING MANUAL
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

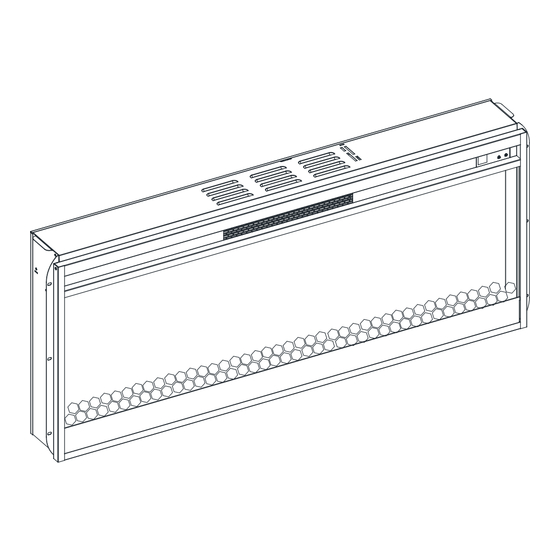

ELECTRIC FIREPLACE
MODELS: RV23V80L-MT8
261046
RV26V80L-MT8
RV30V80L-MT8
RV36V80L-MT8
RV42V80L-MT8
IMPORTANT
0 1
RV23V80S-MT8
RV26V80S-MT8
RV30V80S-MT8
RV36V80S-MT8
RV42V80S-MT8
SAFETY INFORMATION.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atra RV23V80L-MT8
Summary of Contents for Atra RV23V80L-MT8
- Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL MODELS: RV23V80L-MT8 RV23V80S-MT8 RV26V80L-MT8 RV26V80S-MT8 RV30V80L-MT8 RV30V80S-MT8 RV36V80L-MT8 RV36V80S-MT8 RV42V80L-MT8 RV42V80S-MT8 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If pro- vided, use handles when moving this heater. -
Page 3: Package Contents
PACKAGE CONTENTS Fireplace Acrylic crystals Remote Control Manual ELECTRICAL SPECIFICATIONS Voltage: 120VAC 60Hz Watts: 1400 Watts... -
Page 4: Installation Instruction
INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Using a Phillips head screwdriver, remove the screws and the metal mounting center opening. Next unpack the electric fireplace appliance carefully. - Page 5 INSTALLING THE ACRYLIC CRYSTALS 1. Remove the 4 screws on the back left and right sides of the firebox that bold the glass front In place. 2. Carefully remove the glass front. 3. Arrange the acrylic crystals along the inset window ledge at the glass front.
- Page 6 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
- Page 7 COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place.
- Page 8 OPERATING INSTRUCTION On the top-right of the electric firebox is the mechanical control panel. This panel contains the buttons to properly operate the electric fireplace. The buttons on the remote control function in the same way. The remote control has an effective range of up to 6 m. Digital Display NOTE: The remote control is intended only for the functional operation of the product, It can not lock/unlock the heating function！...
- Page 9 TIMER The TIMER has adjustable setting with range from 1 hours to 9 hours and OFF. As shown the following: 1h-2h-3h-4h-5h-6h-7h-8h--9h-OFF. Once you have set the timer, and the timer is up, the ember bed will flash 6 timers and close all the functions and enter standby mode. In this mode, you should touch the power icon to restart the fireplace.
-
Page 10: Batteries Replacement
BATTERIES REPLACEMENT NOTE: ·Do not mix old and new batteries. ·Do not mix alkaine, standard (carbon zinc), or rechargable (nicad, nimh, etc.) batteries. ·Do not ingest batteries. CAUTION: ·Always purchase the correct size and grade of battery most suitable for the intended use. ·Replace all batteries of a set at the same time. -
Page 11: Year Limited Warranty
1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
