HOMEOWNERS OPERATING MANUAL
The actual appearance should be subject to the purchase model
MODELS:
261046
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.

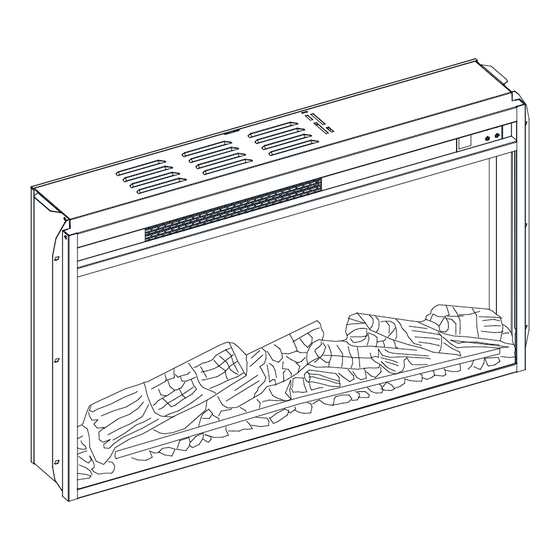

ELECTRIC FIREPLACE
RV23V80S-MT1
RV26V80S-MT1
RV30V80S-MT1
RV33V80S-MT1
RV36V80S-MT1
RV42V80S-MT1
RV23V80L-MT1
RV26V80L-MT1
RV30V80L-MT1
RV33V80L-MT1
RV36V80L-MT1
RV42V80L-MT1
IMPORTANT
1
RV23V80M-MT1
RV26V80M-MT1
RV28V80H-MT1
RV30V80H-MT1
RV33V80H-MT1
SAFETY INFORMATION.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atra RV23V80S-MT1
Summary of Contents for Atra RV23V80S-MT1
- Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL The actual appearance should be subject to the purchase model MODELS: RV23V80S-MT1 RV23V80L-MT1 RV23V80M-MT1 RV26V80S-MT1 RV26V80L-MT1 RV26V80M-MT1 RV30V80S-MT1 RV30V80L-MT1 RV28V80H-MT1 RV33V80S-MT1 RV33V80L-MT1 RV30V80H-MT1 RV36V80S-MT1 RV36V80L-MT1 RV33V80H-MT1 261046 RV42V80S-MT1 RV42V80L-MT1 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, etc. -
Page 3: Package Contents
PACKAGE CONTENTS 2 L-Brackets Fireplace Remote Control 6 Screws Manual INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Unpack the electric fireplace appliance carefully. -
Page 4: Grounding Instructions
If the clearance distance of side panel of insert and mantel less than 3.4inch, fix the insert with furniture by L-Brackets on the back panel. 1. Loosen the zinc plated screw. Align the large hole on the long side of the L-Brack- ets with zinc plated screws on the fire- place. - Page 5 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
-
Page 6: Cleaning Trim
COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place. - Page 7 OPERATING INSTRUCTION On the top-right of the electric firebox is the mechanical control panel. This panel contains the buttons to properly operate the electric fireplace. The functions of buttons on the remote control are the same as the control panel. The remote control has an effective range of up to 19 ft.. Digital Display NOTE: The remote control is intended only for the functional operation of the product, It can not lock/unlock the heating function！...
-
Page 8: Fcc Statement
TIMER The TIMER has adjustable setting at range from 1 hour to 8 hours and OFF. As shown the following: 1h-2h-3h-4h-5h-6h-7h-8h-OFF. If the digital display turns on and nothing happens within 10 seconds, the digital display will auto shut off. Once you have set the timer, and the timer is up, close all the functions and enter standby mode. -
Page 9: Batteries Replacement
BATTERIES REPLACEMENT NOTE: ·Do not mix old and new batteries. ·Do not mix alkaine, standard (carbon zinc), or rechargable (nicad, nimh, etc.) batteries. ·Do not ingest batteries. CAUTION: ·Always purchase the correct size and grade of battery most suitable for the intended use. ·Replace all batteries of a set at the same time. -
Page 10: Year Limited Warranty
1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
