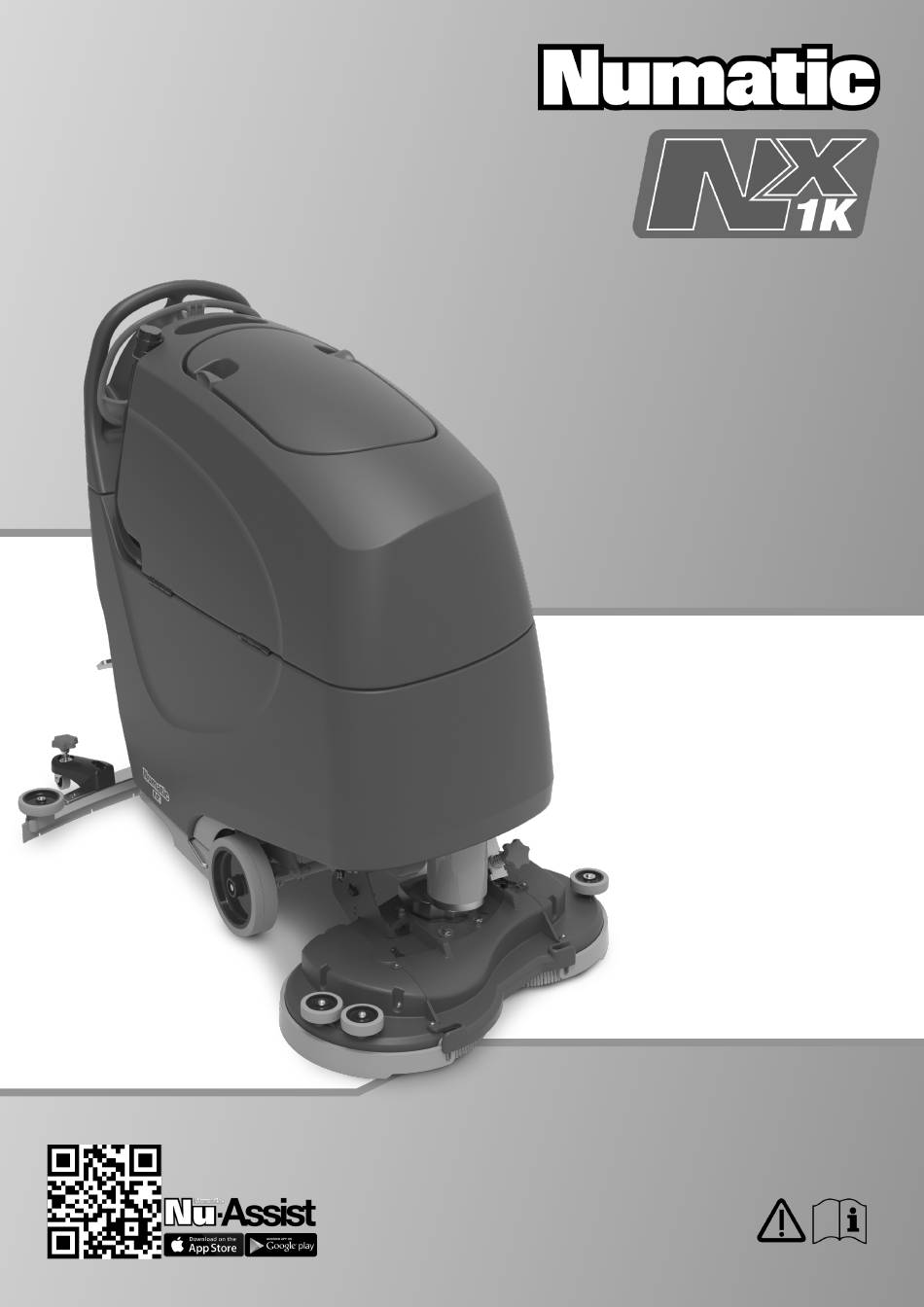

- Page 1 TBL8572/100T TBL8572/150T B AT T E RY S C R U B B E R D RY E R Original Instructions CAUTION, Read instructions before using the machine Keep for future reference numatic.com...
- Page 2 Index Machine Overview .........Pages 2-3 PLEASE READ Control Panel Overview .........Page 4 BEFORE COMMENCING Machine Set up Guide .........Page 5 OPERATION Fitting the Brush / Pad .........Page 6 After the removal of all the packaging, Adjusting Deck Pitch .........Page 6 carefully open and check the contents Fitting the Floor Tool .........Page 6...
- Page 3 Machine Overview TBL8572/100T = 2x batteries TBL8572/150T = 3x batteries...
- Page 4 Vacuum Pick Up On / Off Battery Charge Level Indicator Forward / Reverse Hours Meter Brush On / Off / Control Handle Traction Status Light / Green Light Error Status (Page 16) In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
- Page 5 20Amp 30Amp Numatic International Ltd recommends ONLY using 911948 NX1K LFP battery type Lithium Batteries provided with this machine. ENSURE THAT NO METAL OBJECTS COME INTO CONTACT WITH BATTERY TERMINALS WHILE THE BATTERIES ARE EXPOSED. Insert the Ignition key and switch the machine on.
- Page 6 Machine Set-up Guide ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF BEFORE MAKING ANY ADJUSTMENTS Fitting the Brush / Pad Note: Safety gloves are recommended for the changing of used brushes. 2 x 370mm Brush or a 2 x 360mm Pad on the TBL8572.
- Page 7 Machine Set-up Guide Fitting the Hose Guide The vacuum hose has a U-bend clip which creates a U-bend in the hose preventing water spillage when the vacuum is switched off. If you need to remove the U-bend clip for any reason always ensure it is refitted correctly before you resume operation. Note: DO NOT push the vacuum hose onto the floor tool with the floor tool in the raised position.
- Page 8 Machine Set-up Guide Fill Level Indicator The water level in the clean-water tank can be measured using the scale on the rear of the machine. The clean water bottom tank holds 85 litres. Note: always ensure that the waste water tank is empty before lifting. WHEN HANDLING AND MIXING CHEMICALS Always ensure that chemical manufacturer’s safety guidelines are followed.
- Page 9 Machine Operation Raising/Lowering the Floor Tool After preparing the floor (see previous section), we are now ready to set the controls to suit the cleaning conditions. Before any settings can be applied, ensure the brush deck is lowered. Move the floor tool lever to its lower position. Note: Do not drive the machine backwards with the floor tool in the lowered position, this could possibly damage the blades.
- Page 10 Machine Operation Brush Pressure / Load Adjustment The brush load lever is located to the right hand side of the machine. This option is for hard to clean patches, adding extra pressure to the brushes. NOTE: It is recommended this option is NOT used all the time and is for spot cleaning only. The run-time of the machine may decrease if the load on the brushes is increased.
- Page 11 Regular Maintenance ALWAYS ENSURE THAT THE MACHINE IS SWITCHED OFF PRIOR TO ANY MAINTENANCE USING THE MASTER CONTROL ON/OFF KEY. REMOVE THE KEY PRIOR TO ANY MAINTENANCE OPERATION. After use, empty waste water tank using emptying hose and flush out with clean water. Next remove floor tool vacuum hose and flush out with clean water. Next empty clean water tank, using emptying hose and again flush out with clean water.
- Page 12 Changing the Floor Tool Blades Always ensure that the machine is switched off prior to any maintenance. To clean the floor tool, remove securing-pin and pull-free from the holder. Rinse the floor tool assembly with clean water and refit. Periodically the floor tool blades should be examined and checked for wear and damage. The blade removal is easy. Simply start by removing the four retaining pins, turn the floor tool over and separate the blade carrier from the body. Peel away the blades from their locating lugs and examine or renew as required. Replacement is a reversal of the removal process. Floor Tool Overview 1.
- Page 13 Machine Charging Always ensure that the machine is switched off prior to charging. As the machine is used and the batteries are discharged, the meter lights will go out from right to left. The battery meter displays the charge level of the batteries; If the battery-charge level is allowed to discharge to the when fully charged, all meter lights are illuminated.
- Page 14 Charging Light Sequence Signal (LED) Meaning Red LED on First Phase (Constant Current Mode). Orange LED on Second Phase (Constant Voltage Mode). Third Phase (Constant Voltage Mode) Charge Complete. Green LED on However, after full re-charge, leaving the charger connected moves to float-charge mode to help to maintain a healthy balance between batteries. Cooling Fan Locked > 1 flash between pause. Over Voltage Protection / Output Short Circuit / Battery Reverse Polarity > 2 flashes between pause.
- Page 15 Replace fuse & reduce load (page 5) Handle safety fuse blown Replace fuse (or contact service engineer) Warning:- Do not fit a replacement fuse link having a higher rating than the value stated on the fuse label. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or Numatic Technical helpline +44 (0)1460 269268...
- Page 16 Traction Status Light / Green Light Error Status (Page 4) Contact Service Agent...
- Page 17 About the Machine Rating Label Company Name & Address Machine Description Supply Current / Voltage / Alternating Current / Frequency Charger Output Battery Voltage Noise Rating Hand Arm Vibration Weight (ready to use) Ingress Protection Rating Max Gradient QR Code WEEE Logo / Approvals Mark SKU / Part Machine yr/wk Serial number...
- Page 18 • Regularly examine the power cord for damage, such as cracking or ageing. If damage is found, replace the cord before further use. • Only replace the power cord with the correct Numatic approved replacement parts. • Ensure that the work area is clear of obstructions and / or people.
- Page 19 Remove separator and tanks. Unscrew battery strap fi xings and remove. Undo battery terminals and remove. Remove batteries. The batteries are to be disposed of safely, as according to local government guidelines. 10. Only use genuine Numatic replacement batteries. 11. Do not allow the batteries to become fully discharged; it may not be possible to re-charge them. Batteries should not be discharged below 22.5 volts with 10 amps fl owing. 12. Do not allow one battery to be discharged separately to the other.
- Page 20 25.6 V 50Ah / 1280 Wh 10.7 kg 315mm (L) x 132mm (W) x 185mm (H) For optimum performance Numatic International Ltd recommend the use of the following batteries in the Twintec machines. Schematic Diagram VAC MOTOR BRUSH MOTOR WATER PUMP...
- Page 21 518054, P.R. China Tel: 0086-755-83283710 0044-146-068600 www.numatic.co.uk | www.numatic.de | www.numatic.ch | www.numatic.fr www.numatic.nl | www.numatic.co.za | www.numatic.pt | www.numatic.es 1. DEFECTIVE BATTERIES If a customer wishes to return a battery to a supplier after removing from product, then collection of the battery must be arranged by the supplier; however, Faulty batteries must not be returned through the postal system or by courier.
- Page 22 • Do not use defective or deformed batteries. • Use only original Numatic specific appliances to charge and discharge batteries. STORAGE: • Good batteries should be stored in a protected area away from sources of direct heat and sunlight and should be kept dry.
- Page 23 Numatic specific chargers. Warning: The battery must only be charged by the Numatic Charger supplied with the product and under NO circumstances should an alternative non Numatic charger be used as there is a risk of severe damage and fire could result.
- Page 24 Check the mains cord regularly for any sign of damage. • Do not use damaged devices. • If the mains cord of the charger is damaged, it must be replaced by an original NUMATIC mains cord available from the manufacturer or service agent. 12. WARRANTY Lithium-Ion Battery Warranty Warranty: Commercial Use Batteries are warranted for (3 Years) as standard, providing all battery care rules are followed.
- Page 25 Notes...
- Page 28 Floor Tool Charging Lead Battery Fuse Pack Signed numatic.com Numatic International Limited (Head Offi ce) Chard, Somerset TA20 2GB, UNITED KINGDOM Tel: 01460 68600 numatic.com Numatic International GmbH Fränkische Straße 15-19, 30455 Hannover, DEUTSCHLAND Tel: +49 (0) 511 984 2160 numatic.de...
