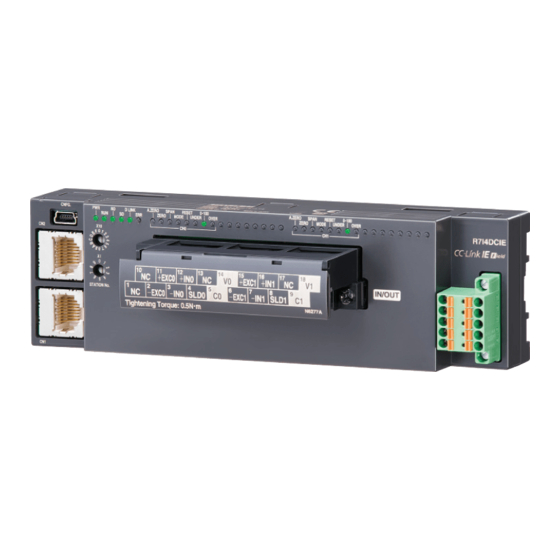

Cc-link i/o module (cc-link ie field network, strain gauge input, 2 points, isolated, screw terminal block)
Hide thumbs

Advertisement

Quick Links

Download this manual
OPERATING MANUAL
CC-Link I/O MODULE
(CC-Link IE Field network, strain gauge input, 2 points, isolated, screw terminal block)
BEFORE USE .... ........................................................................................................... 2
POINTS OF CAUTION ...................................................................................................... 2
COMPONENT IDENTIFICATION .......................................................................................... 3
PC CONFIGURATOR ....................................................................................................... 5
MOUNTING INSTRUCTIONS .............................................................................................. 6
TERMINAL CONNECTIONS ............................................................................................... 7
MOUNTING REQUIREMENTS unit: mm [inch] ........................................................................ 8
WIRING INSTRUCTIONS .................................................................................................. 8
CC-Link IE Field COMMUNICATION ..................................................................................... 8
TRANSMISSION DATA DESCRIPTIONS ................................................................................. 9
I/O DATA DESCRIPTIONS ............................................................................................... 10
SETTING (NORMAL MODE) ............................................................................................ 12
SETTING (SYNCHRONOUS COMMUNICATION MODE) ............................................................. 20
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
CONTENTS
R7I4DCIE-LC2-9
MODEL
EM-7766-A-B Rev.1 P. 1 / 22

Advertisement

loading
Need help?

Need help?

Do you have a question about the R7I4DCIE-LC2-9 and is the answer not in the manual?

Questions and answers

Related Manuals for MG R7I4DCIE-LC2-9

Summary of Contents for MG R7I4DCIE-LC2-9

  • Page 1 CC-Link IE Field COMMUNICATION ..................8 TRANSMISSION DATA DESCRIPTIONS ................. 9 I/O DATA DESCRIPTIONS ....................10 SETTING (NORMAL MODE) .................... 12 SETTING (SYNCHRONOUS COMMUNICATION MODE) ............. 20 EM-7766-A-B Rev.1 P. 1 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2 • The unit is designed to function as soon as power is sup- plied, however, a warm up for 10 minutes is required for satisfying complete performance described in the data sheet. EM-7766-A-B Rev.1 P. 2 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 3 ON at (input signal ≤ -1%) 0-100 Green ON at (-1% < input signal < 101%) OVER Green ON at (input signal ≥ 101%) EM-7766-A-B Rev.1 P. 3 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 4 Note: The numbers marked on the connector have no relationship to the pin number of the unit. Wire according to the instruction manual of the unit. EM-7766-A-B Rev.1 P. 4 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 5 SETTING RANGE DEFAULT SETTING Excitation 5V, 2.5V Lowpass filter 2Hz, 2kHz (1Hz)* 2kHz (1Hz)* *. Values in ( ) are for the option code: /F1. EM-7766-A-B Rev.1 P. 5 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 6 1) Push down the DIN rail mounter slider with tip of a mi- nus screwdriver. 2) Pull the lower of the unit. 3) Remove the upper hook of the unit from the DIN rail. EM-7766-A-B Rev.1 P. 6 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 7 -EXC1 SLD1 MONITOR OUTPUT 1 Regarding CN1 and CN2 of RJ-45 connector for CC-Link IE Field network, there is no restriction for connection order. EM-7766-A-B Rev.1 P. 7 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 8 Station type: Remote device station Link device: RX/RY 16 points, RWw/RWr 16 points NetWork No.: 1 to 239 (factory default: 1) Synchronous communication: Available EM-7766-A-B Rev.1 P. 8 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 9 Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Unused Remote READY Unused Unused Unused Unused Unused Unused Unused Unused Unused EM-7766-A-B Rev.1 P. 9 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 10 3) Set “1” to Span adjustment bit. When the adjustment is completed, SPAN LED turns on. 4) After checking the LED, set “0” to Span adjustment bit. EM-7766-A-B Rev.1 P. 10 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 11 1) Set “1” to Reset offset bit. When the reset is completed, RESET LED turns on. 2) After checking the LED, set “0” to Reset offset bit. EM-7766-A-B Rev.1 P. 11 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 12 “GX Works3”). ■ REGISTRATION OF PROFILE R7I4DCIE-LC2-9 supports CC-Link Family system profile (hereinafter called “CSP+”). CSP+ is downloadable at our web site or CC-Link Association Home page, https://www.cc-link.org. * It is not necessary to register CSP+. If you skip this procedure, start from [2. CONSTRUCTION OF SYSTEM].
  • Page 13 GX Works3 (Model: R7I4DCIE-LC2-9) 1) Connect Master station and Remote Device Station (model: R7I4DCIE-LC2-9) with Ethernet Cable. Make sure to turn off the power of each unit before wiring. CN1 and CN2 of modular jack RJ-45 for CC-Link IE Field Network have no limit of wiring connection order.
  • Page 14 4) In the following window, when [Module Label: Not use] is displayed in Module Setting, click [Setting Change] to open the option window, and change to [Use]. Click Select [Yes] for [Use Module Label] in [Operation Setting], and click [OK]. Click EM-7766-A-B Rev.1 P. 14 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 15 PLC configuration, select the module from [POU List] of the [Element Selection] window, and drag and drop it to the module configuration diagram. Drag & Drop 6) Double click [CC-Link IE TSN network module] to open the parameter setting window. EM-7766-A-B Rev.1 P. 15 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 16 7) Set Station Type to [Master Station], Network No. to 1 in [Required Settings]. 8) Click <Detailed Setting> of [Network Configuration Settings] in [Basic Settings] to display the [CC IE TSN Configuration] window EM-7766-A-B Rev.1 P. 16 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 17 * When CSP+ not registered, select [General CC IE TSN Module]. Click Drag & Drop 9) Click <Detailed Setting> of [Refresh Setting] to display the Refresh Setting window EM-7766-A-B Rev.1 P. 17 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 18 Assign link devices RX/RY/RWr/RWw to devices of the CPU unit, click [Apply] to close the window. Click 10) Click [Convert] ➞ [Convert] to execute conversion. Select EM-7766-A-B Rev.1 P. 18 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 19 11) Click [Write to PLC...] in [Online] on menu bar to open [Online Data Operation] window. Select Check necessary items, and click [Execute]. Click EM-7766-A-B Rev.1 P. 19 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 20 R7I4DCIE-LC2-9 SETTING (SYNCHRONOUS COMMUNICATION MODE) The R7I4DCIE-LC2-9 supports CC-Link IE Field Inter-module Synchronization function. Assuming that the project has been created in the previous section, the setup for synchronous communication mode is de- scribed below. Note: Refreshing must be exrcuted before and after the inter-module synchronous interrupt program(I44).
  • Page 21 Setting] then enter the setting value to [Fixed Scan Interval (Set in 0.05 ms Unit)]. Select Enter value 6) Click [OK] to close System Parameter window. Click EM-7766-A-B Rev.1 P. 21 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 22 Click [Apply] on [CC IE Field Configuration] window to close. Click Select Write to the sequencer according to the procedure described in the previous section 10) or later. EM-7766-A-B Rev.1 P. 22 / 22 MG CO., LTD. www.mgco.jp 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
