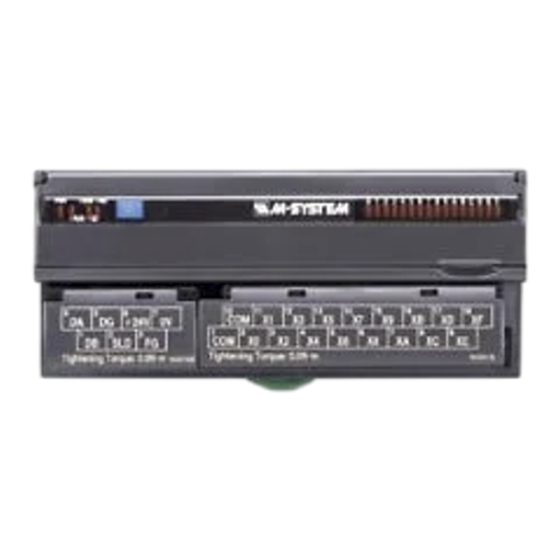

Ac current input module, 4 points(ethernet modbus/tcp; clamp-on current sensor clse use)

Advertisement

INSTRUCTION MANUAL
AC CURRENT INPUT MODULE, 4 points
(Ethernet Modbus/TCP; clamp-on current sensor CLSE use)
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
AC current input module ....................................................(1)
■ MODEL NO.
Confirm that the model number described on the product is
exactly what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
POINTS OF CAUTION
■ CONFORMITY WITH EU DIRECTIVES
• The actual installation environments such as panel con-
figurations, connected devices and connected wires may
affect the protection level of this unit when it is integrat-
ed in a panel system. The user may have to review the CE
requirements in regard to the whole system and employ
additional protective measures* to ensure CE conformity.
* For example, installation of noise filters and clamp fil-
ters for the power source, input and output connected
to the unit, etc.
■ POWER INPUT RATING & OPERATIONAL RANGE
• Locate the power input rating marked on the product and
confirm its operational range as indicated below:
24V DC rating: 24V ±10%, approx. 90mA
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the power
supply and input signal for safety.
• Before you remove the terminal block or mount it, make
sure to turn off the power supply and input signal for
safety.
• Do not set the switches on the module while the power
is supplied. The switches are used only for maintenance
without the power.
■ ENVIRONMENT
• Indoor use
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -10 to +55°C
(14 to 131°F) with relative humidity within 30 to 90% RH
in order to ensure adequate life span and operation.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
MODEL
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Be sure to close the terminal cover for safety.
■ SECURITY PRECAUTIONS
• In the network environment where this module is in-
stalled, to maintain the security of the system (availabil-
ity, integrity, confidentiality) against unauthorized access
from external devices via the network such as the Inter-
net, DoS attacks, and other cyber attacks, take measures
such as installing firewalls or VPNs.
• We will not be responsible for any issues arising from sys-
tem troubles caused by cyber attacks.
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.
R7E-CT4E
R7E-CT4E
EM-7807-R Rev.8
P. 1 / 7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R7E-CT4E and is the answer not in the manual?

Questions and answers

Summary of Contents for MG R7E-CT4E

  • Page 1 • Environmental temperature must be within -10 to +55°C (14 to 131°F) with relative humidity within 30 to 90% RH in order to ensure adequate life span and operation. MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 1 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 2: Component Identification

    AC current L3 • Input Range (SW1-5, 1-6, 1-7, 1-8) SW1-5 SW1-6 SW1-7 SW1-8 Input range CLSE-60 (*) CLSE-40 CLSE-20 CLSE-10 CLSE-05 CLSE-R5 PC Configurator setting MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 2 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 3 0 – 600 (0.1 sec.) 50 (0.1 sec.) ■ EXTENSION MODULE SETTING PARAMETER AVAILABLE RANGE DEFAULT SETTING Output Hold/Clear Output Hold Output Hold Output Clear MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 3 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 4: External Dimensions

    MFG. Co.,Ltd., Nichifu Co.,Ltd. INPUT 1 3.3 [.13] max Modbus/ RJ-45 CONNECTOR INPUT 2 mm [inch] INPUT 3 ■ Input Connection Example SOURCE CLAMP-ON SENSOR LOAD MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 4 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 5 Check Point 2: RUN Indicator LED A green light turns on at the RUN Indicator LED in normal data sending/receiving with an application. MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 5 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 6 ■ Diagnostic Subfunctions CODE NAME Return Query Data Loop back test Restart Comm. Option Return Diagnostic Register Change ASCII Input Delimiter Force Listen Only Mode MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 6 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
  • Page 7: Modbus I/O Assignments

    Unused Input range error (≥ 115%) 0 : Normal 1 : Error ADC error (no response from ADC) 0 : Normal 1 : Error MG CO., LTD. www.mgco.jp EM-7807-R Rev.8 P. 7 / 7 5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN...
