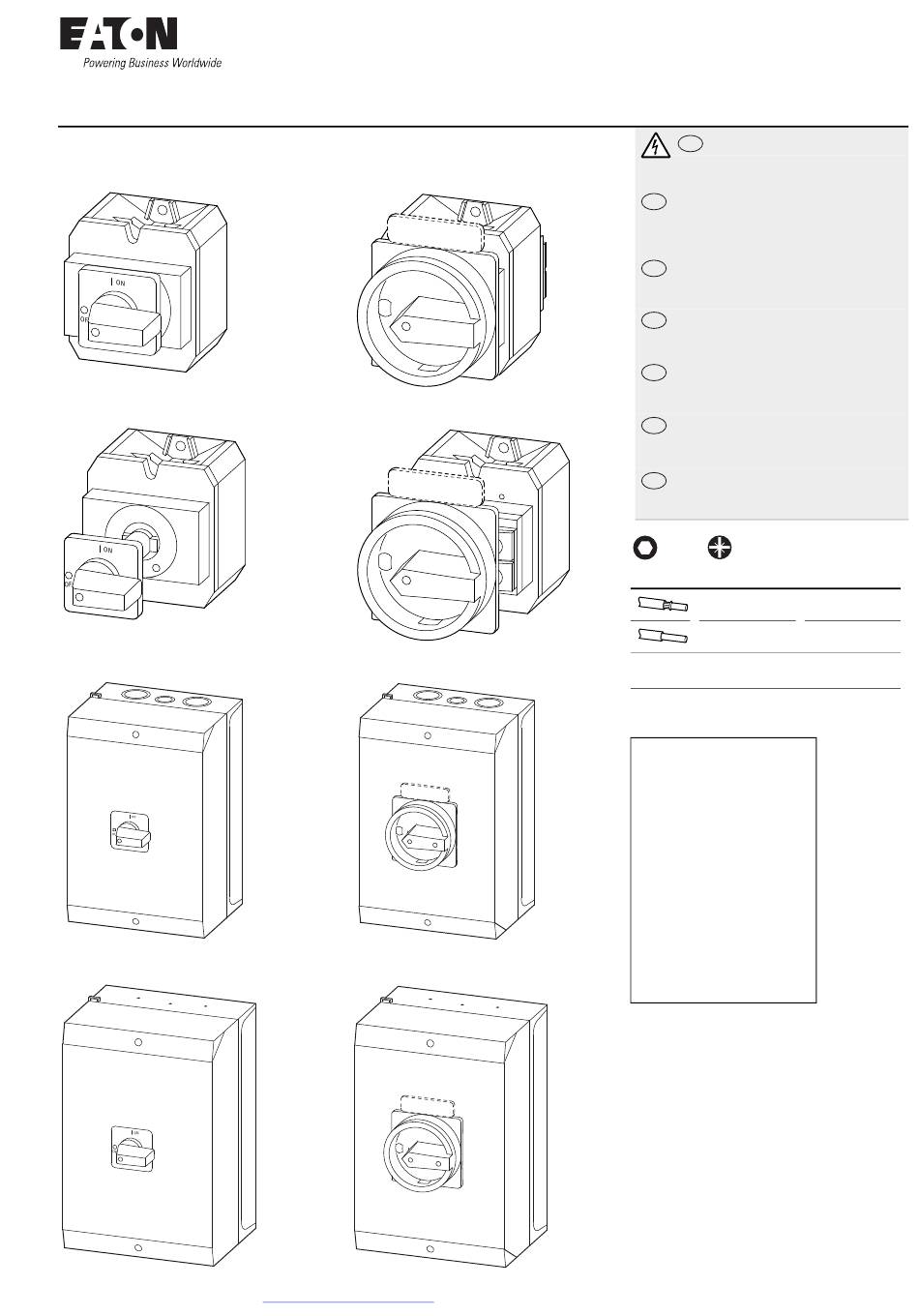

06/11 IL03801009Z
(AWA1150-1692, IL00802004E)
T5B..., CT4...
T5..., CT5...
T5(B).../E
CT4(5)...-DOK...
T5(B).../Z
CT4(5)...-PAK...
T5B.../I4, CT4...-I4K...
T5.../I5, CT5...-I5K...
CT4...-I4...U
Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
T5(B).../EA/SVB
CT4(5)...-DMC...
T5(B).../V/SVB
CT4(5)...-PMC...
T5B.../I4/SVB, CT4...-I4C...
T5.../I5/SVB, CT5...-I5C...,
CT4...-I4C...U
Instruction Leaflet
Montageanweisung
Notice d'installation
Instrucciones de montaje
Istruzioni per il montaggio
安装说明
安装说明
Инструкция по монтажу
Electric current! Danger to life!
en
Only skilled or instructed persons may carry out the
following operations.
Lebensgefahr durch elektrischen Strom!
de
Nur Elektrofachkräfte und elektrotechnisch unterwiesene
Personen dürfen die im Folgenden beschriebenen Arbeiten
ausführen.
Tension électrique dangereuse !
fr
Seules les personnes qualifiées et averties doivent
exécuter les travaux ci-après.
¡Corriente eléctrica! ¡Peligro de muerte!
es
El trabajo a continuación descrito debe ser realizado por
personas cualificadas y advertidas.
Tensione elettrica: Pericolo di morte!
it
Solo persone abilitate e qualificate possono eseguire le
operazioni di seguito riportate.
zh
触 触 电危险！
电危险！
只允许专业人员和受过专业训练的人员进行
下列工作。
Электрический ток! Опасно для жизни!
ru
Только специалисты или проинструктированные
лица могут выполнять следующие операции.
4 mm
Z5
2
1 x 1.5 - 25 mm
2
2 x 1.5 - 10 mm
2
1 x 2.5 - 35 mm
2
2 x 2.5 - 16 mm
UL-File: E36 332
UL
AWG 12/4
UL/CSA:
SUITABLE FOR USE AS
MOTORS BRANCH
CIRCUIT DISCONNECTING MEANS
Short Circuit Withstand
10 kA RMS SYM 600 V AC
Max Fuse
T5B,CT4 – 100 Class J
(C)T5 – 100 Class J
Standard Short Circuit
5 kA RMS SYM 600 V AC
Max Fuse
T5B,CT4 – 100 A
(C)T5 – 100 A
Switch or enclosure must be
padlockable if used as a
Motor Branch Circuit Disconnector
means.
4 Nm (35.5 lb- in)
4 Nm (35.5 lb- in)
4 Nm (35.5 lb- in)
1/4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Eaton T5 Series
Summary of Contents for Eaton T5 Series
- Page 1 T5B…/I4, CT4…-I4K… T5B…/I4/SVB, CT4…-I4C… Switch or enclosure must be T5…/I5, CT5…-I5K… T5…/I5/SVB, CT5…-I5C…, padlockable if used as a Motor Branch Circuit Disconnector means. CT4…-I4…U CT4…-I4C…U Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
- Page 2 (F 4) (F 0.197”) 4 x ST 3.9 x 19 - F - Z Fig. 3 4 x ST 3.9 x 19 - F - Z Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
- Page 3 CT41(2)… CT43(4)… CT51(2)… CT53(4)… [inch] T5B-1(2) T5B-3(4) T5-1(2) T5-3(4) CT41(2)… CT43(4)… CT51(2)… CT53(4)… 6.29 6.29 7.87 7.87 9.45 9.45 11.02 11.02 3.74 6.29 4.92 6.29 Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en)
- Page 4 – 包括 содержится 5 mm – 5.5 mm (0.2” - 0.22”) Emergency On Call Service: Local representative (http://www.eaton.com/moeller/aftersales) or +49 (0) 180 5 223822 (de, en) Eaton Industries GmbH, Hein-Moeller-Straße 7-11, 53115 Bonn, Germany 06/11 IL03801009Z GB91 Doku © 1999 by Eaton Industries GmbH, www.eaton.com/moeller/support...
