Summary of Contents for MX MULTIMASS

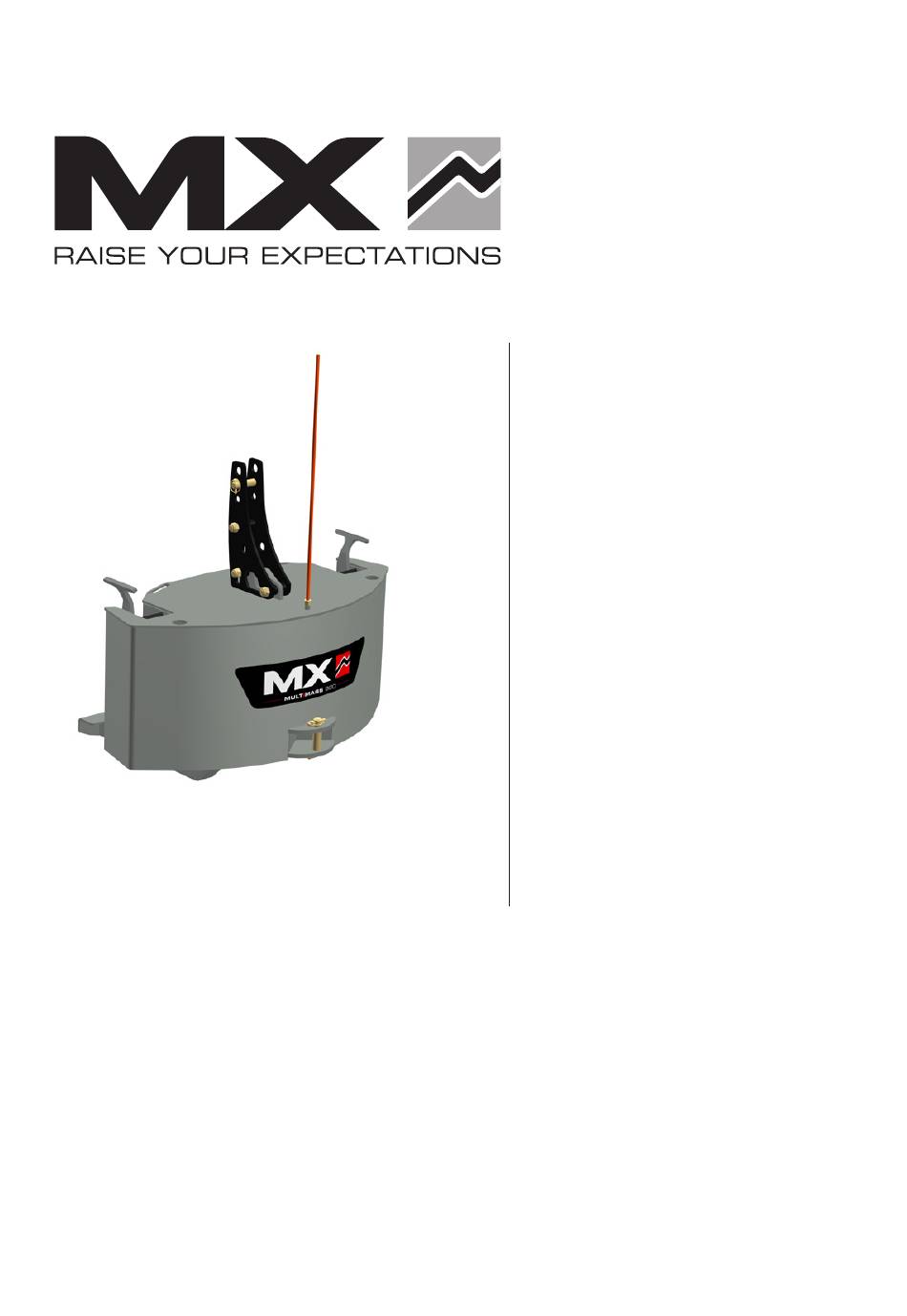

- Page 1 MULTIMASS MM600 MM900 MM1200 MM1500 User Manual Read carefully before use EN 367528 AD - 0922 Original manual...
- Page 2 This MULTIMASS user manual is a very important document, so please keep it for future reference as required. Make it available to any other users and hand it over it to any new owner should your MX MULTIMASS be sold on.
- Page 4 1. SAFETY RULES 1.1 Safety rules 1.2 Usage rules 1.3 Non-compliance with the safety and usage rules 2. SAFETY STICKERS 3. DESCRIPTION OF MULTIMASS RANGE 3.1 Multimass options 4. PREPARING THE WEIGHT 5. 3-POINT AND AUTOMATIC HITCHING 6. ADDITIONAL WEIGHT MM400AD 7.
- Page 6 — Use a 3-point hitch for road use (safety) and when using the towing clevis. — Once the MULTIMASS is hitched, check that the linkage's coupling yokes are locked. — After using the tractor, place the weight on the ground.
- Page 7 — Any modification to an MX supplied part shall invalidate the MX warranty on all its equipment. — Use only genuine MX spare parts. Do not modify your MX equipment yourself, or have it modified by anyone else, without requesting prior written authorisation from MX. Failure to comply with these rules may render your MX equipment dangerous.
- Page 8 2. Safety stickers Ensure that these stickers are clean and legible; replace them if they become damaged. Sticker Description Maximum horizontal tensile force 3.5 T. Maximum vertical tensile force 1 T. If removing the primary weight + additional weight, place the towing clevis pin in the stand position. Positions locked and unlocked of the MM400AD additional weight.
- Page 9 3. DESCRIPTION OF MULTIMASS RANGE Weight Model MM600 - MULTIMASS 600 kg MM900 - MULTIMASS 900 kg MM1200 - MULTIMASS 1200 kg MM1500 - MULTIMASS 1500 kg Subject to modification...
- Page 10 Multimass options * optional equipment. Option Model MM400AD - Additional weight 400 kg * MBX - MULTIBOX * Panel kit *...
- Page 11 4. PREPARING THE WEIGHT — Fit the indicator rod using a 22 mm spanner. — Install the coupling balls. — Adjust the height in accordance with the linkage. If hitching to a Cat. 4 tractor, — First unweld the guide plate in the base of the shoes Subject to modification...
- Page 12 — Remove the shells and install the Cat. 4 ball joints and Ø 54 mm spacers (not supplied). 5. 3-POINT AND AUTOMATIC HITCHING Choose the 3-point or automatic hitch, according to use: — short-term/frequent implement change = automatic (1). — long-term/on-road/towing = 3-point (2). CAUTION: Check that the pin (3) is correctly positioned.
- Page 13 — When 3-point hitching is used, if the automatic support makes contact with the arms when lifting, the bracket tilts forward to ensure full compatibility (4). 6. ADDITIONAL WEIGHT MM400AD 6.1.1 Hitching the additional weight MM400AD — Move the primary weight towards the additional weight. CAUTION: the pin must be on the primary weight (2).
- Page 14 — Lift the assembly. — Lock the additional weight. — Remove the parking supports from the additional weight. 6.1.2 Unhitching the additional weight Proceed as follows: — Position the parking supports (1), (2), (3). — Unlock the additional weight. — Put the additional weight + parking support assembly on firm and level ground.
- Page 15 6.1.3 Unhitching the primary + additional weight assembly CAUTION: When unhitching the primary + additional weight assembly, first place the towing clevis hitch pin in the stand position. NOTE: The additional weight can be lifted by the locking handle. Subject to modification...
- Page 16 — Maximum load: 250 kg. 7.1.1 Hitching the MULTIBOX to the weight — Remove the pin from the MULTIMASS (1). — Unscrew the indicator rod using a 22 mm spanner (2). — Use two people to place the MULTIBOX in position (3).
- Page 17 — Screw the indicator rod onto the MULTIBOX (6). CAUTION: Always place the weight + MULTIBOX assembly flat. The weight must be hitched at 3 points. Automatic hitching risks damaging the MULTIBOX (7). Subject to modification...
- Page 18 8. PANEL KIT The panel kit (1) adds bumper functionality to a MULTIMASS. NOTE: The PANEL KIT is compatible with the other MULTIMASS options (MULTIBOX, ADDITIONAL WEIGHT) — This kit is available for prepared weights (2) (from April 2022). — It is also available with fixing plates (3), for retrofitting on pre- 2022 weights.
- Page 19 8.1.1 Panel adjustment The MULTIBUMPER side panels are adjustable, without tools, according to the tractor's width: — Remove the side panel clips and pins (1) (2) — Slide the panel to the required length (3) and/or depth (4). — Once the panel is adjusted, replace the clips and pins (1) (2) to secure it.
- Page 20 — Open the 7-pin socket and connect the extension cable to the tractor’s electrical system. 8.1.3 Anti-vibration shear bolt — The PANEL KIT is fitted with an anti-vibration bolt to prevent vibration and unwanted noise (1). The bolt must butt against the panel when adjusting.
- Page 21 9. Counterweight The stability of the tractor-loader unit can only be ensured with a counterweight installed on the rear of the tractor. This should ensure that 20% of the gross weight (tractor, loader, implement, maximum load and counterweight) bears on the rear axle of the tractor for optimum working safety.
- Page 22 10. Technical specifications NOTE: The width of the stops is designed for tractors with between-the-tyres width of at least 1,000 mm. Check that the tyres do not interfere with the stops. MM600 MM900 MM1200 MM1500 MM400AD Weight 600 kg 900 kg 1 200 kg 1 500 kg 400 kg...
- Page 23 DECLARATION OF CONFORMITY The manufacturer: M-extend France SAS Registered office: 19, Rue de Rennes, 35690 Acigné (France). Registered with the RCS of Rennes under number 639 200 260. Hereby declares that the material : Front loader T406 or T408 or T408+ or T410 or T410+ or T412 or T412+ or T414 or T417 or T418 or TX420 or TX425 or TX430 Front loader U403 or U404 or U405 or U406 or U406+ or U407 or U408 or U408+ or U409 or U410 or U410+ or U412 or U412+ or U414...
- Page 28 M-extend France SAS 19, rue de Rennes B.P. 83221 FR-35690 ACIGNÉ Email : contact@m-x.eu Web : www.m-x.eu...
