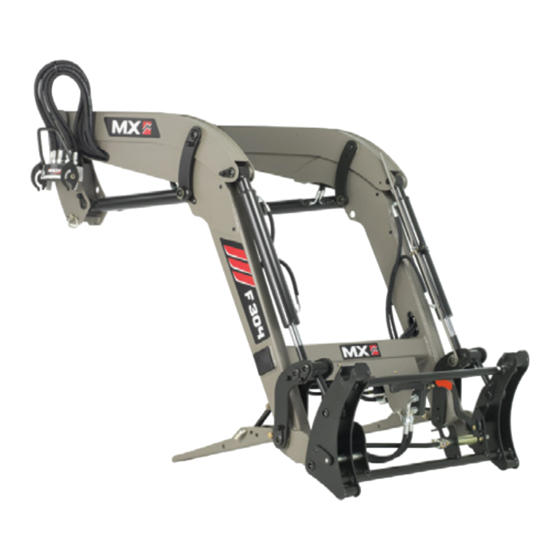

- Page 1 LOADER MX F303 MX F304 User Manual Read carefully before using EN 368183 AG - 0622 Translation of the original manual...
- Page 3 We thank you for placing your trust in us and hope that you will find your MX loader satisfactory in every way. By taking a few minutes to read this manual, you will be able to obtain the best results from your MX loader to the full, prolong its service life and ensure safe operation.
-
Page 5: Table Of Contents
5. CONTROL 5.1 Control using the tractor's control valves 5.2 Control with the MX control valve 5.3 Control with MX PROPILOT control valve 5.4 Control with MX e-PILOT S control valves 6. LOADER UNHITCHING 7. LOADER HITCHING 8. IMPLEMENT UNHITCHING 8.1 Implement carrier with manual unlocking... - Page 7 The loader is a complex machine. The operator must read this manual before using the loader for the first time. Familiarise yourself with: — The safety instructions. — Hitching and unhitching the loader. — Hitching and unhitching the implements. — Full use of the controls.
-
Page 8: Safety Rules
— For full use of the MX loader, the tractor must be fitted with a structure to protect against falling objects. If this is not the case, there are limits on the use of the MX loader (see the "LOADER USE LIMITS" section). CAUTION: the protective fitting must be in active position while working. -
Page 9: Ppe Table (Personal Protective Equipment)
If the tractor is not fitted with a structure protecting against falling loads, the driver is exposed to constant risk when handling loads. If the tractor is fitted with a roll cage only, the loader must be equipped with a parallelogram. Reminder: only implements recommended by the MX loader manufacturer may be used. Subject to modification... -
Page 10: Non-Compliance With Instructions For Safety And Use
MX on the MX loader, will render the MX guarantee on all supplied items null and void. — Use only genuine MX spare parts. Do not carry out any modifications yourself or have anyone else do so on your MX loader and its implements (mechanical, electrical, hydraulic or pneumatic specifications) without seeking prior approval in writing from MX. -
Page 11: Safety Stickers
2. Safety stickers Safety stickers are affixed to loaders. Ensure that these stickers are clean and legible; replace them if they become damaged. Familiarise yourself with the safety instructions in the user manual before using or working on the loader. Follow the loader hitching and unhitching procedure given in the user manual. Use the anchoring points when handling the loader. -
Page 12: Identification Plate
3. Identification plate The identification plate is located inside the loader's right arm. The serial number and loader model shown on this plate must be quoted in any request for spare parts information or technical assistance. Subject to modification... -
Page 13: Counterweight
4. Counterweight The stability of the tractor-loader unit can only be ensured with a counterweight installed on the rear of the tractor. This should ensure that 20% of the gross weight (tractor, loader, implement, maximum load and counterweight) bears on the rear axle of the tractor for optimum working safety. -
Page 14: Control
Refer to the user manual for the tractor. 5.1.1 Front/rear control selector (optional) From the tractor's original joystick, the user in the cab controls either the MX loader or the rear couplings. Control with the MX control valve 5.2.1 Handle setting * To ensure comfortable control of the loader, the handle's position can be adjusted. - Page 15 5.3.1 Safety To prevent any accidental movement of the loader, the PROPILOT monolever can be locked. Move the unlocking lever (1). — (A): unlocked position. — (B): locked position. 5.3.2 Movements 1st function: along the “Y” axis — Forward = loader lowering (Double-action hydraulic ram operation).
-
Page 16: Control With Mx E-Pilot S Control Valves
Control with MX e-PILOT S control valves See separate instructions for e-PILOT S. 6. Loader unhitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. - Page 17 — Remove the locking pins from the frame and put them in the available holes. — Lower in double action to retract the lifting rams. — Position the implement on the ground, slightly dumped (approx. 20°). — Crowd slightly to set down the parking stands. Subject to modification...
- Page 18 — Crowd slightly by moving forwards to release the bracket frames. — Apply the hand brake. Stop the engine. NOTE: if the the tractor has an original control valve system with Mach System 7 couplings, decompress the 3rd function hydraulic circuit as well.
- Page 19 — Disconnect the hydraulics and the electrics. Loader without MACH System: - Close the valve and disconnect the hydraulic couplings. - Fit the (clean) protective caps on the male and female couplings and stow the hoses on the loader. — Reverse the tractor slowly, to clear the loader from the bracket. —...
-
Page 20: Loader Hitching
7. Loader hitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. Watch the unhitching/hitching video at www.m-x.eu — Advance the tractor slowly so that the bracket is approx. 5 cm behind the frames. - Page 21 — Dump the implement so as to lift the front of the loader: by pivoting, the frames engage with the bracket yokes. — Lift the loader 0.3 m from the ground. — Lock the loader frame onto the bracket with the pins. CAUTION: Ensure that the pins are locked using the safety catches (1).
-
Page 22: Implement Unhitching
8. Implement unhitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. Implement carrier with manual unlocking — Choose a level and solid surface. —... -
Page 23: Fast-Lock Implement Carrier
— Pull the lever towards you until it stays engaged. — Set the implement onto the ground, lightly dumping to release the implement carrier from the implement. FAST-LOCK implement carrier — Lift the loader to clear the implement from the ground. —... -
Page 24: Implement Hitching
9. Implement hitching This operation must be carried out by the driver, who must exit the cab and ensure all manoeuvres are prohibited while working on the loader. Implement carrier frame with manual locking — Ensure that the unlocking lever is in the hitching position (lever to the rear). -
Page 25: Fast-Lock Implement Carrier
— Ensure that the male and female couplings are clean before connection. Clean them if necessary. — Connect the hoses for implements with hydraulic functions. FAST-LOCK implement carrier — “Open” position, to allow space for the implement parts. — Align the loader with the implement, —... -
Page 26: Models Of Implement Carrier Frames
10.1 MX implement carrier frame 10.2 EURO implement carrier frame 10.3 MX/EURO implement carrier frame To switch from the MX position (1) to the Euro position (2), — Remove the pins, — Tilt the hitching shoes downwards, — Check that the hitching shoes are held in position by the spring rods, —... -
Page 27: Mx/Faucheux-Blanc Implement Carrier Frame
10.4 MX/Faucheux-Blanc implement carrier frame To switch from MX position (1) to the Faucheux-Blanc position (2), — Remove the hitching shoes from their storage position, — Fit them in the hitching position and add the 4 fastening pins, — Fit the clip pins on the fastening pins. -
Page 28: Fast-Lock System
12. FAST-LOCK System The FAST-LOCK System (optional) on the implement carrier frame allows implements without hydraulic or electrical functions to be hitched and unhitched from the cab. Locked position (1). Unlocked position (2). Subject to modification... -
Page 29: Shock Eliminator System
13. SHOCK ELIMINATOR System Shocks are eliminated during movement or when stopping the loader suddenly when lowering (optional). This system softens impacts on the tractor and jolting in the cab. The Shock Eliminator can be isolated using the valve (1). NOTE: The Shock Eliminator can be activated or deactivated directly from the cab (electrical isolation option). -
Page 30: Safety When Lifting And Dumping
14. Safety when lifting and dumping In compliance with standard EN 12525 + A2 2010, it can be disengaged for working when no one is near the load. The movements can then be carried out, with no loss of power or speed of execution. Uniquely, this equipment is compatible with the Shock Eliminator and the notched floating position. -
Page 31: Use Of The Lifting And Dumping Safety Device
14.2 Use of the lifting and dumping safety device The hydraulic circuit of the lifting and dumping rams is fitted with a safety device (1) and (2). By default, the safety device is activated. When the user presses the button in the cab (3) (secure button), the safety device is deactivated and the red indicator lights are illuminated on: —... -
Page 32: Maintenance
15. Maintenance Drain the tractor's hydraulic circuit regularly and change the filters in accordance with the manufacturer's recommendation. Contaminated oil ceases to lubricate, causing wear to all the hydraulic components (pumps, control valves, rams). Even clear oil may be spent. Maintenance operations must be performed by competent persons, authorised by the dealer. - Page 33 Lubricate every 10 hours and after each wash (water drives grease out), particularly after using a pressure washer. See the lubrication points opposite. Recommended type of grease for maintenance: NLGI 2 When using a pressure washer, do not direct the jet of water onto the electric components.
-
Page 34: Directions For Use
16. Directions for use — Each implement has been designed for a specific use and has its own resistance limits. — Land clearing and stump pulling are prohibited. This work must be done with specialized machinery and is not appropriate for the agricultural loader. -
Page 35: Recycling Mx Products
17. Recycling MX products Hydraulic system — At the end of their service life, MX products must be drained of hydraulic oil by an authorised service technician. — The hydraulic hoses must be removed before the equipment can be recycled. -
Page 36: Safety Lift Ram Stop On Loader
18. SAFETY LIFT RAM STOP ON LOADER The lift ram stop must remain permanently attached to the loader. Install the lift ram safety stop before carrying out any work or maintenance operation under the raised loader arms. Failure to comply could result in death or serious injury. Only supplied in case of specific local safety regulations (Code of Practice, …). -
Page 37: Technical Specifications
Compliance plate. WARNING Do not exceed Rated Operating Load (ROL). TO AVOID SERIOUS INJURY OR DEATH CAUSED BY FALLING LOADS: • Load on raised bucket or fork can fall or roll back onto oprator causing serious injury or death. • Use approved clamping and/or guard attachments for handling large, loose or shiftable loads such as bales. - Page 38 F303 F304 Mechanical parallelogram Length (A) 2.05 m 2.05 m Width (B) 1.15 m 1.20 m 1.55 m 1.65 m Height (C) 375 kg 422 kg Min. weight (with no option) Max. height at implement pivot* 3.20 m 3.20 m Max.
- Page 39 DECLARATION OF CONFORMITY The manufacturer: M-extend France SAS Registered office: 19, Rue de Rennes, 35690 Acigné (France). Registered with the RCS of Rennes under number 639 200 260. Hereby declares that the material : Front loader T406 or T408 or T408+ or T410 or T410+ or T412 or T412+ or T414 or T417 or T418 or TX420 or TX425 or TX430 Front loader U403 or U404 or U405 or U406 or U406+ or U407 or U408 or U408+ or U409 or U410 or U410+ or U412 or U412+ or U414...
- Page 44 M-extend France SAS 19, rue de Rennes B.P. 83221 FR-35690 ACIGNÉ Email : contact@m-x.eu Web : www.m-x.eu...
